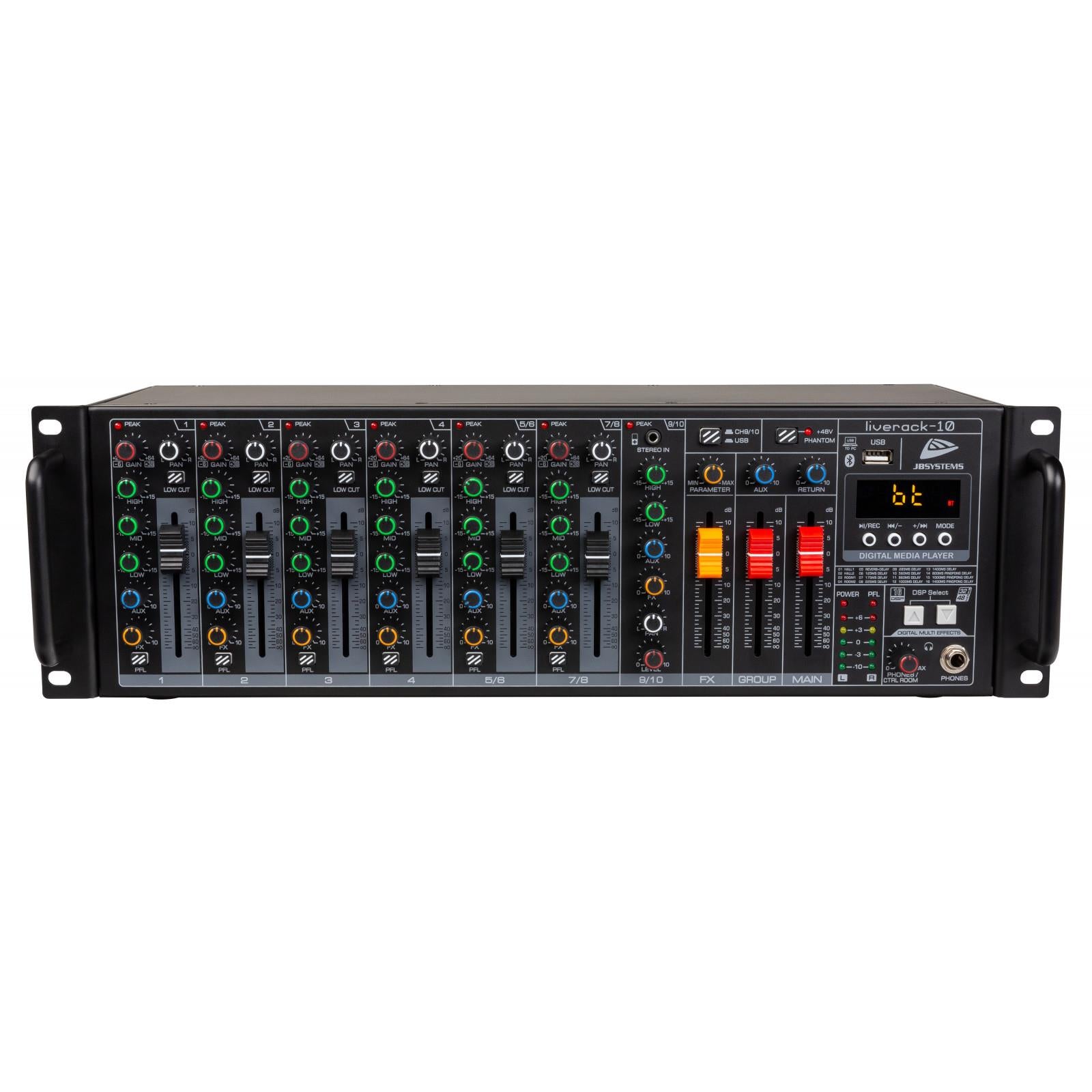

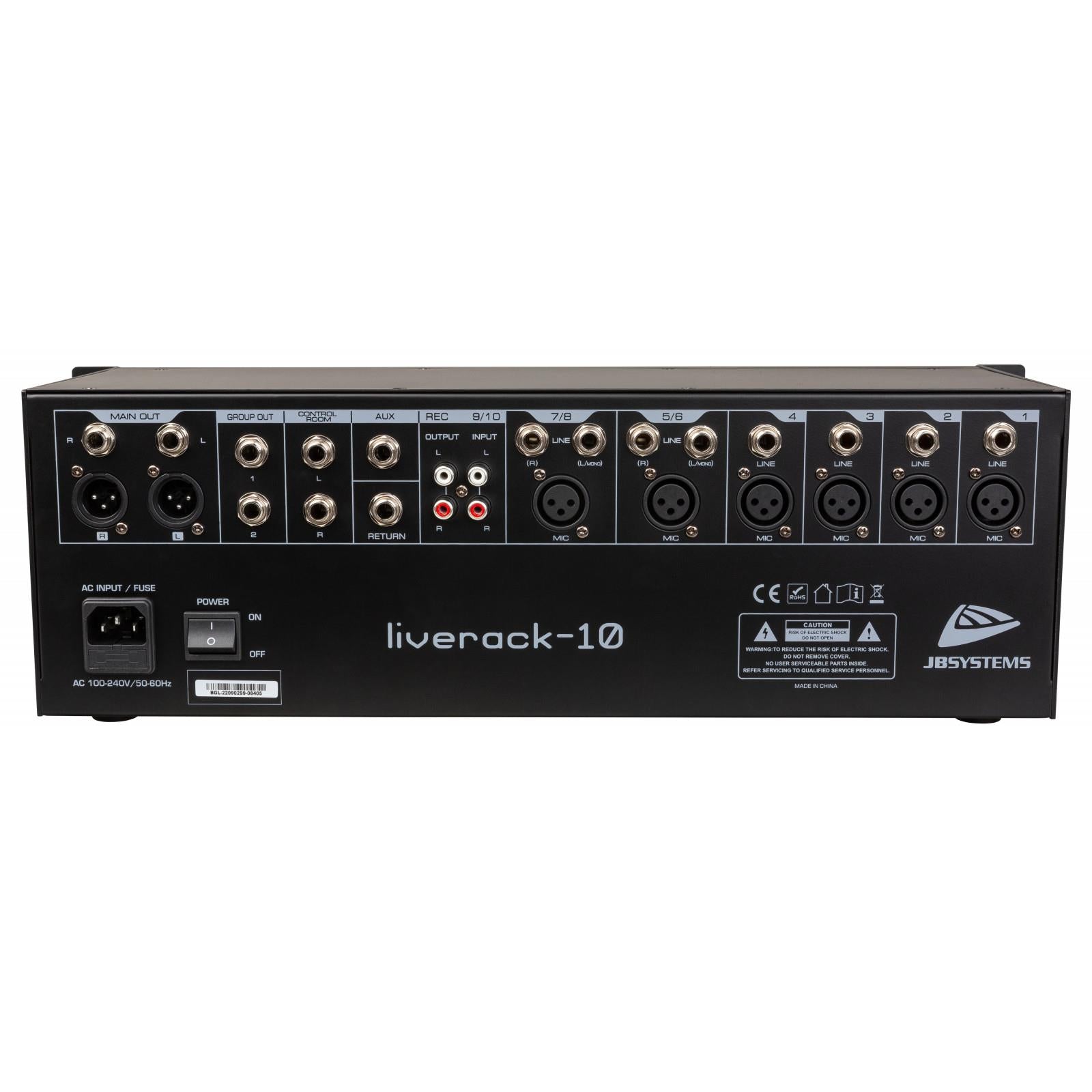

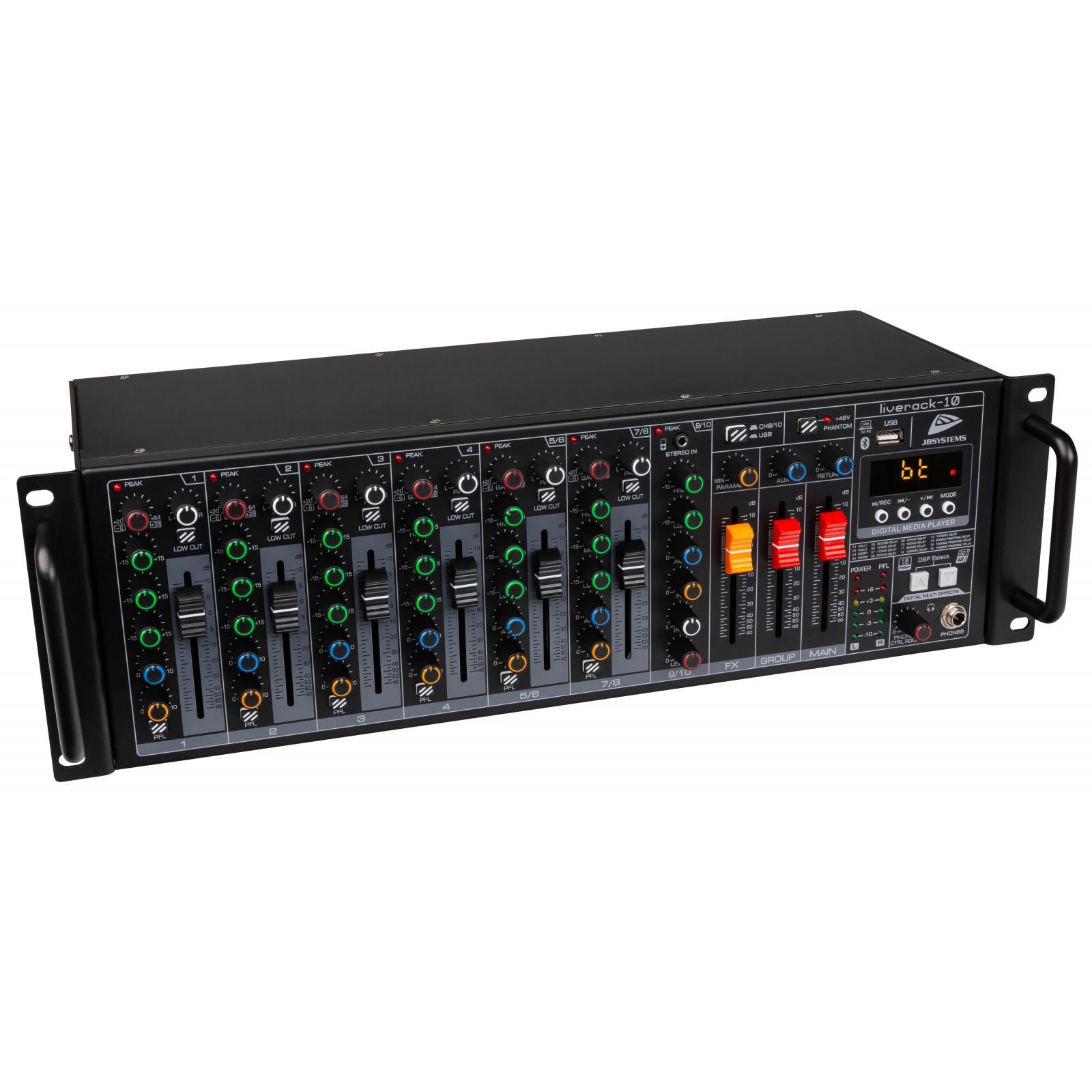

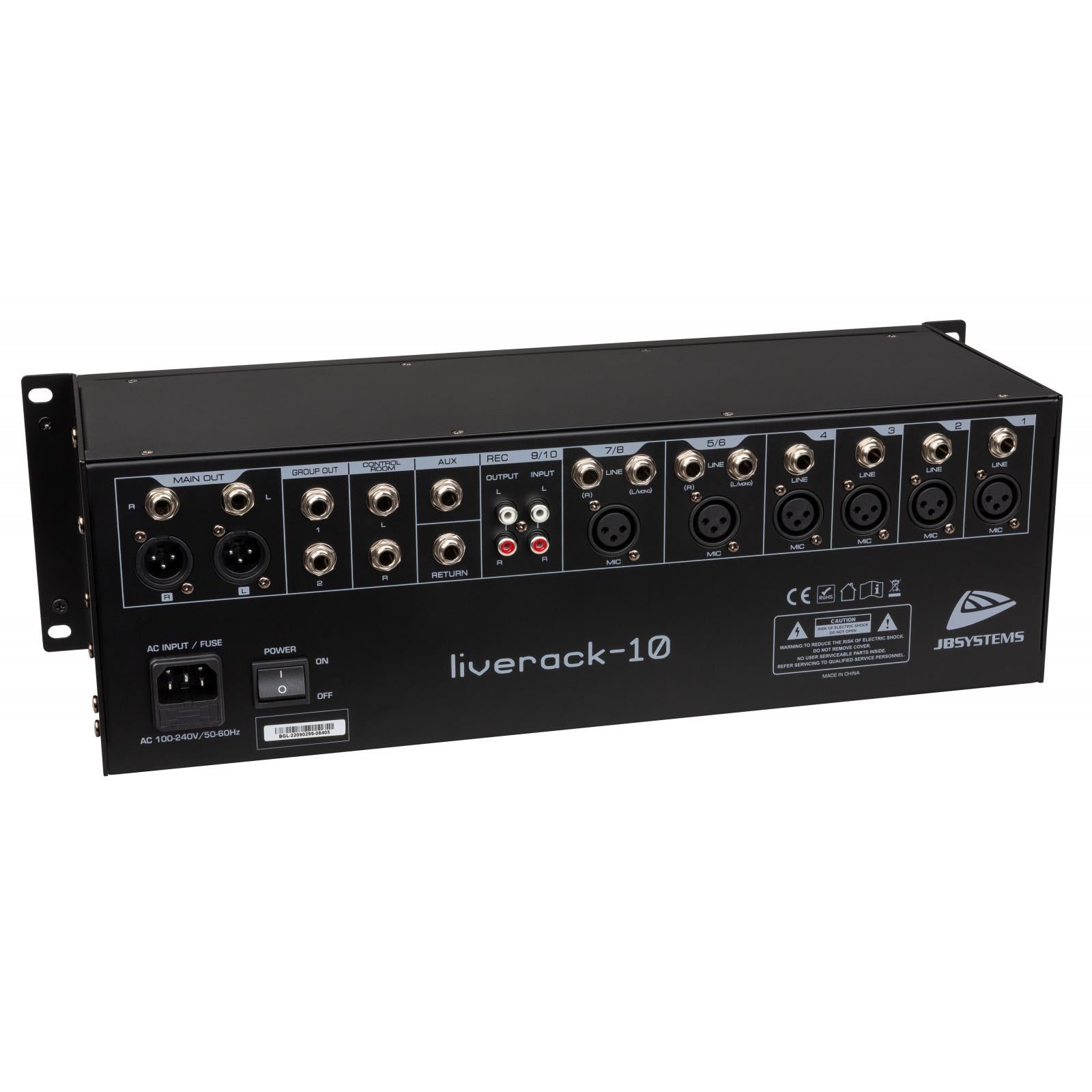

JB Systems LIVERACK-10 Rack PA Mixer 19” 10 Inputs / 7 Channels

Description:

Multi-purpose PA mixer in a handy 19” Rack format.
10 inputs on 7 channels (4 mic/line, 2 mic/stereo line, 1 player/stereo in/usb).
The USB connector is Bidirectional (for mono recording or stereo playback via PC/Mac).
Internal WMA, WAV, FLAC, APE and MP3 media player for USB memory sticks.
The media player can also be used as a mono mp3 recorder (128kbps).
Integrated Bluetooth receiver.
Internal 32bit DSP-effect unit with 16 effects + separate parameter control
Input control on all the channels:Gain (not on input 9-10/media player)
Pan
Low Cut switch (not on input 9-10/media player)
Treble, mid, bass (Treble, bass on input 9-10/media player)
Aux send (Post Fader)
Effect send
Channel level
PFL button (not on input 9-10/media player)
General 48V Phantom Power switch.
1 Master + 1 Group output with individual level control.
Aux Send output + Return input with individual level control.
Headphones + control room outputs with level control.

Specifications:

General : Dimensions (cm) 48(W) x 20(D) x 15(H)
General : Weight (kg) 4.14
General : Powerinput AC 100 - 240V, 50/60Hz
General : Energy Label No
General : Power consumption W 25
General : Color black
General : Display No
General : Fixation 19" rack mountable
General : RU No
Audio : min. frequency (Hz) 20
Audio : max. frequency (Hz) 20000
Audio : supported audio formats APE, FLAC, MP3, WAV, WMA
Audio : supported audio media USB
Audio : functions equalizer, sound effects
Connections : input 3 pin XLR, rca, jack, usb, bluetooth
Connections : output 3 pin XLR, rca, jack
Brand JB SYSTEMS
EANCode 5420025684057
