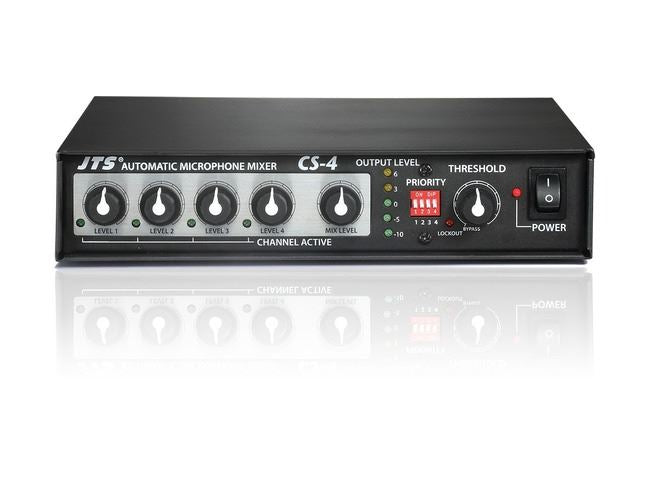

JTS CS-4 Automatic 4 Channel Microphone Mixer

Description
Automatic Microphone Mixer The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination. The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms

Features
The CS series microphone automatic mixers provide great convenience to sound reinforcement installation with any size and any combination.
The outstanding performance enables effective managing of multi-microphone installations including corporate boardrooms, conference rooms, government builds, houses of worship, classrooms

Specification
Frequency response:35~20,000Hz �2dB
Net Dimension (WxHxD):212 x 44 x 212mm
Net Weight:1.41kg
Power Consumption:4.6W
S/N Ratio:>70dBm
Power Supply:16VDC, 100mA (The attached adapter, 12V, 600mA, isn�_t full-loaded, so it can provide enough voltage +16VDC to the Automatic mixer.)
Input Type:XLR
Mic Input:4.7KΩ
Line Input:20kΩ
Output Type:XLR
Mic Output:300Ω
Line Output:200Ω
Maximum Output Level:>+19 dB
Maximum Gain:≥70dBm
Mic/Line Attenuation:-50dB
Phantom Power:+12V
Pad:-10dB
Mic Attenuation:-10dB, -15dB, -20dB
Output Attenuation:-50dB
Voltage Output:+4VDC�0.3V
