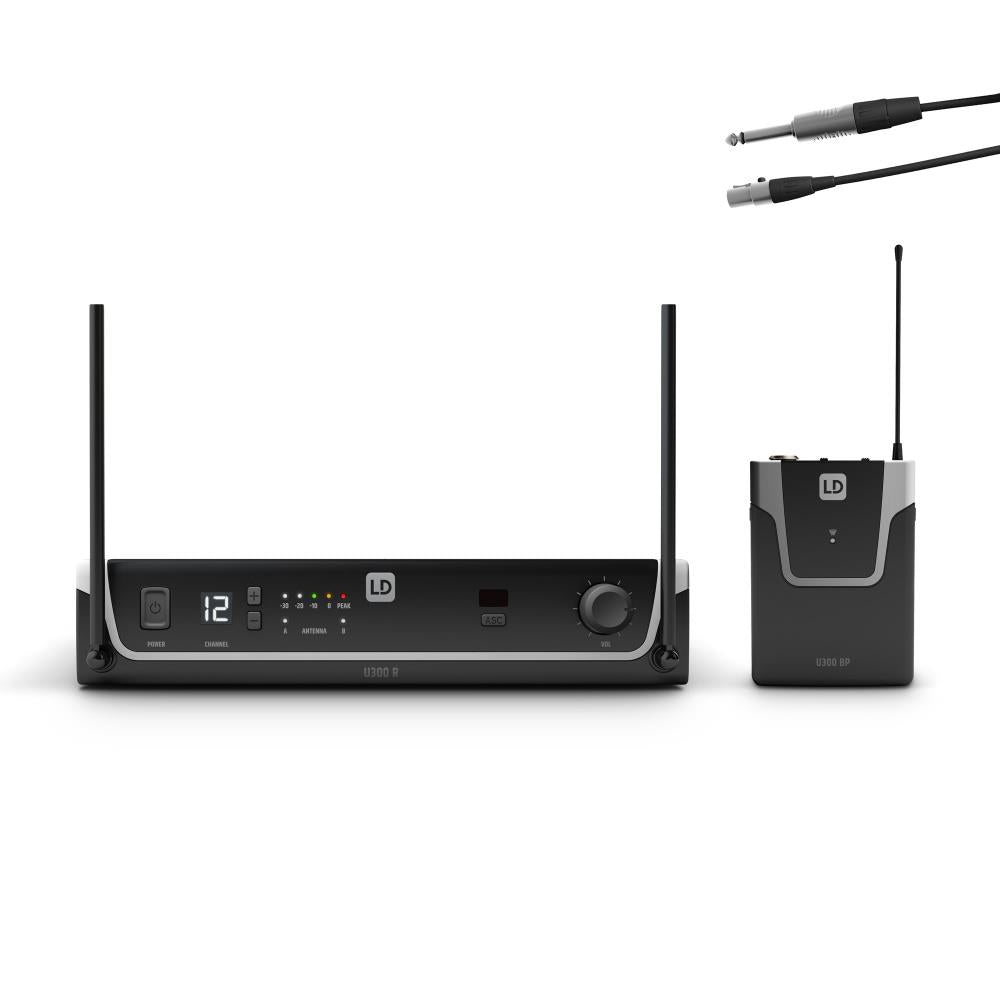

LDU308BPG Wireless Microphone Bodypack and Guitar Cable - 823 - 832 MHz + 863 - 865 MHz

Description:

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

Specifications:
General
Product type Wireless Microphone Systems
Type Set
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Weight 0,83 kg
Items in this set

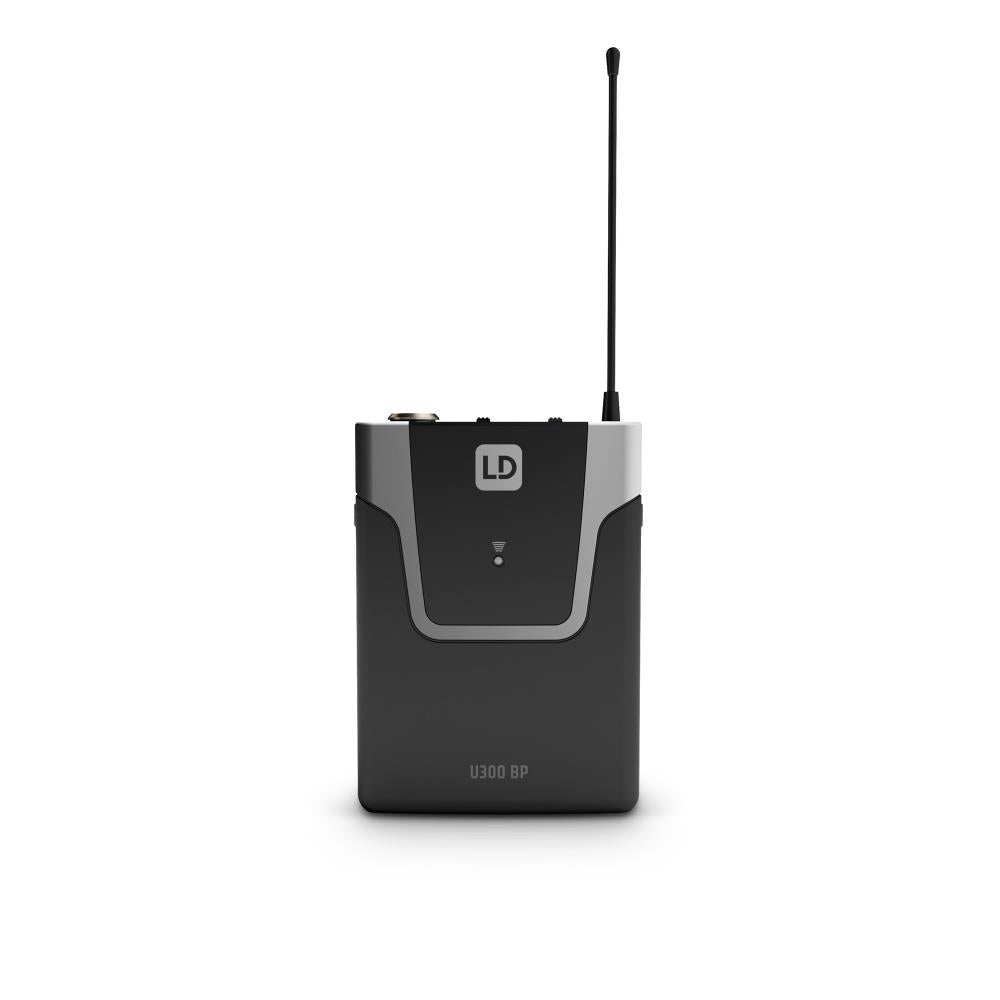

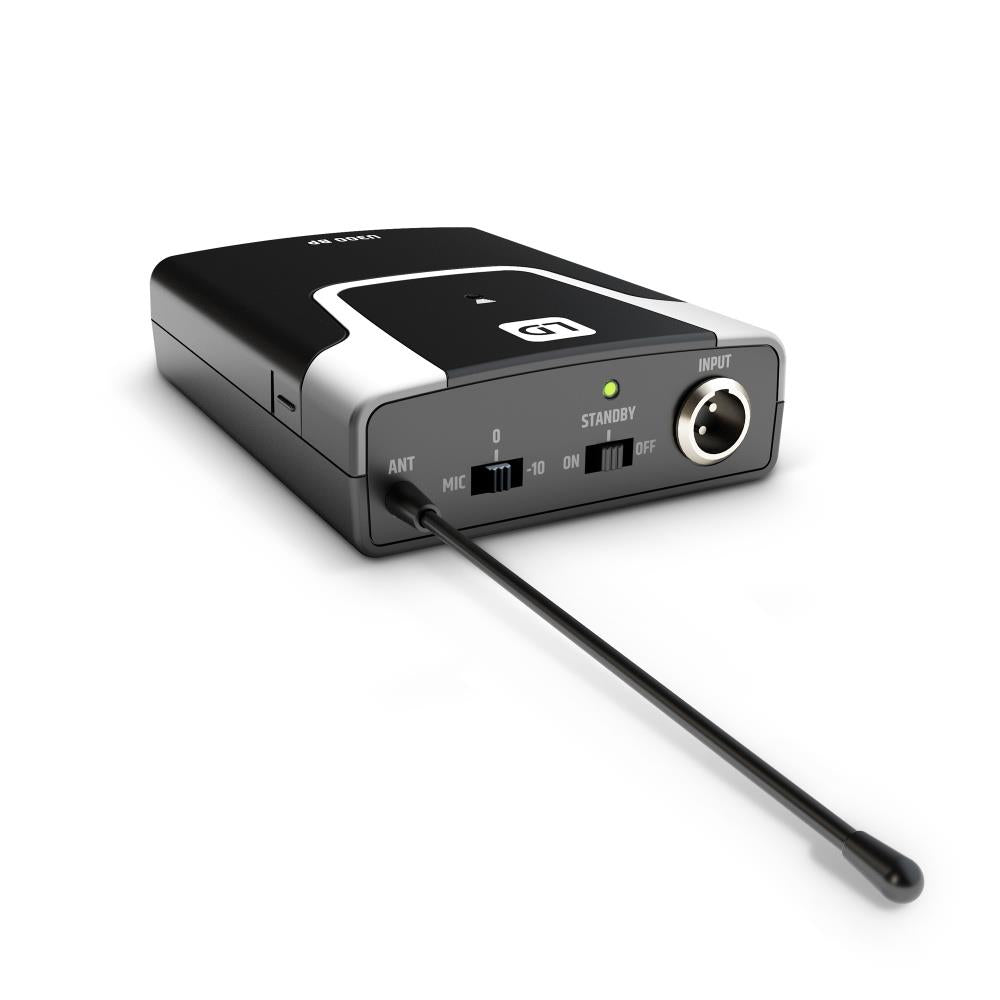

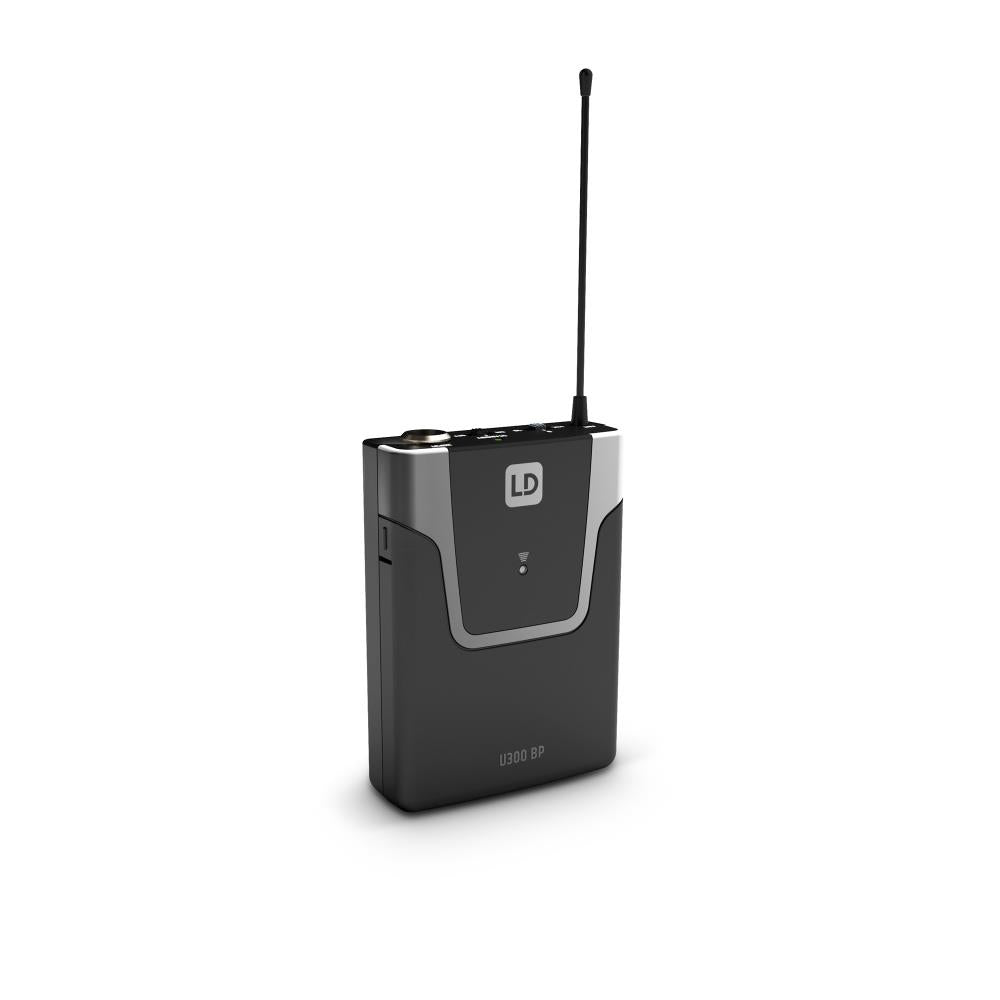

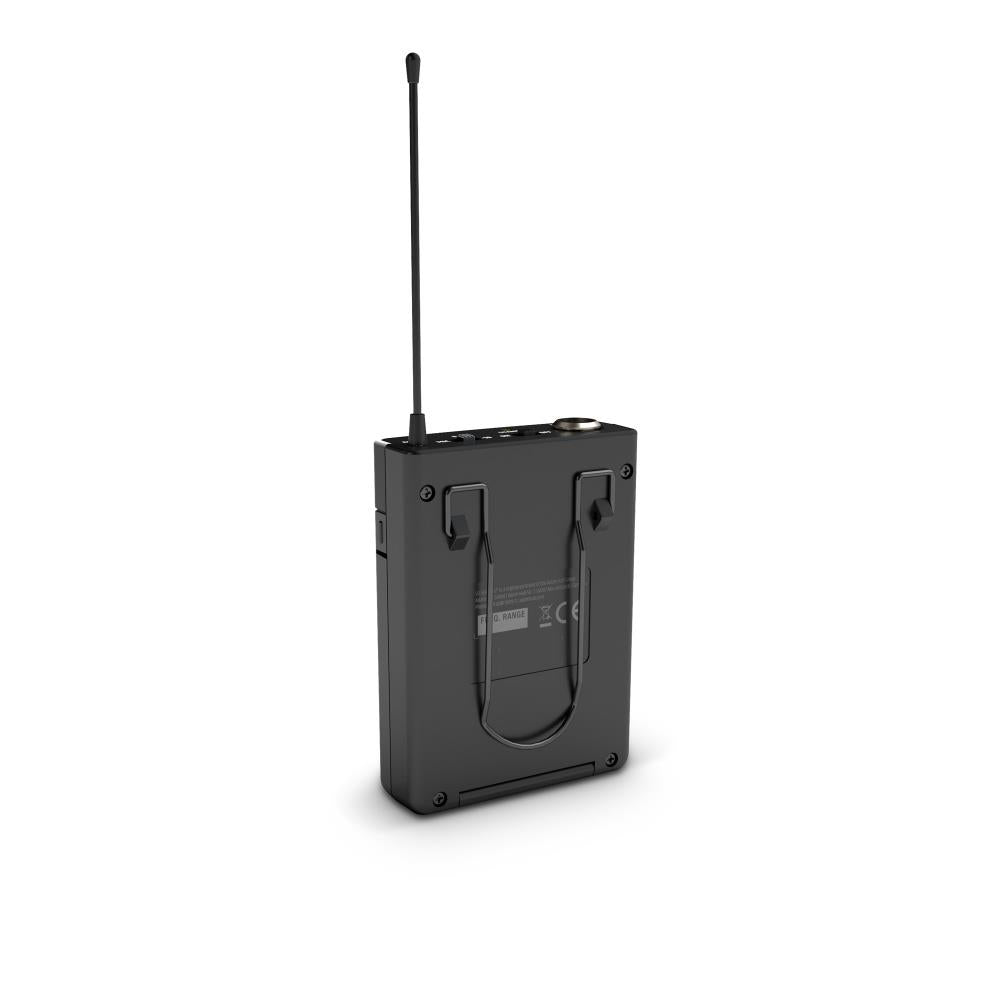

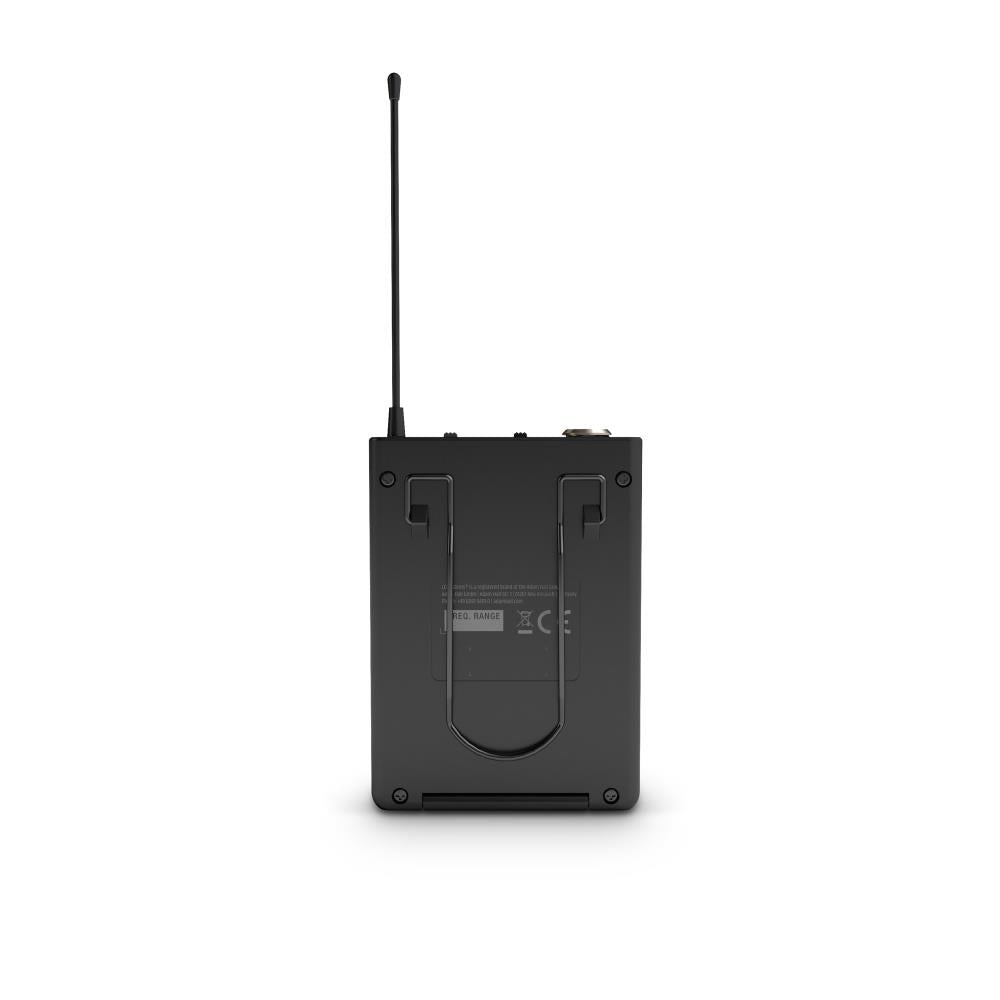

LD Systems U308 BP Bodypack transmitter
Product type Wireless Microphone

System Accessories
Type Bodypack
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Channels 12
Weight 0,085 kg
Groups 1
Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response 25 - 16,000
Signal-to-noise ratio 104 dB
Rated HF output power 10 mW
Controls Gain (3-way switch), Power On/Off
Indicators ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage 2 x AA batteries
Operating time >10 h
Width 65 mm
Height 91 mm
Depth 25 mm
Other features Belt clip, IR frequency synchronisation, Pilot tone

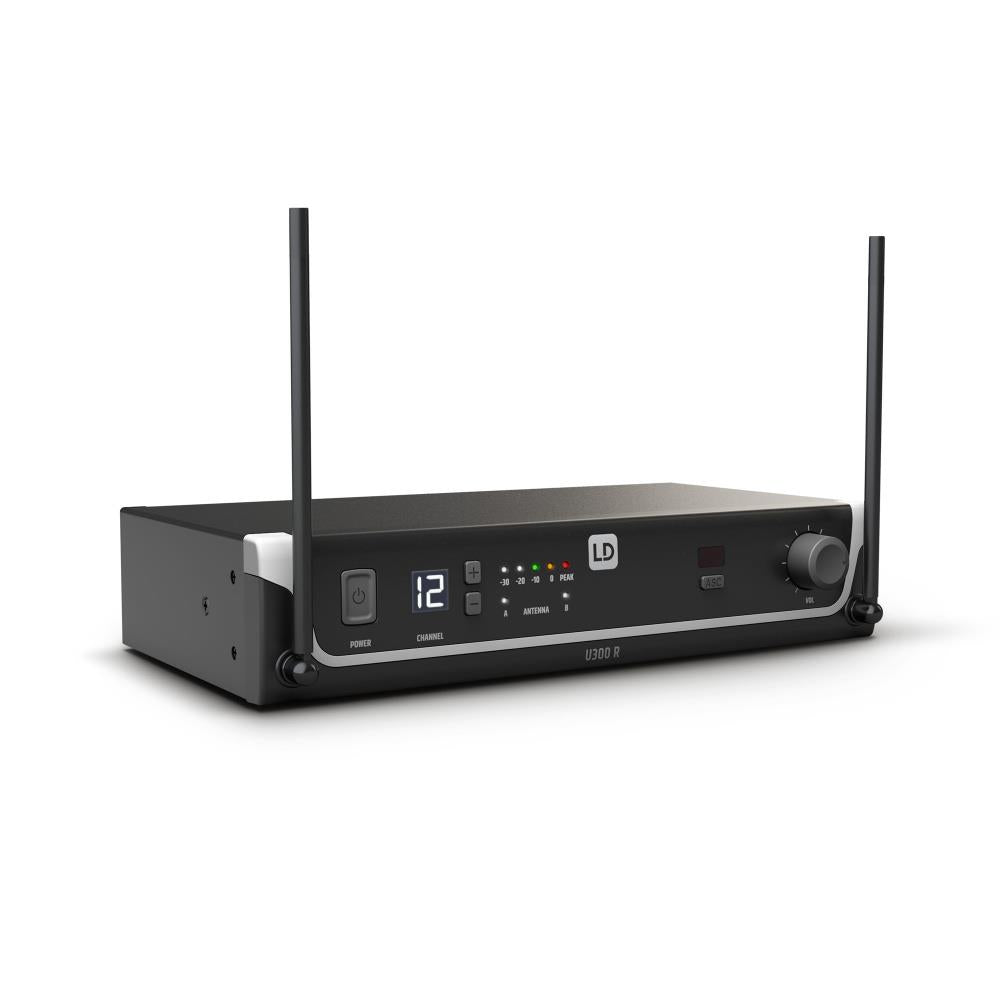

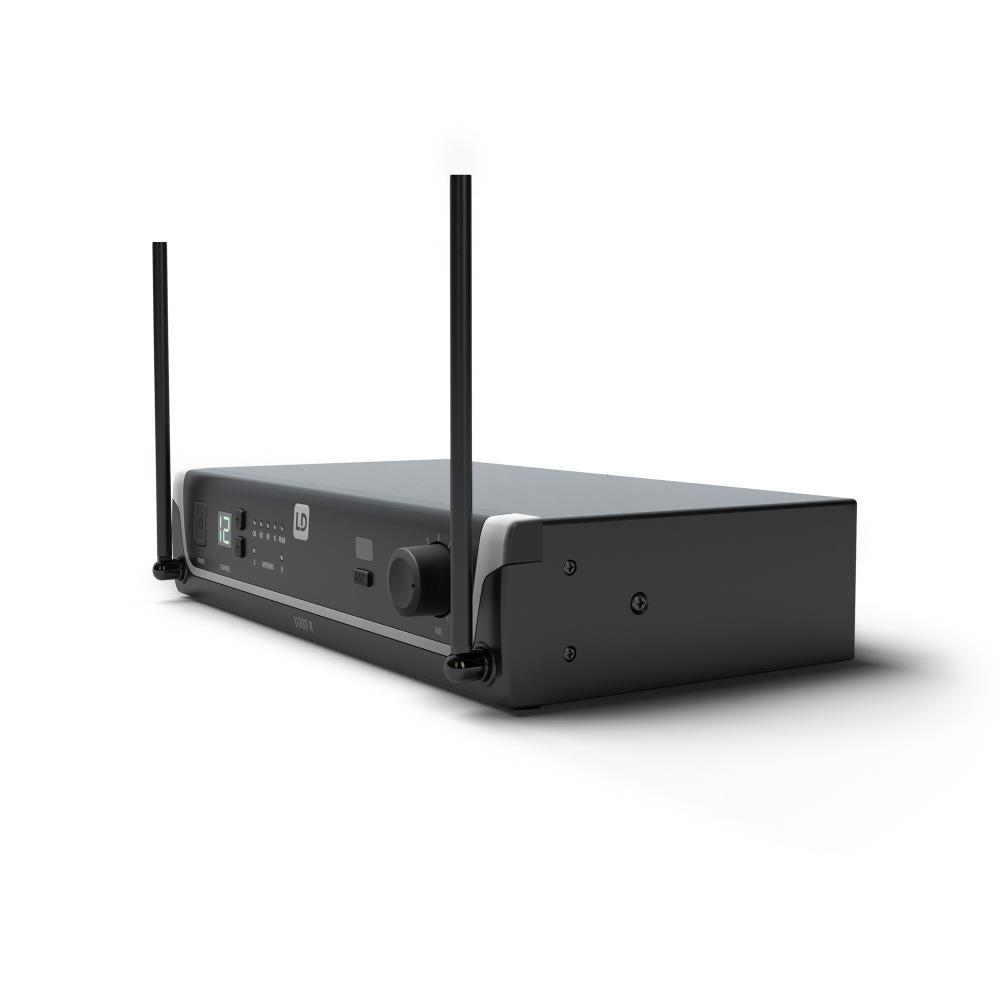

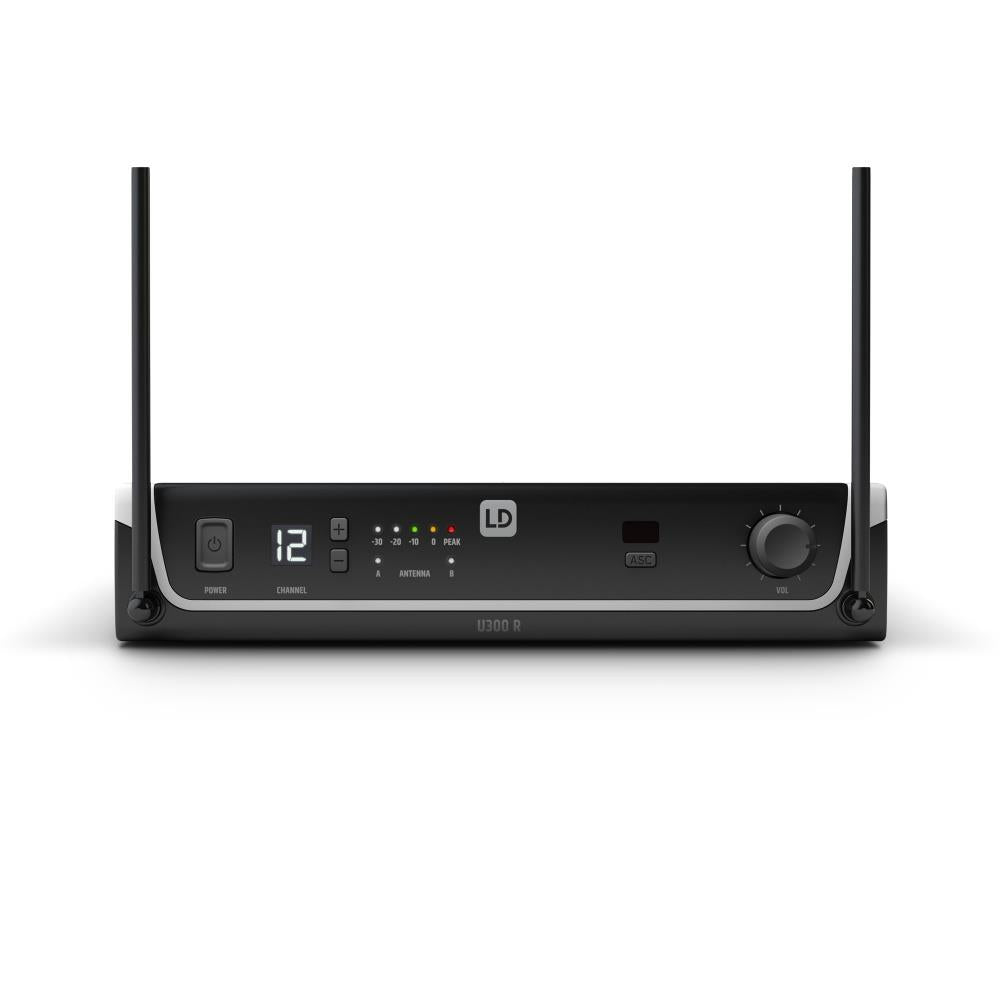

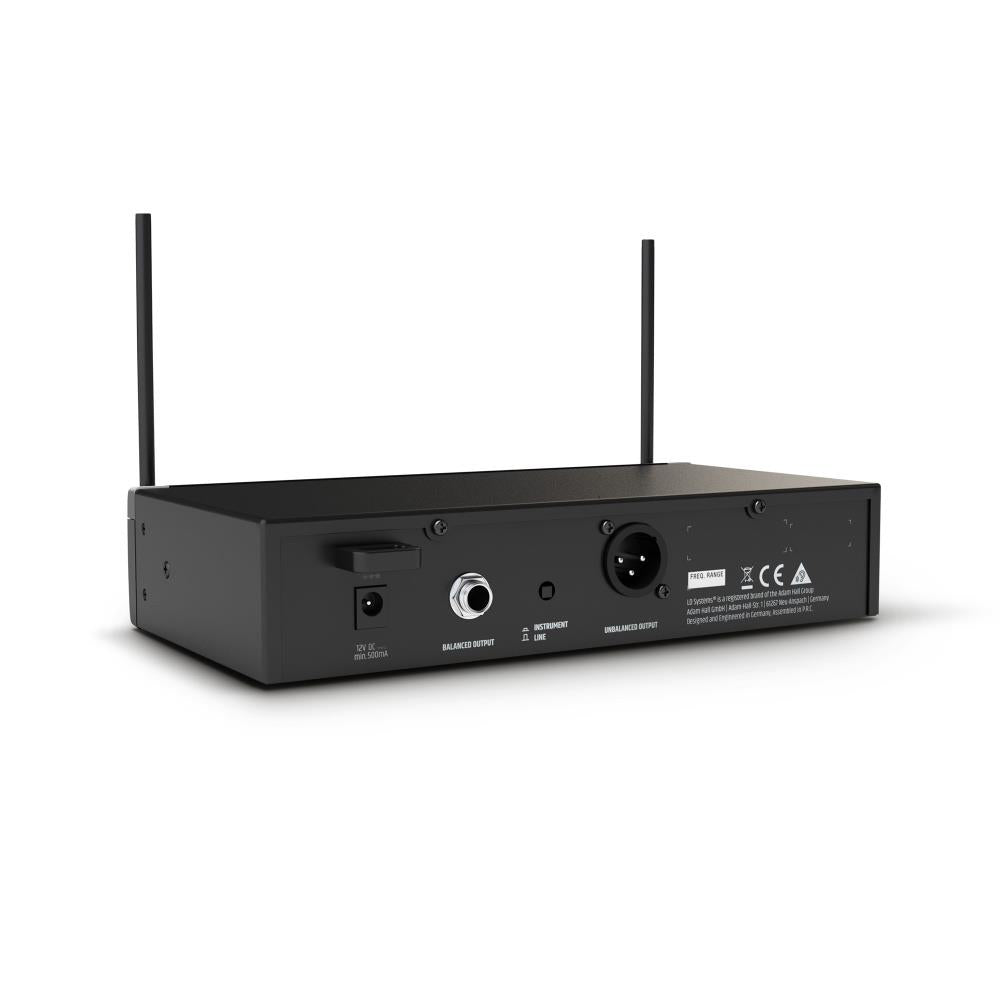

LD Systems U308 R Receiver
Product type Wireless Microphone

System Accessories
Type Receivers
Modulation Type FM
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Channels 12
Weight 0,7 kg
Groups 1
Antenna inputs 2 x fixed
Frequency response 25 - 16,000
Signal-to-noise ratio 104 dB
Noise reduction Squelch
Transmission optimization Pilot tone
Total Harmonic Distortion (THD) < 0.3 %
Controls 5 LED VU meters, ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume
Indicators 5 LED VU meters, Antenna A/B, LC display

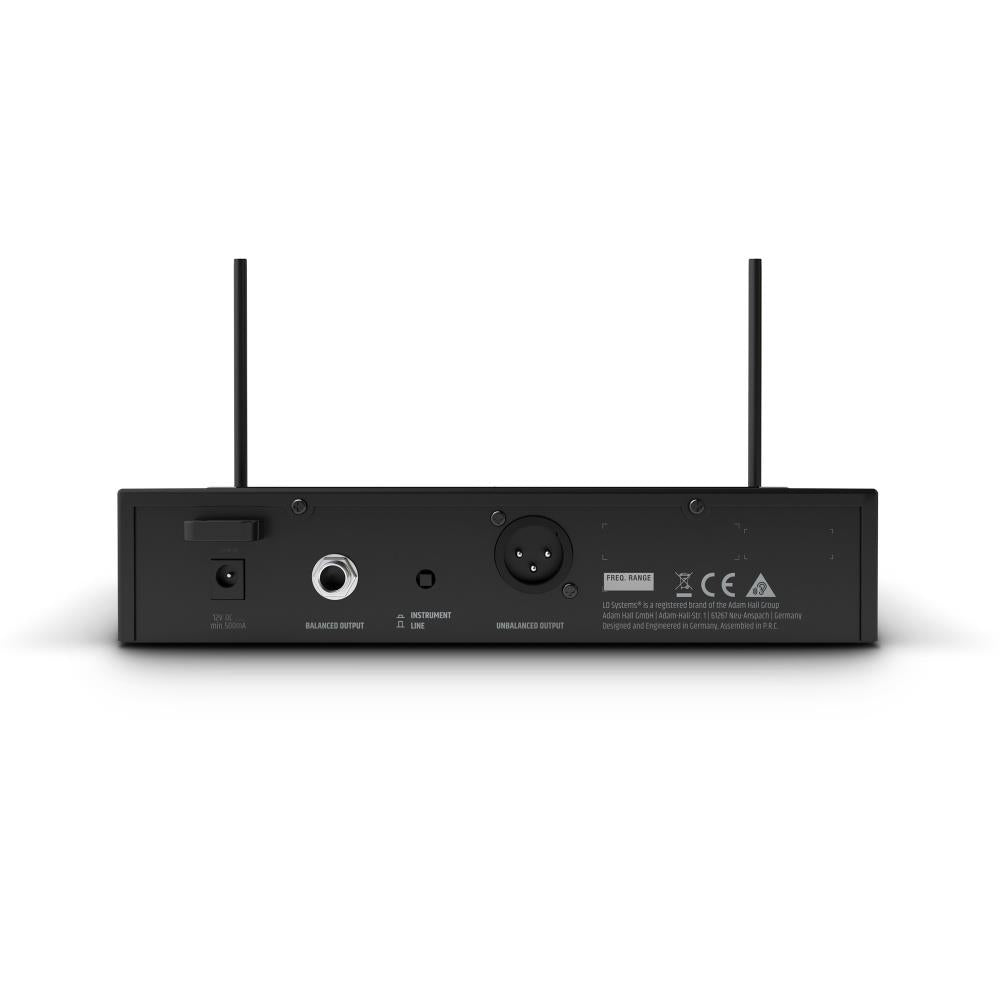

Audio output, balanced XLR
Operating voltage 12 V DC - 18 V DC (500 mA), external power supply
Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level
Width 211 mm
Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Height 43 mm
Depth 120 mm
Other features IR frequency synchronisation
Accessories (included) 2 x AA battery, Audio cable, Power supply

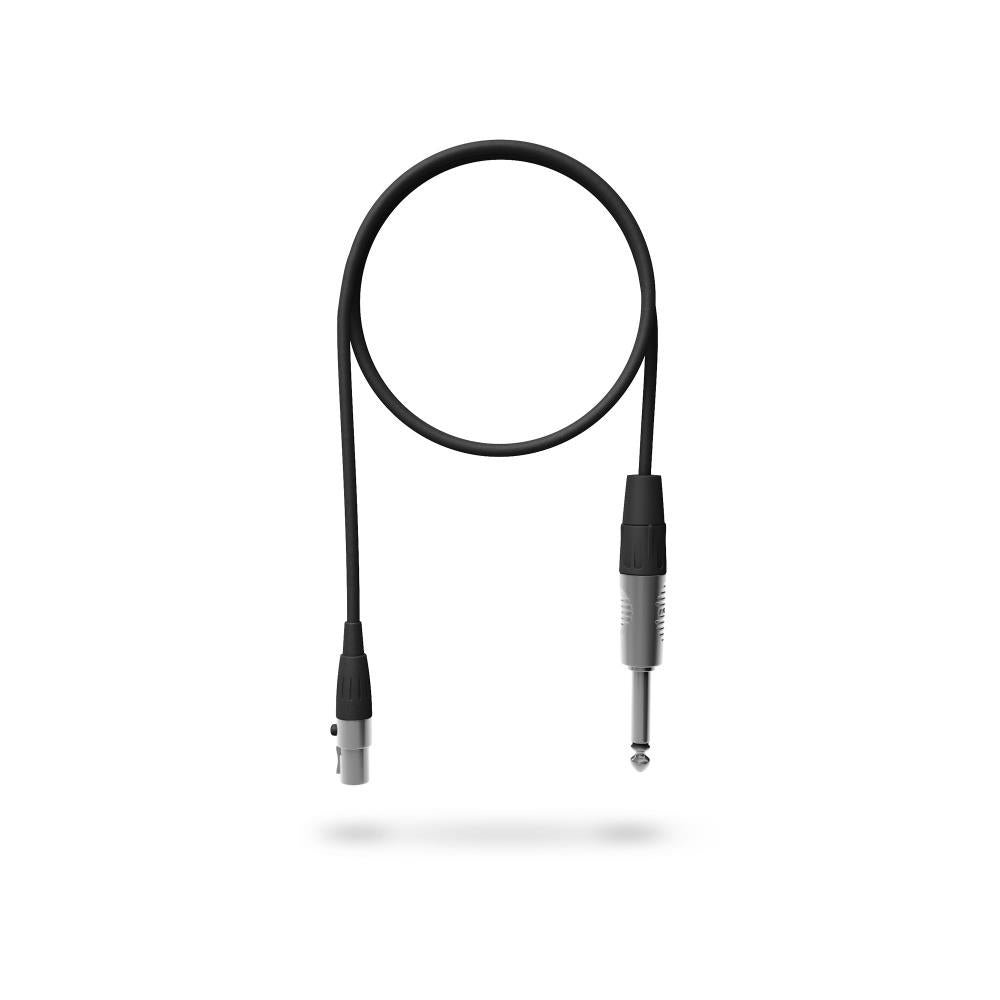

LD Systems U500 GC Instrument cable for U500® series bodypack
Product type Wireless Microphone System Accessories
Type Guitar Cables
Connector 1 Mini-XLR (3-pin, female)
Connector 2 6.3 mm jack
Cable Length 0.8 m
Weight 0,045 kg
