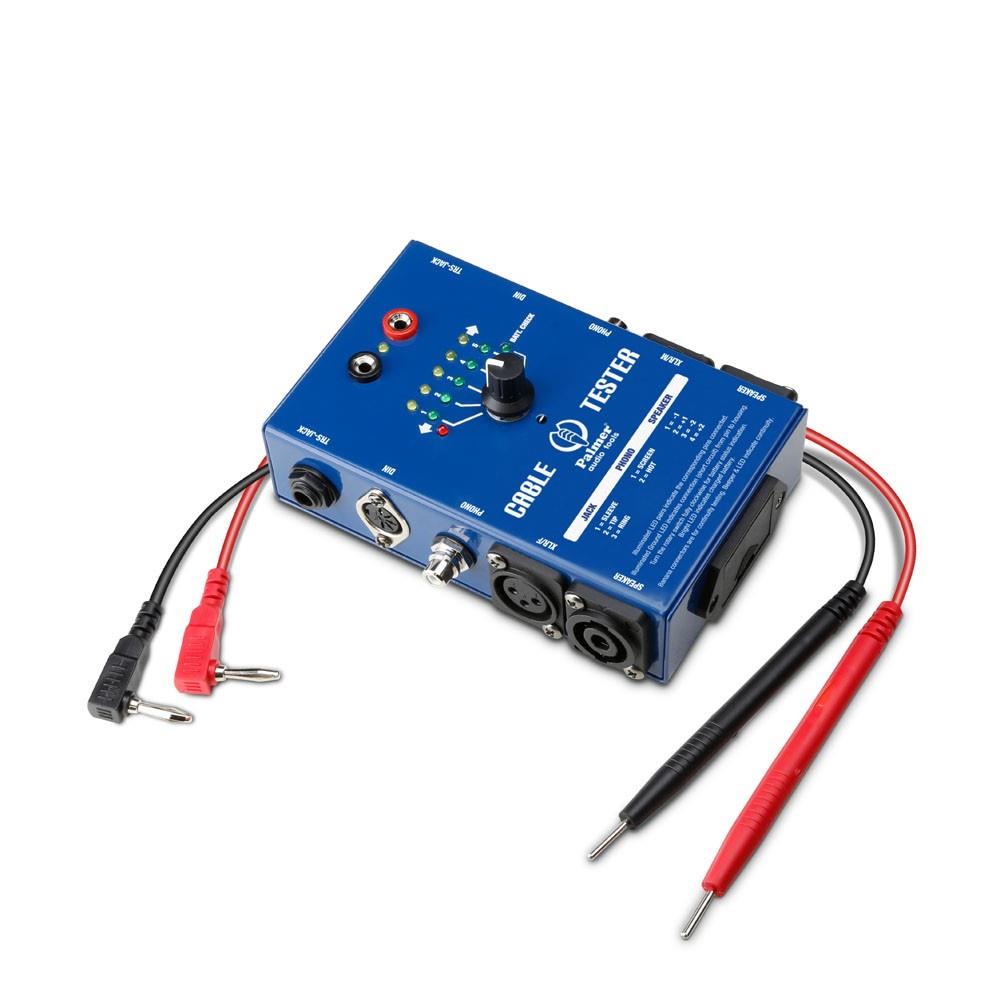

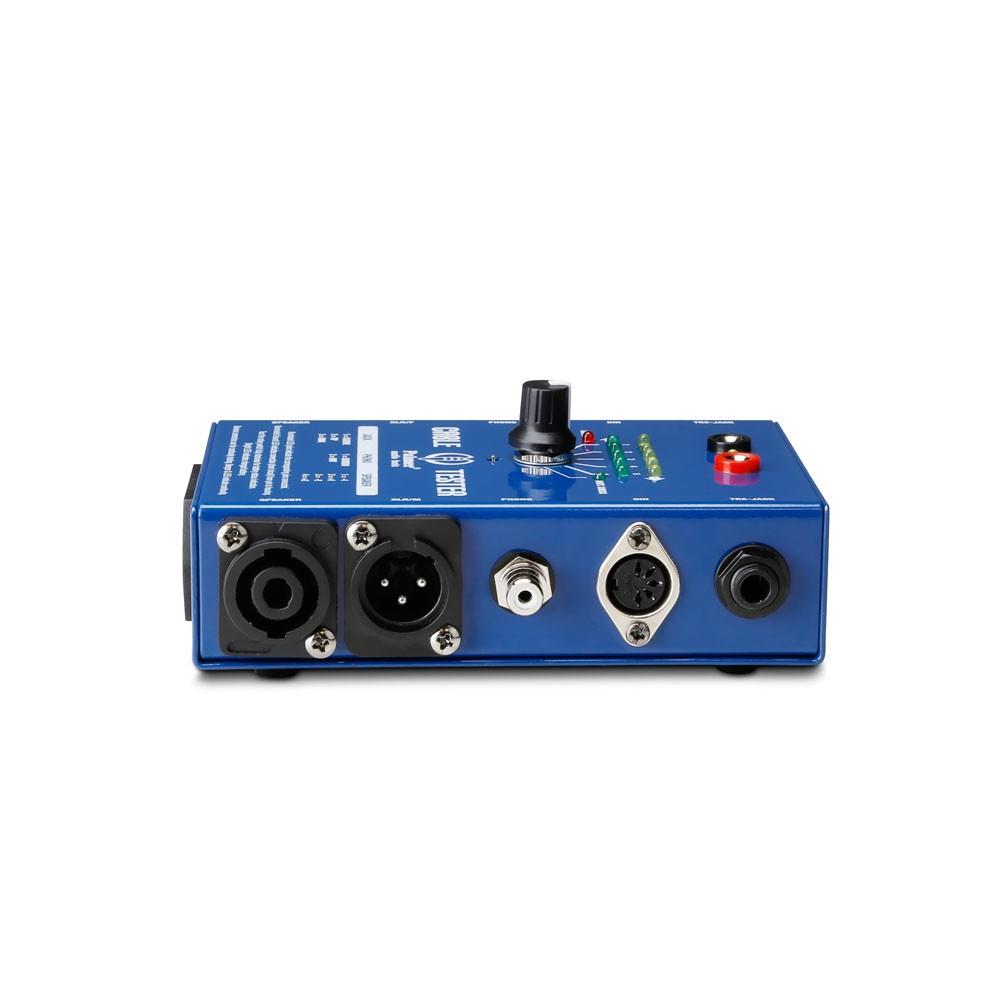

Palmer AHMCT 8 Cable Tester

Description:

The AHMCT 8 tests the most critical cables on the stage itself and flags up whether they are functioning or not, both visibly via LEDs and audibly via a buzzer. This makes it the perfect tool for engineers — both in the workshop and on stage.

The Pro AHMCT is operated simply, intuitively and safely via a single rotary switch on the device. The sturdy metal housing withstands even tough on-stage demands.

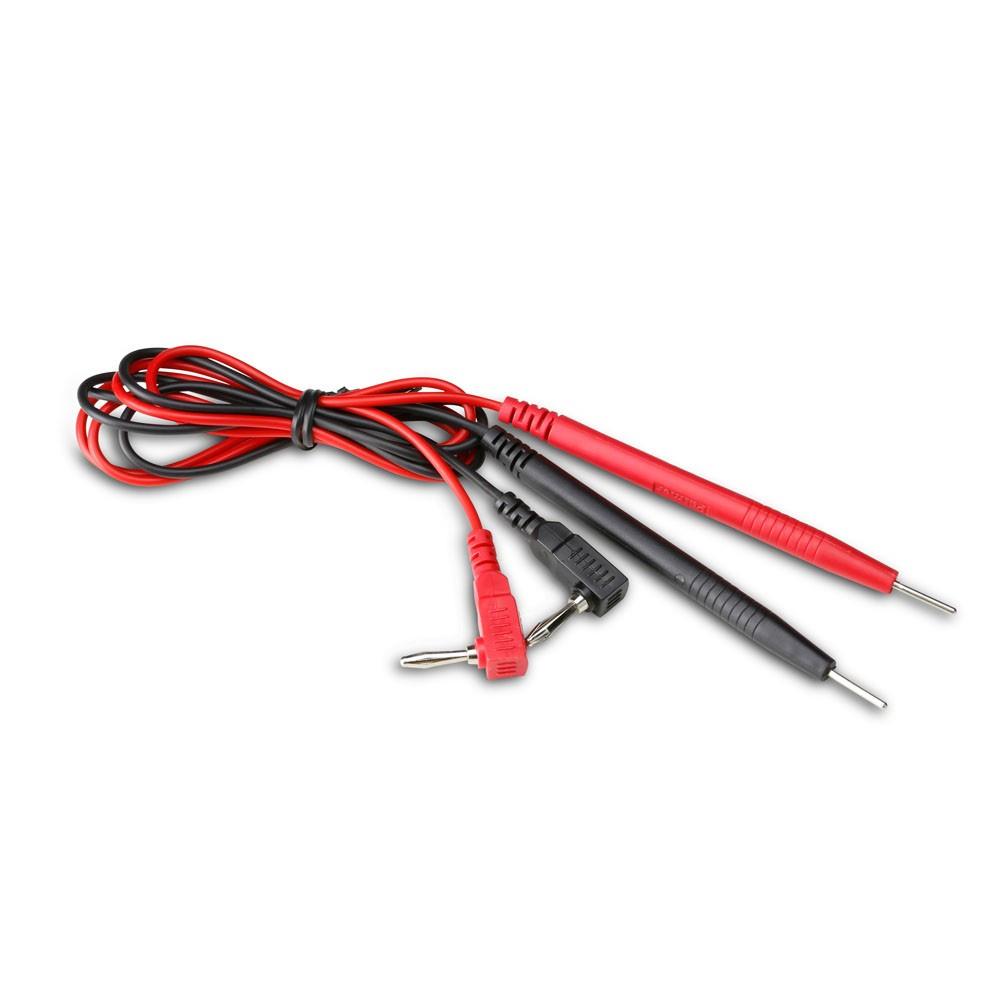

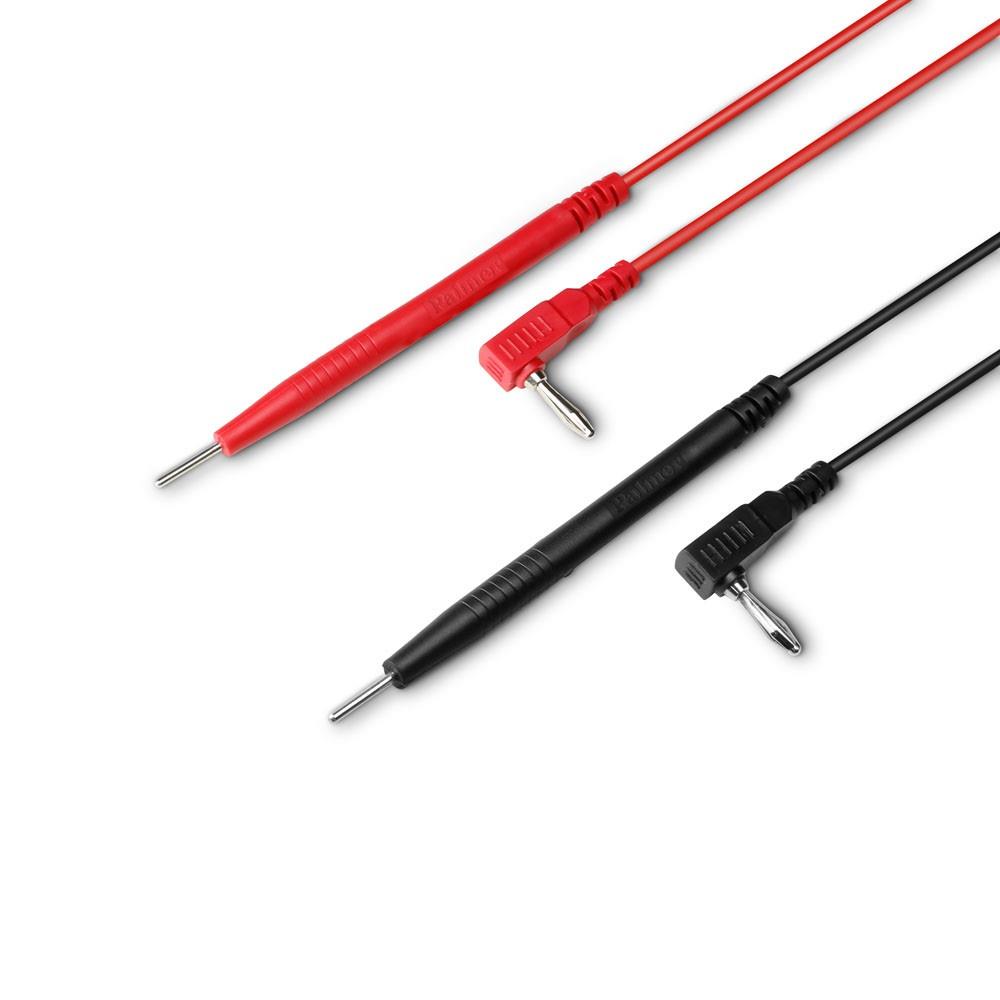

The standard kit comes with two test probes for carrying out fast and simple continuity tests on various cables or installations.

Solid metal housing
Powered by a 9-V block battery
Tests Speakon, XLR, jack/TRS, cinch and midi/DIN cables
Additional continuity tester with measuring probes
Optical display and buzzer

Specifications:

Product type Test Equipment
Connectors 6.3 mm jack, Banana plug, DIN 5-pin, RCA, Speakon, 4-pin, XLR
Controls Down, Power On/Off, Up, volume
Indicators battery status, LED chain
Operating voltage 9 V block
Acoustic continuity test Yes
Test cable Yes
Cabinet material sheet steel
Cabinet surface Powder coated
Width 105 mm
Depth 145 mm
Weight 0,64 kg
