2x DAP NGA-10A Active 10” Speaker 2000W Bluetooth App Control

Description

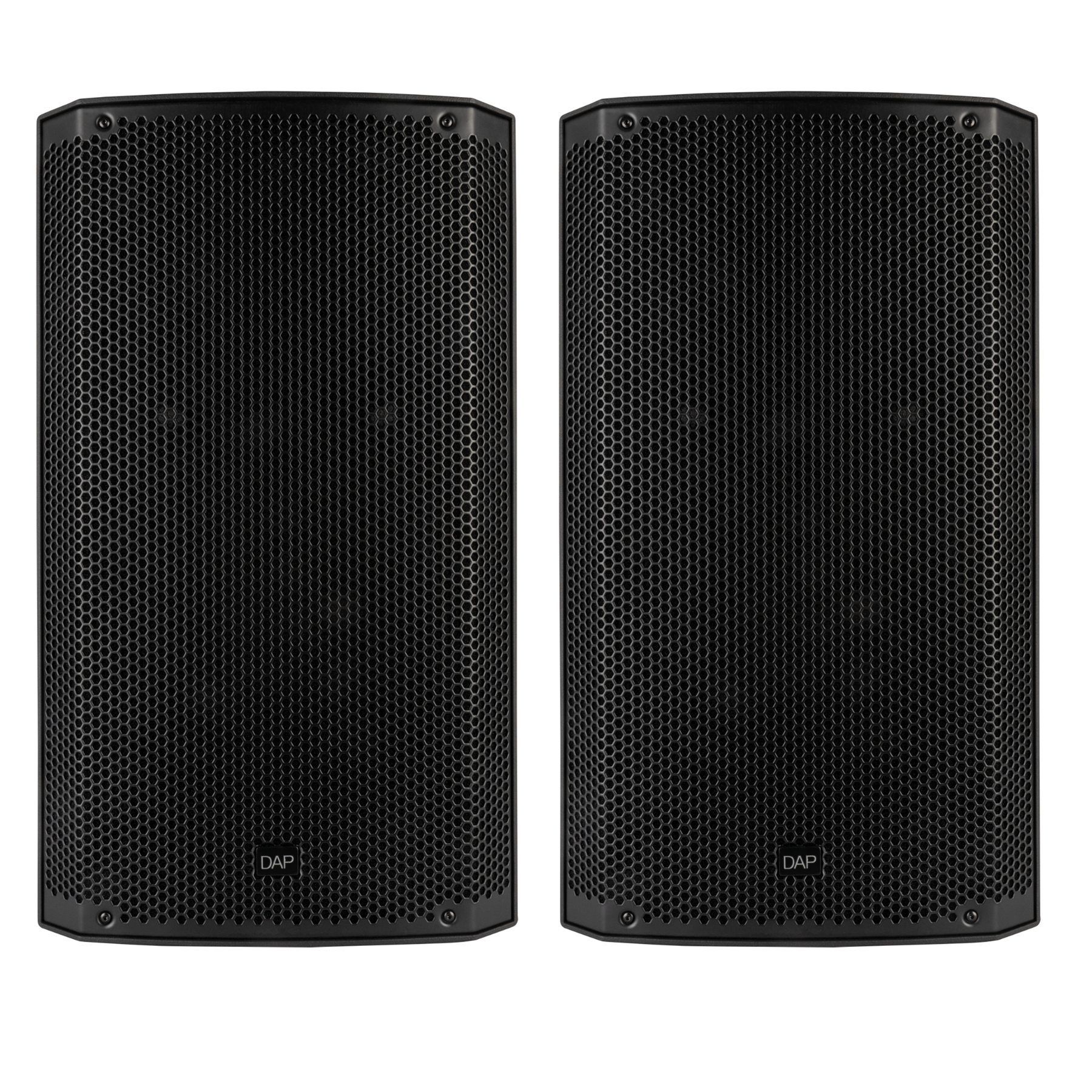

Bundle includes 2 x DAP NGA-10A Speaker

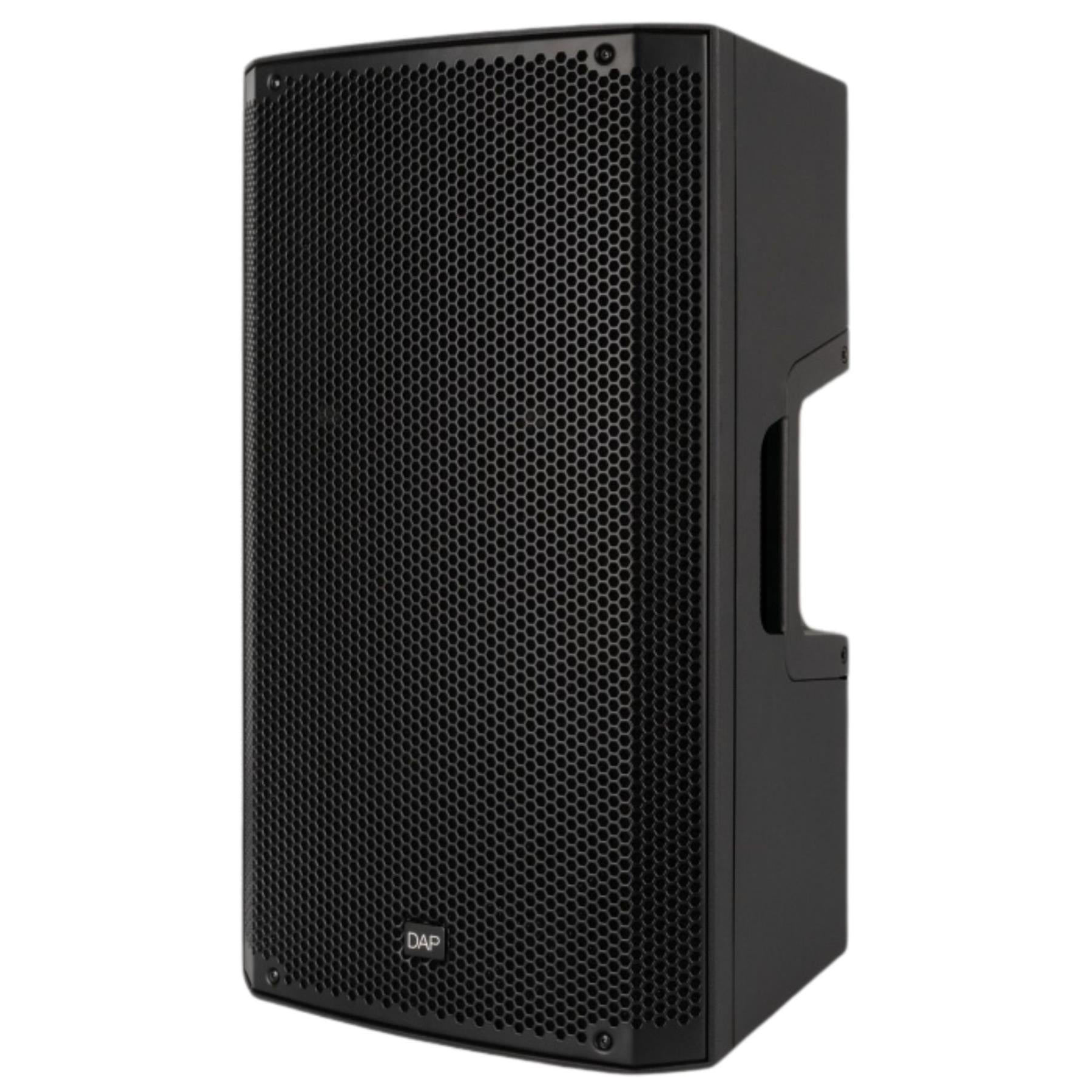

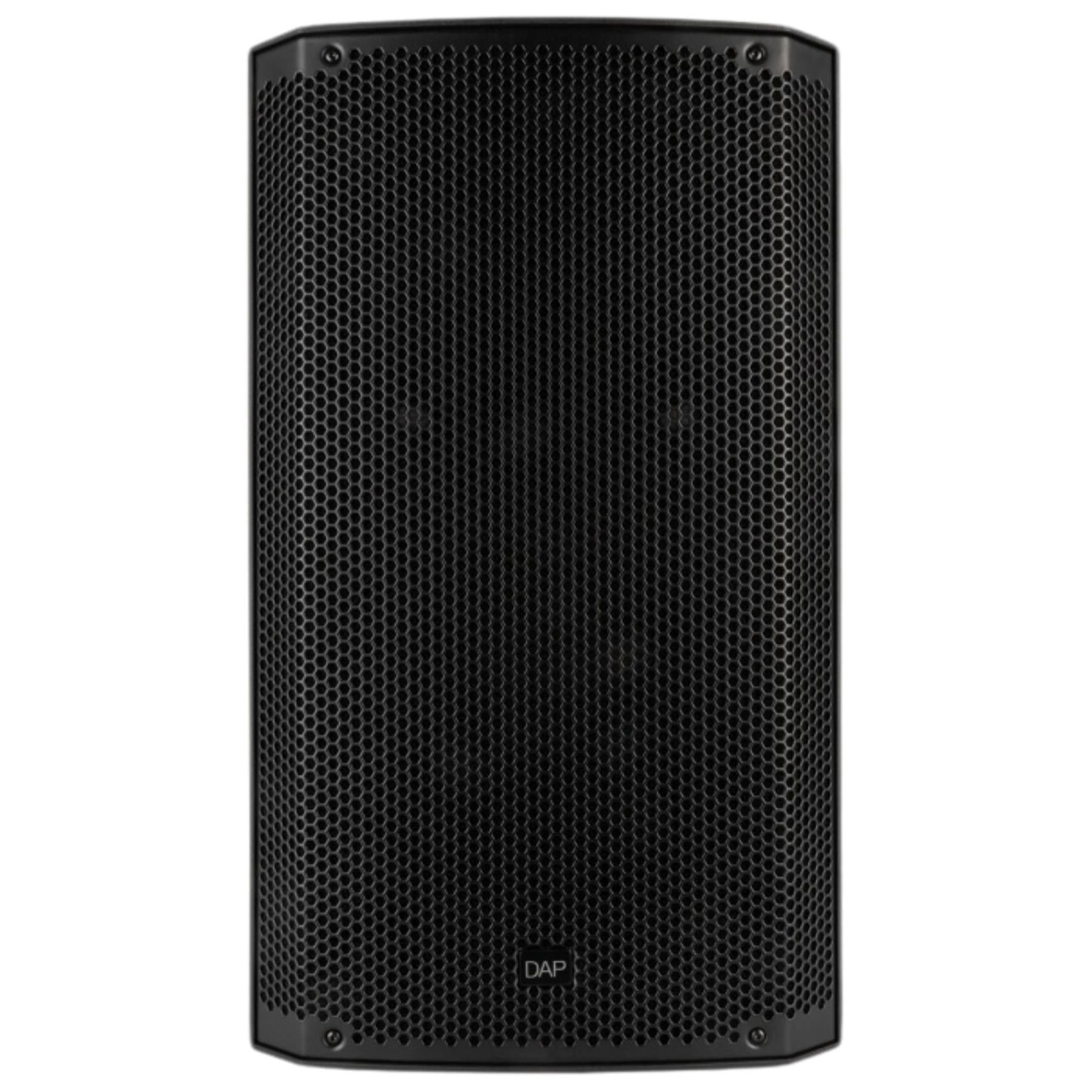

The NGA-10A is a compact active loudspeaker designed for versatile audio applications. It features a 10" woofer paired with a 1.4" compression driver, delivering a frequency response of 48 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.

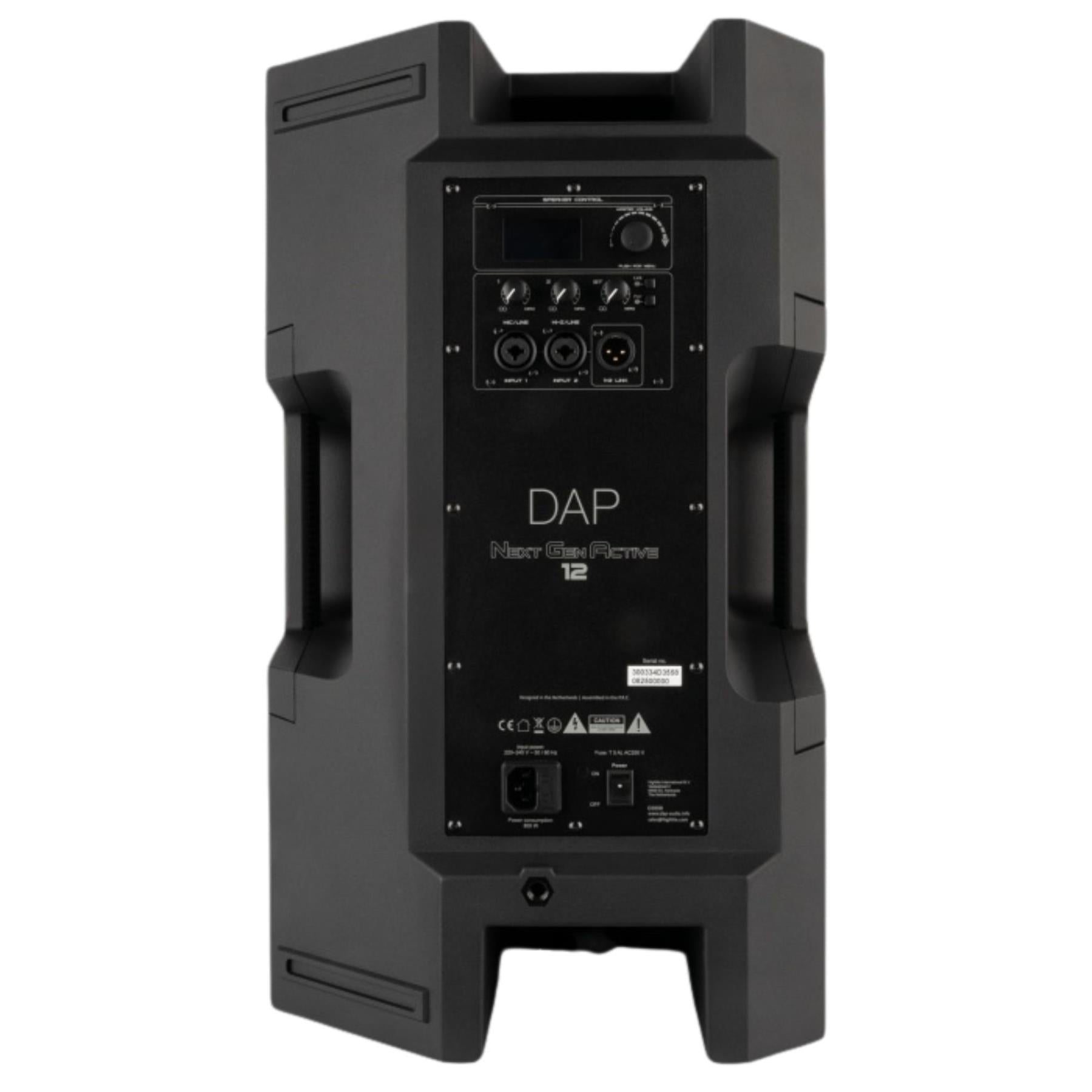

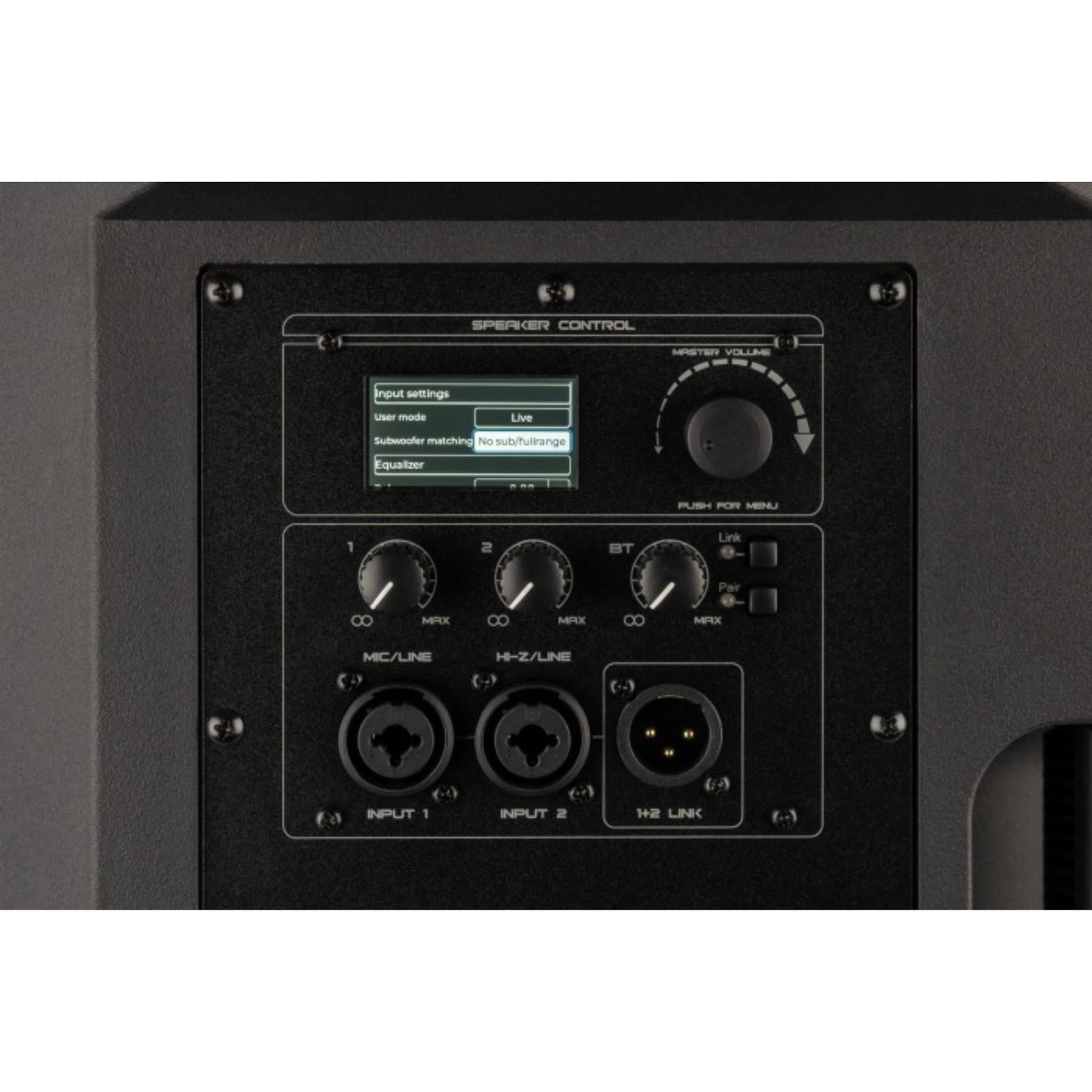

The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output combines the analogue inputs and the BT audio signal.

Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.

BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app (iOS or Android), allowing access to output gain, 3-band EQ, speaker name and stored presets.

Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.

Features

• 10-inch active 2-way loudspeaker with 1000 W RMS output
• 2000 W peak power with maximum SPL of 126 dB
• Bluetooth 5.3 with True Wireless Stereo pairing
• Built-in DSP with 4 selectable modes
• Adjustable crossover, 3-band EQ, delay, and limiting
• App control via iOS and Android for remote adjustment
• Two combo inputs supporting mic, line, and Hi-Z sources
• Balanced XLR output for linking additional speakers
• Wide frequency response for full-range sound reproduction
• Lightweight and portable design

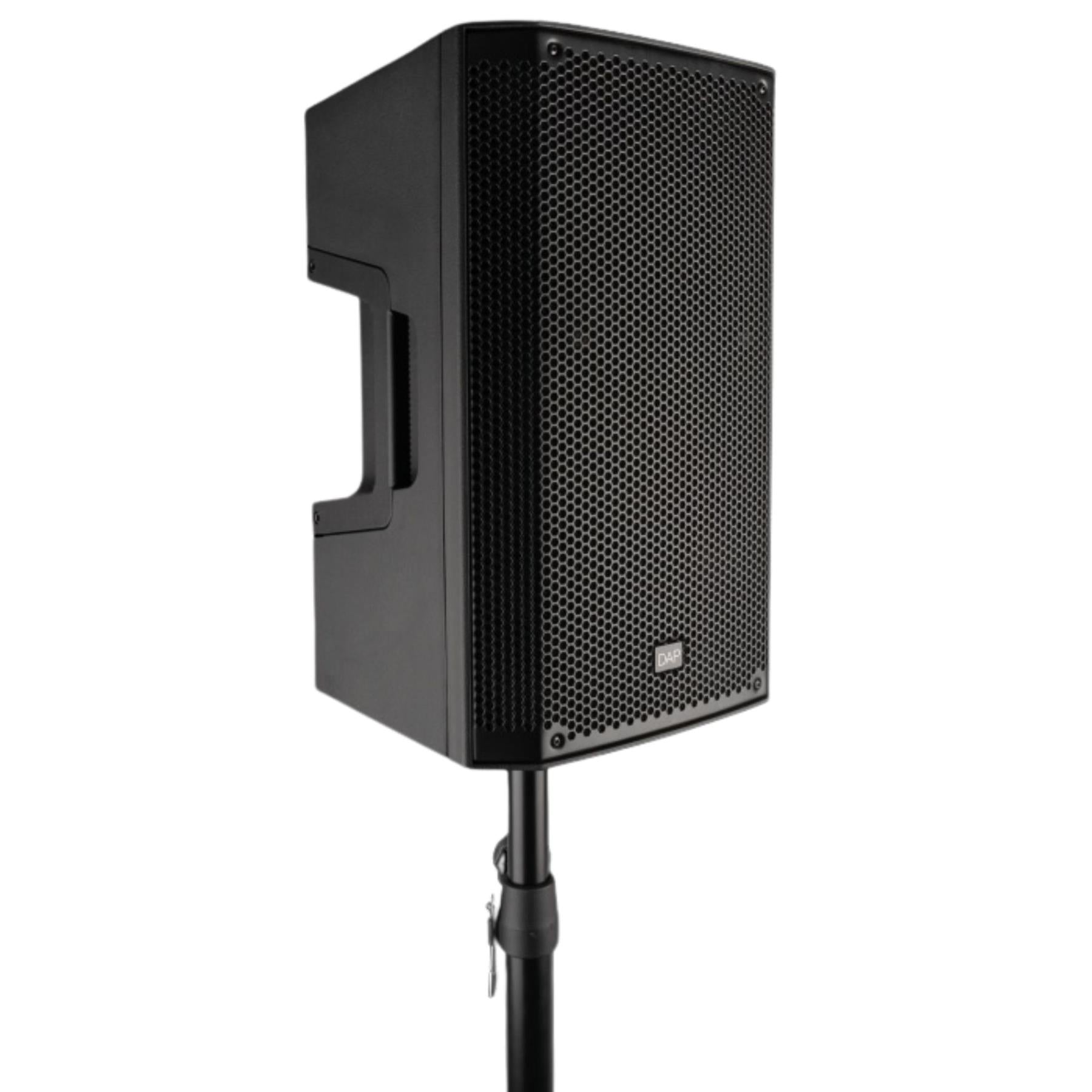

• Can be used as a monitor or pole-mounted speaker

Specifications

• Power output: 1000 W RMS, 2000 W peak
• Low frequency power: 650 W
• High frequency power: 350 W
• Maximum SPL: 126 dB
• Sensitivity: 96 dB (1W/1m)
• THD: <0.15%
• Signal-to-noise ratio: >85 dB
• Amplifier: Class D
• Crossover frequency: 3000 Hz

Speaker Components

• Woofer: 10" with 2.5" voice coil, ferrite magnet
• Compression driver: 1" with 1.4" voice coil, ferrite magnet
• Dispersion: 90° x 60°

Connectivity and Control

• Inputs: 2 x combo XLR/6.3 mm jack
• Output: 1 x 3-pin XLR
• Bluetooth: Yes (5.3 with TWS)
• Display: 1.9" TFT
• Control: Bluetooth app and onboard DSP

Electrical

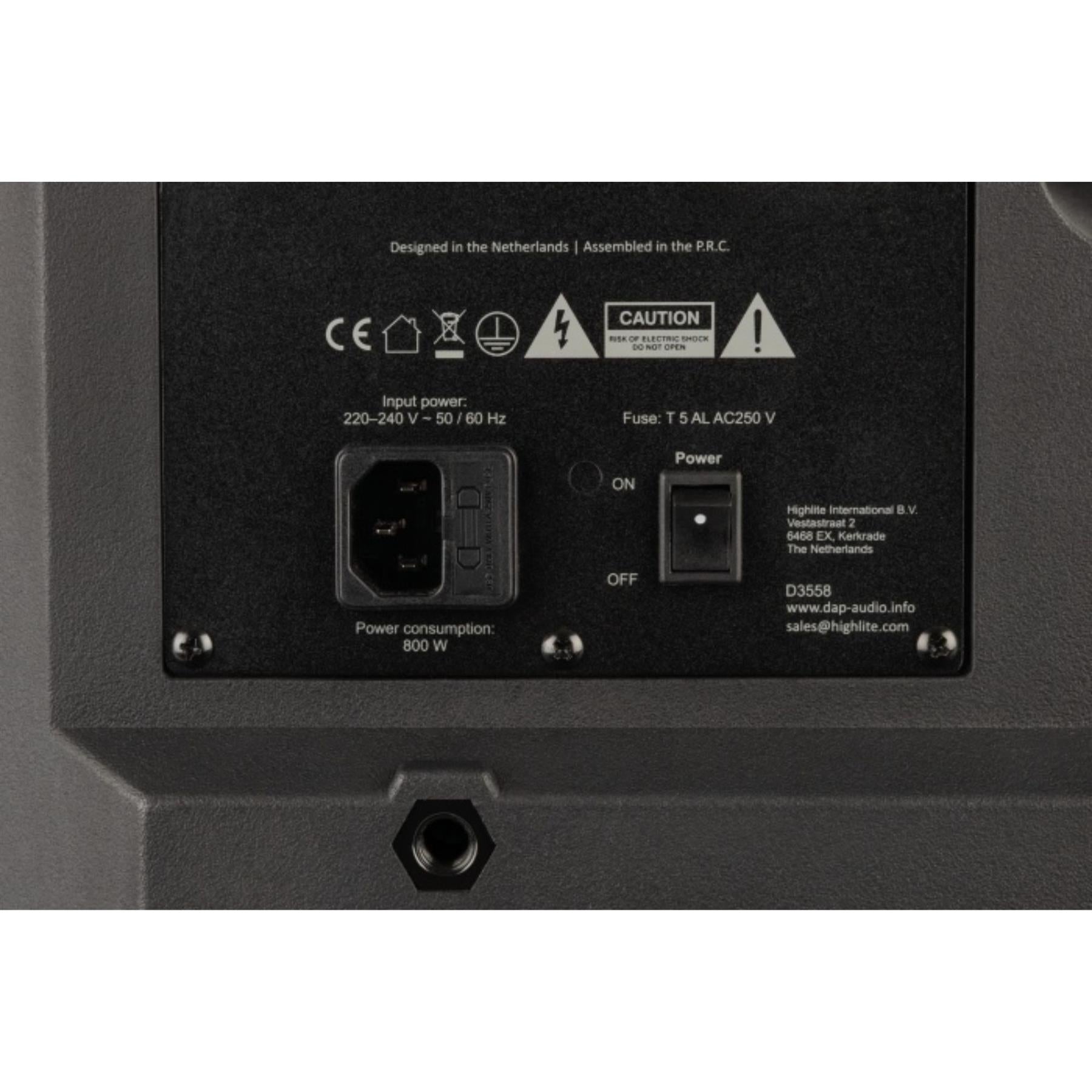

• Power supply: 220–240 V AC, 50/60 Hz
• Power consumption: 800 W
• Fuse: 5 A
• Power connection: IEC

Mechanical

• Enclosure: Polypropylene

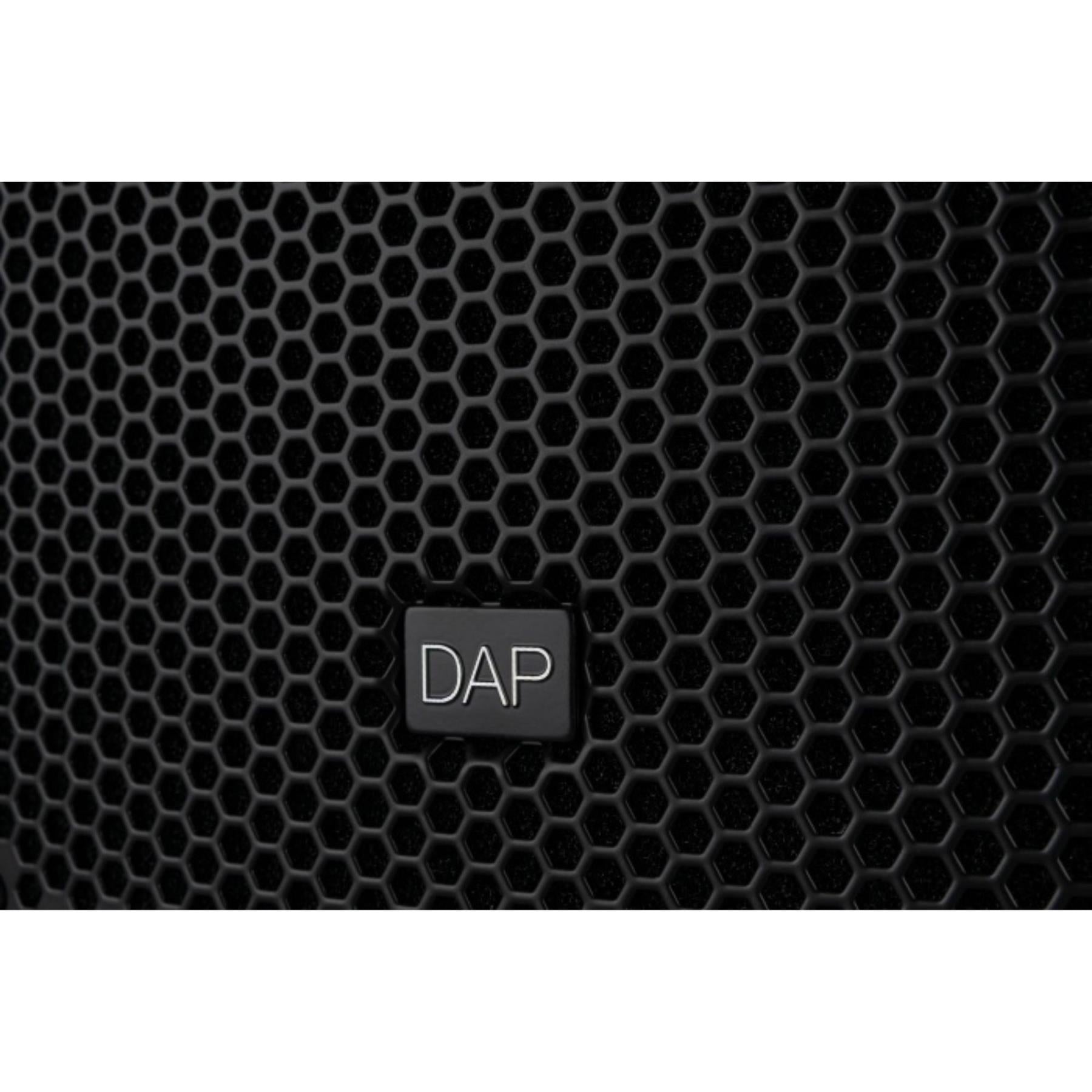

• Grille: Steel
• Colour: Black

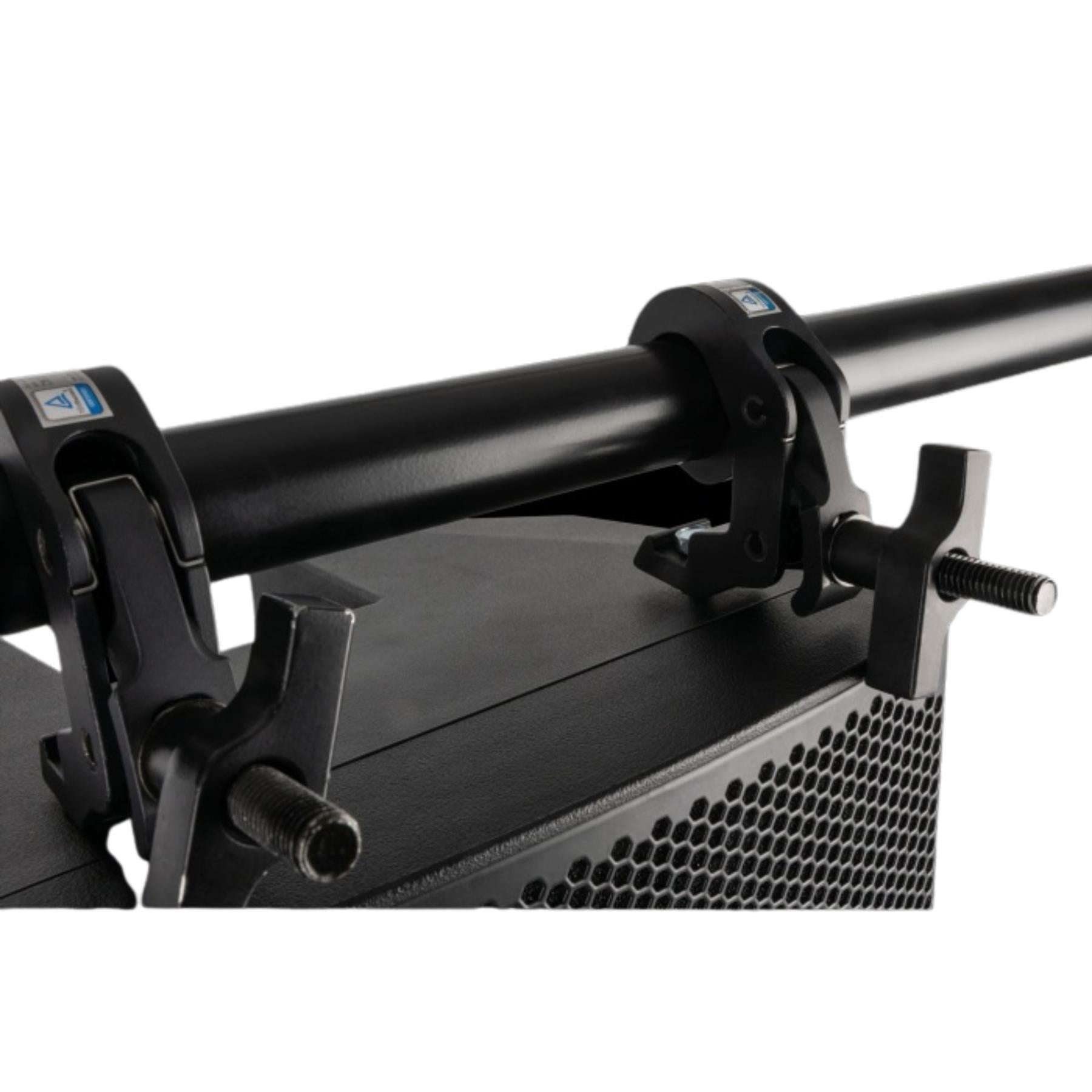

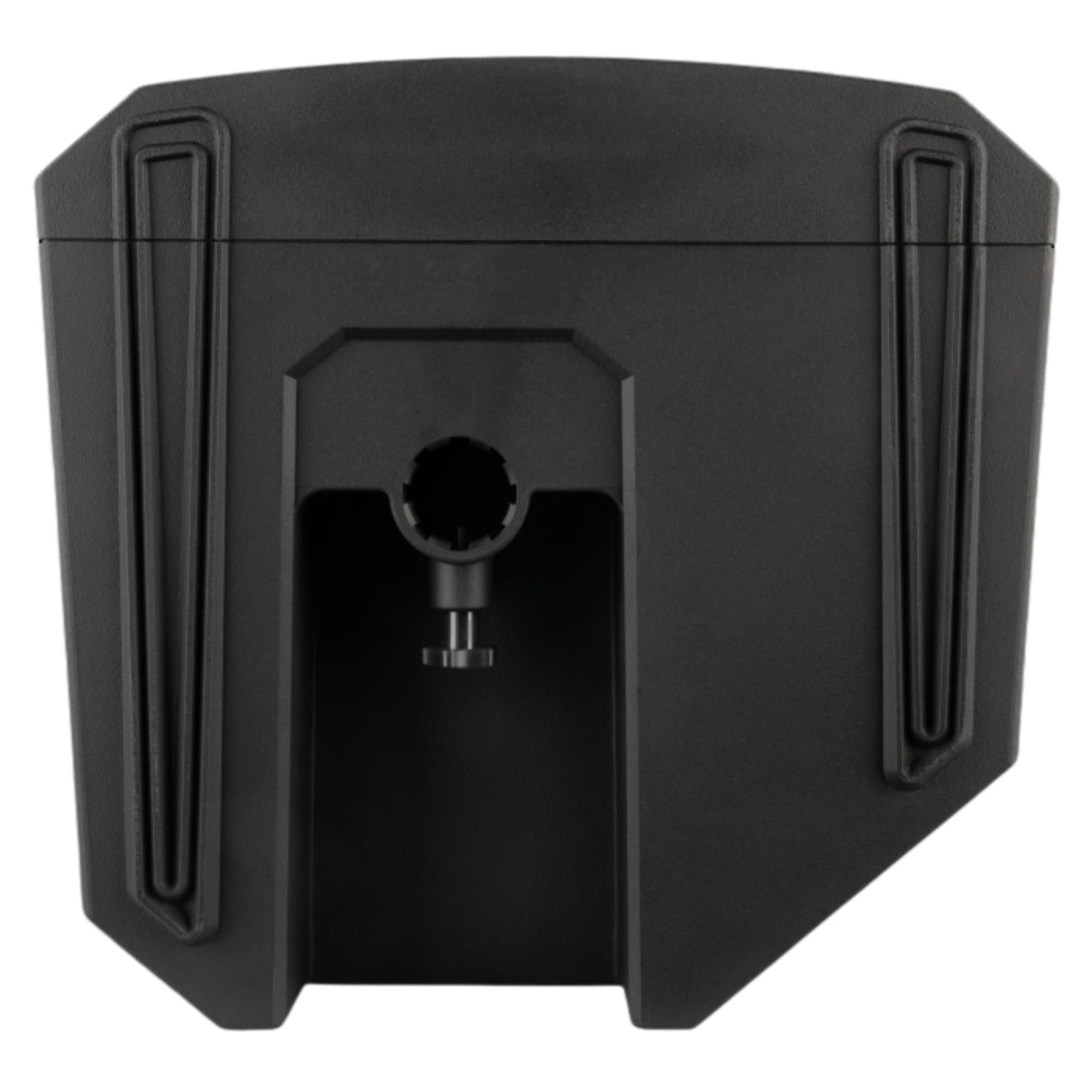

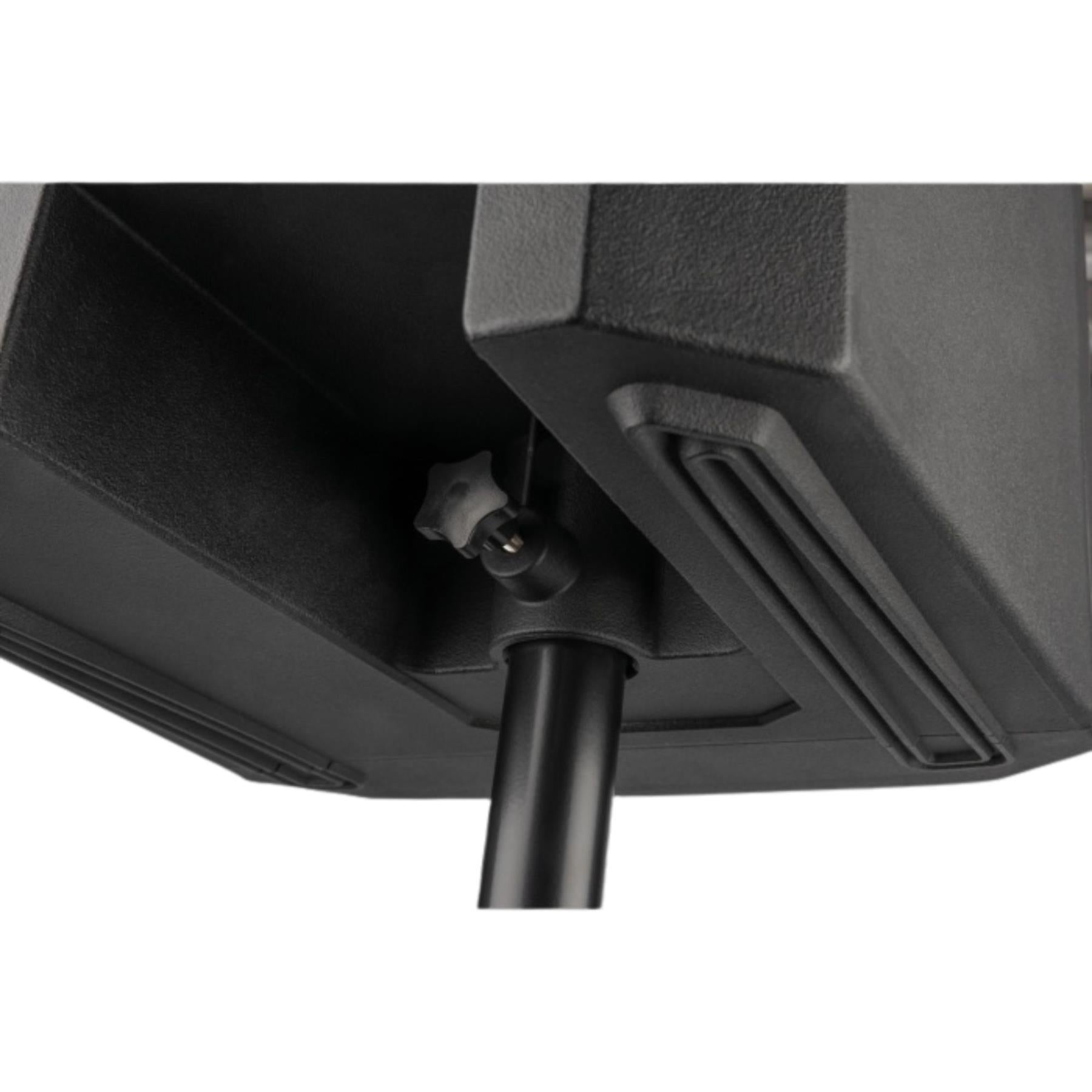

• Mounting: 35 mm pole mount, M10 rigging points

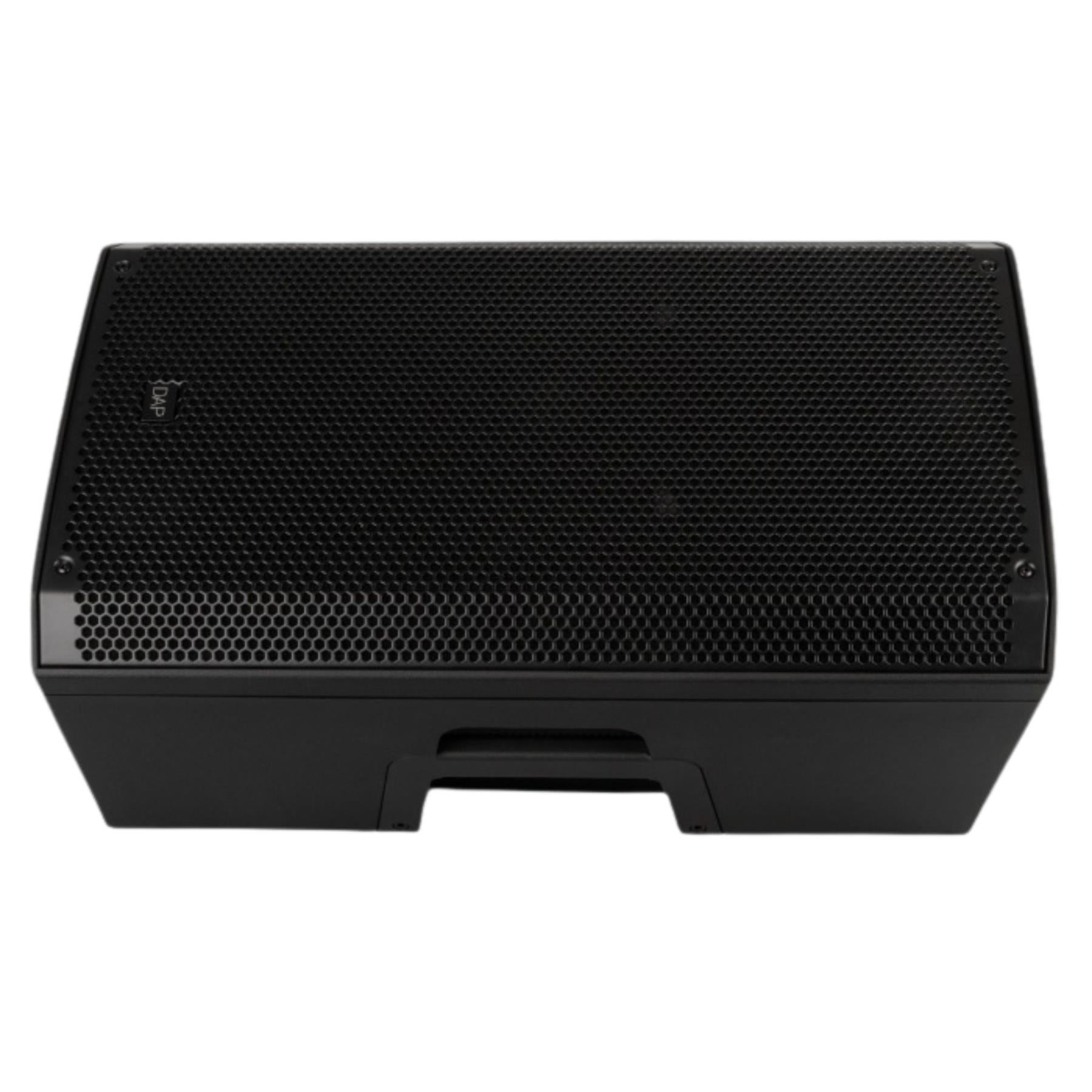

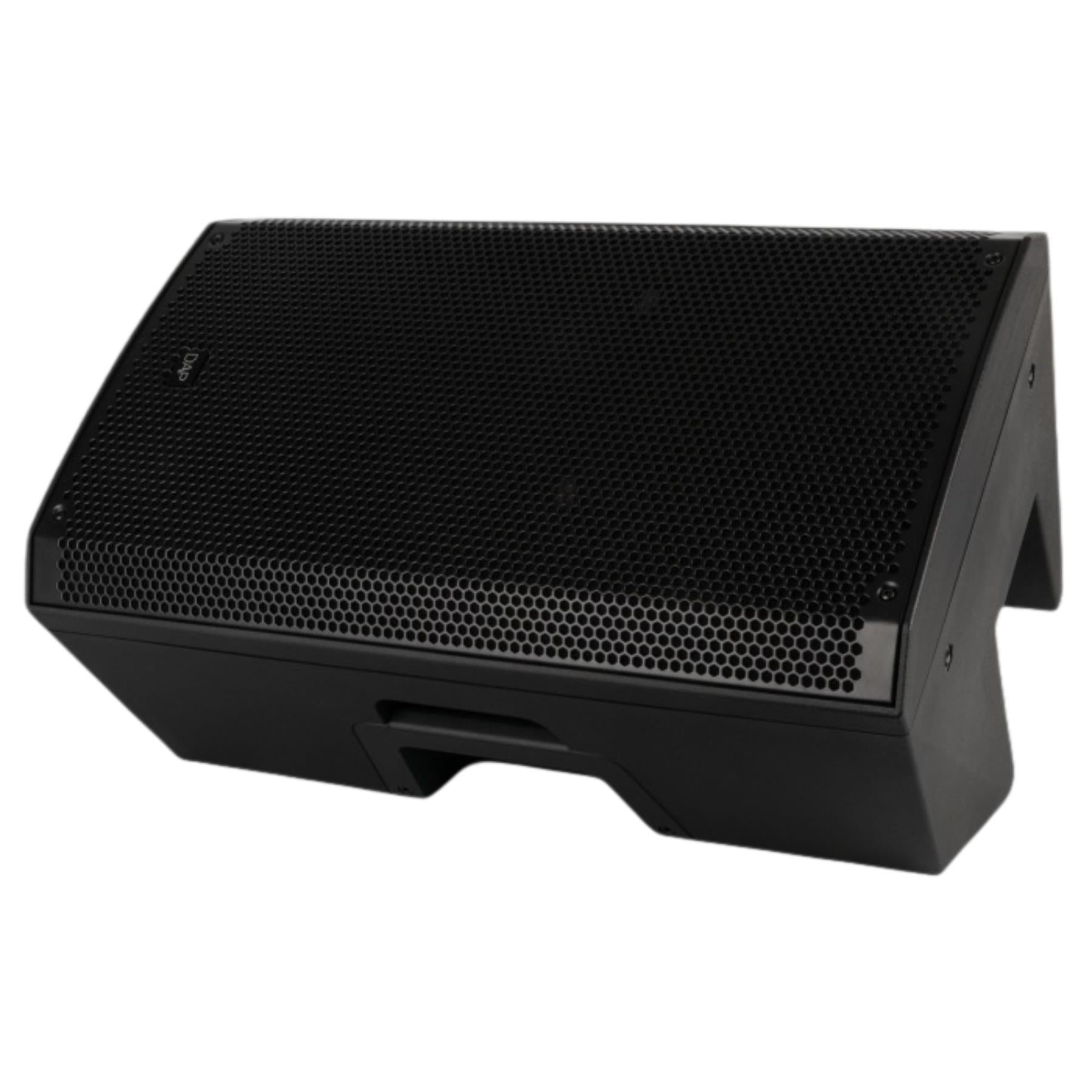

• Monitor use: Yes

Dimensions and Weight

• Dimensions (H x W x D): 528 x 334 x 314 mm
• Weight: 12.52 kg

Environmental

• IP rating: IP20
• Operating temperature: -20°C to 50°C

Protection

• Protection: Clip limiter, overload, thermal
• Indicators: Bluetooth pairing LED

Included

• IEC power cable
