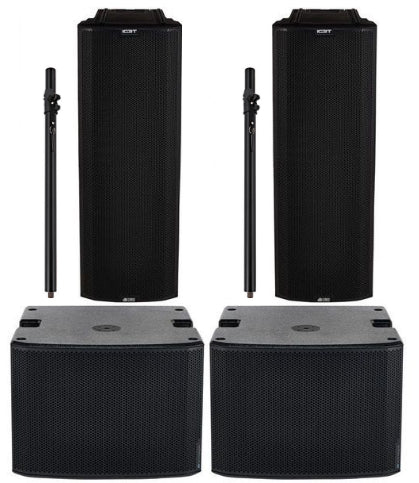

2x dB Technologies Ingenia IG3T 1800w 2-Way Active Speaker + 2x SUB918 Active Subwoofer 18" and 2x Speaker Poles

£6,655.00
£6,655.00
Vendor: dB Technologies
SKU: IG3T+SUB918
Icon Out of Stock Out Of Stock

Description:

2x dB Technologies Ingenia IG3T 1800w 2-Way Active Speaker + 2x SUB918 Active Subwoofer 18" and 2x Speaker Poles

The INGENIA IG3 T is equipped with 2 premium 10" low frequency transducers and 1 1.4"compression driver.

All models of the series are designed to work individually, but they can also be coupled by simply turning one speaker upside down and placing it upon the other one.

Thanks to infrared technology, INGENIA detects the presence of a second speaker, and an onboard-configuration wizard automatically sets up the system in order to ensure the best coverage and acoustic coherence.

INGENIA’s horn design is horizontally symmetric and vertically asymmetric: this way, horizontal dispersion is wide and constant while vertical dispersion is narrow in the upper part and wider in the lower part. Thanks to such feature, when 2 Ingenias are coupled high frequencies add up avoiding any interferences. In addition to that, a sophisticated digital steering function process each way of the speaker in order to adjust the dispersion without moving the box. As a result, the whole audience enjoys a perfect intelligibility.

Users can easily control the system through an intuitive OLED display. In fact, behind the simple interface runs a cutting-edge processing which manages mix, coverage steering, EQs  levels and imput devices.

.INGENIA can be easily and safely coupled through a  LP-IG accessory  which fits all the 4 INGENIA models. Moreover, feet and recessions on the top and the bottom of the enclosure ensure the speakers to be perfectly aligned, avoiding any incorrect setup operation.

Ingenia DRK-IG flybar adapts to all the speakers of the series allowing to fly coupled speakers in a vertical array.

Specifications:

Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 53 - 20.000 Hz
Frequency Response [-6dB] 57- 19.200 Hz
Max SPL 132 dB
HF 1.4"
HF Voice Coil 3''
Directivity (HxV) 110 x 90° (+20°/- 70°)
HF Type Neodymium compression driver
Horn Vertical asymmetric
Crossover Frequency 1100 Hz
LF 2x10”
LF Voice Coil 2.5"
LF Type Neodymium
Amplifier
Amp Technology Digipro® G3
Amp Class Class-D
Peak Power 1800 W
RMS Power 900 W
User Interface OLED display + rotative knob w/switch
Self-rotating display Yes
Positioning EPD (Element Position Detection)
Display Mirroring Yes
Processor
Controller DSP 56 bit
AD/DA Converter 24bit/48kHz
System Presets Factory presets + User defined
Limiter Dual Active Peak, RMS, Thermal
DSP Processing FIR Linear Phase
Input
Signal Input 1 x Combo IN (XLR + Jack 6.3mm)
Signal Out 1 x XLR link OUT
USB connector Yes - mini USB
Mechanics
Housing Polypropylene PP reinforced
Grille FULL /Invisible screws
Flyable Yes
Handles 1x on top / 1x on bottom
Pole Mount Yes
Width 280 mm (11.02 in)
Height 806 mm (31.73 in)
Depth 393 mm (15.47 in)
Weight 20.8 Kg (45.86 lbs.)
SUB918 Active Subwoofer 18":
Designed for ground stacked applications, SUB 900 is the perfect choice whenever a powerful lower extension is required.
SUB 918 is equipped with a single 18" premium woofer housed into a bass-reflex design.
A 900 W RMS Class D Digipro G3 power amplifier ensures advanced efficiency as well as forcible sound pressure levels up to 134 dB.
SUB 918 is enabled for real-time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac), allowing advanced subwoofer configurations alongside with perfect low-end matches with dBTechnologies’ full-range systems enabled to RDNet communications.
Both models of the family also feature on-board controls for attenuation, a polarity switch and DSP controls for a delay up to 4.5 milliseconds with 0.5 milliseconds steps (while a maximum 21 ms delay is allowed via Aurora Net). A second rotary allows to set crossover frequency from 70 to 110 Hz.
The robust plywood cabinet encases high-end performances in limited weight (41.8 kg ) and features 2 integrated handles on the top edges, while the back side is equipped with wheels mounting for smooth transportation.
What is more, being designed for both vertical or horizontal use, 2 M20 mounts on the top and side panels permits any type of full-range speaker led using a standard M20 threaded pole.
Frequency Response [-10dB]
42 to cut frequency (Xover dependent)
Max SPL (1 m)
134 dB
LF
18"
LF Voice Coil
4"
Amplifier
Amp Technology
Digipro G3
Amp Class
Class D
Peak Power
1800 W
Processor
Controller
28/56 bit DSP
AD/DA Converter
24 bit/48 Hz
Limiter
Peak, Thermal, RMS
Crossover Frequency
Variable (70Hz - 80Hz - 90 Hz - 100Hz - 110 Hz
Controls
1x Subwoofer Atteniation Control
1x Delay Rotary
1xXover Rotary
1x Polarity Switch
Input
Signal Input
1x XLR female
1x USB (data service)
Signal Output
2x XLR male
Mechanics
Housing
Plywood
Handles
2 (1x side)
Pole Mount
2x M20 (1 on top + 1 on side)
Width
720 mm (28.3 in)
Height
530 mm (20.8 in)
Depth
690 mm (27.1 in)
Weight
41.8 kg (92.1 lbs)
