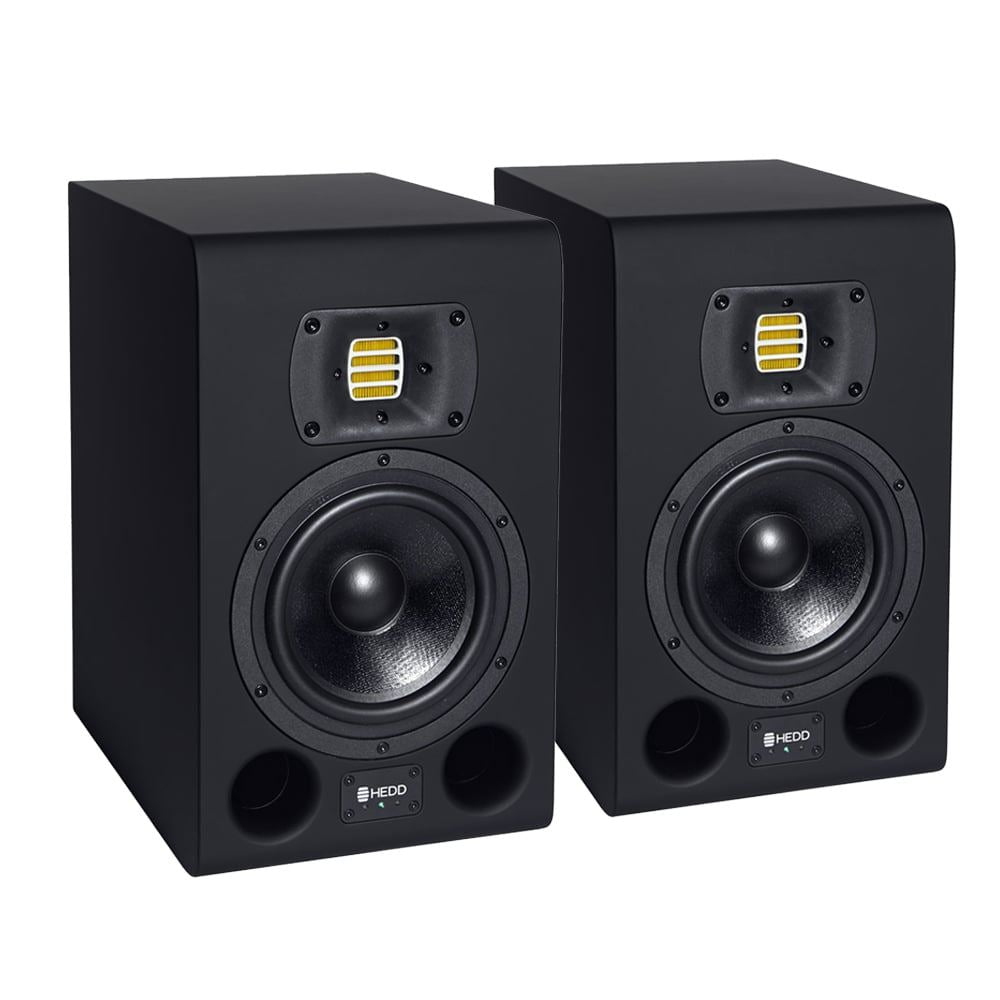

2x HEDD Studio Monitor Type 07 Bunlde

Our Type 07 studio monitor could be described as a classic nearfield monitor speaker, although that would not nearly do justice to its versatility and powerful sound. On first glance, this model’s standard size and classic setup with a 7” woofer and a HEDD Air Motion Transformer do not leave much room for additional technological advances. Yet the careful adjustment of its various components, particularly the way in which casing, amplifier, and diaphragm interconnect, creates a degree of sonic stability, strength, spatiality, and transparency that amazed us from the very first stages of this model’s development on. With its 2×100 Watt amps and its extremely well-balanced frequency response, the Type 07 monitor sounds much bigger and more mature than its moderate size and sleek design make it appear. It is precisely for this reason that there is hardly a field of audio production, which the Type 07 is not ideally suited for: its clever design makes it an especially good player in broadcasting contexts as well as in recording and mix-down studios.

Our Type 07 studio monitor comes, like all models of our Series ONE, with XLR and RCA connections. In addition, it also features an empty slot that allows for a wider range of digital functionality. At the moment, we offer HEDD Bridge modules that can handle Dante (Audio-over-IP) transport.

Specifications
Drivers
Woofer 1
Basket Ø 7.2" (182mm)
Voice coil Ø 1.5 " (38mm)
Cone material UHC cone (Ultra Honeycomb Composite)
Tweeter 1
Type HEDD AMT (HEDD Air Motion Transformer)
Equiv. Diaphragm Ø 2" (56mm)
Input connectors
Analog balanced / unbalanced XLR / RCA
Digital/HEDD Bridge Options Dante / Audio-over-IP
General data
Amplification (ICEpower®) 2 x 100W
Input gain -30dB … +6dB
High Shelf EQ > 2kHz ±4dB (at 20kHz)
Low Shelf EQ < 200Hz ±4dB (at 50Hz)
Frequency response 38Hz - 50kHz
THD 90dB/1m > 100Hz ≤0.5%
Max SPL sine wave 100Hz - 3kHz /1m ≥107dB
Max SPL peak per pair at 1m ≥116dB
Crossover frequencies 2.3 kHz
Input impedance balanced / unbalanced 10kΩ / 47kΩ
Warranty 2 years

Dimensions
370 x 220 x 300 mm

Weight
9.6 kg
