2x HK Audio LS4000A Active 18" Subwoofer 1200W Linear 5 Speaker


This bundle includes:

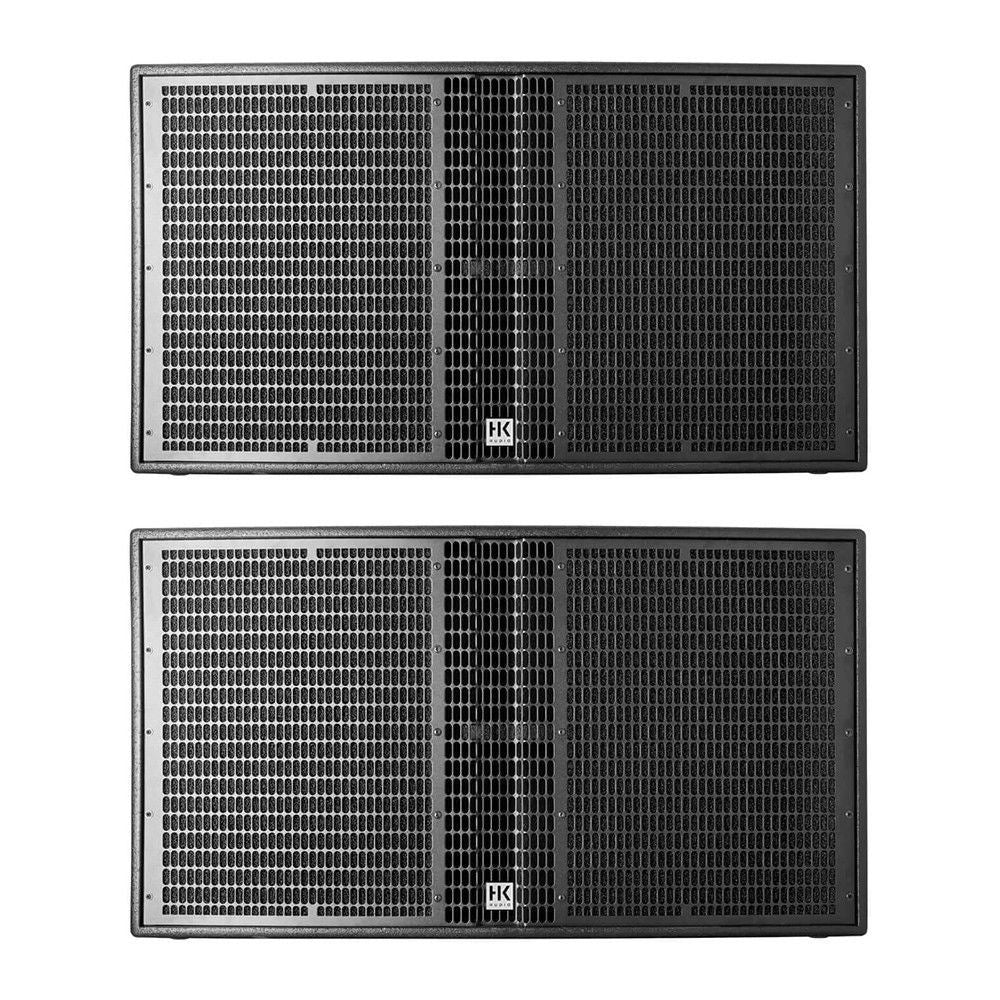

2x HK Audio Linear 5 Active 18" Subwoofers

Vendor: HK Audio
SKU: SKU5385
Icon Out of Stock Out Of Stock

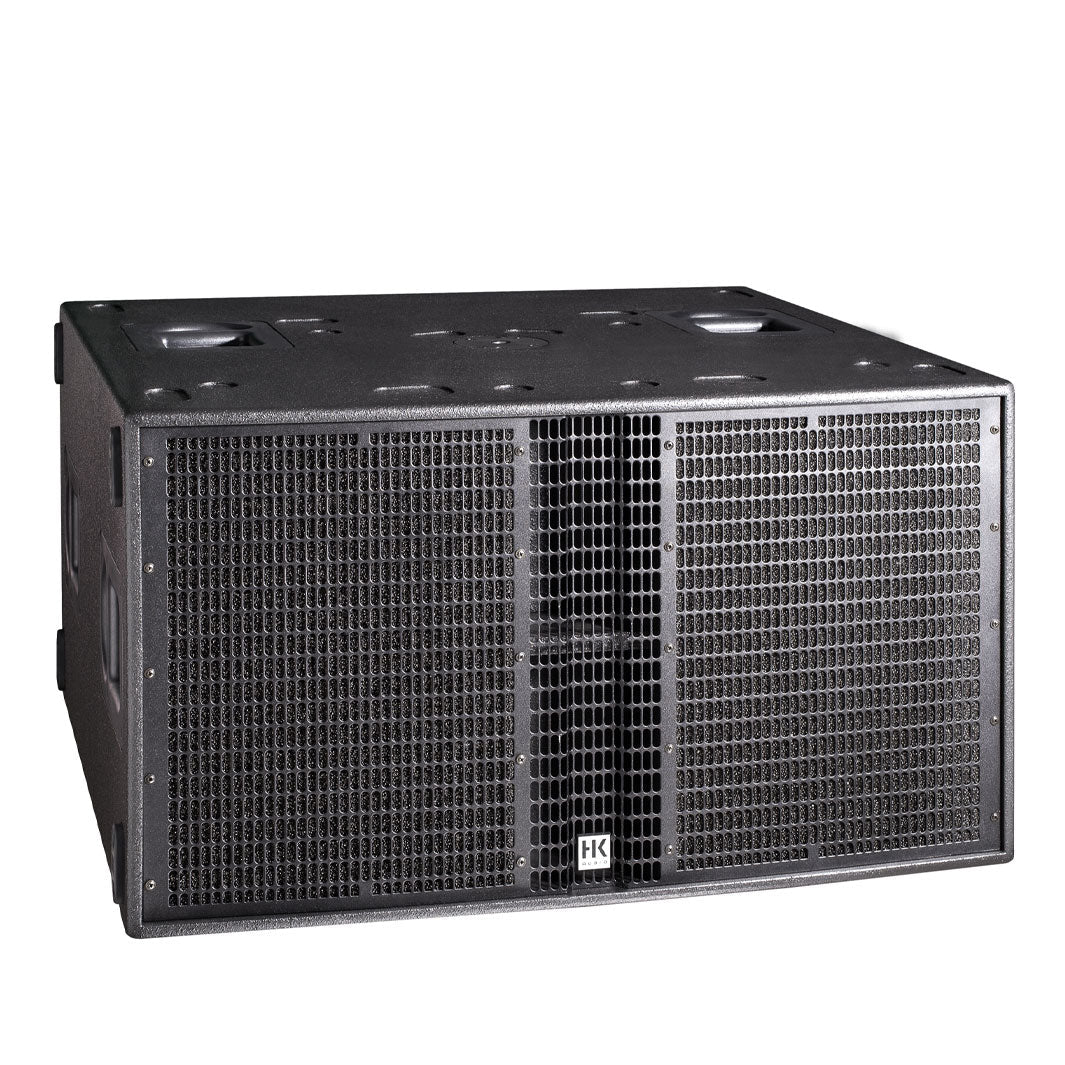

L SUB 4000 A is a flexible 18″ double vented bandpass subwoofer. Compatible with all LINEAR 5 full-range speakers and mid/high units, its powerful low end – ranging from 30 to 100 Hertz – is totally and powerfully impressive. L SUB 4000 A can also serve as a sub-low add-on to LINEAR SUB 2000 to beef up the bottom end in the range of 30 to 70 Hertz.

Powerful and versatile 18″ subwoofer
Rugged wooden enclosure of birch multiplex: 15/18 mm, 9/13 ply
1200 W
31 Hz – X-Over
137 dB half space
1 x 18″ with 4″ voice coil
Compatible with all LINEAR 5 full-range speakers and mid/high units
Ideal add-on for setups using LINEAR 5 LTS A
Sub-low add-on to LINEAR SUB 2000 (A)

Max SPL 135 dB half space (@ 10% THD)
Max SPL peak 137 dB half space (@ 10% THD)
Max SPL calculated 138 dB half space
Frequency response +/- 3 dB 39 Hz – X-Over
Frequency response -10 dB 31 Hz – X-Over
Power Rating 1200 W
Amplifier Class D
Active protection circuits Undervoltage Protection, Thermoprotection, Short Circuit Protection, Overcurrent Protection, Subsonic 24 dB/oct., Peak Limiter
LF Speaker 1 x 18" featuring advanced ventilated voice coil gap
Cut-off Frequency active 70 Hz /100 Hz variable with 24 dB/oct.

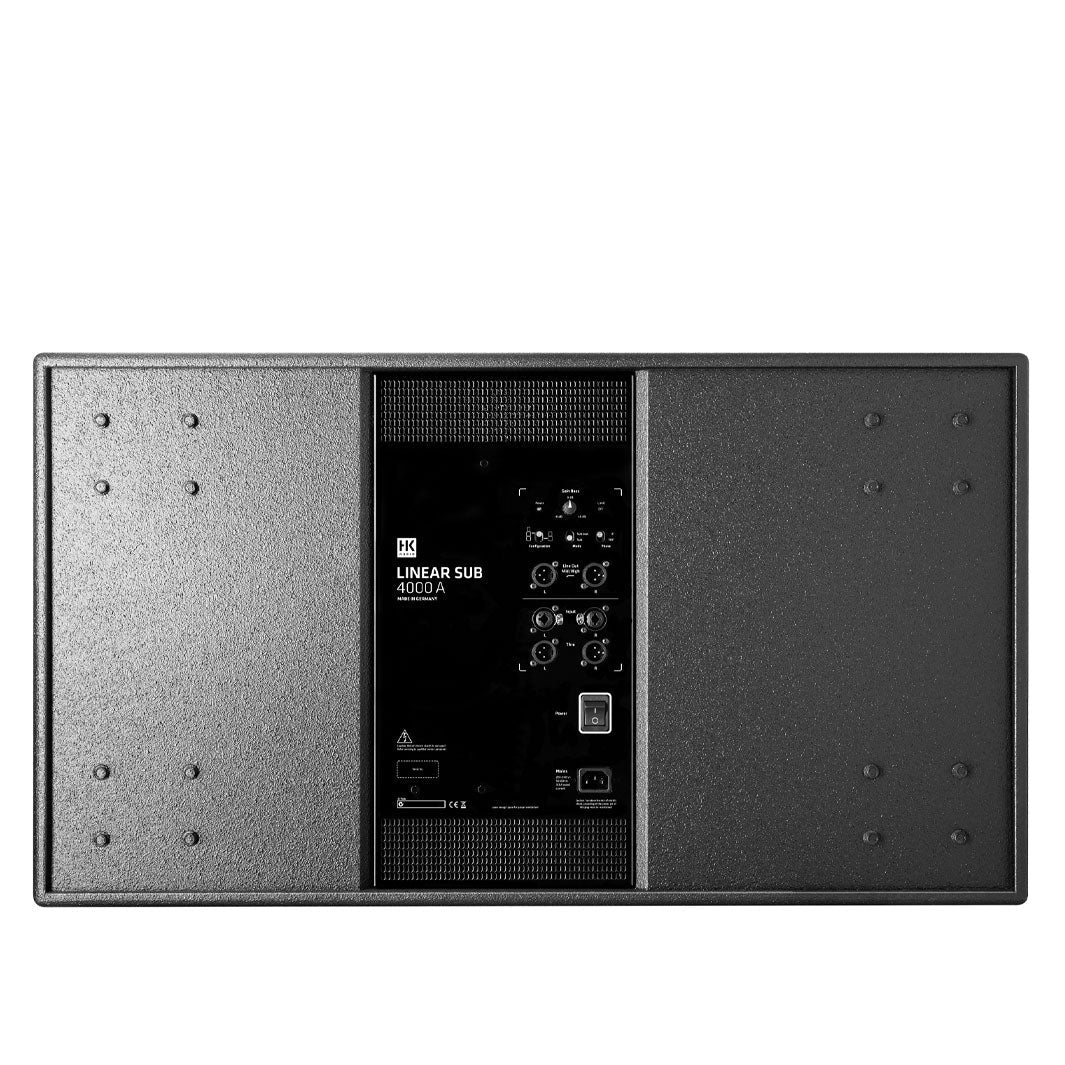

Connections 2 x XLR–1/4"-Combo In, 2 x XLR Thru, 2 x XLR Mid/High Out
Input Sensitivity +4 dBu @ Gain center-notched
Pole mount 2 x M20 (K&M)
Handles 8 x HK Audio MultiGrip
Enclosure Birch multiplex

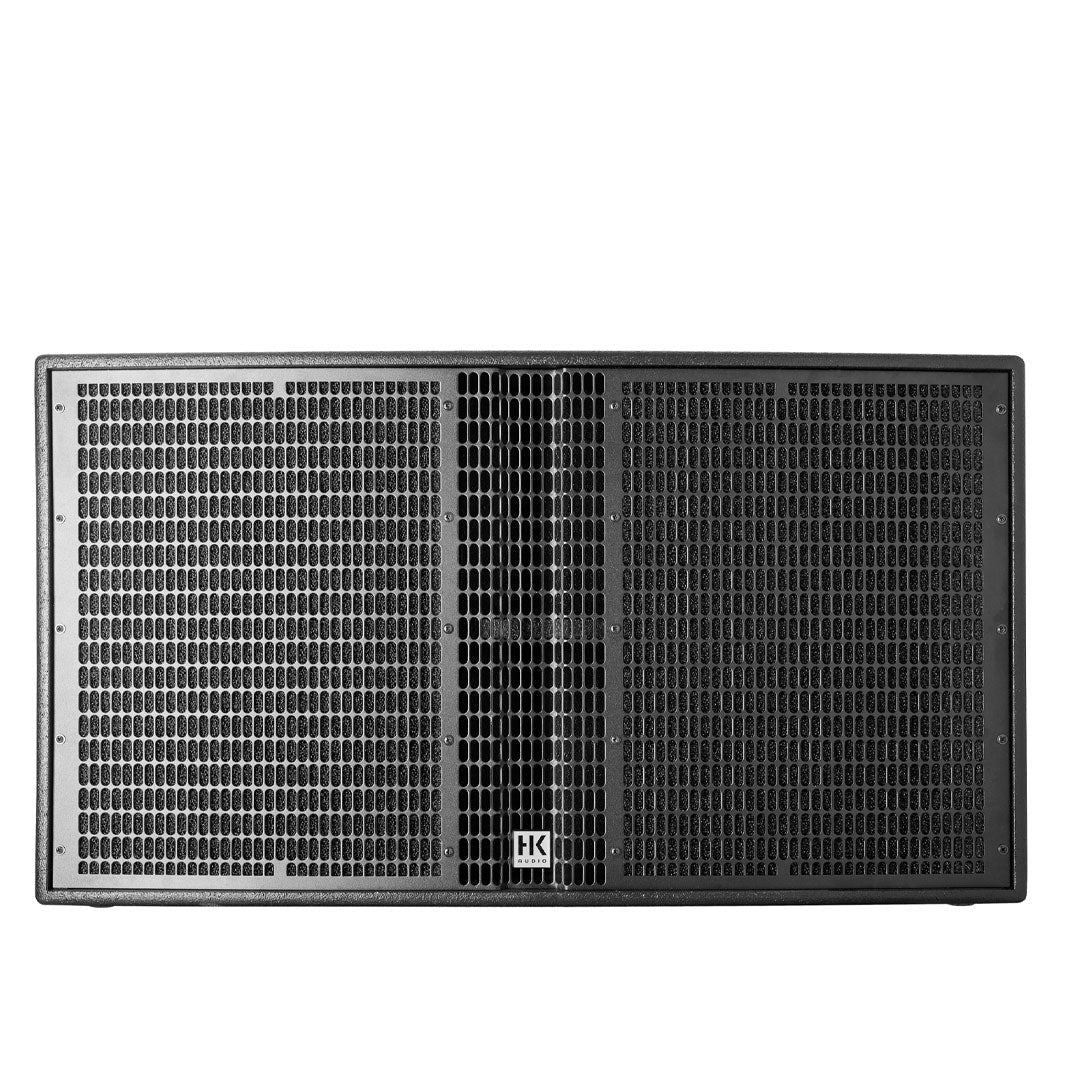

Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective cover, M20 Distance Pole Add-On, 100 mm casters, tilt unit


91 x 51 x 81 cm


59 kg (Single Unit)
