2x LD Systems MAUI® 11 G3 MIX PA System 1460w

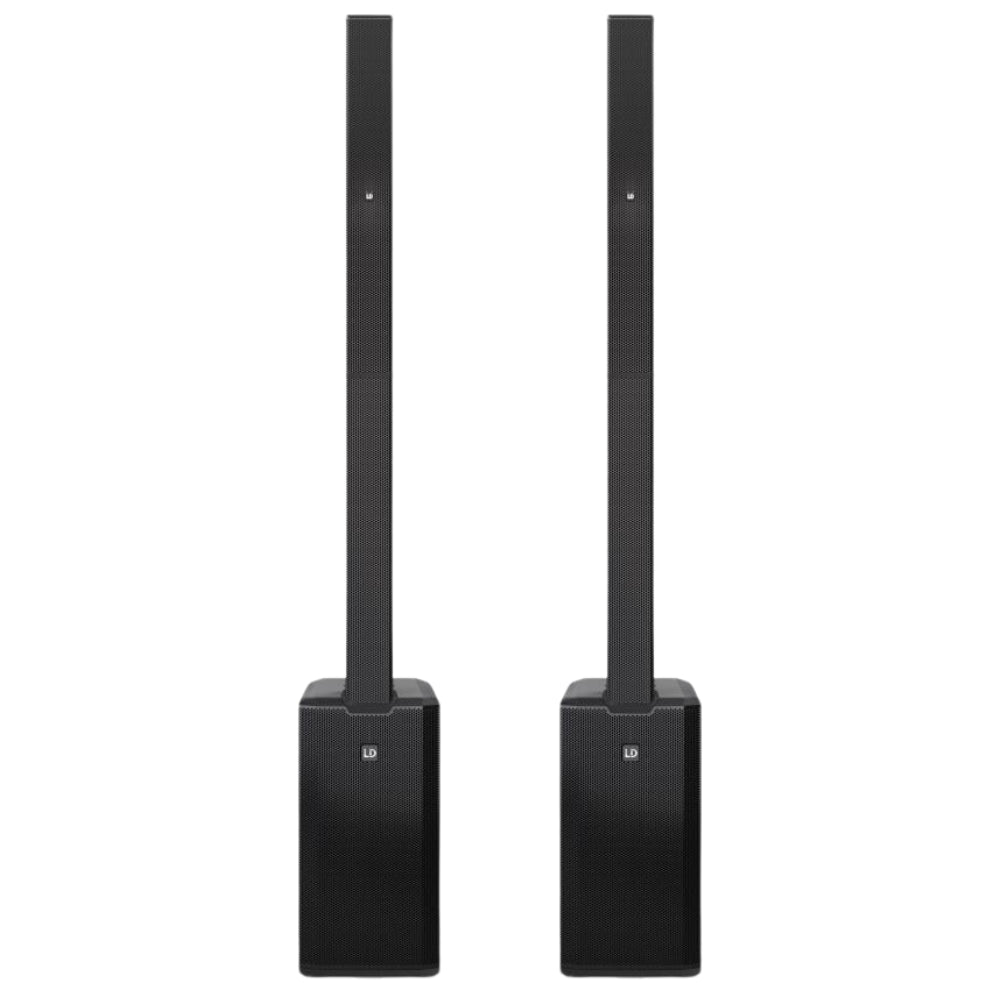

This bundle includes 2x LD Systems MAUI® 11 G3 MIX 1460w speaker systems
Vendor: LD Systems
Icon Out of Stock Out Of Stock


This bundle includes 2x LD Systems MAUI® 11 G3 MIX 1460w speaker system

Compact, powerful and easy to use – a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI Series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you’re all set!

This applies in particular to the MAUI G3 MIX versions, which feature integrated digital 6-channel mixers. All components are integrated and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via a free MAUI app (available on iOS or Android smartphones and tablets) is also included.

The MAUI 11 G3 MIX delivers a huge, powerful, and precise sound with 730 W RMS power (1,460 W peak). It is suitable for various applications, for example as a main PA for singer-songwriters and small bands, a sound system for mobile DJs and formations, or a PA system at weddings, corporate events, and more.

The built-in 6-channel mixer adjusts to the user's preferences through the Easy and Expert Modes. Users can choose between intuitive 3-band EQs or more advanced 5-way full parametric control. A comprehensive effects section provides the full range of reverb, delay and dynamics processing options. Users can wirelessly control all mixer and effects settings through the app.

For stereo applications, two MAUI 11 G3 MIX units can be linked via SysLink®. In this setting, twice the number of mixer channels are available, and with the REMOTE button, all channels can even be controlled from one system.

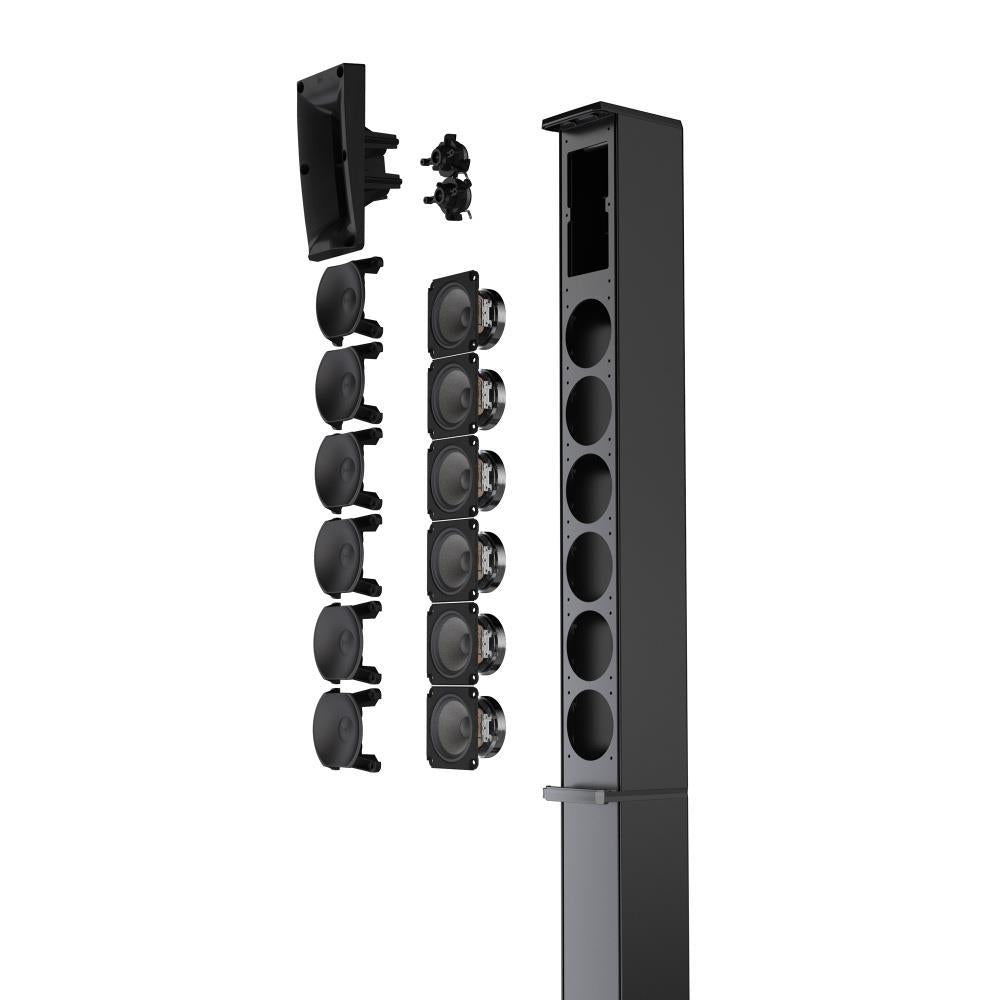

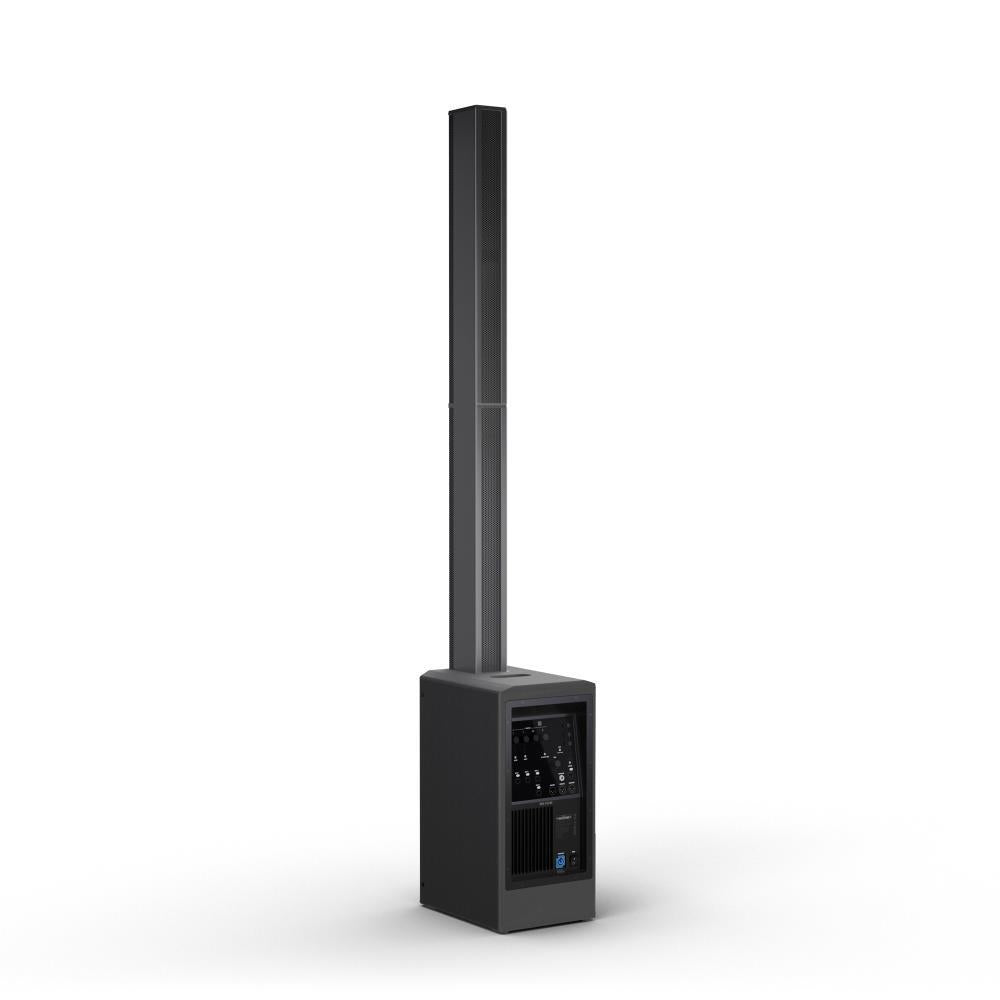

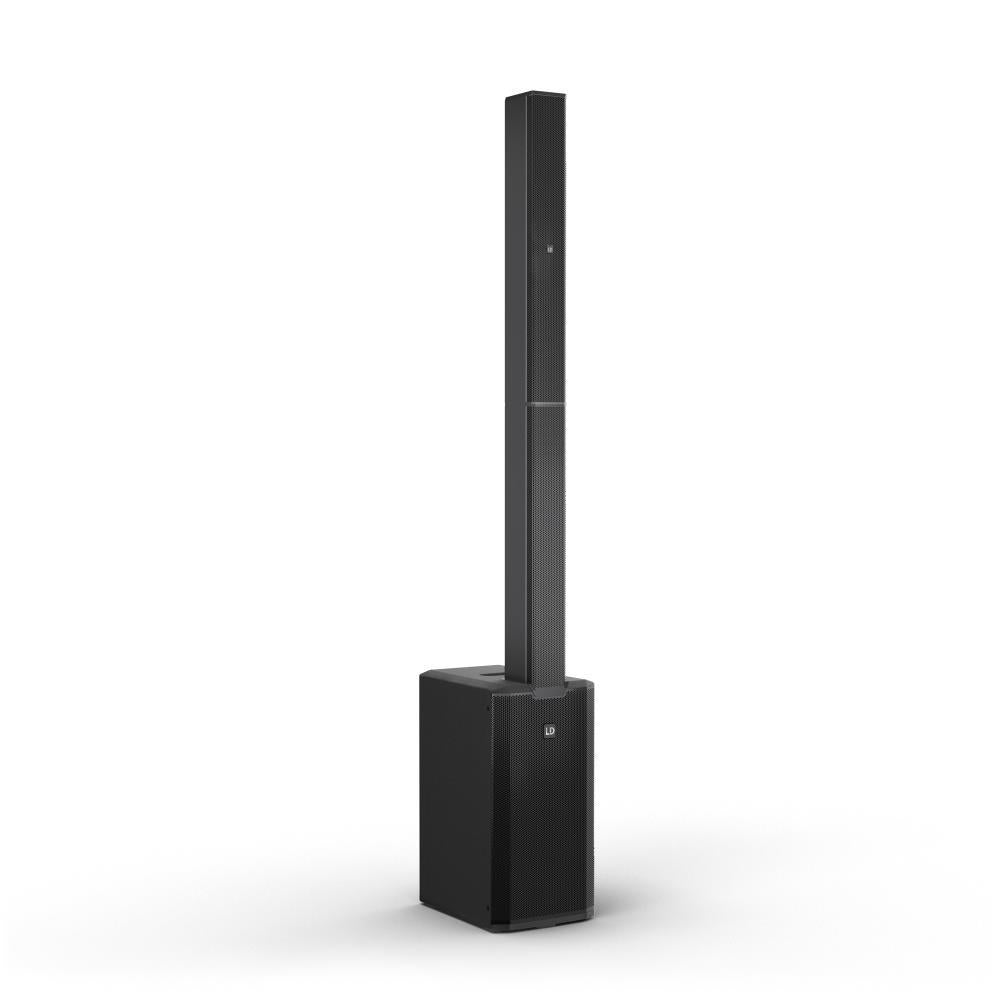

With its sleek and elegant design, the MAUI 11 G3 MIX looks extremely appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide – in front of the tweeters – carries the high frequencies right to the back of the audience areas.

The LD Systems engineers also took great care with the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field.

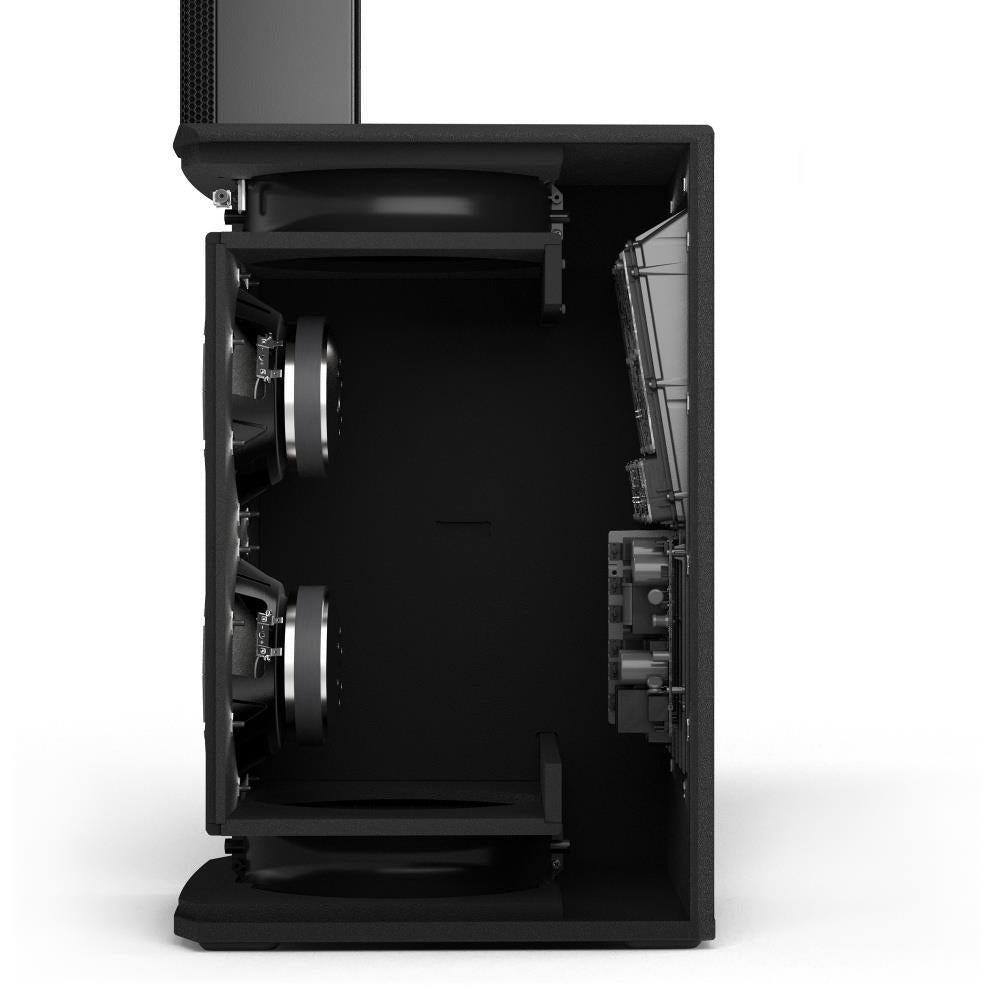

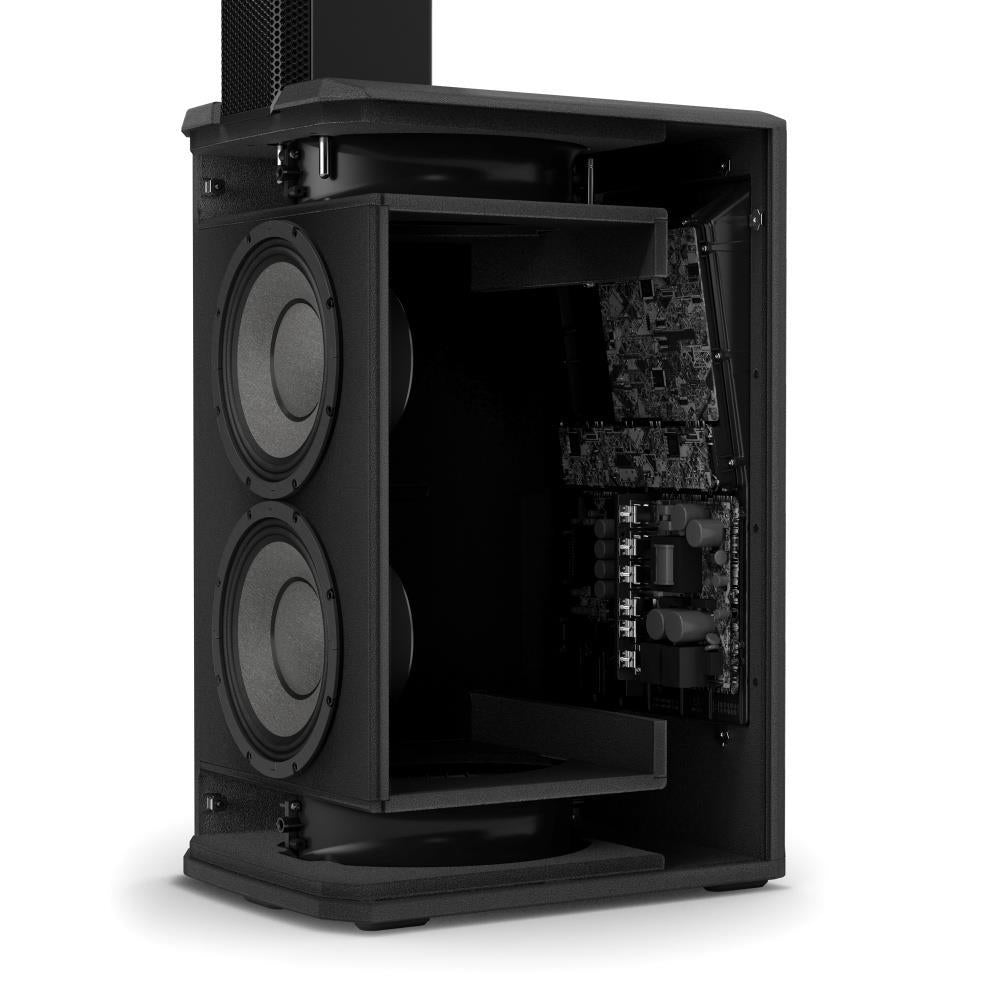

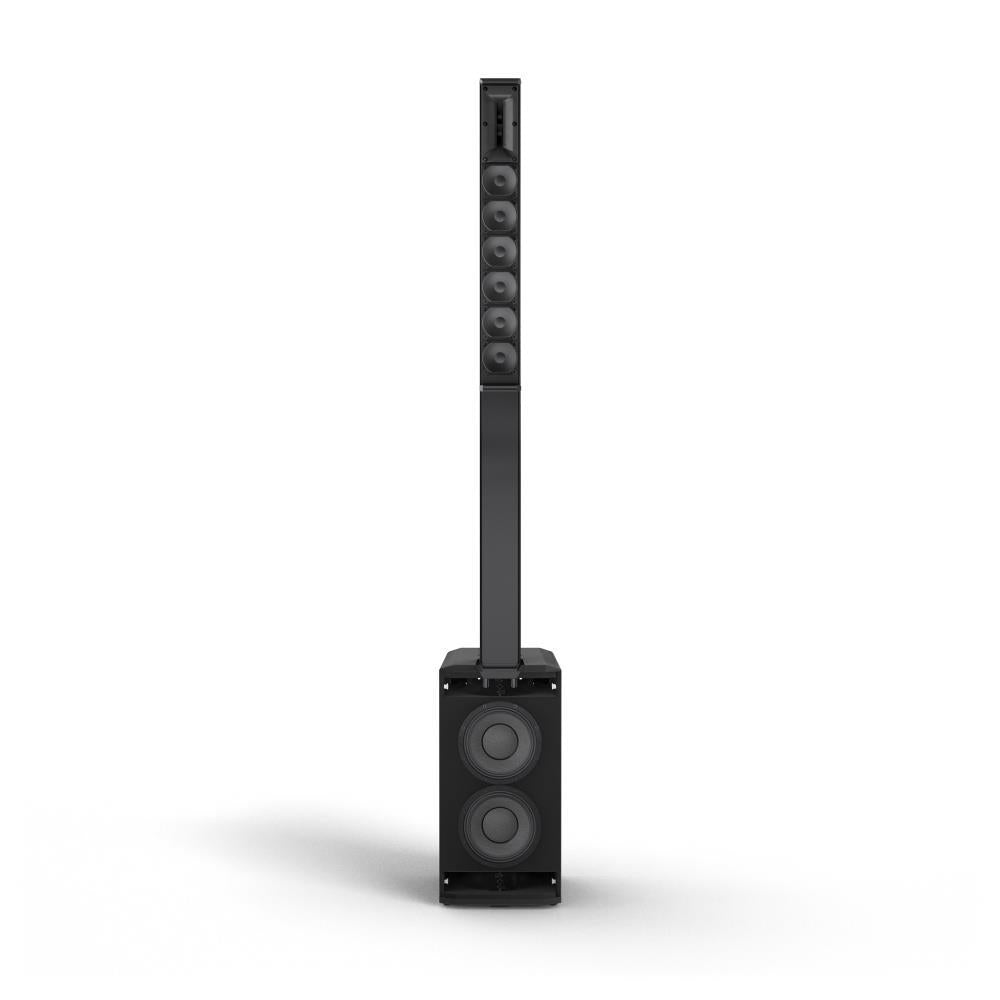

The MAUI 11 G3 MIX columns are designed as cardioid units. This allows for controlled low mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8'' woofers and four bass reflex ports, the MAUI 11 G3 MIX subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased by up to 6 dB, and it can also be driven in cardioid configuration at the push of a button (Cardioid preset). In addition, the subwoofer’s ultra-durable polyurea coating easily withstands even the toughest demands of life on the road.

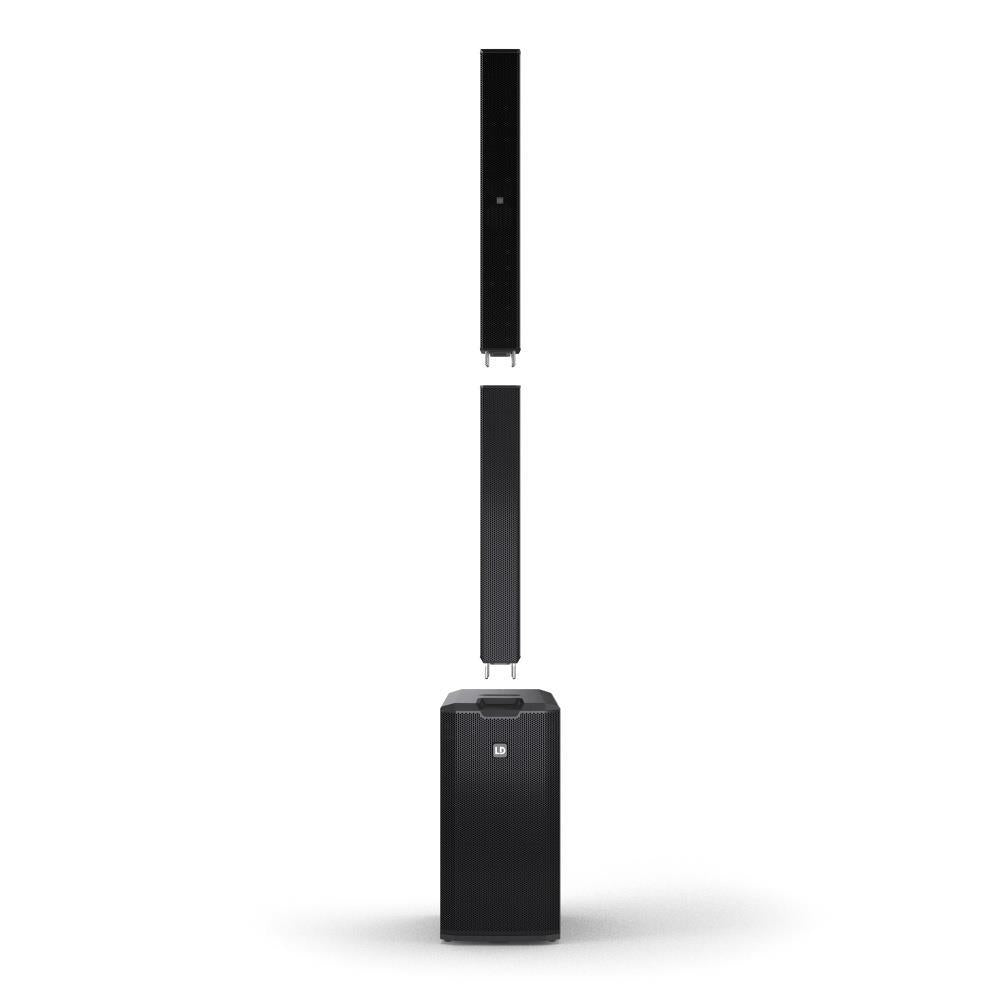

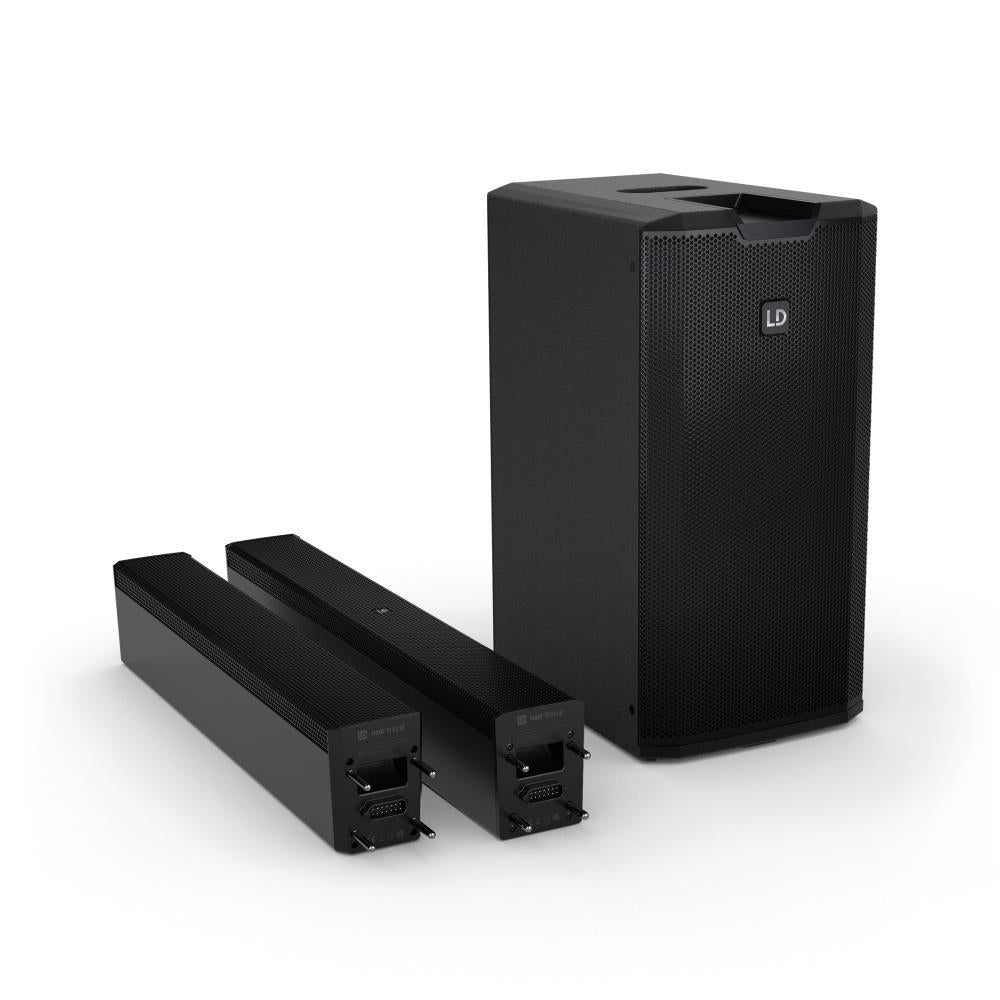

The MAUI 11 G3 MIX is a real sound machine, yet will impress solo entertainers, singer/songwriters or small bands daily with its smart features. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There’s nothing that can knock the MAUI off its feet so easily...


1460 W Peak-power and 125 dB max. SPL
Powerful bass reproduction with 2 x 8" subwoofer
Balanced mids thanks to 6 x 3.5" full-range speakers
Precise and silky highs with 2 x 1" high-frequency drivers
Digital 6-channel mixer with on-board effects and footswitch input
Free App with Easy and Expert mode for remote adjustments via smartphone and tablet (optional)
SysLink® for connecting two MAUI G3 MIX to double the mixer...


Product type PA Complete Systems
Type Powered
Color Black
Max. SPL (Peak) 125 dB
Frequency response (-10dB) 39 Hz - 20000 Hz
Dispersion (H x V) 120° x 30 °
Total Height 2052 mm
Weight 31,5 kg
Features 6 channel mixer, App Control (Easy + Expert Mode), Bluetooth Audio Streaming, Cardioid column, Footswitch Input, On-board effects + dynamics, SysLink® (cascading of 2 systems)

Woofer dimensions 2 x 8 "
Woofer dimensions (mm) 2 x 203 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50.8 mm
Cabinet construction Bass Reflex
Housing material 15 mm birch plywood
Cabinet surface Polyurea
Dimensions Subwoofer (W x H x D) 305 x 607 x 403 mm
Subwoofer weight 21,3 kg
Mid/Hi System
Midrange dimensions 6 x 3.5 "
Midrange dimensions (mm) 6 x 89 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 0.75 "
Midrange voice coil 19 mm
Tweeter dimensions 2 x 1 "
Tweeter dimensions (mm) 2 x 25.4 mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Wave Guide CD Waveguide
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Passive Cardioid
Mid/Hi system cabinet material Aluminium
Mid/Hi system cabinet surface Powder-coated
Mid/Hi system width 103 mm
Mid/Hi system height 1460 mm
Mid/Hi system depth 135 mm
Mid/Hi system weight 10.2 kg

Amplifier module (integrated in subwoofer)
Amplifier Class D
System output (RMS) 730 W
System output (Peak) 1460 W
Protection circuits DC protection, Multiband limiter, Short circuit, Thermal protection
Cooling Convection

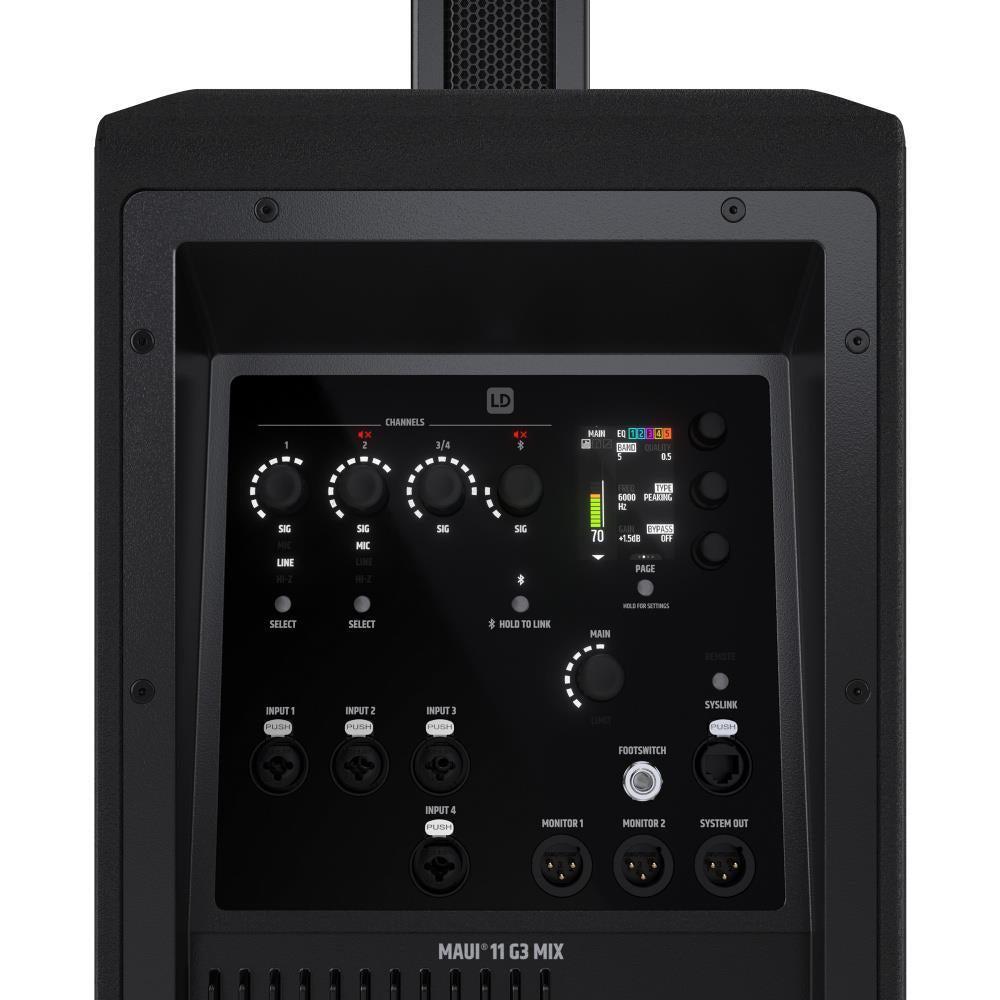

Controls Bluetooth HOLD TO LINK button, Channel Level, Input type, Main level, Page button, Power On/Off, Remote, Rotary/push encoder
Indicators Bluetooth, Channel Level, Display, Input type, Limit, mute, Power, Protect (protection circuit engaged), Remote, Signal
Mains connector PowerCON
Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Fuse T 3.15AL / 250 V
Power consumption 300w
Ambient temperature (operating) 0 - 40 °C
Relative Humidity < 80% (non-condensing)
Line Inputs 4, Footswitch
Line Input Connectors Combo XLR / TRS
Line Outputs 1 System OUT, 2 Monitor OUT
Line Output Connectors XLR male
Number of speaker outputs 1
Loudspeaker Output Connectors Custom-made multipin
Other Connections 1 RJ45 SysLink® Port
Bluetooth Standard A2DP
Bluetooth Audio Decoder SBC

DSP characteristics
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
