2x Monacor SPH-135AD Bass / Mid Speaker HiFi Mini Woofer 40W


This bundle includes:

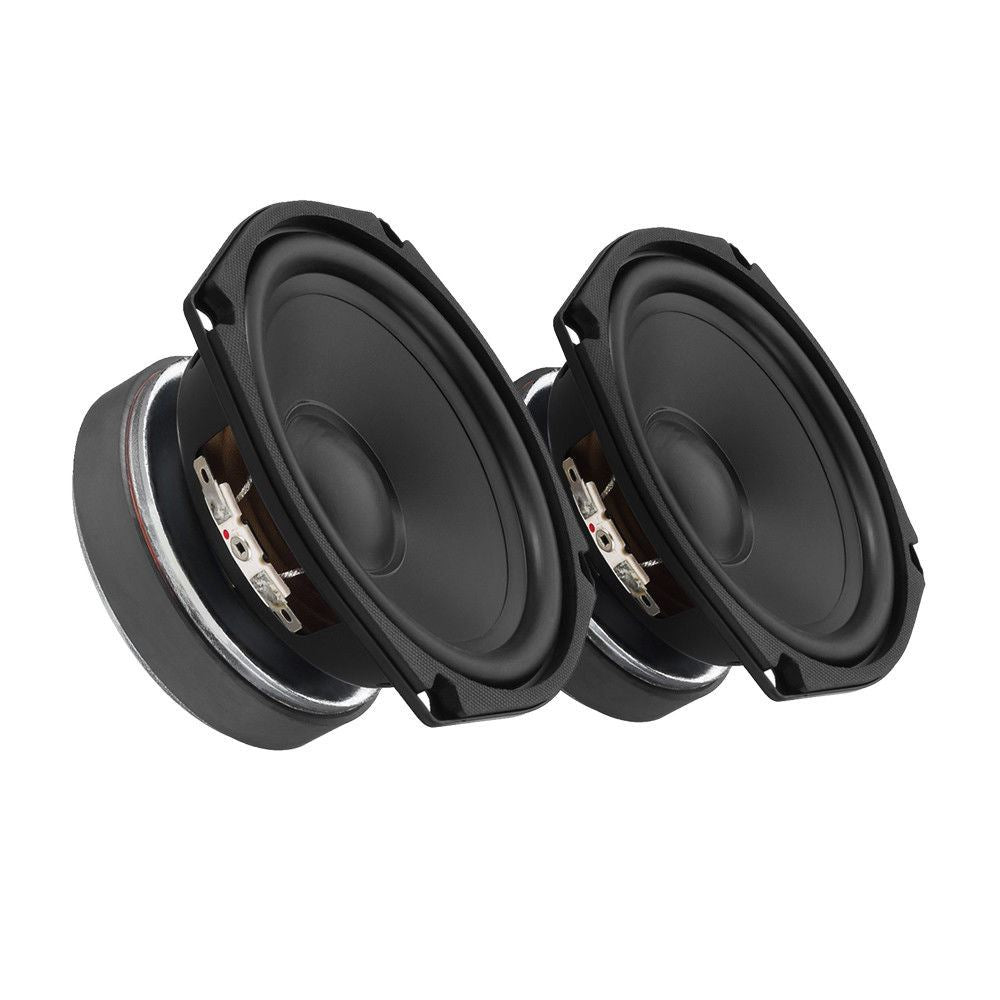

2x Monacor SPH-135AD Bass / Mid Speakers

Vendor: Monacor
SKU: SKU5130
Icon In Stock In Stock
Icon Delivery Time

The Monacor SPH-135/AD is a 40W hi-fi bass-midrange speaker. Made from a carbonised cone of high rigidity, but with very good inside damping. For any bass-midrange application in compact speakers and as high-performance midrange speaker.

Impedance (Z) 8 Ω
Resonant frequency (fs) 39 Hz
Max. frequency range f3-6,000 Hz
Music power 60 WMAX
Power rating (P) 40 WRMS
SPL (1 W/m) 89 dB
Suspension compl. (Cms) 2.14 mm/N
Moving mass (Mms) 7.8 g
Mech. Q factor (Qms) 3.40
Electr. Q factor (Qes) 0.42
Total Q factor (Qts) 0.37
Equivalent volume (Vas) 26 l
DC resistance (Re) 5.5 Ω
Force factor (BxL) 5.0 Tm
Voice coil induct. (Le) 0.47 mH
Voice coil diameter 25.5 mm
Voice coil former Kapton
Linear excursion (XMAX) ±1.75 mm
Eff. cone area (Sd) 95 cm2
Magnet weight 380 g

135 x 135 x 70 mm

1.1 kg (Single Unit)
