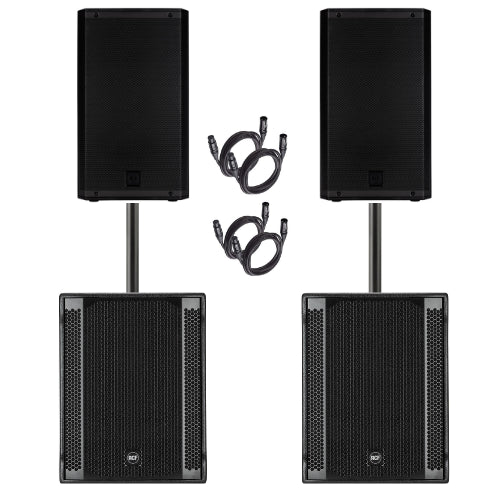

2x RCF ART 932-A + SUB 705 Active Speaker Bundle

Description

Bundle includes 2 x ART-932A, 2 x SUB-705 Subwoofer and speaker poles

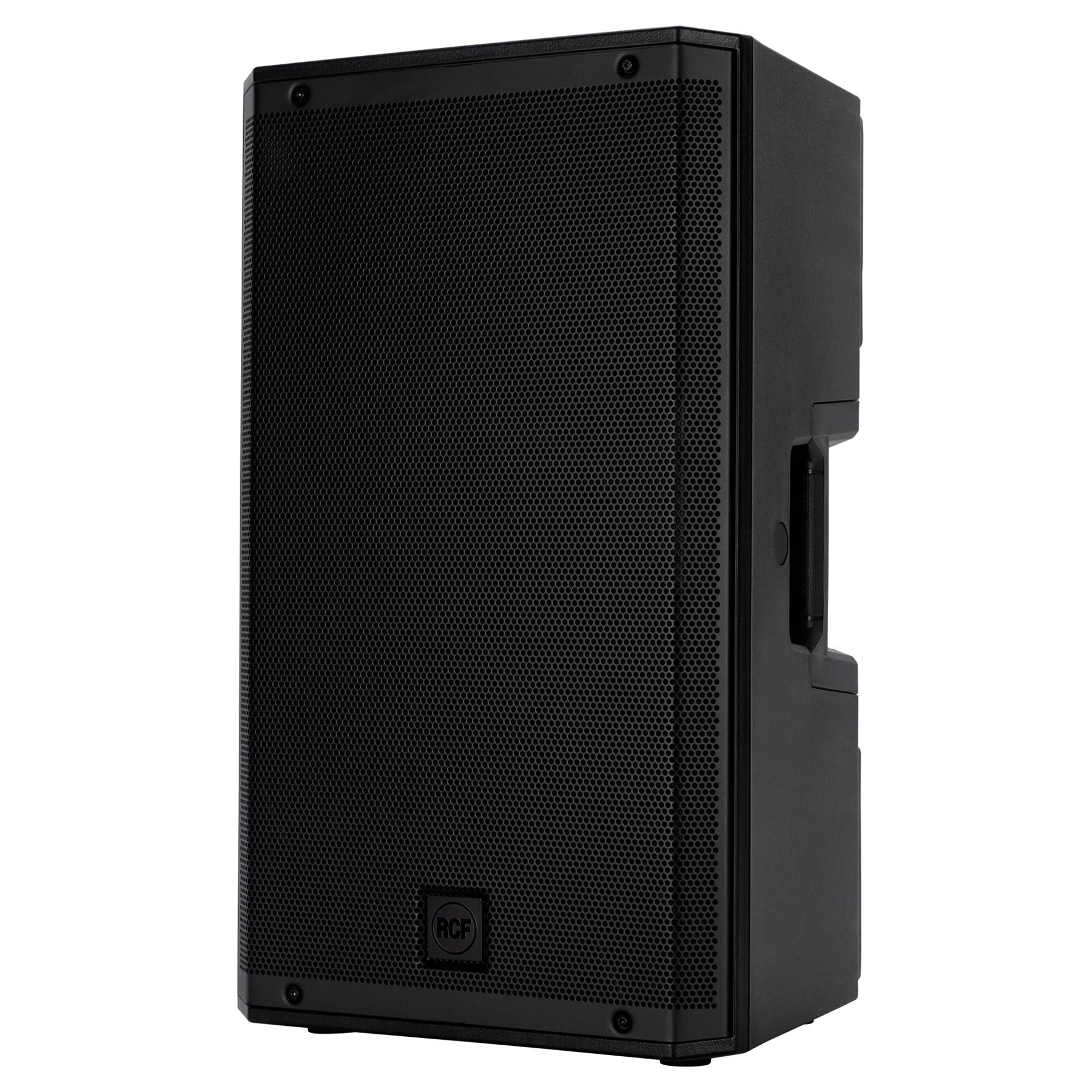

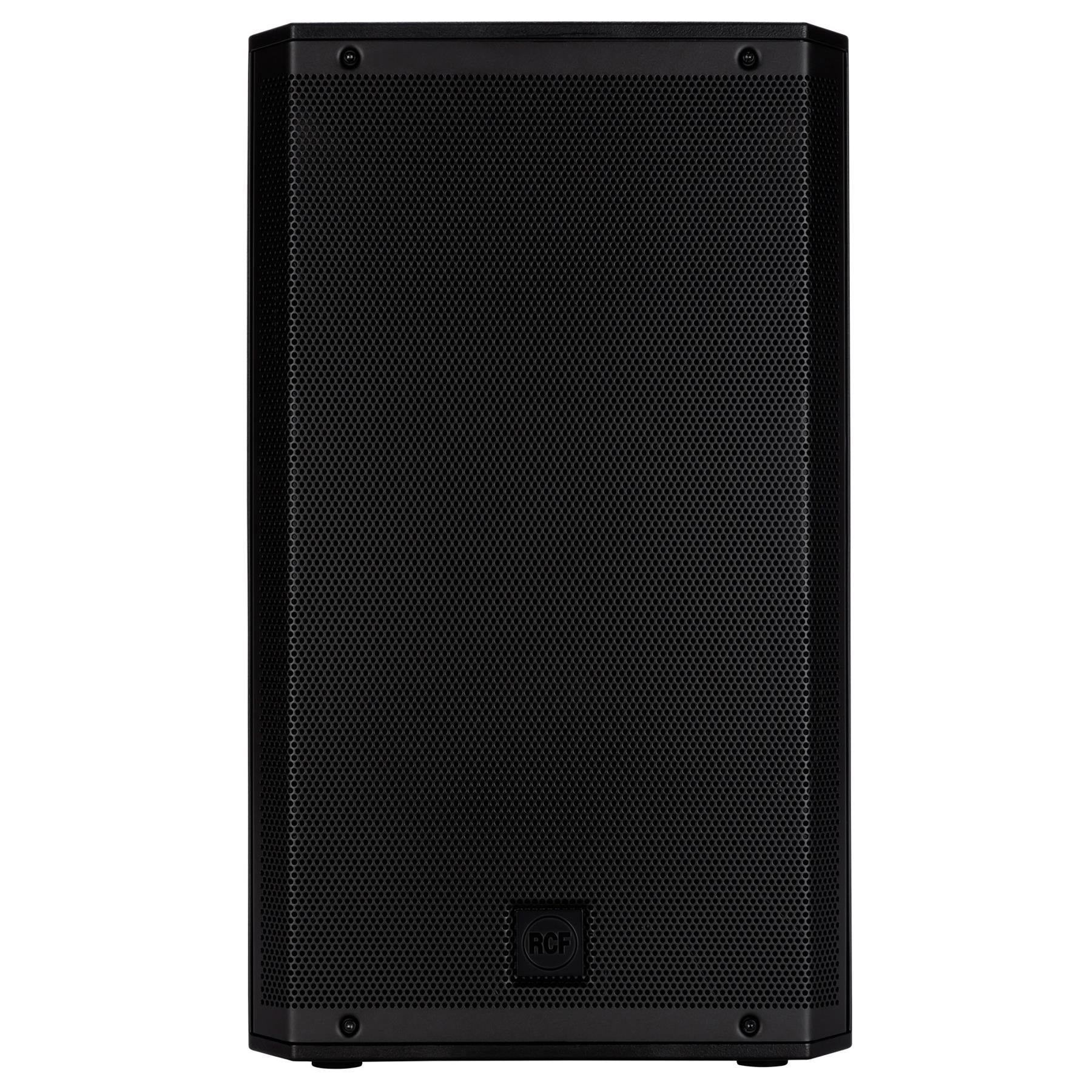

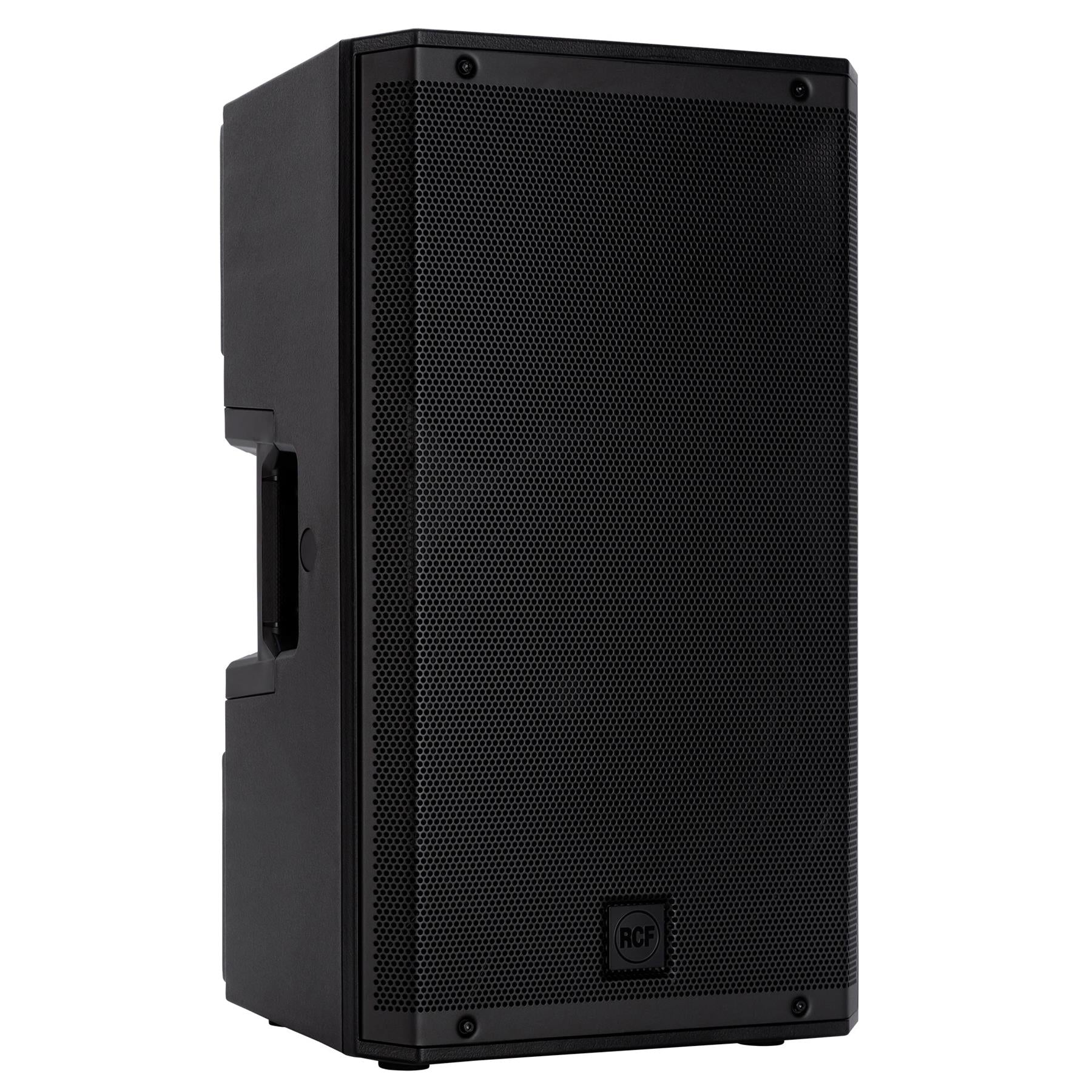

ART 932-A

2100W Class-D Bi-Amplification
45-20000 Hz linear frequency response
3" Titanium/Neodymium Compression Driver
12" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

ART 932-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of a 3" titanium/neodymium compression driver, 12" woofer - two-channel 2100W amplifier, and the constant directivity TrueResistive waveguide produces coherent 100° x 60° coverage for the listening area with up to 132 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown, the ART 932-A packs high-performance and reliability in a compact enclosure. Designed to be the most flexible loudspeaker in its class, it also features multiple rigging points for fixed installation. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

Up to 132 dB Sound Pressure Level
2100W Class-D Bi-Amplification
45-20000 Hz linear frequency response
3" Titanium/Neodymium Compression Driver
12" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

Specifications

Acoustical specifications
Frequency Response: 50 Hz ÷ 20000 Hz
Max SPL @ 1m: 132 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 60°
Transducers
Compression Driver: 1 x 1.4'' neo, 3.0'' v.c
Woofer: 12'', 2.5'' v.c

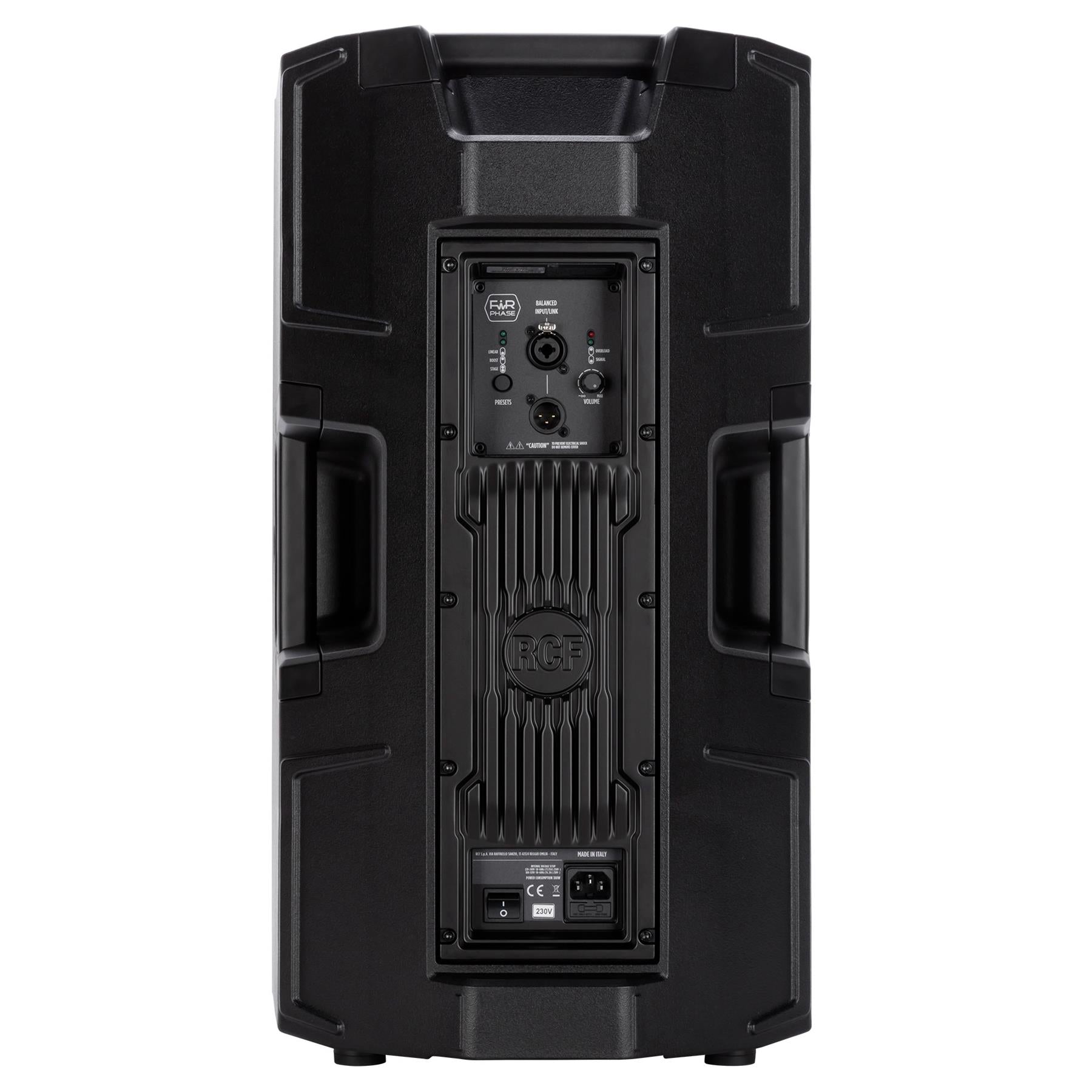

Input/Output section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section
Crossover Frequencies: 700Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Linear, Boost, Stage, Volume
Power section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard compliance
CE marking: Yes
Physical specifications
Cabinet/Case Material: PP Composite
Hardware: 1 x M10 Top, 1 x M10 each side
Handles: 1 Top , 1 each side

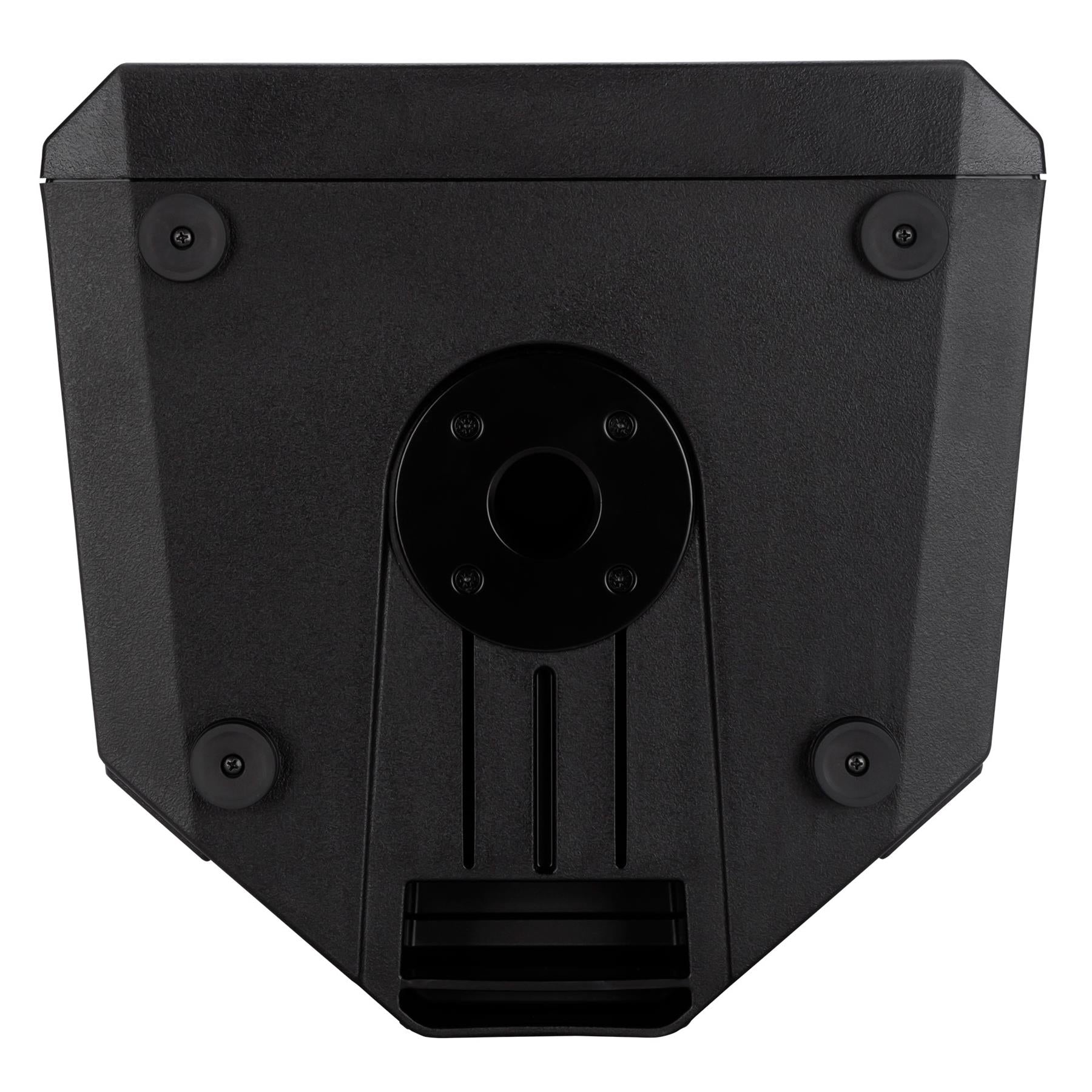

Pole mount/Cap: Yes
Grille: Steel
Color: Black
Height: 642 mm / 25.28 inches
Width: 370 mm / 14.57 inches
Depth: 363 mm / 14.29 inches
Weight: 18.8 kg / 41.45 lbs

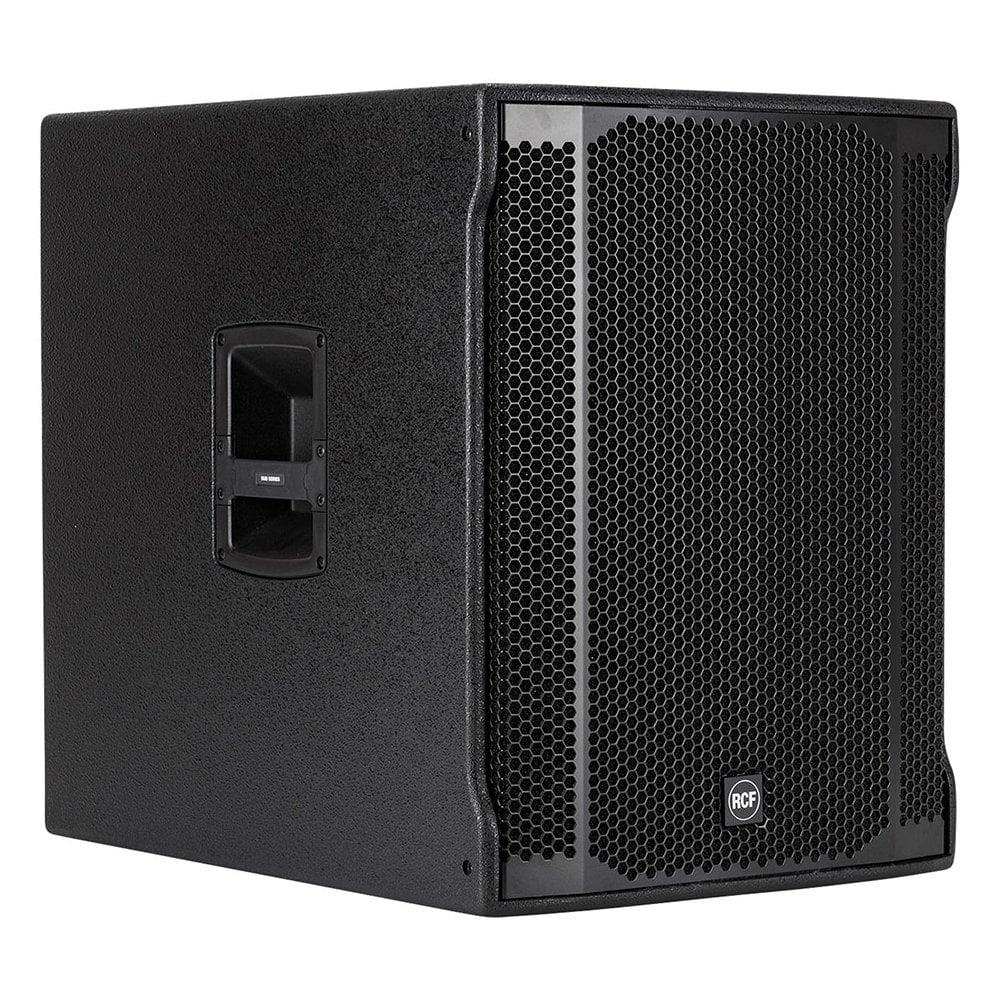

RCF SUB 705

The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15” high power woofer with 3” voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12” and 15”, ideal for RCF ART and D-Line Series.

Features:

• 1400 Watt Digital Amplifier
• 15" Woofer, bass reflex housing
• Stereo crossover
• Switchable crossover frequencies
• Phase-reverse switch
• Electronic equalization, soft limiter and protection

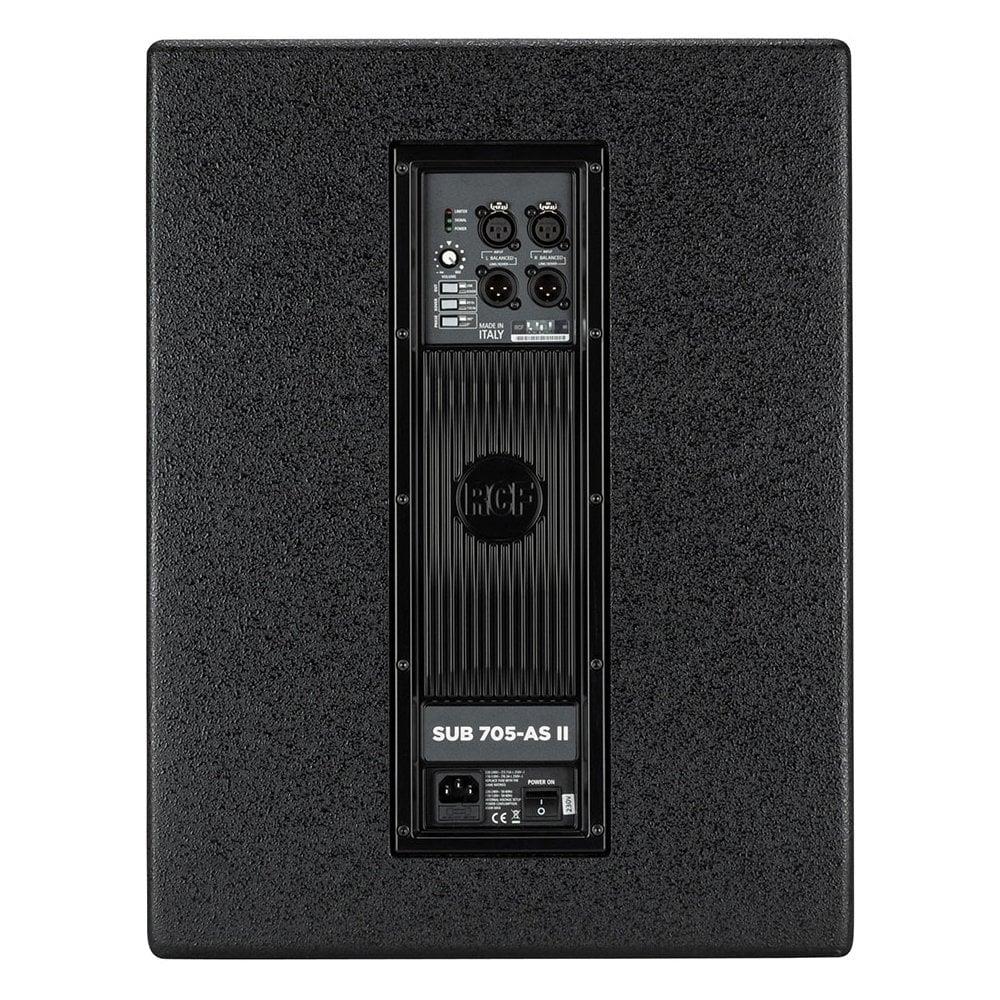

• Stereo XLR input, Stereo XLR signal output

POWERFUL LOWS

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive musical experience.

CABINET & MECHANICS

The RCF cabinets are made of birch plywood coated with a textured black finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle allows the use of the box in various configurations. The powder coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

POWERFUL CLASS D AMPLIFIERS

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. RCF amplifiers deliver an ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the amplifiers present SMPS power supply section to produce maximum output and minimum weight.
