2x RCF DM41 Speaker Black 30W & Denon Amplifier

Description

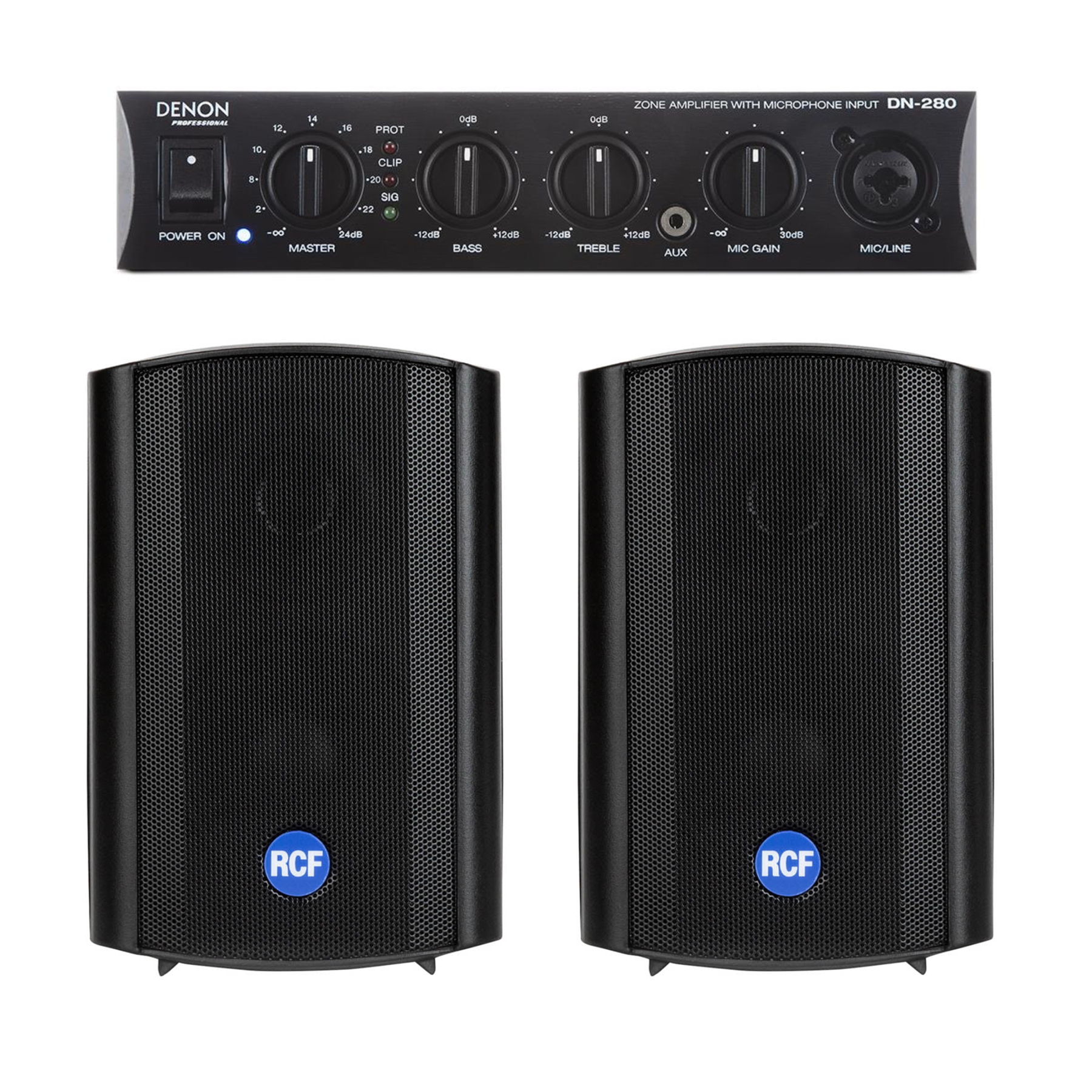

Background speaker bundle suitable for use indoor or outdoor. Bundle includes 2 x RCF DM31 speakers and Denon amplifier.

Please contact us if you require a custom bundle created including more speakers, cabling or microphone etc.

DM 41 is a compact two-way speaker designed for constant voltage systems. The speaker provides natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

3,5" woofer with mylar cone 1'' tweeter
Music power/RMS: 30 W/ 15 W
Built-in multitap transformer for constant voltage system
Body in self-extinguishing composite material
IP55 protection, suitable for outdoor use
Adjustable mounting accessory included
Each model can be connected to either a 100 V constant voltage line or a low impedance amplifier output

Specifications

Acoustical
Frequency Response (-10dB): 100 Hz ÷ 20000 Hz
Max SPL @ 1m: 102 dB
Horizontal coverage angle: 180°
Vertical coverage angle: 170°
System Sensitivity: 87 dB

Power
Nominal Impedance (ohm): 8 ohm
Power Handling: 15 W RMS
Peak Power Handling: 60 W PEAK
Recommended Amplifier: 30 W
Crossover Frequencies: 2.5 Hz
Transducers Dome Tweeter: 1.0''
Woofer: 3.5''

Input/Output
Input connectors: Cable
Output connectors: Cable
Constant Voltage Transformer: 70/100 V
Power selection 1 (100 V): 15 W - 667 ohm
Power selection 2 (100 V): 7.5 W - 1333 ohm
Power selection 3 (100 V): 5 W - 2000 ohm
Power selection 4 (100 V): 2.5 W - 4000 ohm
Power selection 5 (100 V): 1.25 W - 8000 ohm

Standard Compliance
IP protection grade: IP 55
CE marking: Yes

Physical
Cabinet/Case Material: Plastic
Hardware: Aluminium U bracket
Grille: Steel
Colour: White - RAL 9002

Dimensions
175 x 180 x 130 mm

Weight
1.96 kg

Denon DN-280 Amplifier

If you need a compact, high-powered amplifier that sums stereo signals into a mono output for paging, P.A. announcements and background music applications, the Denon Professional DN-280 is the ideal solution. With a space-saving, one-half rack space profile, the DN-280 features a microphone input for paging, a front panel 3.5mm (1⁄8-inch) AUX input and stereo analog inputs (summed to MONO) for signals from external playback devices such as an iPhone or stereo tuner.

The amplifier handles a 4Ω load or 70V/100V speaker runs, perfect for multiple speaker setups in small retail stores or doctor’s offices. A cool-running, powerful Class D amplifier delivers 100 watts with <0.1% THD and an outstanding Signal-to-Noise Ratio of >95dB, ensuring extremely clean performance under all conditions. The DN-280 has built-in short circuit protection and front-panel LED indicators for signal present, clipping status and thermal interruption.

Features:

Class D 100W mono amplifier
Trim one-half rackspace height - rackmountable or stand-alone
Removable feet and option to mount two units together in a 1RU space
Paging microphone input with gain control
Tone and master volume controls
RCA inputs (L/R stereo inputs summed to MONO)
3.5mm (1/8”) AUX input
70V/100V/4Ω Euroblock output

Specifications:Total Harmonic Distortion: <0.1% (A-weighted)

Frequency Response: 100Hz – 15kHz (+0/-3dBv)

Signal-to-Noise Ratio: >95dB (A-weighted)

Damping Factor: >200 (1k 8Ω)

Output Power: 60W

Connectors
(1) Euroblock channel output
(1) Dual RCA input
(1) XLR / TRS 1/4” (6.35mm) combination input
(1) TRS 1⁄8” (3.5mm) auxiliary inpu

Input Sensitivity
Dual RCA input: 0+/-1dBv

Auxiliary input: -10+/-1dBv

Combination input: -30+/-1dBv

Input Impedance: 20kΩ balanced or 10kΩ unbalance

Power
100V ~, 50/60Hz, 100W
110–120V ~, 50/60Hz, 100W
220–240V ~, 50/60Hz, 100W
Voltage Gain:
40+0/-1dB (100V)

Dimensions (width x depth x height): 7.9” x 10.7” x 1.7” (200 x 273 x 43mm)

Weight: 5.3 lbs. (2.4kg)
