2x RCF Evox J11 Active Column Speaker & SUB 15-AX 9200W PA System

Description

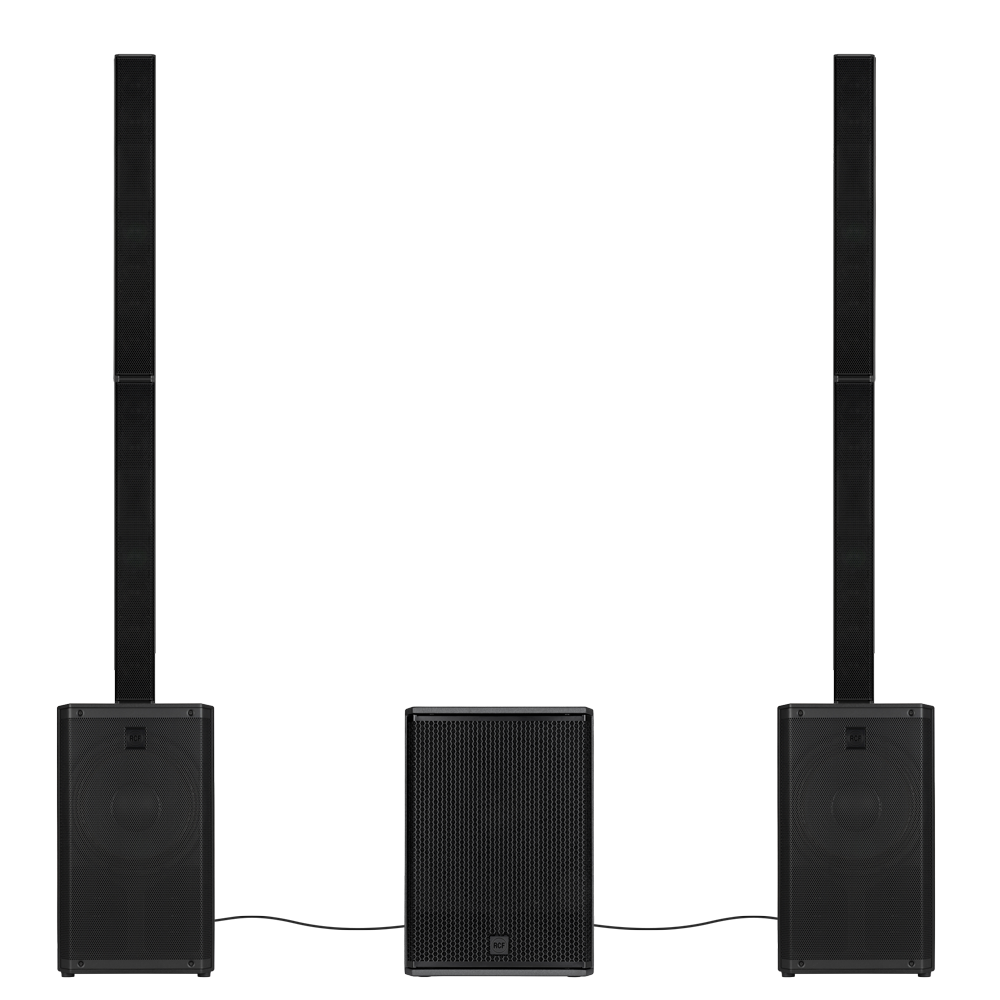

Bundle includes 2 x Evox J11 Column Speaker, SUB 15-AX and 2 x XLR microphone cable

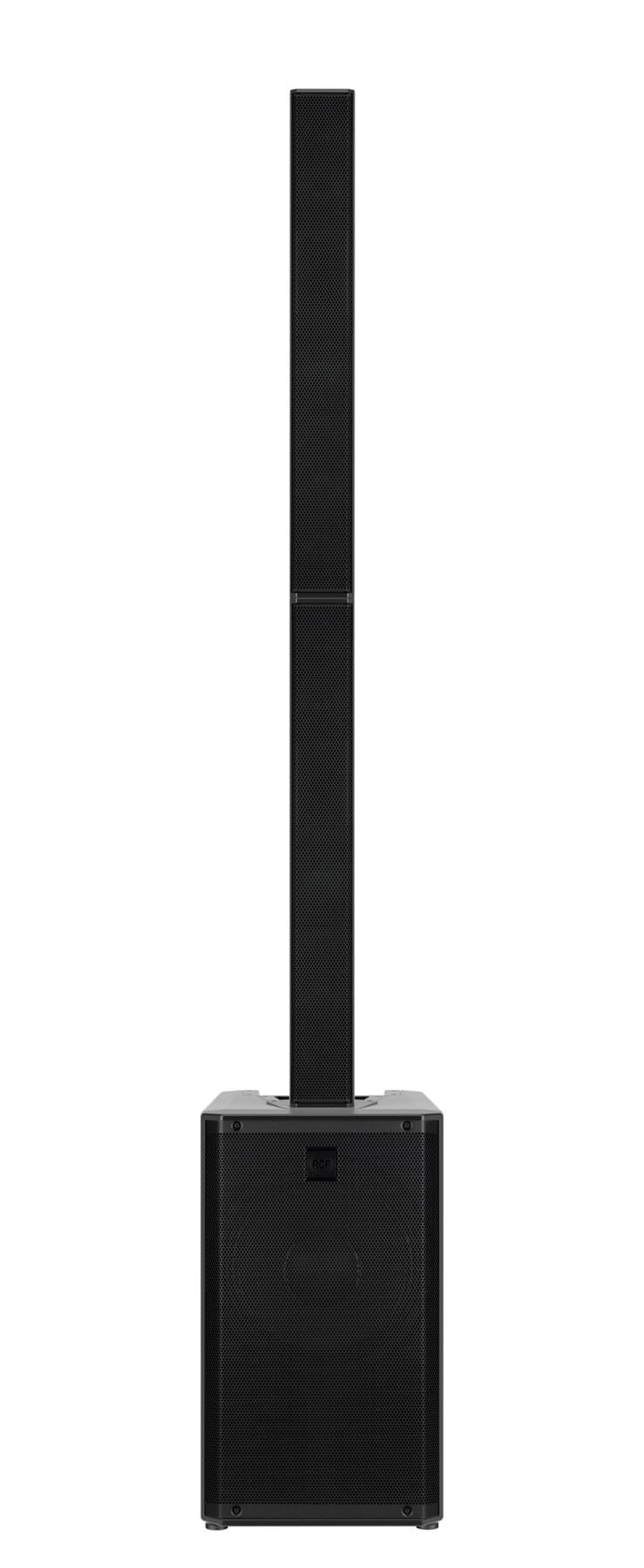

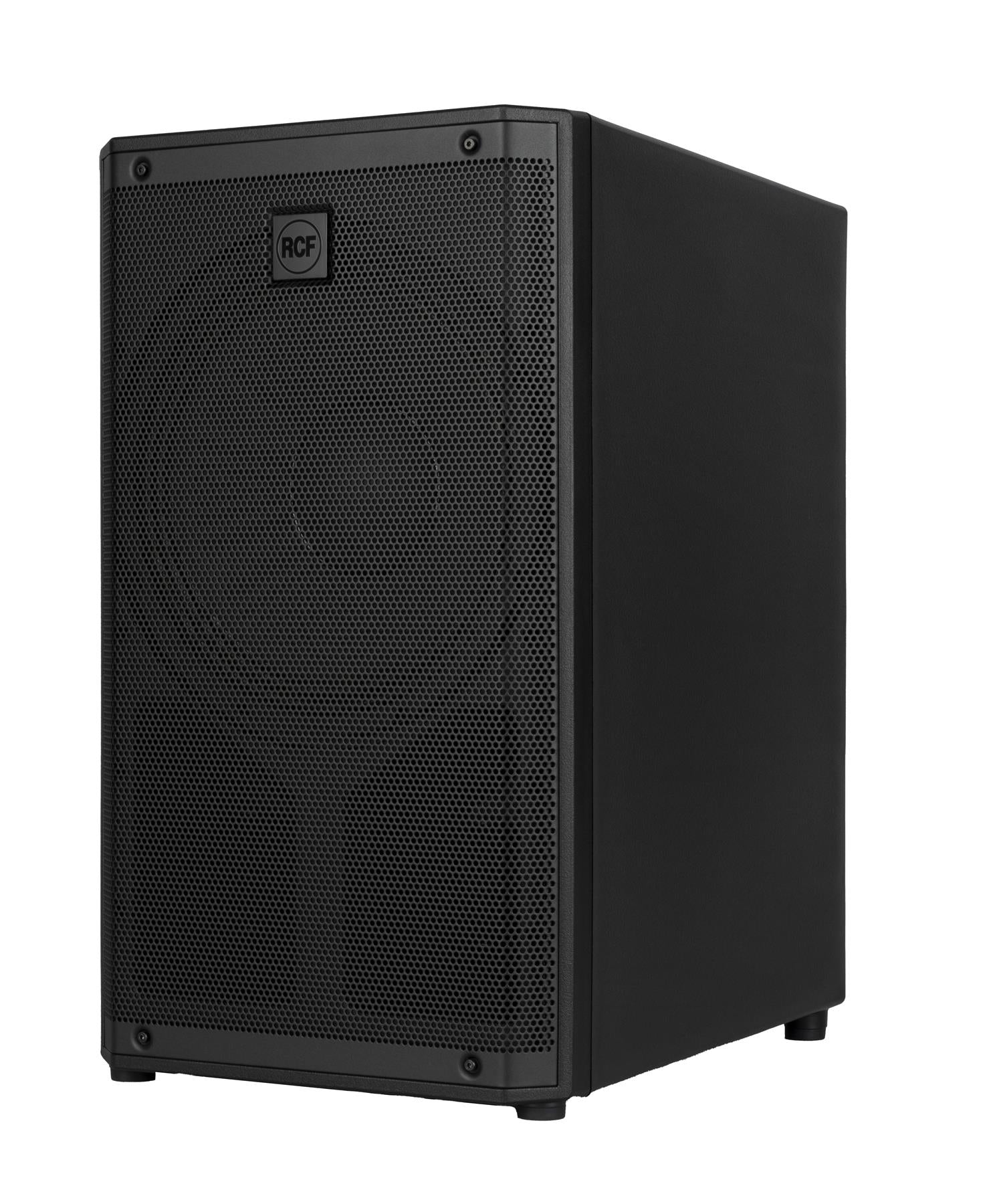

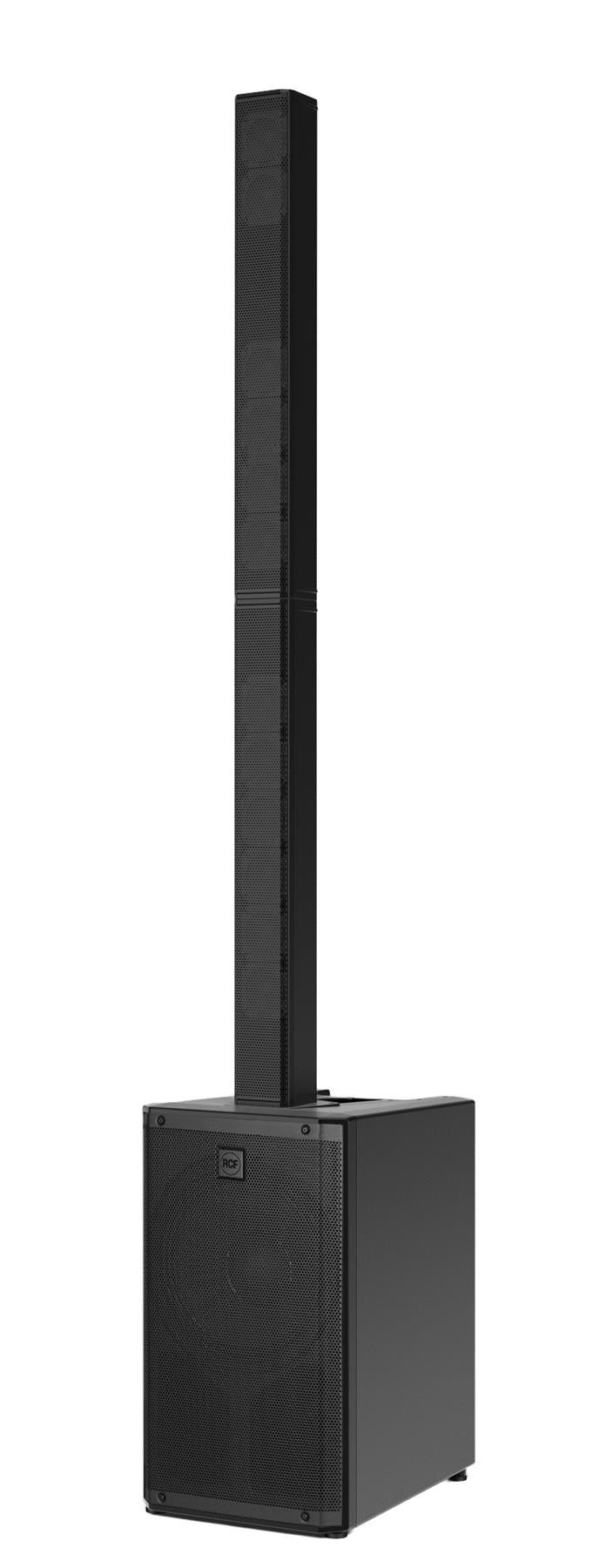

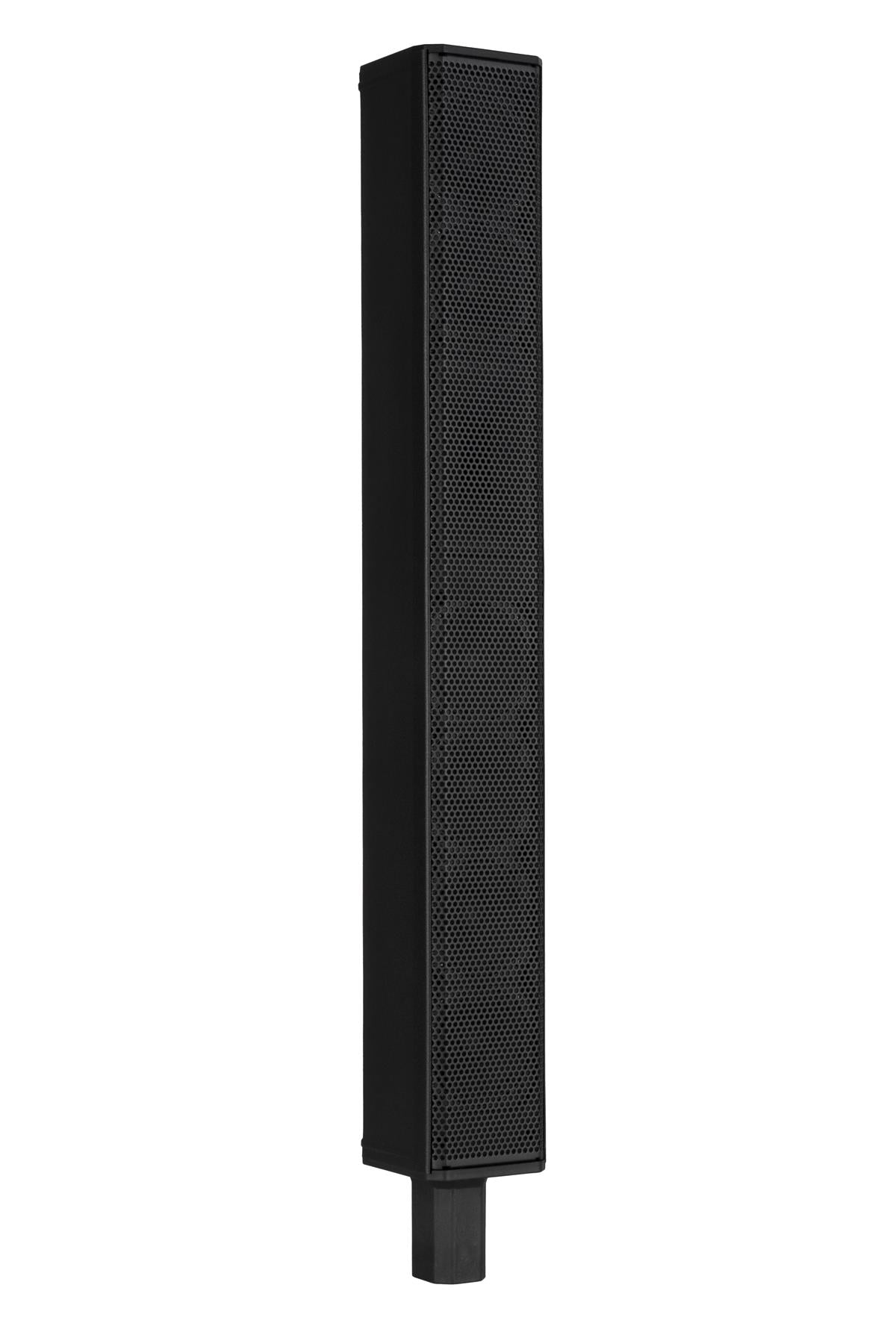

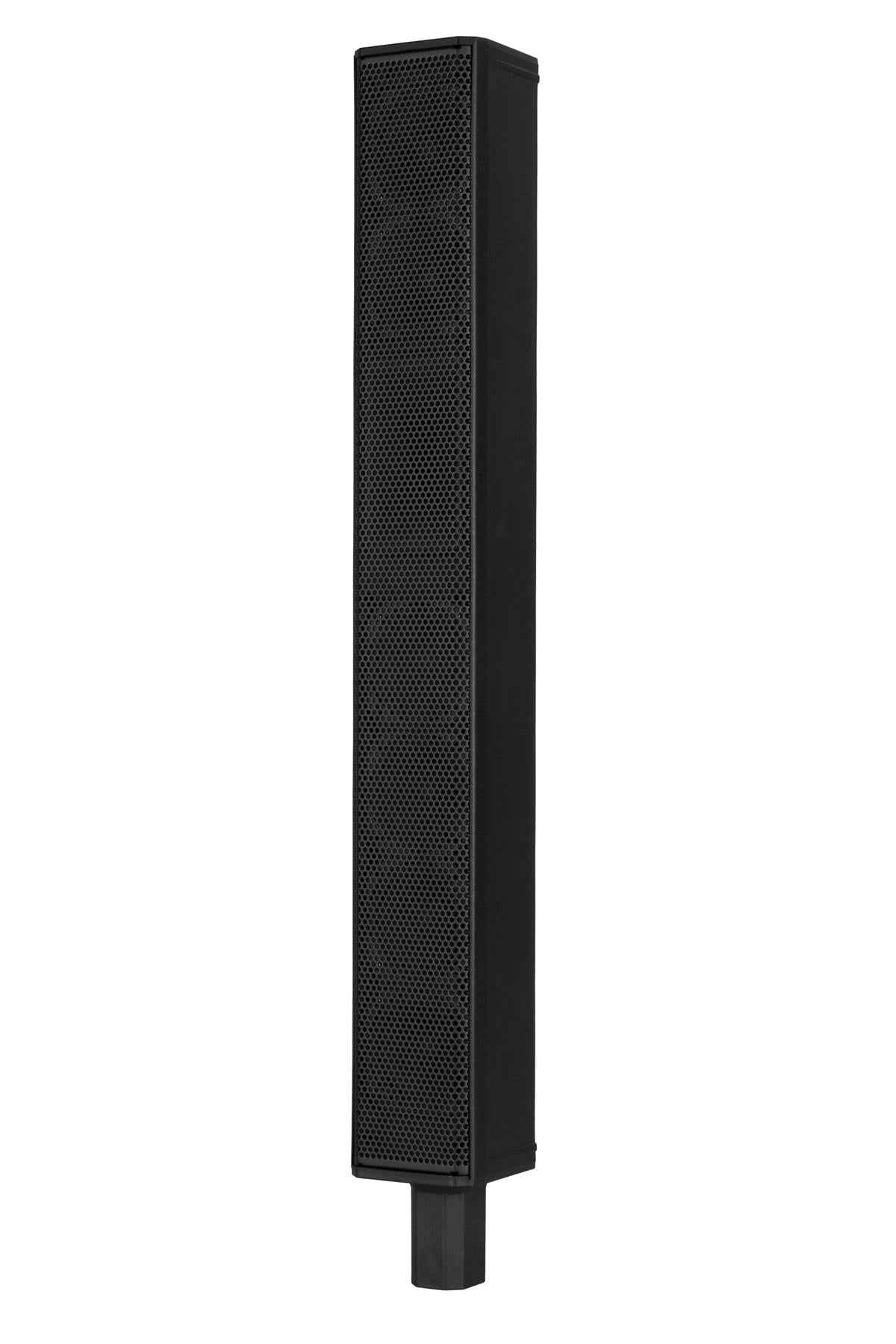

EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows.

Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

132 dB Max SPL
3500 W Class-D Amplifier - Built-In DSP
1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide

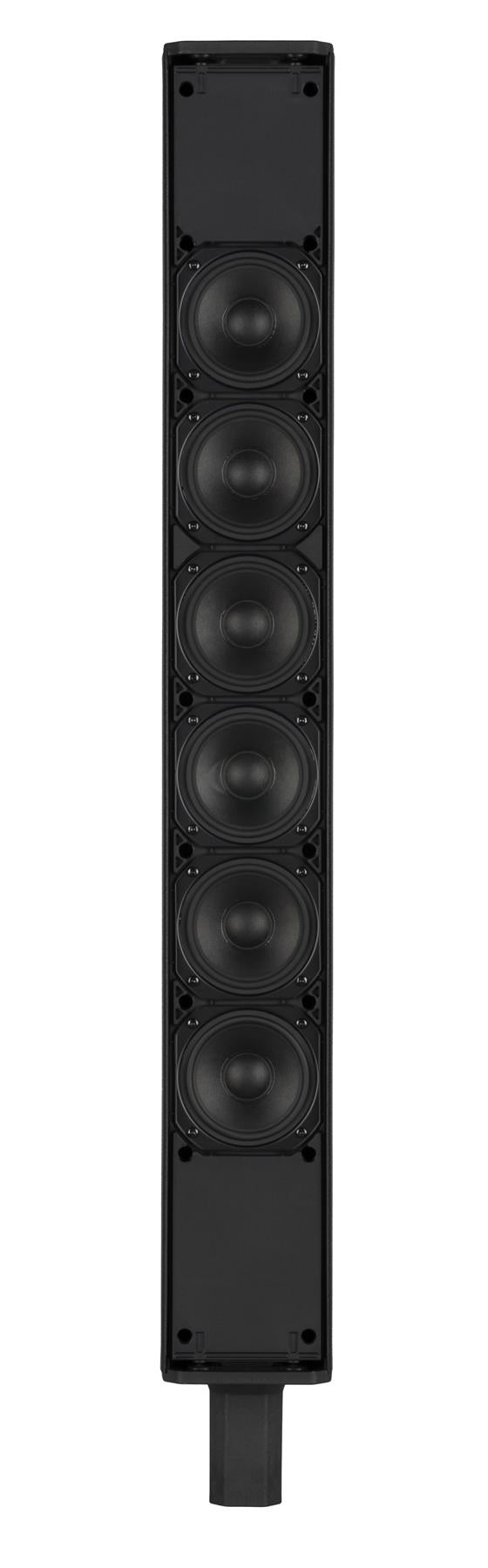

12 × 3” Full-Range Neo Transducers

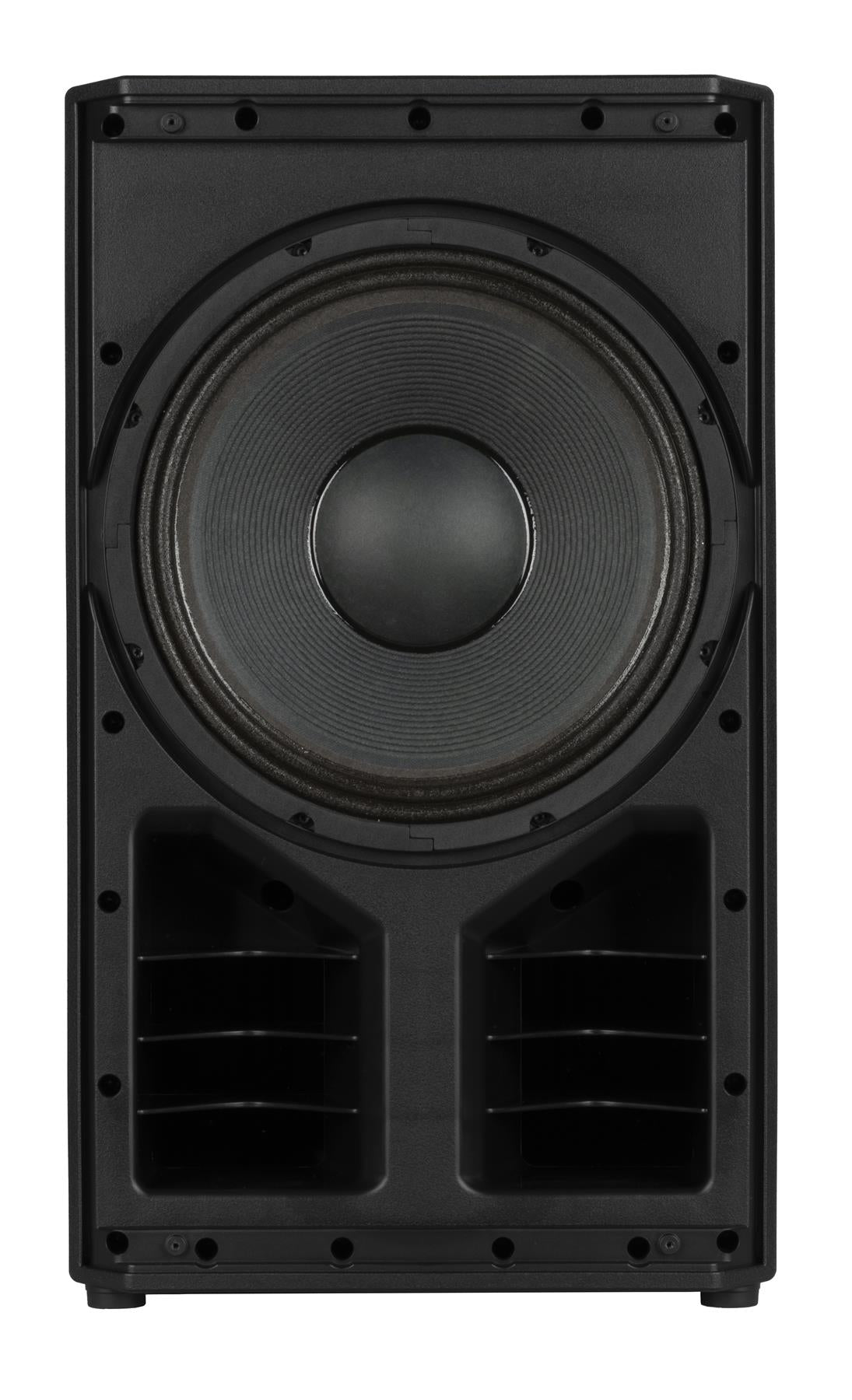

12” High-Power Woofer
Enhanced Coverage And Clarity
Composite Cabinet With Aluminum Stand Mount
Sleek, Road-Ready Design

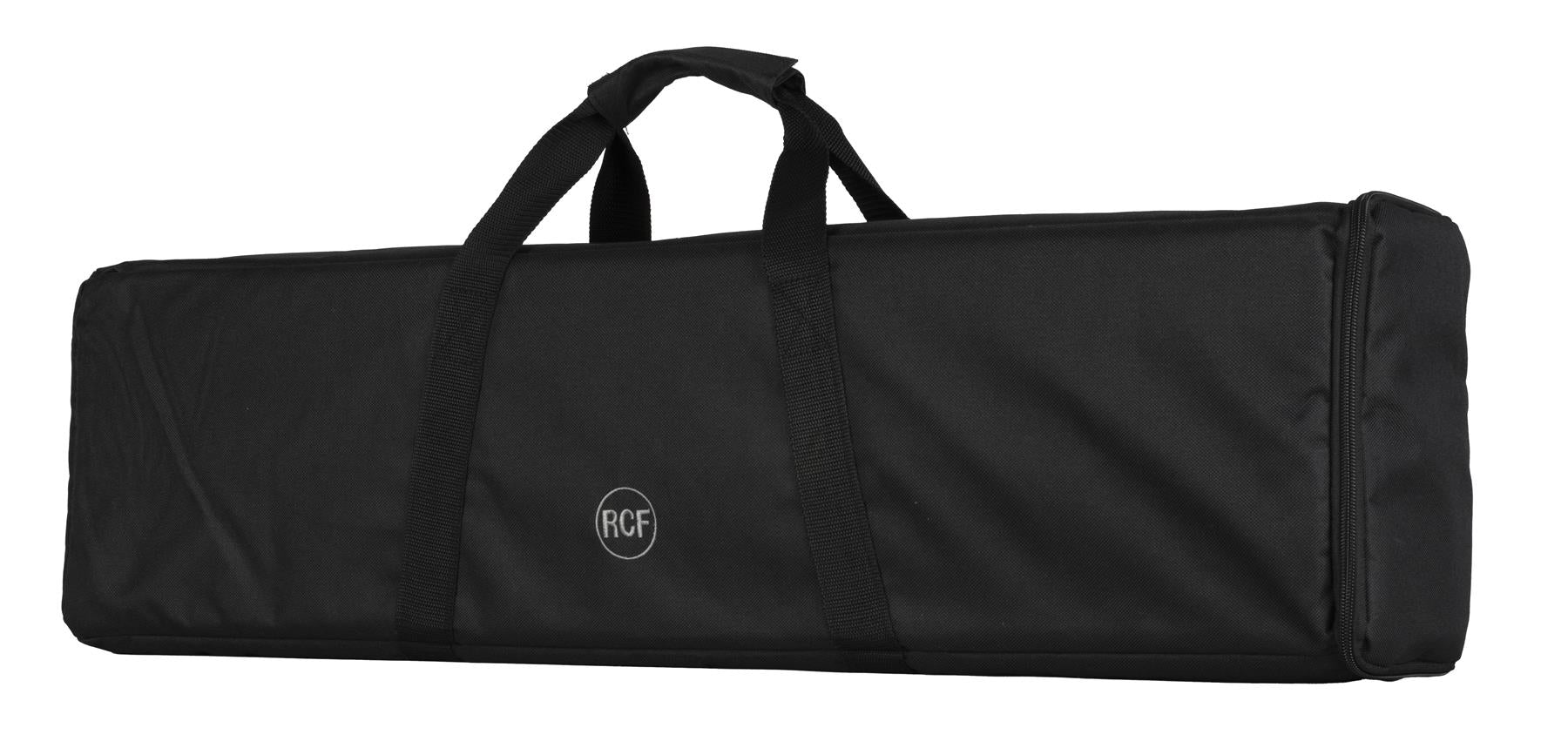

Top Speaker Padded Carrying Bag Included

Frequency Response - 37 Hz - 20000 Hz
Max SPL @ 1m - 132 dB
Horizontal coverage angle - 120°
Vertical coverage angle 40°
Transducers - Compression Driver 1 x 0.75'' neo, 1.75'' v.c
Fullrange 12 x 3.0'' neo, 1.0'' v.c
Woofer - 1 x 12'', 2.5'' v.c

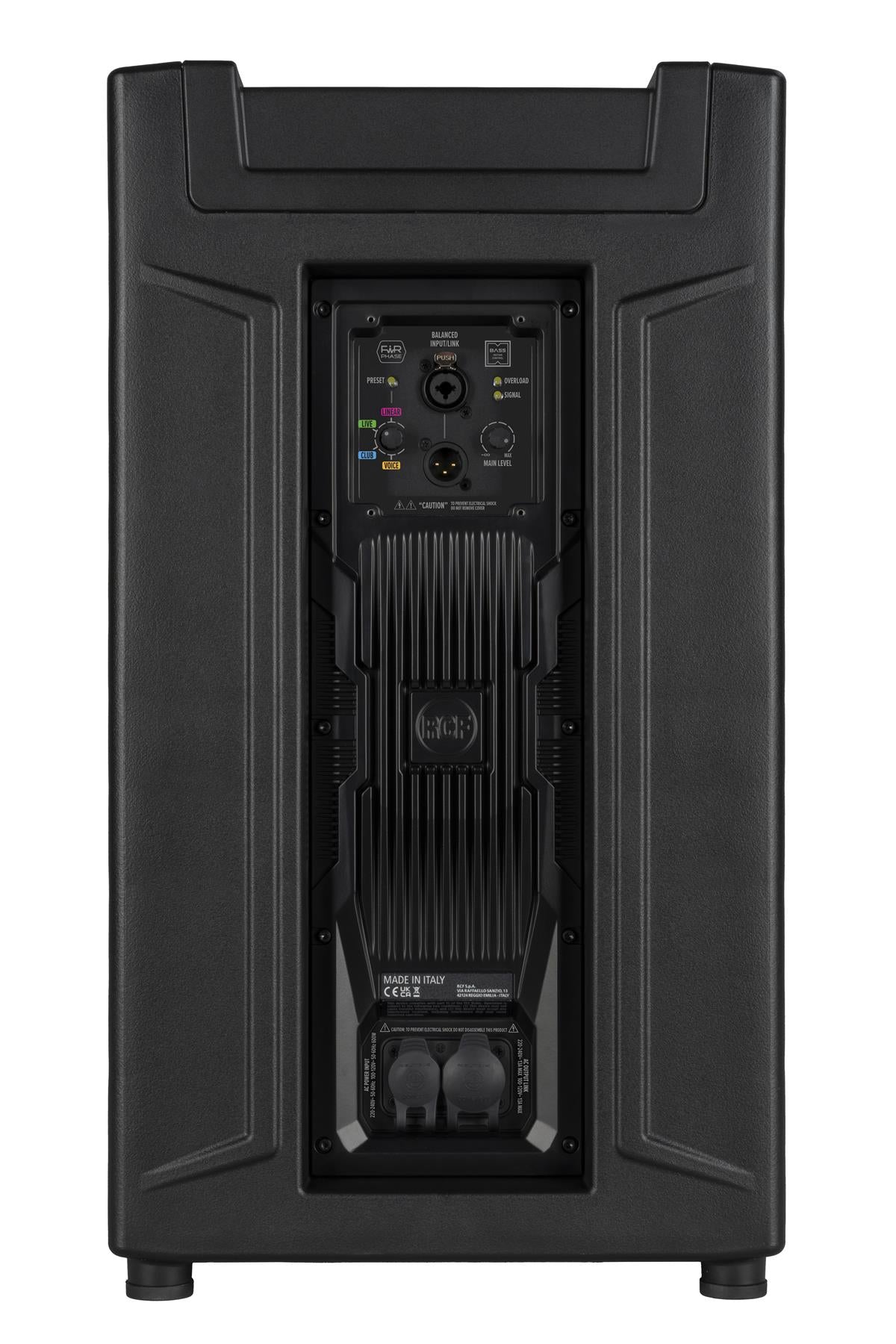

Input connectors - Combo XLR/Jack
Output connectors - XLR
Input sensitivity - +4 dBu

Crossover Frequencies - 160 Hz/1800 Hz
Protections - Thermal, RMS
Limiter - Soft Limiter
Controls - Volume, Presets: LINEAR/LIVE, CLUB, VOICE

Total Power - 3500 W Peak
High frequencies - 1500 W Peak
Low frequencies - 2000 W Peak

Connections - Powercon TRUE1 TOP IN/OUT
Cabinet/Case Material - PP Composite
Handles - 1 Top
Pole mount/Cap - Quick-fit socket
Grille - Steel
Color - Black, White - RAL 9003

Height
2285 mm / 89.96 inches
Width
400 mm / 15.75 inches
Depth
460 mm / 18.11 inches
Weight
29 kg / 63.93 lbs

The SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Features:

2200 Watt Class-D Amplifier
133 dB MAX SPL
15” Woofer, bass reflex housing
Digital Crossover w/ Presets
Multi-ply hardwood polyurea-coated
LiveRemote App
Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
Bass Motion Control excursion management
Powercon True1 Top Sealed AC Connector

Specifications:

ACOUSTICAL SPECIFICATIONS
Frequency Response 35 Hz ÷ 120 Hz
Max SPL @ 1m 133 dB
TRANSDUCERS
Woofer 1 x 15'', 3.0'' v.c

INPUT/OUTPUT SECTION
Input signal bal/unbal
Input connectors Combo XLR/Jack
Output connectors XLR
Input sensitivity -2 dBu/+4 dBu

PROCESSOR SECTION
Protections
Thermal Limiter
Soft Limiter
Controls
Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.

POWER SECTION
Total Power 2200 W Peak, 1100 W RMS
Cooling Convection
Connections Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE
Safety agency CE compliant

PHYSICAL SPECIFICATIONS
Handles 1 handle per side
Pole mount/Cap Yes
Color Black, White

SIZE
Height 590 mm / 23.23 inches
Width 420 mm / 16.54 inches
Depth 590 mm / 23.23 inches
Weight 26 kg / 57.32 lbs
