Equinox Fusion 100 Spot MKII (Bundle 2)

Vendor: Equinox
Icon In Stock In Stock
Icon Delivery Time

Fusion 100 Spot
A compact, feature-packed fixture ideal for mobile applications as well as installation. A powerful 80W white LED generates sharp beams and patterns. A wheel with 7 colours plus open allows for rich hues to saturate the Fusion 100 Spots beam, while a rotating gobo wheel with 5 rotating gobos including hearts and stars plus open adds to the armoury of onboard effects. Also crammed inside this compact housing is a 3 facet circular prism and a motorised focus to keep the projected image sharp at any distance.

1 x 80W white LED
Beam angle: 10°
13,200 Lux @ 2m
Motorised focus
3 facet prism
Gobo wheel: 5 rotating gobos + open
Colour wheel: 7 colours + open
DMX channels: 5/8 or 15 selectable
Auto, sound active and master/slave modes
Pan: 540°,Tilt: 210°
0-100% dimming and variable strobe
Supplied with quick release omega clamp
4 push button menu with LED display
IEC power input
3-Pin XLR input/output
Fan cooled

Power consumption: 90W
Power supply: 100~240V, 50/60Hz
Fuse: F2A 250V

330 x 198 x 146 mm

4.4 kg

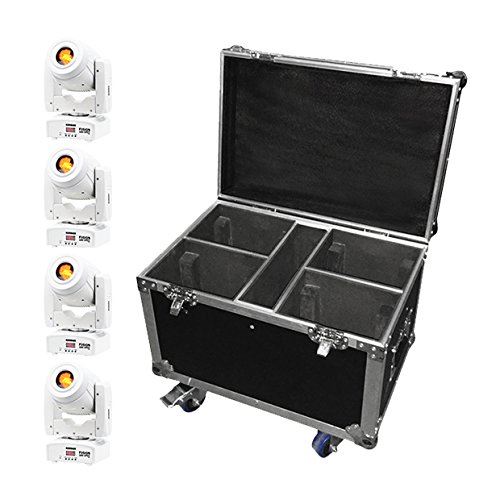

Fusion 100 Spot Flightcase
This professional flight case has been designed to fit 4 of the Equinox Fusion 100 Spot or Fusion 120 Zoom Moving Heads. An additional accessory compartment is also included to hold power and DMX cables.

Interlocking tongue and groove edging ensures that all lids and covers stay secure even in an impact and form a full dust proof seal
Heavy-duty, industrial grade handles and butterfly catches are riveted for strength
All handles feature heavy duty rubber grips for comfort and non-slip safety
Riveted 35mm aluminium profile edge strips provide rigidity, strength and durability
Heavy duty interlocking ball corners for added impact protection
Includes label dish


Internal dimensions: 280 x 200 x 150 mm
(per fixture compartment)

Internal dimensions: 280 x 100 x 300 mm
(accessory compartment)

External dimensions: 395 x 545 x 355mm
(Without wheels)

External dimensions: 510 x 545 x 355 mm
(With wheels)

14.5 kg
