Description

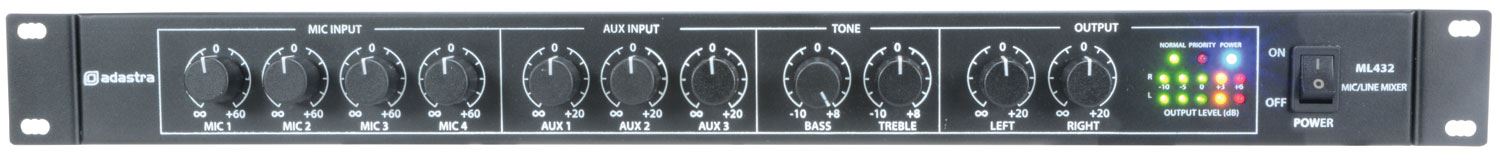

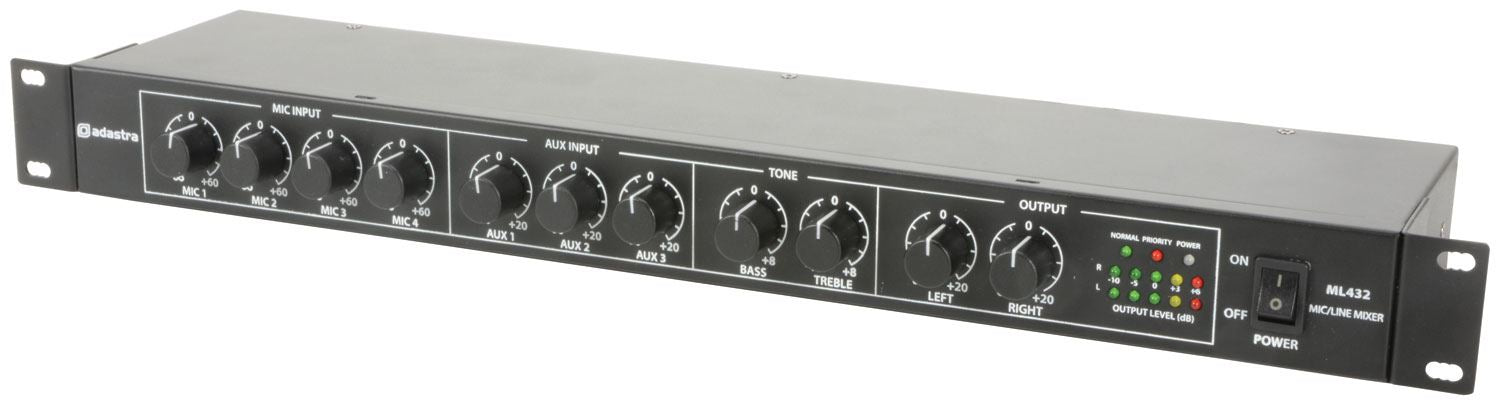

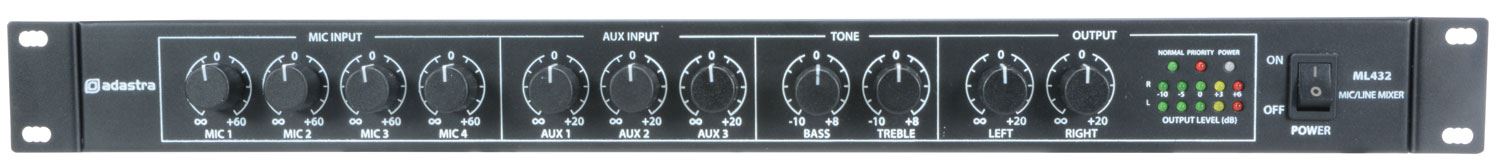

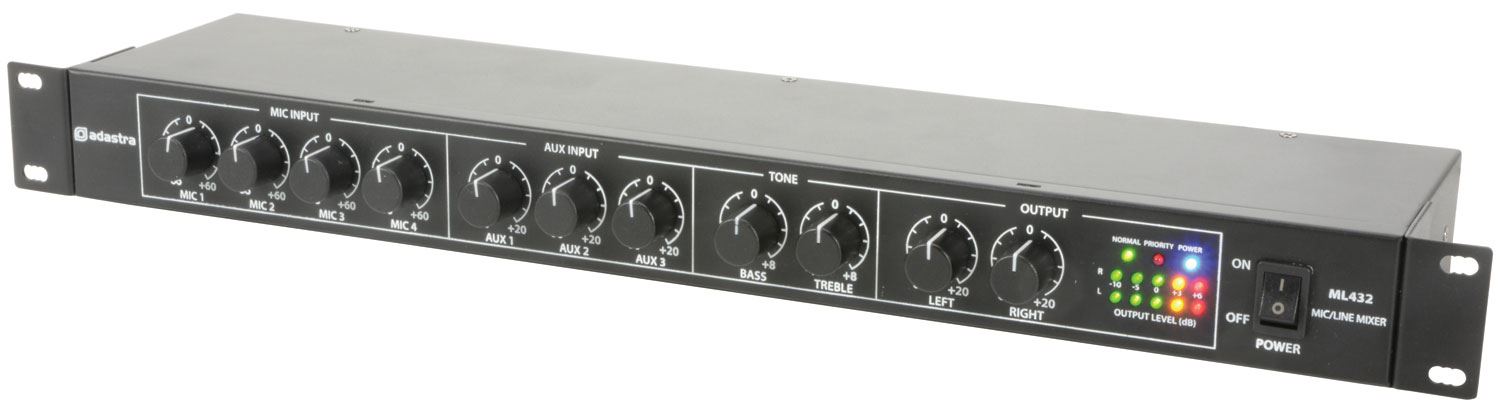

Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems.

Features
4 balanced microphone inputs
+20V phantom power on priority mic input
3 stereo aux line inputs
Can tap from an existing 100V PA system
24Vdc power option

Specifications
Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
Fuse T1AL 250V (mains) or F500mA (24Vdc)
Phantom power +20Vdc (mic1 XLR input only)
Inputs : mic 4 x balanced 6.3mm jack (+XLR for mic1)
Inputs : aux 3 x L+R RCA
Inputs : priorityLine level (6.3mm jack), 100V (terminals)
Outputs Left + Right 6.3mm jack (unbalanced)
Controls 4 x Mic level, 3 x Aux level, Treble, Bass, L+R output
Rear panel controls Aux muting level, priority input level
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 130Hz - 21kHz
Frequency response : line 120Hz - 26kHz
Frequency response : aux 50Hz - 35kHz
Input sensitivity : mic-50dBV
Input sensitivity : line-19dBV
Input sensitivity : aux-12dBV
Signal to noise ratio : mic 54dB
Signal to noise ratio : aux/line 58dB
THD 0.05%
Dimensions 482 x 130 x 44mm
Weight 1.43kg
