Adastra RMS605 Amplifier 100V 5 x 60W

Description

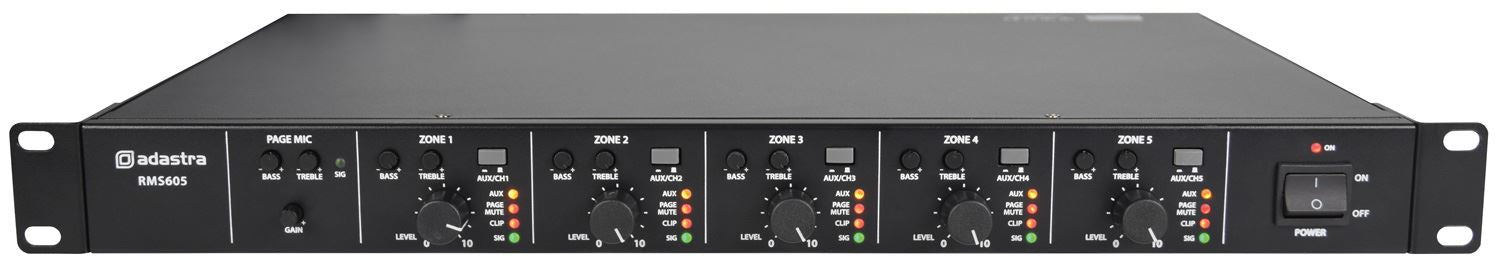

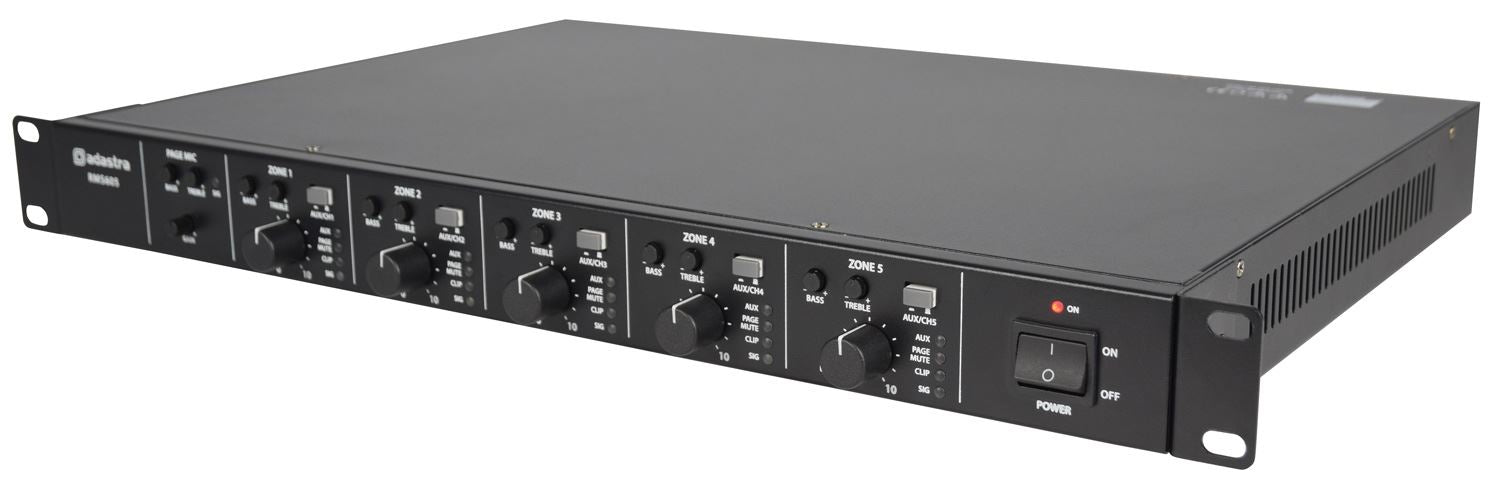

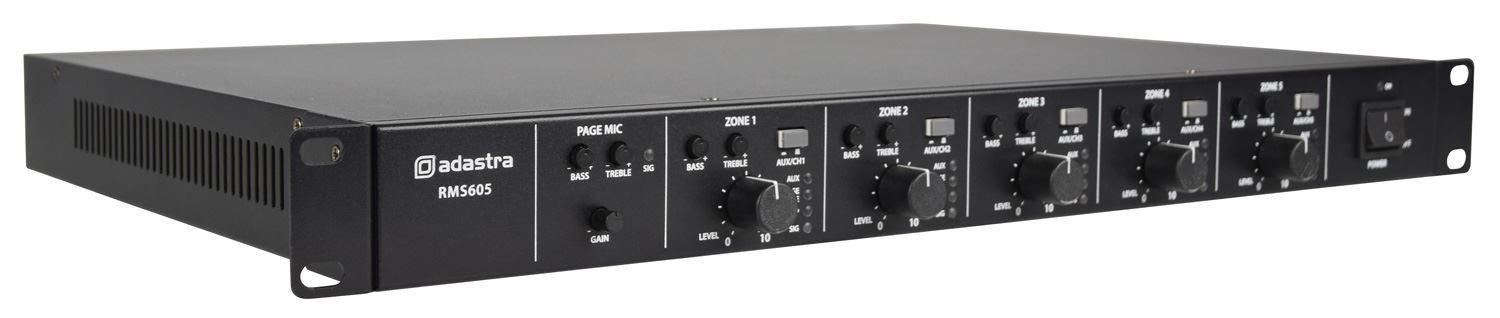

Multi-channel 100V slave amplifier with 5 x 60W outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is always live to all channels for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS605 can be applied as a high power slave amplifier or equally as a fully independent zoning system for a multi-room installation.Outputs for 100V or 4-16 Ohm speakers

• Independent inputs and optional global aux input
• Paging microphone input with vox override
• 5 x class D high efficiency amplifiers
• Switchable +20V phantom power for paging microphone
• 24V contacts for emergency muting

Specification

• Power supply:100-240Vac, 50/60Hz (IEC)
• Fuse:T2AL
• Power rms : 100V line:5 x 60W
• Power rms : 4 Ohms:5 x 60W

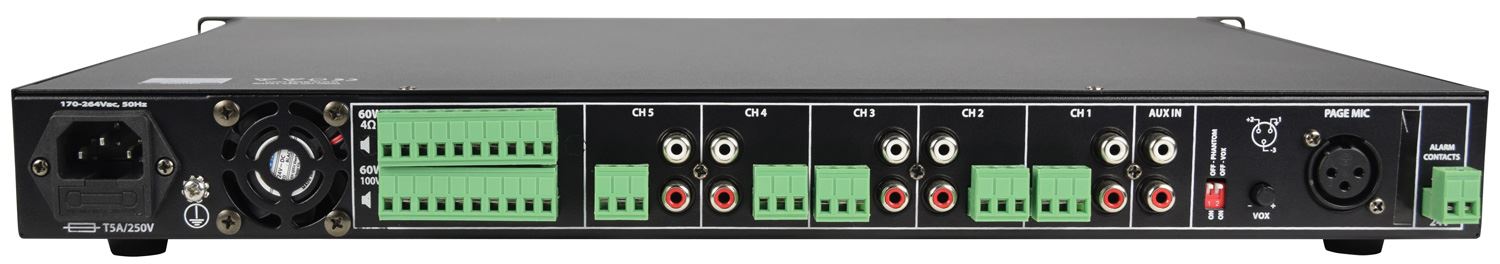

• Channel inputs:5 x L+R RCA or balanced terminal
• Auxiliary input:L+R RCA
• Output connection:5 x 100V or 4 Ohm (Euroblock terminal)
• Mic controls:Gain, Bass, Treble & Vox (rear panel)
• Output controls:Level, Bass, Treble & Ch/Aux switch
• Microphone input:Balanced XLR (rear panel)
• Phantom power:+20V switchable (paging mic)
• Emergency control:24V mute contacts (Euroblock terminal)
• Dimensions:482 x 330 x 42mm
• Weight:8.17kg
