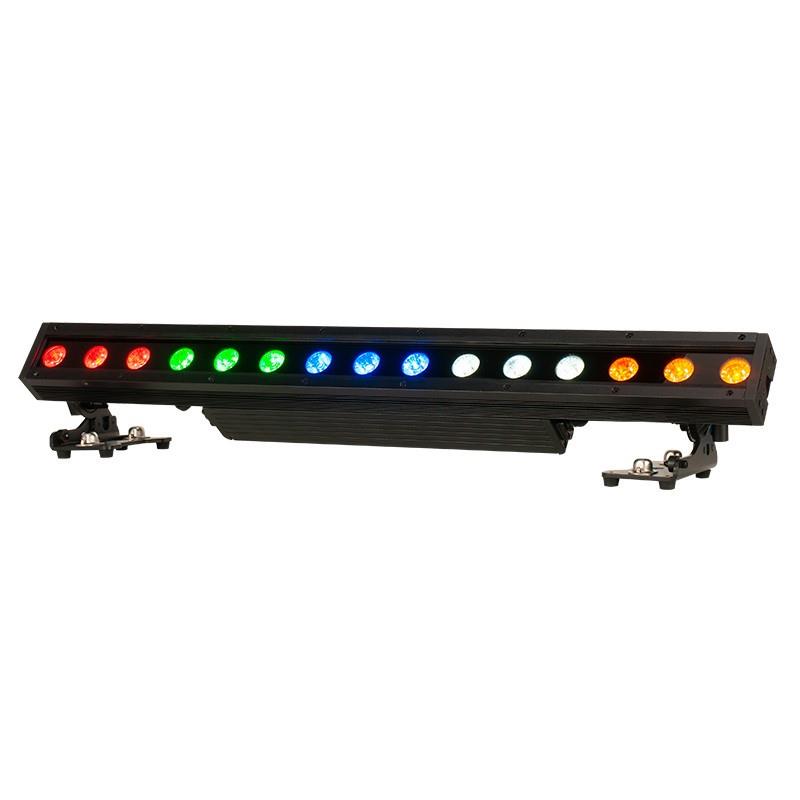

ADJ 15 Hex Bar IP 12 x 15W HEX LED IP65 Wall Washer Building Uplighter Wireless DMX

The ADJ 15 HEX BAR IP is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.

On the rear panel it features Seetronic, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

The 15 HEX BAR IP is flicker free for film and broadcast, and has multiple DMX control modes, dim modes and features ADJ’s WiFLY EXR wireless DMX with a range up to 2,500 ft. / 700M line of sight.

IP65 rated – protects from dust, sand, moister, water
All metal construction with black housing
Includes heavy duty bracket
Sure-lock locking bracket system (securely locks every 10-degrees)
Flicker-free for film and broadcast
63 Built-in Color Macros

Specifications
LED: 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
Beam Angle: 25-degrees
LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)
Display: OLED display with function buttons
Data In/Out: Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)
Power In/Out: Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)
Daisy chain up to 6 fixtures @ 120V; 15 fixtures @ 240V
All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Multiple DMX channel modes
WiFLY EXR Wireless DMX (Range: 2,500 ft. /7 00M - line of site)
Built-in internal programs
5 individually controlled sections with Zone Control
0-100% Dimming + smooth 16-bit Dimming
6 Dimming Curve Modes
Control Mode: DMX512, RDM
With Wired Digital Communication Network
Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 130W max

Dimensions
915 x 203 x 200 mm

Weight
8.9 kg
