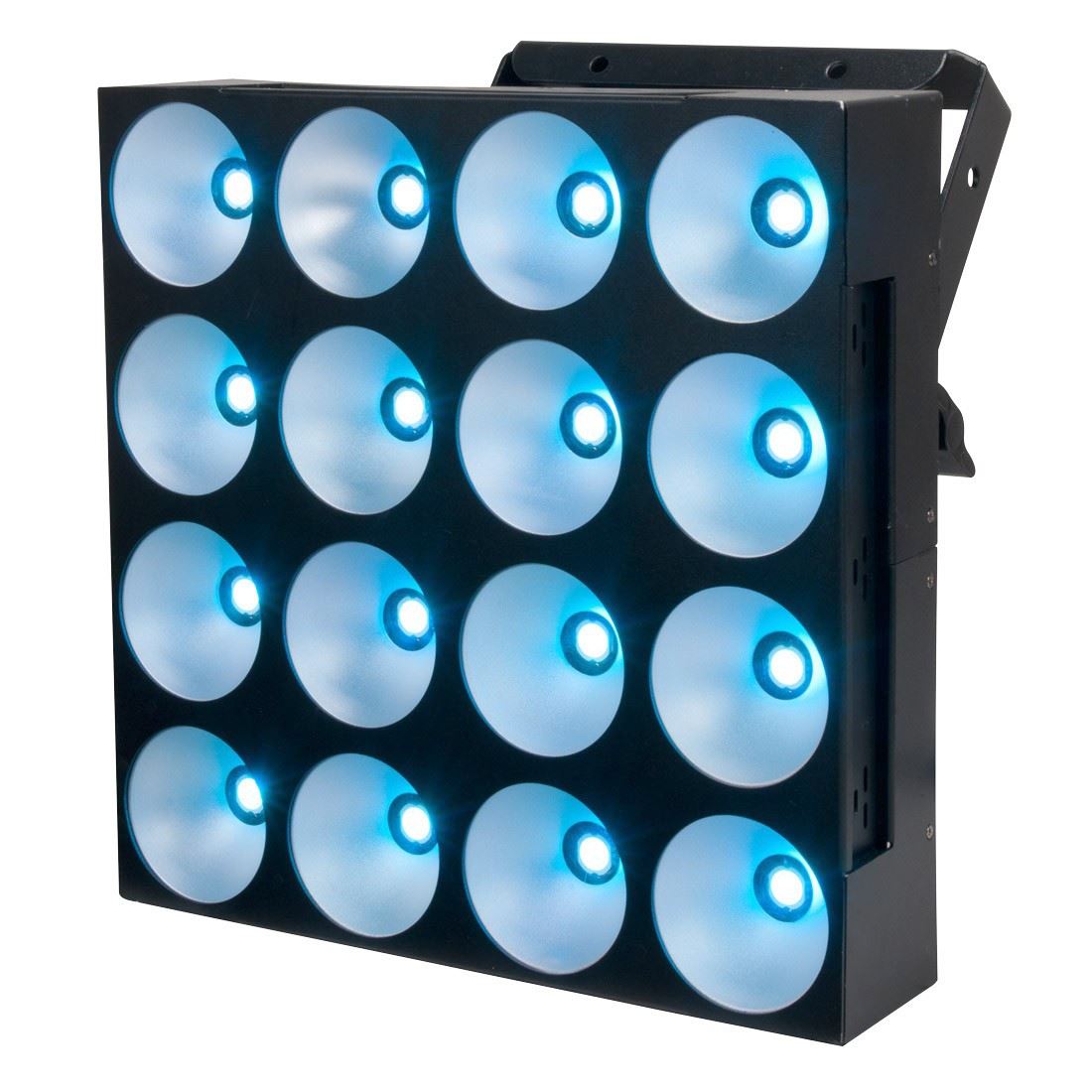

ADJ Dotz Matrix LED Wash Blinder


ADJ's Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space.

Vendor: ADJ
SKU: 104-1215200023
Icon Out of Stock Out Of Stock

This product has been discontinued.

Please find alternative products or check out similar products below.

ADJ’s Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a super-charged, high output, wash fixture with smooth colour mixing powered by sixteen 30W TRI COB LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects and boasts a powerful 480 Watts with a massive 60-degree beam angle.

The fixture has many pro features such as 0-100% electronic dimming, strobe/pulse effect, built-in shows and colours macros, a 4-button DMX LCD display, PowerCon AC In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound active, or from a DMX Controller. KlingNet/ArtNet compatibility by using the EZ Kling KlingNet to DMX converter box (sold separately)


4 x 4 COB LED high output Wash/Blinder Matrix panel
COB Technology (Chip On Board) produces powerful, smooth RGB colour mixing with rich palettes of colour
Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
Great for Stage Lighting, Bands or Night Clubs
5 DMX channel modes: 3, 6, 7, 48 & 52 channel
Individual Pixel controllable in 48 & 52 channel DMX modes
4x Pixel Flip options changes pixel orientation
4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Colour, and DMX-512
RDM Compliant (Remote Device Management)
Built-In preset colours and programs
Flicker Free operation (No flickering on camera)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
60-degree beam angle
3 & 5-pin XLR chassis mount connectors for DMX linking
PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
Power Draw: 480W total (All LED's @ Full)
4-button DMX LCD display
Single yoke allows the fixture to be mounted
Fan Cooled
Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
Auto-sensing power supply: AC 100V/60Hz - 240V/50Hz

345 x 387 x 184 mm

8.3 kg
