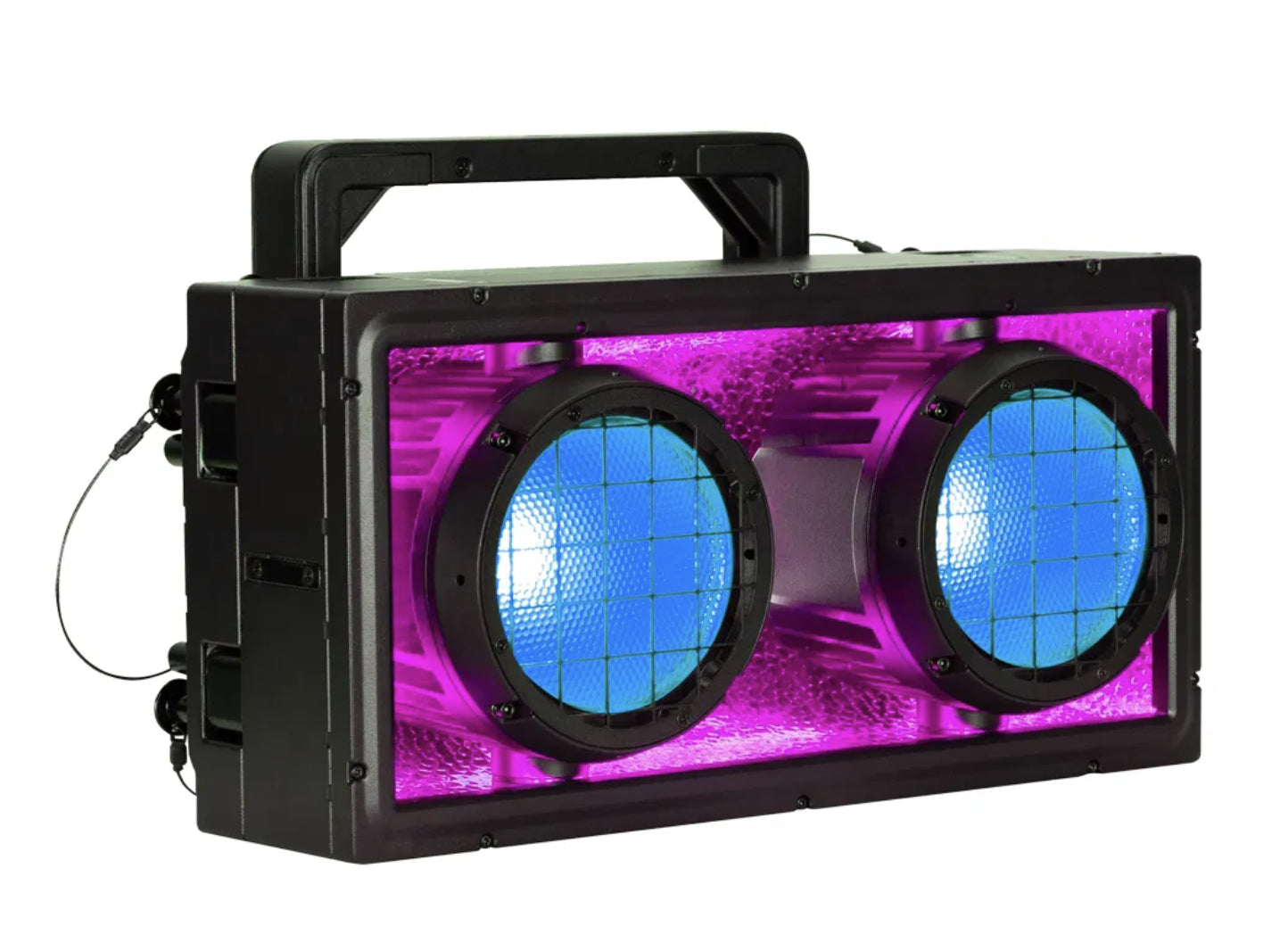

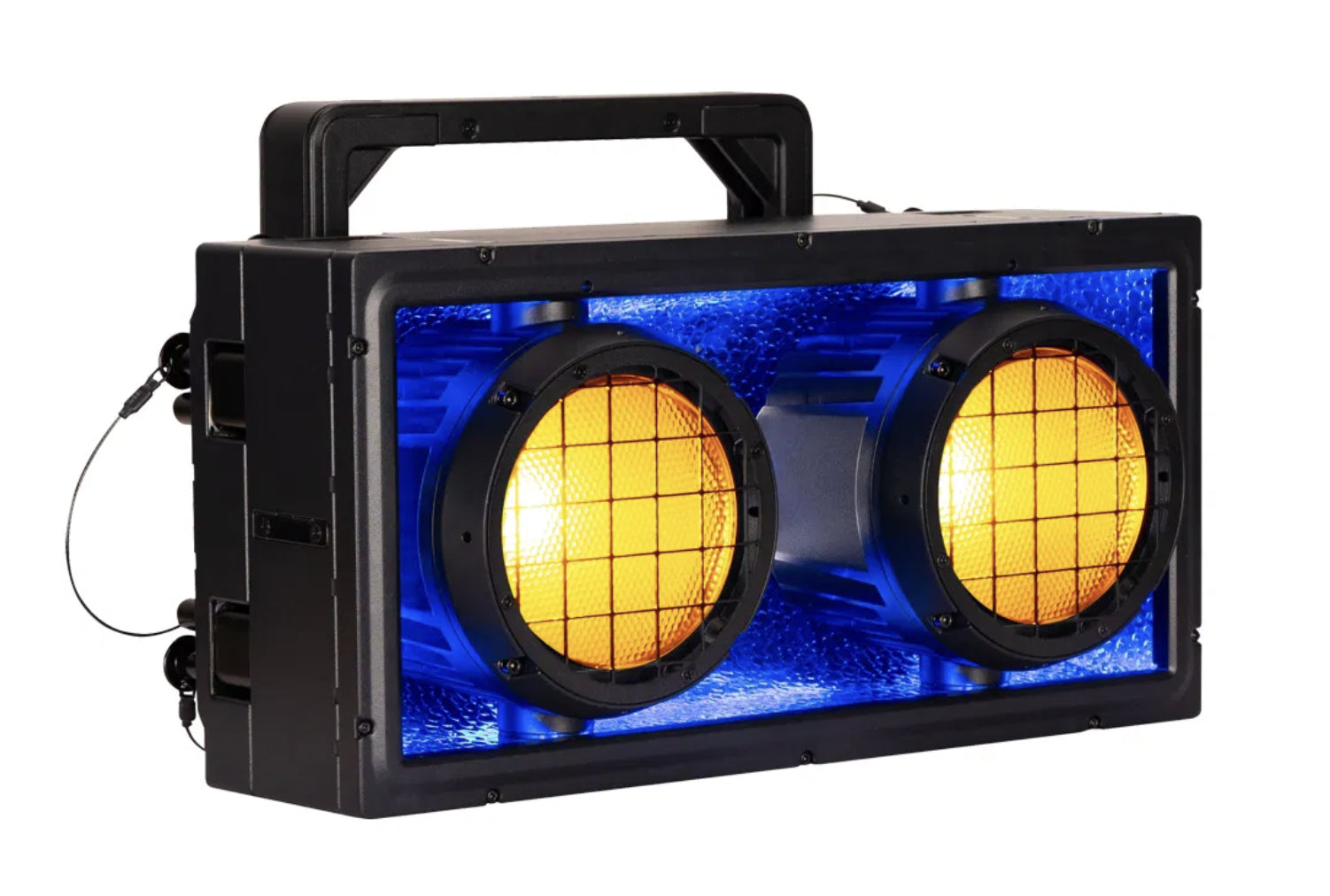

ADJ Encore DBX Blinder

Encore DBX is a versatile and powerful effect fixture designed for creating striking visuals at any event. Featuring a 5-color LED dual-lens blinder/strobe and vibrant RGB background LEDs, it delivers dynamic lighting effects and intense audience interaction. Powered by two 150W RGBAW LEDs and backed by a high-output RGB reflector, the Encore DBX offers a total lumen output of 11,400+, producing rich colours and sharp contrast.

With features like individually controllable cells, built-in programs, and variable white colour temperature (2700K–6500K), the Encore DBX provides exceptional creative flexibility. It includes selectable dimming modes, electronic strobe, and refresh rates (900Hz–25K) for smooth, flicker-free operation. The fixture is built to last with a rugged IP65-rated housing, making it suitable for both indoor and outdoor use. Control options include DMX512, Aria X2 Wireless Management, and Bluetooth, offering seamless integration into any lighting setup. The Encore DBX is the perfect solution for immersive lighting effects on stage productions, theatres and corporate events.

Source:
2 × 150W RGBAW LEDs with RGB background LEDs. Average LED life is 50,000 hours (may vary based on environmental conditions, power/voltage, cycling, control and dimming).

Features:
Two-cell five-colour (RGBAW) LED blinder with RGB background LEDs. Individually controllable cells. Built-in cell programs and built-in background LED programs. Tungsten control mode and variable white colour temperature control from 2,700K to 6,500K. User-selectable LED refresh rates from 900Hz to 25kHz. Six dim modes and four dim curves. Electronic strobe from 1–20Hz and electronic dimming. Includes Aria X2 wireless management system.

Photometrics:
Total lumen output: 11,465. CRI: 89.

Optical:
Beam angle: unspecified. Field angle: unspecified.

Effects:
Variable strobe rate from 1–20Hz. Variable 16-bit dimming modes and curves. RGB background reflector effect.

Colour:
RGBAW colour array with RGB background. Variable CCT from 2700K to 6500K. Five preset CCT values.

Physical:

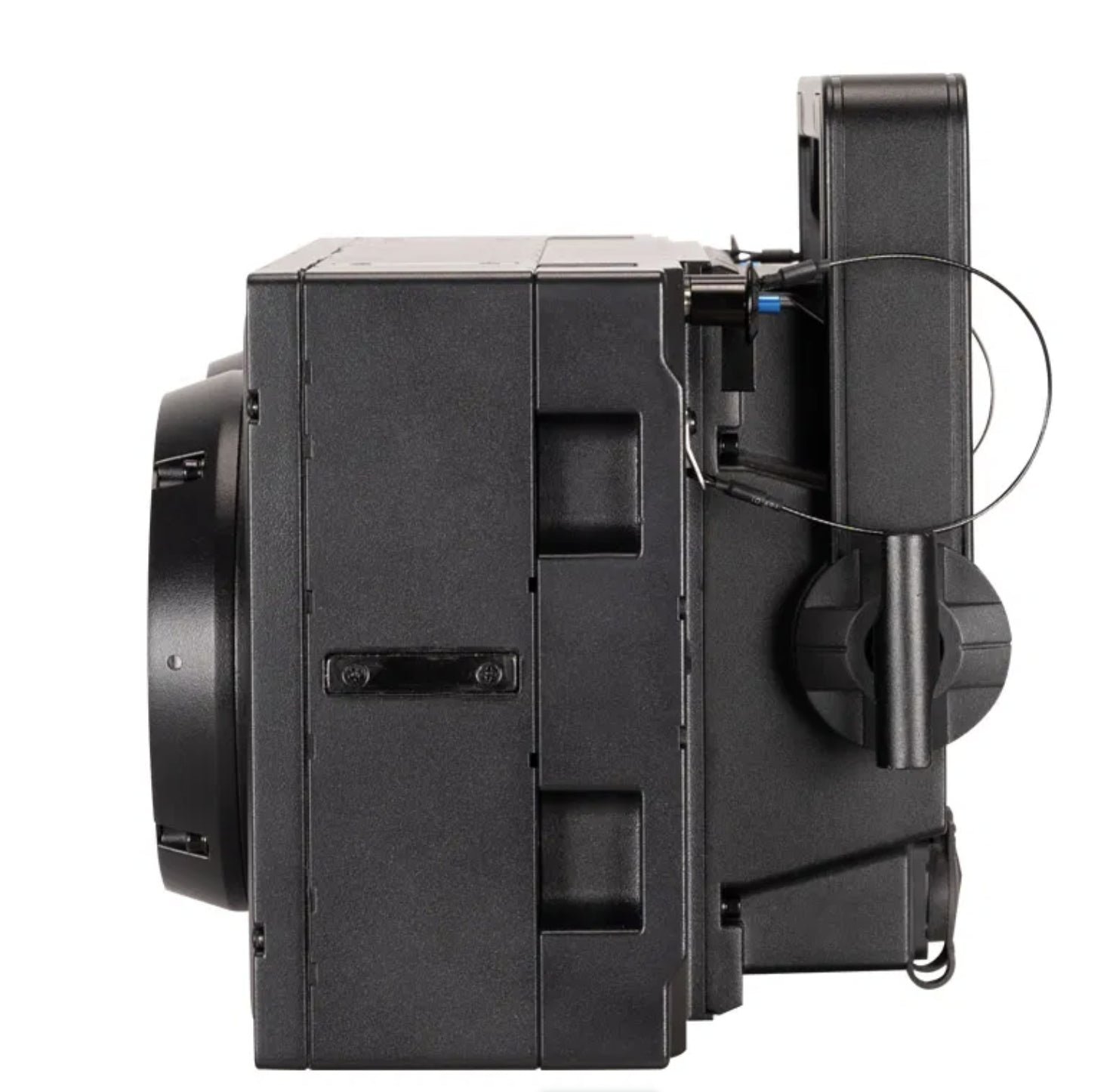

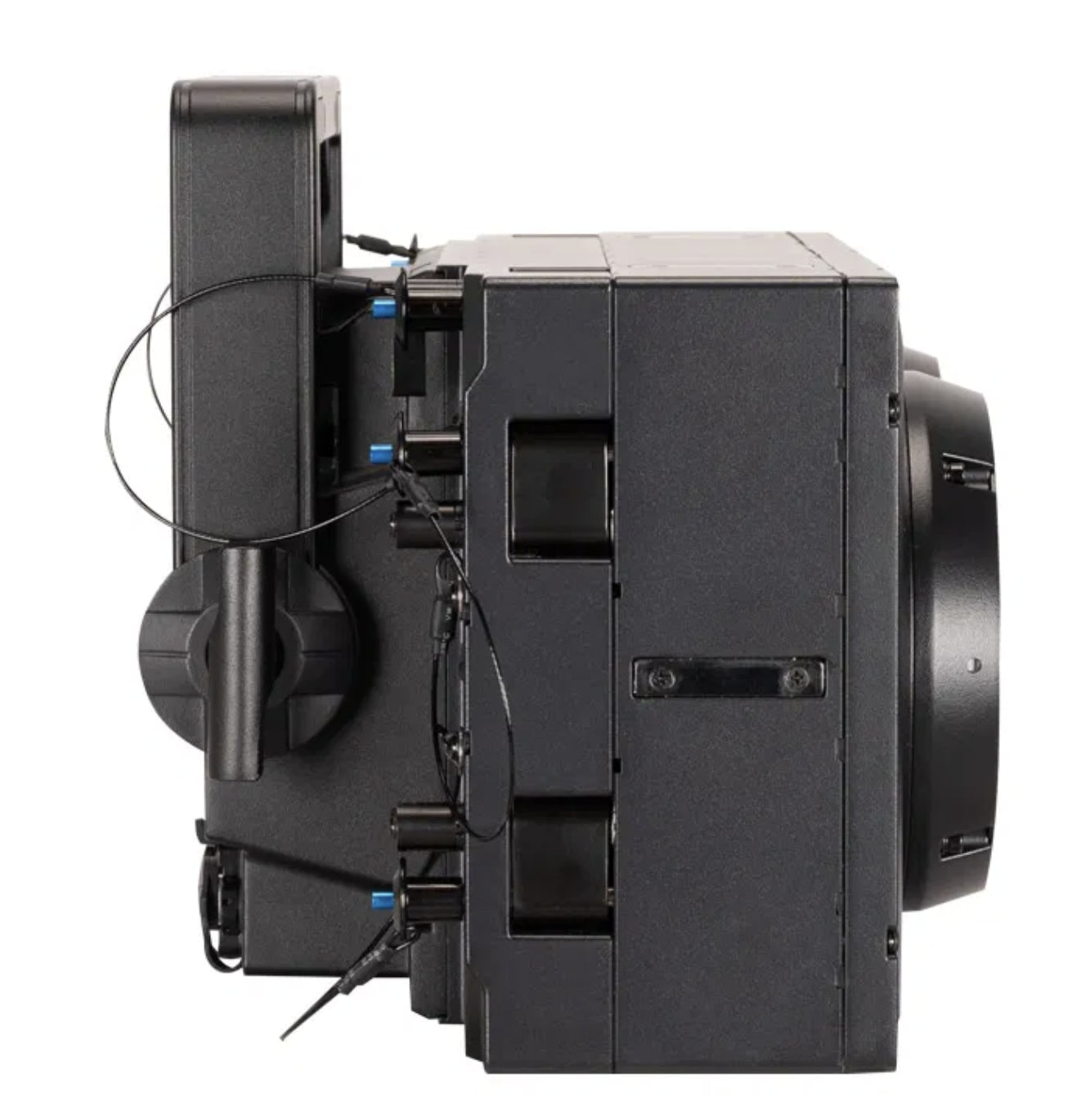

IP65 housing with OLED digital display. Adjustable mounting yoke with Omega receivers and additional Omega receivers on the rear.

Control:
DMX512, Aria X2 wireless management/DMX system, Bluetooth and RDM. Seventeen DMX channel modes: 5CH, 8CH, 10CH, 11CH, 12CHA, 12CHB, 16CH, 18CH, 19CH, 21CH, 22CH, 25CH, 26CH, 29CH, 31CH, 35CH and 41CH. Includes on-board manual control mode and primary/secondary mode.

Connections:
5-pin XLR IP65 DMX in/out sockets (requires STRxxx 5-pin DMX cables for proper IP65 sealing). IP65 locking power sockets.

Dimensions & Weight:
Length 420mm, width 261mm, height 231.3mm. Weight 11.85kg.

Power:
AC100–240V, 50/60Hz input. Power consumption 347W. Power linking supports 2 units at 120VAC or 6 units at 230VAC.

Thermal:
Operational temperature range −20°C to 45°C. Storage temperature range −30°C to 45°C.

Certifications & IP Rating:
IP65.

Included Accessories:
One outdoor locking power cable and one safety cable.
