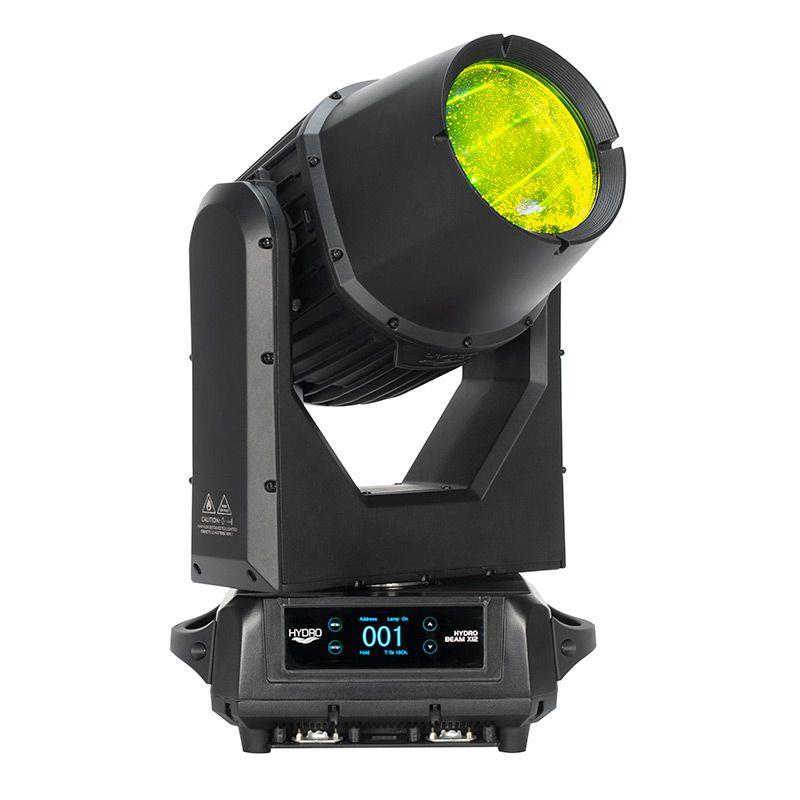

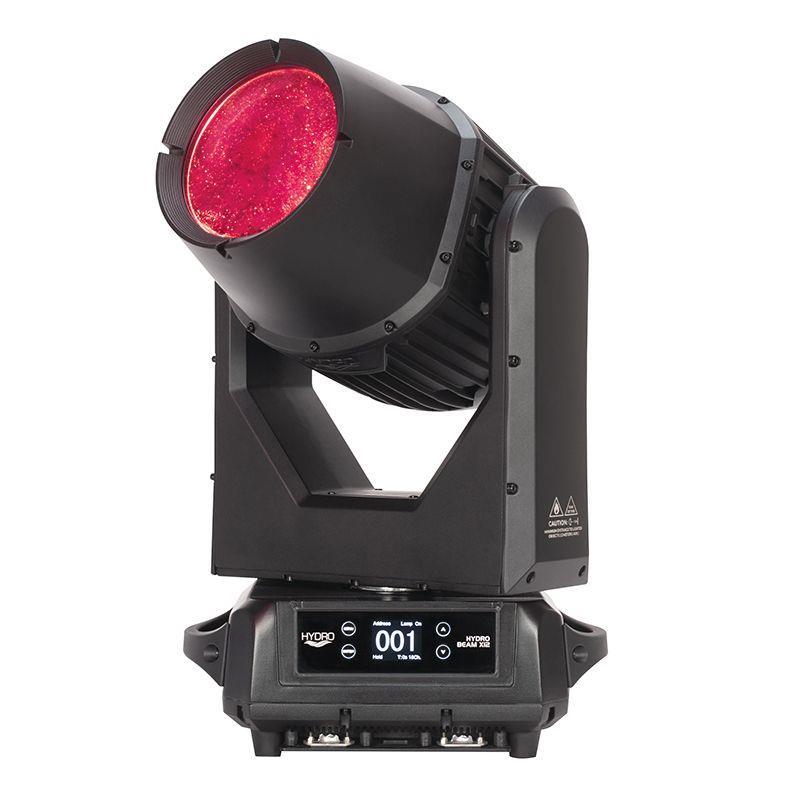

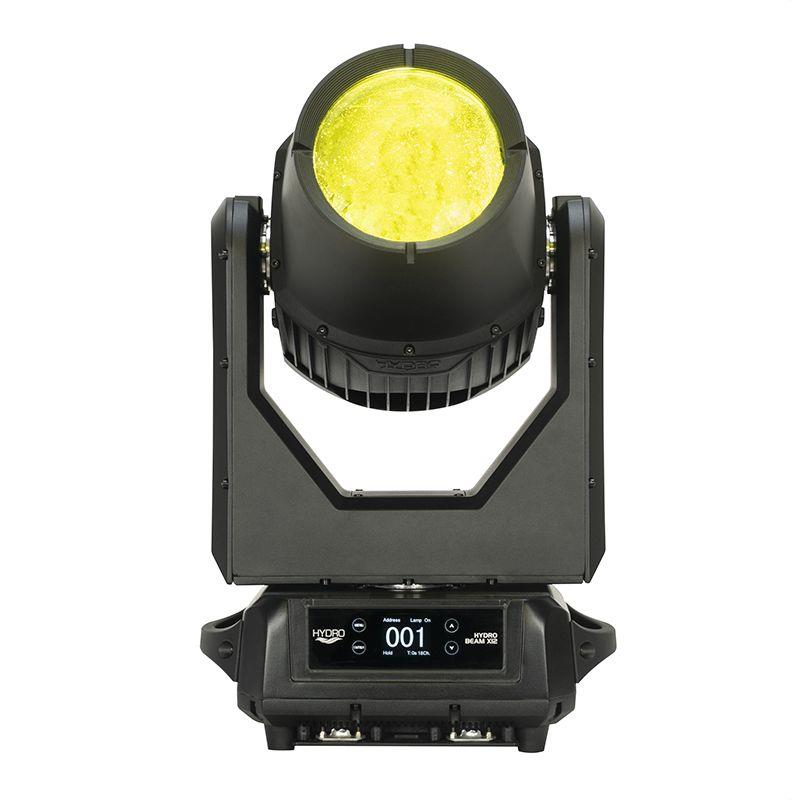

ADJ Hydro Beam X12 IP65 Outdoor Moving Head

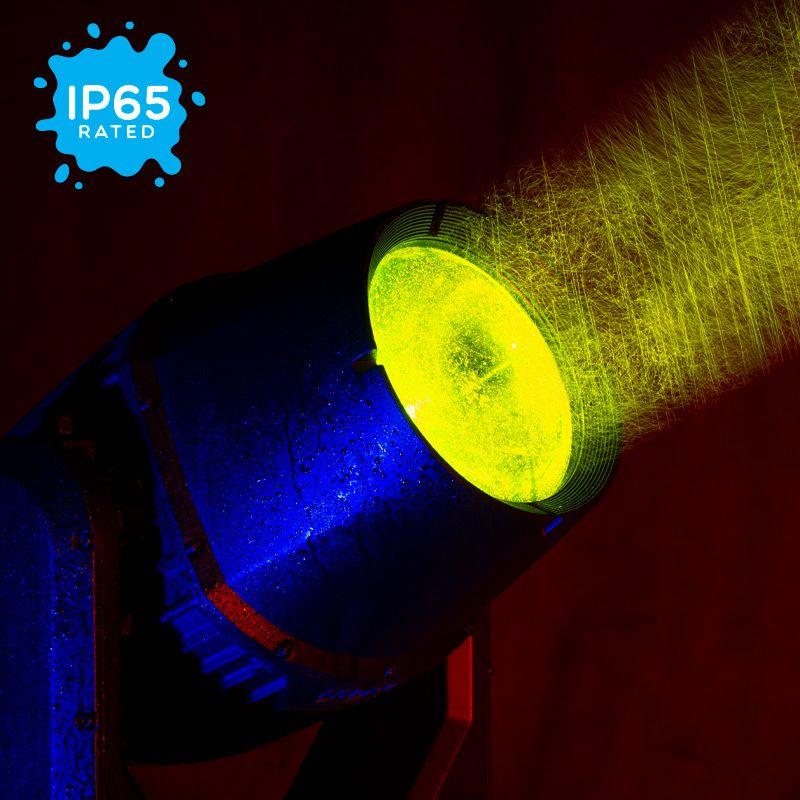

Designed for both indoor and outdoor use, the Hydro Beam X12 has a robust construction and an IP65-rating. Its durable casing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations from sandy beach parties to rainy festival fields. Perfect for all kinds of outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this ground-breaking fixture also offers an extended operational life and reduced maintenance requirement when installed indoors, due to its sealed casing design.

The Hydro Beam X12’s carefully curated selection of beam-shaping tools deliver the functionality that lighting designers need, while allowing the fixture to remain compact and agile. It features 14 colors + white, including UV, CTO (3200K) and CTB (6000K), with support for split colors and bidirectional scrolling. A static GOBO wheel features 16 patterns (plus open) optimized for aerial effects, including four beam reducers, and offers GOBO shake and bidirectional GOBO scrolling effects. The fixture also includes motorized focus, a Frost Filter to create a wash effect, and two rotating prisms (6-facet linear and 24-facet circular).

Light Source: • Philips, 260W, MSD Platinum 12R LL Discharge Lamp (6,000 hours)
• Color temperature: 7800K
• LUX: 522,000 @10M

Features:
• DMX512 & RDM compatible
• 2° beam angle
• High quality, optical glass lens
• Motorized Focus + 16-bit fine focus
• Frost Filter to create wash effect
• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
• 0-100% smooth dimming
• Various strobe effects with speed control
• Wifly EXR, wireless DMX onboard
• USB firmware update port
• Fan cooled

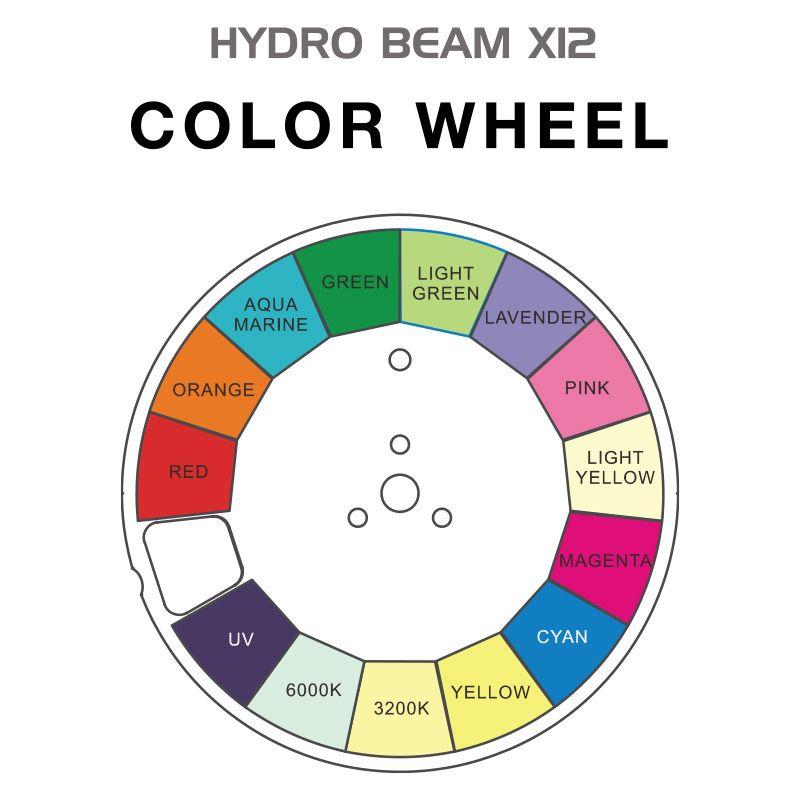

Color Wheel:
• 14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) & UV]
• Split Colors
• Bidirectional color wheel scrolling

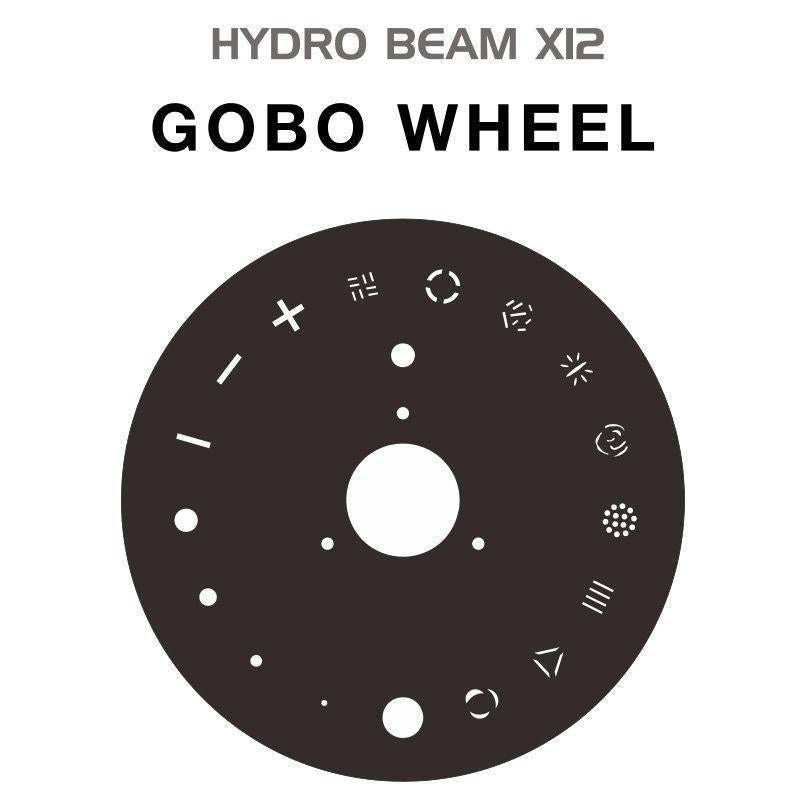

GOBO Wheel:
• 16 static GOBOs + open (4 GOBOs are beam reducers)
• GOBO Shake Effect
 • Bidirectional gobo wheel scrolling

Prisms:
• 6-facet linear and 24-facet circular
• Bidirectional prism rotation for each prism
• Prisms can be overlayed

Control:
• Configurable via RDM
• Controllable via DMX512 via hardwire or wirelessly with Wifly EXR Transceiver (Sold Separately)
• 2 DMX Channel Modes: 14/18 Channels
• Color LCD display with 4-button function menu
• 5 Dimmer Curves
• 0-100% smooth dimming
• Various strobe effects with speed control
• USB firmware update port
• With Wired Digital Communication Network

Pan/Tilt:
• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)

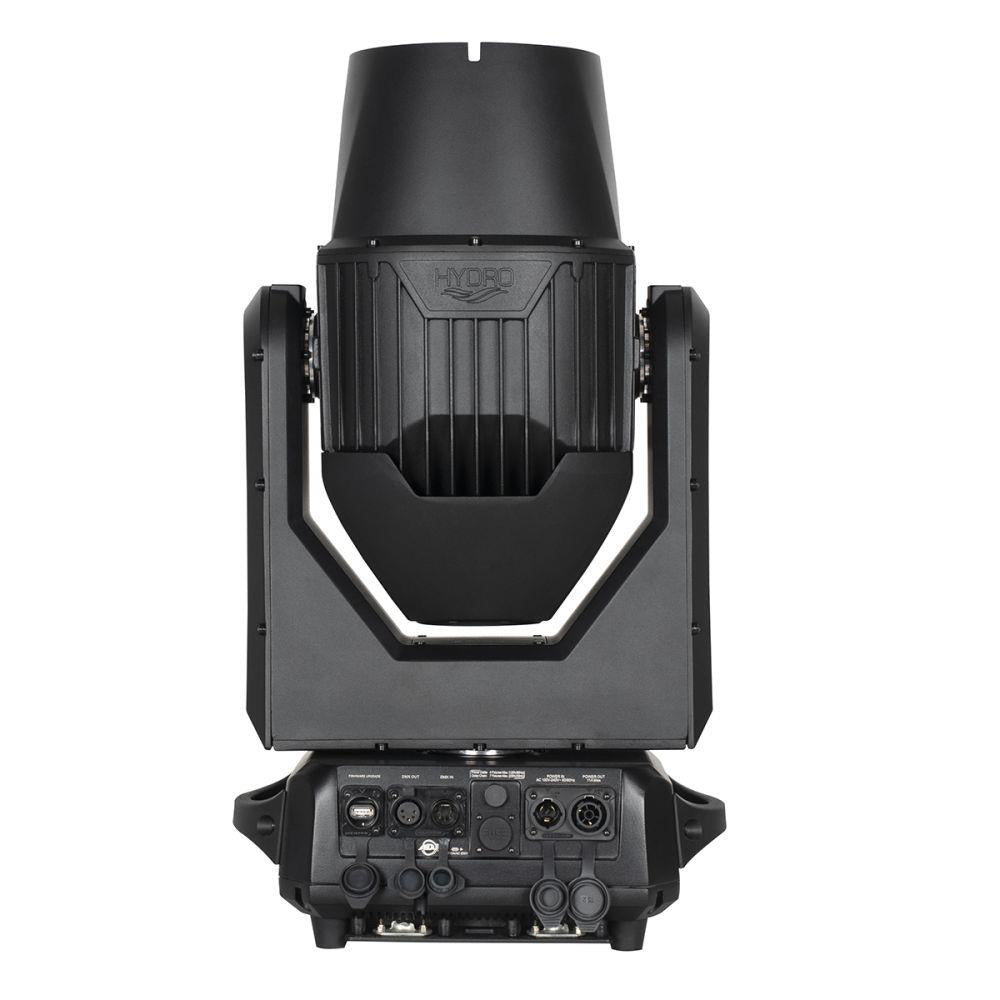

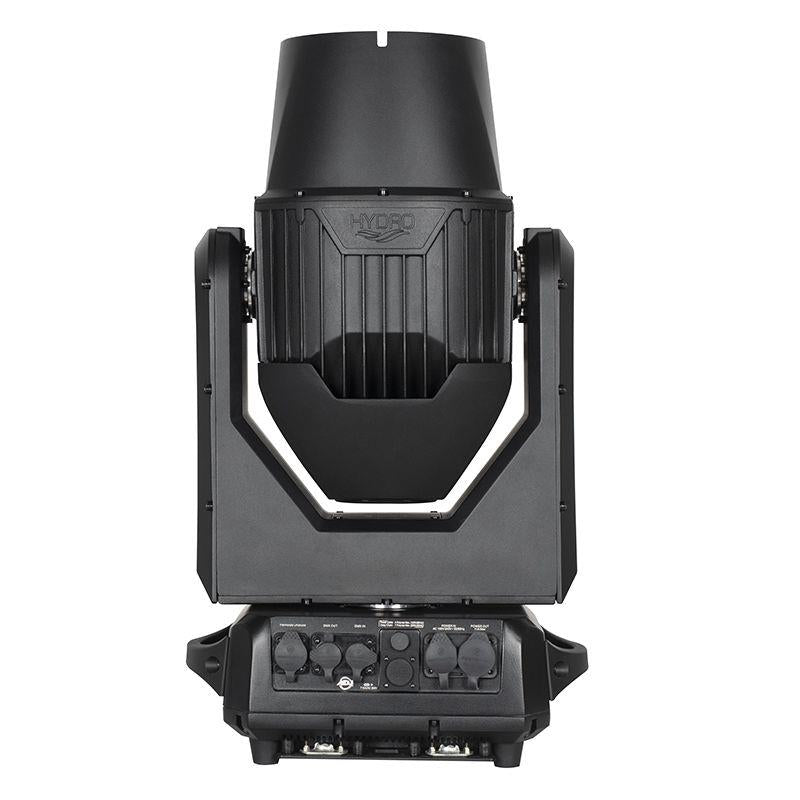

Connections:
• DMX Connections: 5-pin DMX In/Out
• Power Connections: IP65 Locking Power In/Out

Electrical:
• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 429W (@120V), 422W (@230V)

Dimensions & Weight:
• Dimension: 14” (L) x 9.4” (W) x 24.2” (H) / 356 x 240 x 615.8mm
• Weight: 48 lbs. / 21.8 kg.

What’s Included:
• Omega Brackets for hanging
• 4.92ft. / 1.5m. IP65 Locking power cable

Approvals / Ratings:
• cETLus Approved (Control #4000358)
• CE Certified
• IP65
