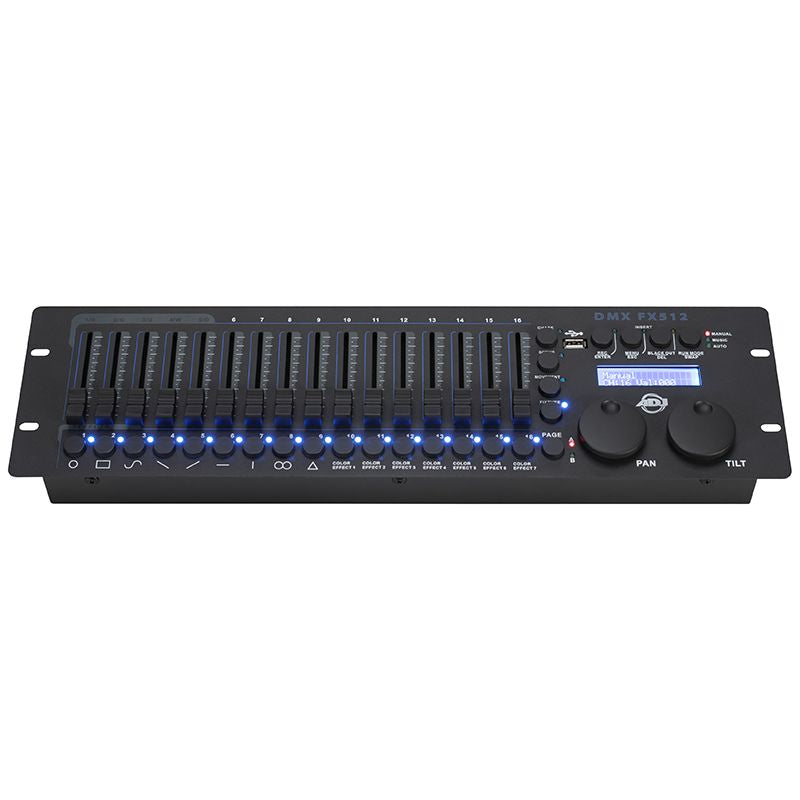

ADJ Lighting DMX FX512 Rackmount DMX Controller

The ADJ Lighting DMX FX512 is a professional 19-inch rack-mount DMX controller built for lighting designers and operators working in venues such as churches, nightclubs, theaters, and event production environments. With its 3-rack space form factor and robust control interface, it provides hands-on, intuitive access to 512 DMX channels and supports both DMX-512 and RDM protocols. Designed to manage up to 32 intelligent fixtures with up to 18 channels each, the DMX FX512 offers advanced programming capabilities including 32 programmable scenes and 32 chases, each with up to 100 steps. Featuring 16 built-in effect generators and RDM support for remote fixture configuration, it is a powerful, time-saving solution for both mobile and fixed lighting setups.

Features:
19" rack-mount DMX controller with 3U form factor
Supports DMX-512 and RDM protocols
Controls up to 512 DMX channels
Manages up to 32 intelligent fixtures with 18 channels each
32 programmable scenes for fast recall
32 programmable chases, each with up to 100 steps
Run up to 5 chases simultaneously
Soft-patchable faders and control wheels
16 built-in effects generators (9 for moving lights, 7 for RGB LEDs)
Dedicated Pan/Tilt wheels for precise fixture control
16 effects/fixture select buttons
Built-in microphone with adjustable sound sensitivity for audio triggering
5-pin XLR DMX output
USB port for data backup and firmware updates
Can be used as a desktop controller with rubber feet

Specifications:
Protocols: DMX-512, RDM
DMX Channels: 512
Fixture Support: Up to 32 fixtures, 18 channels each
Scene Memory: 32 programmable scenes
Chases: 32 chases, up to 100 steps each
Simultaneous Chase Playback: Up to 5
Effect Generators: 16 (9 for moving heads, 7 for RGB LEDs)
Control Interface: 16 channel faders, 16 effect/fixture select buttons, 2 Pan/Tilt wheels
Sound Control: Built-in mic with digital sensitivity adjustment
DMX Output: 5-pin XLR
USB Port: For firmware updates and backup
Mounting: 19" rack-mountable, also usable on desks with rubber feet
Dimensions (LxWxH): 134 x 482 x 68.9 mm
Weight: 2.13 kg
