The ADJ Lighting Mirage Q6 PAK is an all-in-one event up lighting system with six IP65 rated, battery powered fixtures and a durable flight case with an on-board battery charging solution.

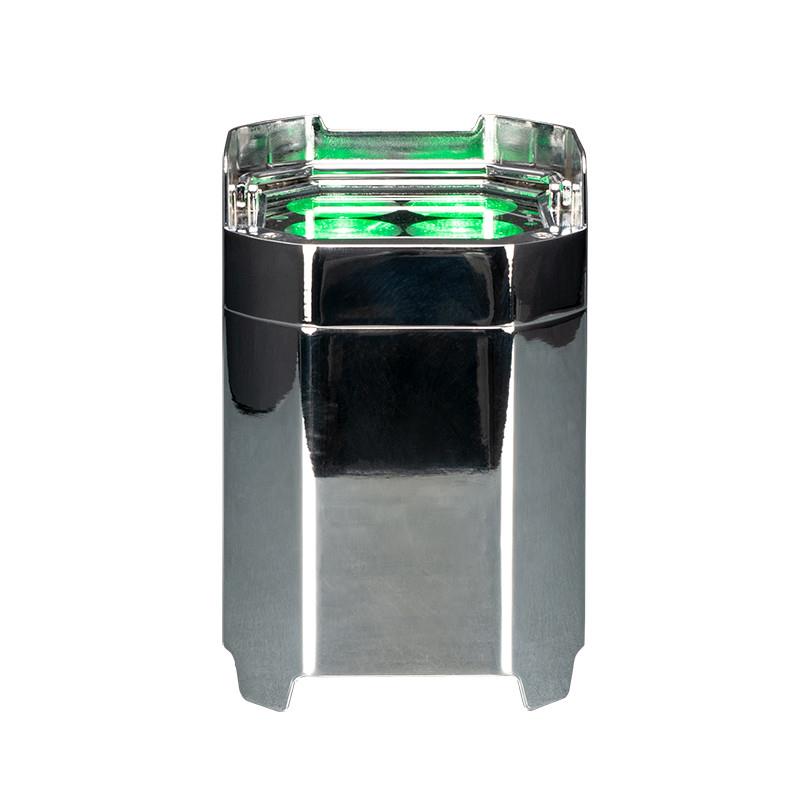

Each Mirage Q6 IP fixture is powered by four 10W RGBA LEDs that produce a 15-degree beam angle. The fixture is IP65 rated and is waterproof; suitable for temporary use outdoors with protection against the elements (rain, snow, dust and sand). Built-in WiFLY EXR wireless DMX allows for the fixtures to communicate with a lighting controller, also with WiFLY EXR wireless DMX, up to 2,500 feet (700M) away.

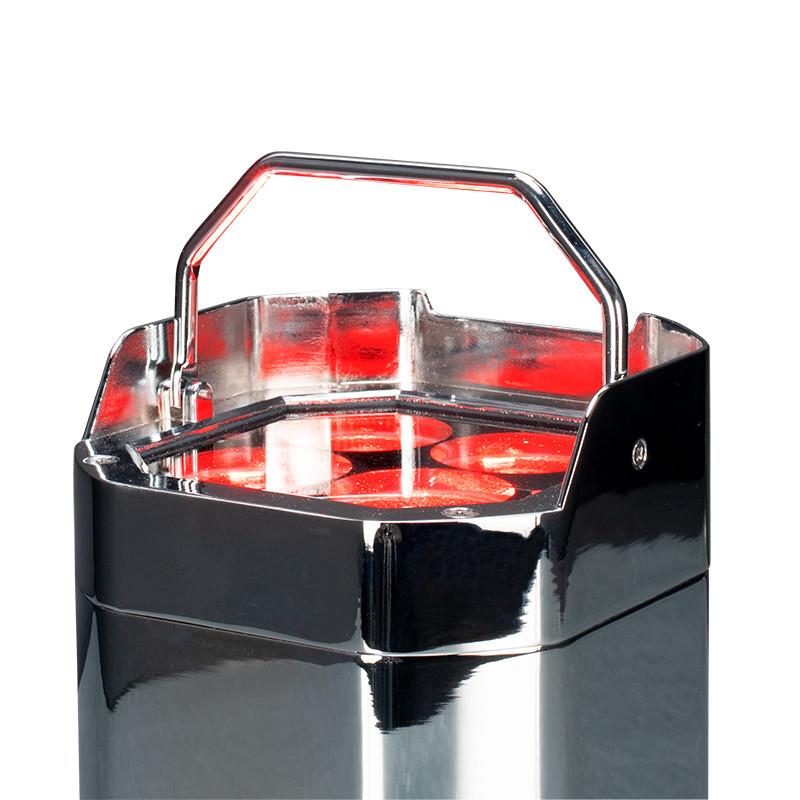

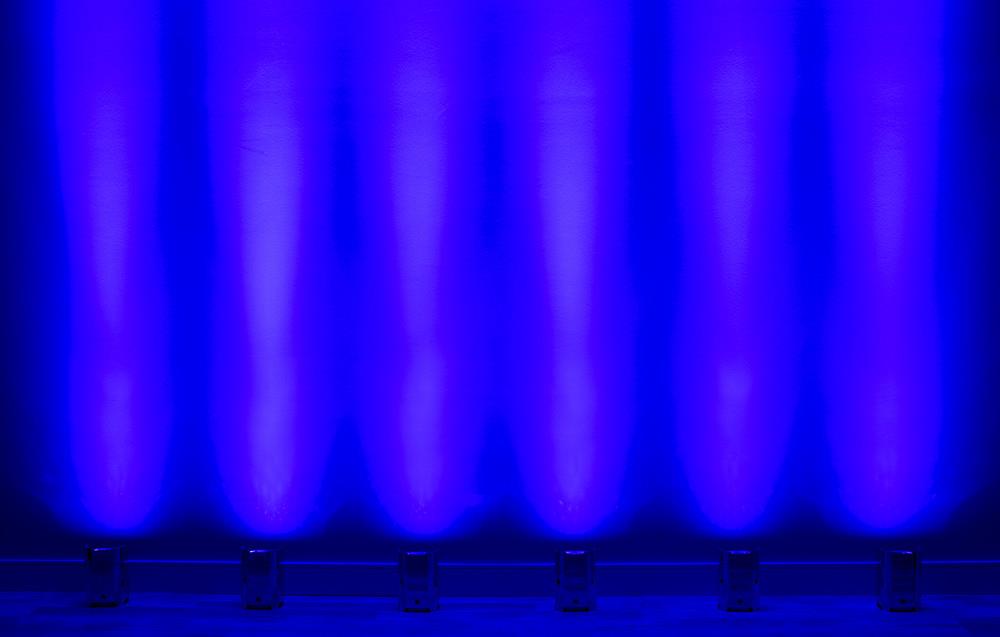

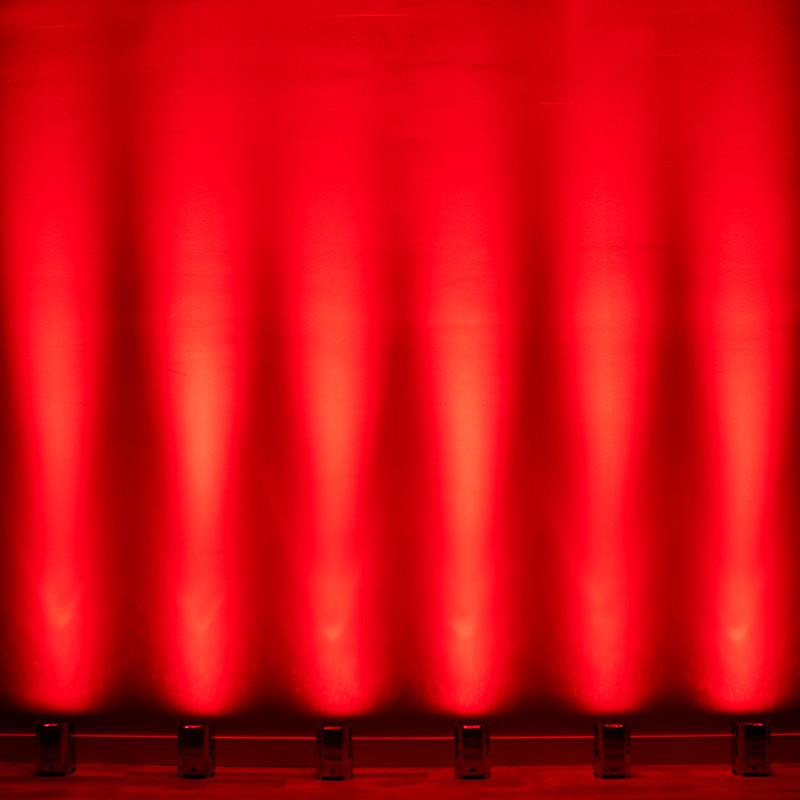

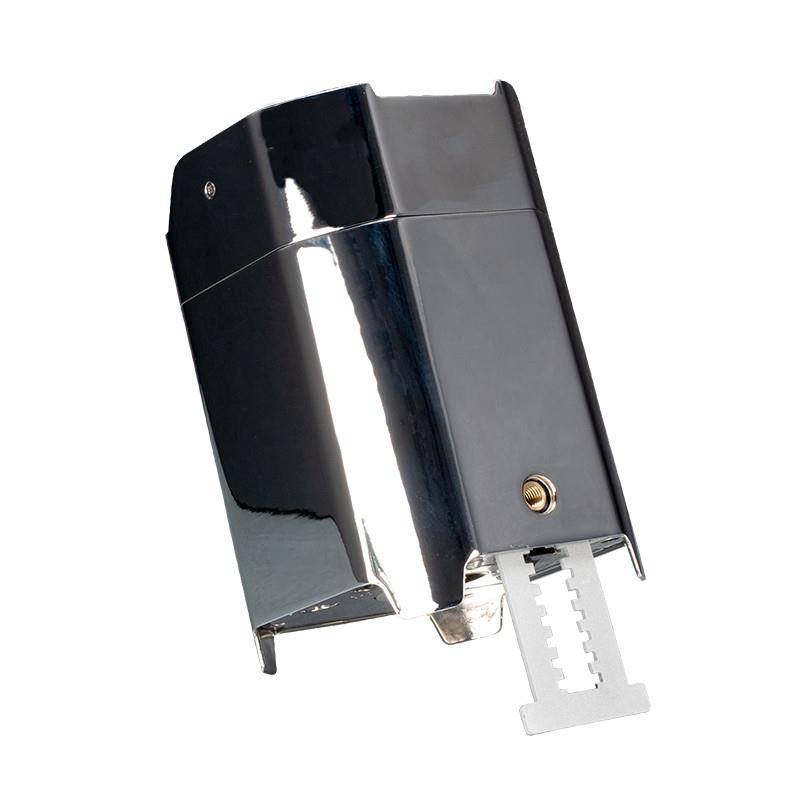

Ideal for wall washing, Mirage Q6 IP fixtures are all fitted with an integral carry handle and built-in feet which mean they can simply be dropped in place and are ready to go. They also feature a built-in kickstand which allows the beam to be easily angled inwards towards a wall if required. This creates a more intense wash and minimizes light spill onto the ceiling above.
Each fixture has an alarm system with on/off controls. If someone picks up the fixture with the alarm system on, the fixture will make a beeping sound and strobe in red.
The robust battery will operate up to 40 hours on a single color (20 hours changing colors). The battery charge time is 7 hours.
Sold in a system of six portable LED battery powered fixtures inside a charging flight case.
• 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
• 50,000 Hour Average Life
• LUX: 9903 @ 2M; 2303 @ 4M
• 11-degree beam angle
• 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
• Control protocol: WiFLY EXR Wireless DMX, UC-IR (Included)
• 5 Operation modes: RGBA Dimmer Mode, Auto Run Mode (13 programs, & 1 color/fade combo mode), Static Color mode and Wireless DMX Control
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
• Run all night – No duty cycle
• RGBA Color mixing
• 64 built-in Color Macros
• Metal housing with chrome finish
• IP65 Rated for temporary outdoor use
• Built-in kickstand to angle fixture when sitting on the floor
• Carrying handle
• Built-in alarm system with On/Off

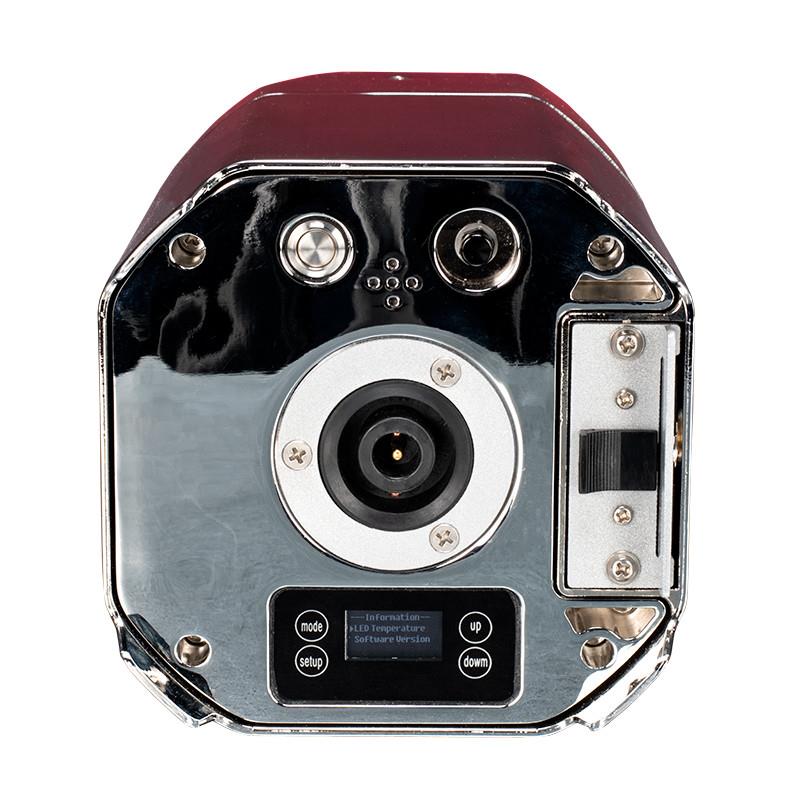

• Battery charge indicator on each fixture
• Power Input: DC 17.3V
• Amperage Draw: 2A
• 40W Max Power Consumption (each unit)
• Battery Type: Fixed lithium battery
• Battery Energy: 162.8WH (Watt Hours)
• Battery Weight: 0.84 kg.
• Battery Voltage: 14.8V
• Battery Capacity: 11000mAh (Typical Capacity)
• Battery Charge Time: 7 Hours
• Battery Life: 20 hours (changing colors); 40 hours (single color)
• Contact Charging system. 6x Charging bases and power supplies included in flight case
Dimensions & Weight:
• Length: 143mm
• Width: 143mm
• Height: 211mm
• Weight: 2.8kg.
Mirage Q6 PAK Includes:
• 6 MIRAGE Q6 IP Fixtures

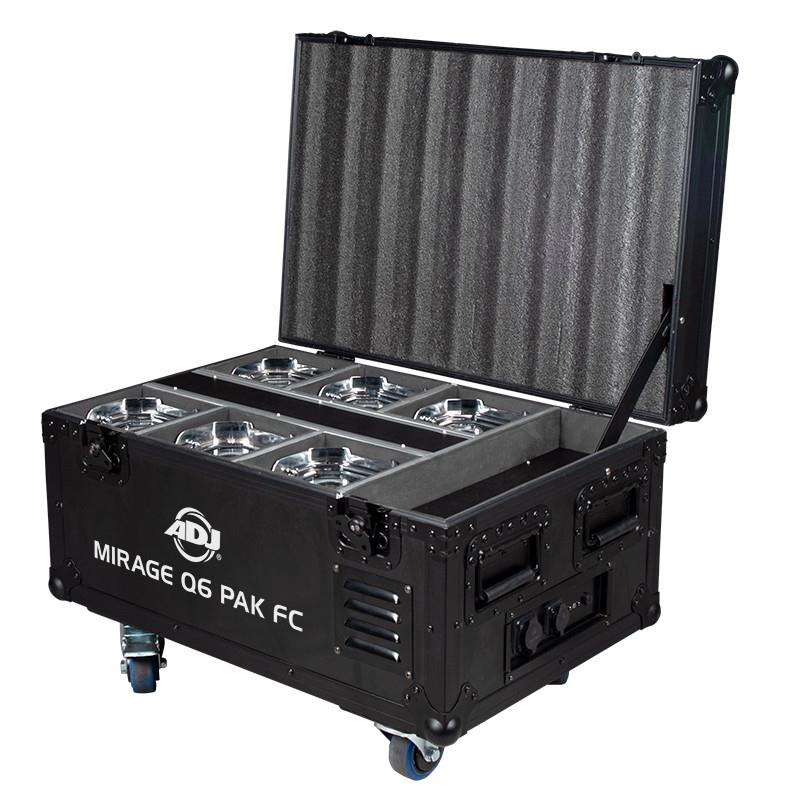

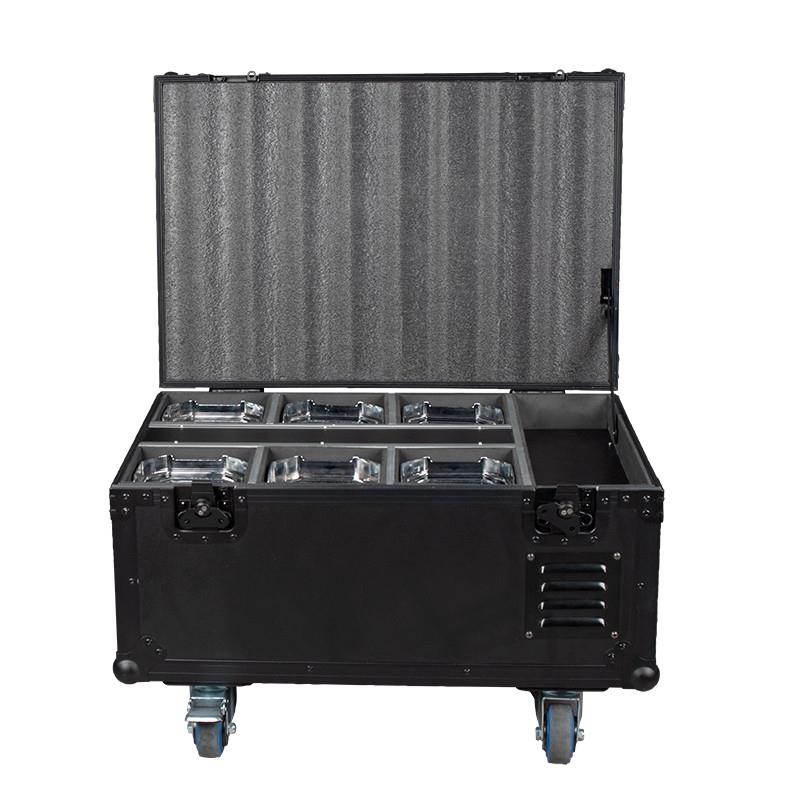

• 1 MIRAGE Q6 FC Flight Case
• 6 MIRAGE Q6 IPCB Charging bases and power supplies
• 1 UC-IR Wireless Infrared Controller
• 1 IP65 Locking Power Cable

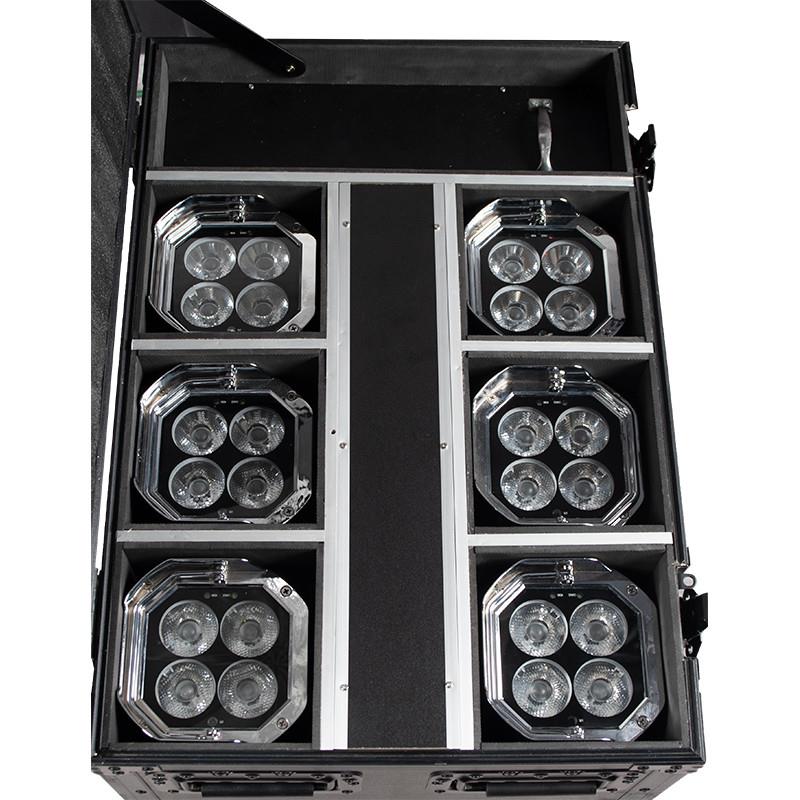

• Houses / Transports and Charges 6 MIRAGE Q6 IP™ fixtures
PAK Dimensions & Weight (loaded case with 6 fixtures):
• Length: 672mm
• Width: 461mm
• Height: 449mm
• Loaded Weight: 44.4 kg
• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 400 Watts
• Power Draw: 4A
• Charge status indicator
• -10°C to 45°C
