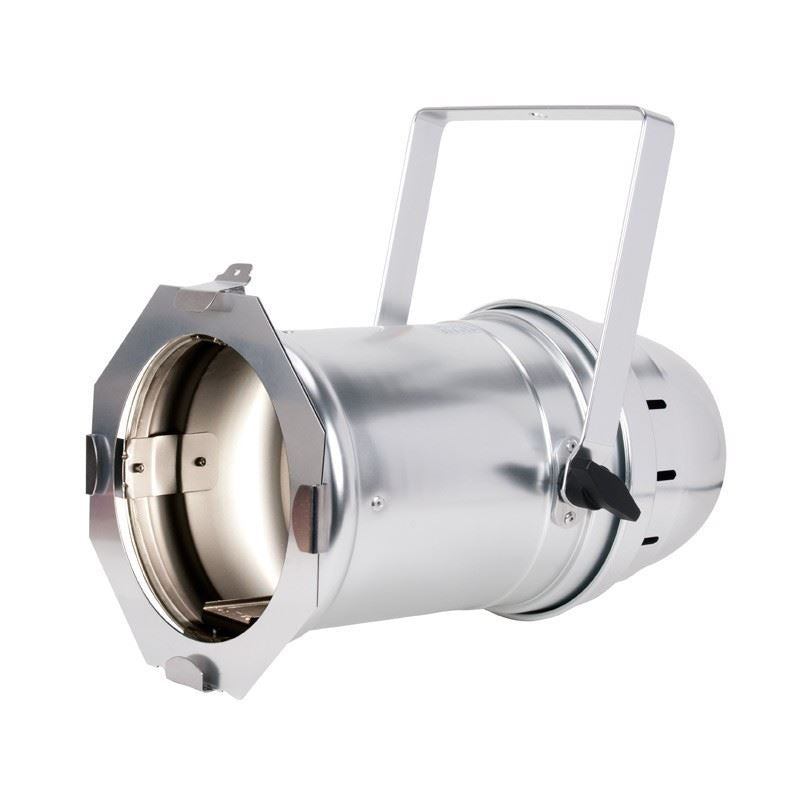

ADJ PAR ZP100 3K LED (100W Warm White Light)

The Par ZP100 3K is a modern LED twist to the traditional halogen Par Can. It is powered by a potent 100W warm white C.O.B. (Chip On Board) LED with a colour temperature of 3000K. Its output is comparable to a 1000W halogen sealed beam Par. It is equipped with 5 different beam angle options that may be changed by hand. powerCON In/Out allows for the fixture to be daisy chained, while 5-pin DMX control offers a variable strobe rate and 5 different dimming curve options. Its external housing is a traditional Par Can silver polished aluminium.

The Par Z100 3K allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won’t get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.

Specifications

Optical
100 Watt COB Warm White LED (3000K)
Life expectancy: rated at 50,000 hrs.
LUX: 7135 (9˚); 4440 (15˚); 2236 (20˚); 1266 (25˚); 812 (30˚)
CRI: 90
Beam angle: 9, 15, 20, 25 0r 30-degree (manual adjustment)
PWM frequency:1200Hz

Connection
DMX: 5-pin DMX In/Out
PowerCON In/Out to power battery or daisy chain fixture

Control
Control protocol: DMX-512
2 DMX Channels

Features
4-button DMX menu display on rear panel
Adjustable latch to manually change beam angle
Includes gel frame for diffusion filters (Diffusion filter sold separately)
Strobe effect (25Hz max)
Flicker Free Operation
Electronic Dimming: 0 - 100% with 5 dimming curves
Run all night – No duty cycle
Silver polished aluminium exterior housing

Electrical
Power Draw Total (All LED's @ Full On): 115W, 0.964A @ 120V/60Hz, 112W, 0.5A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 15 fixtures (120V); 25 fixtures (230V)

Certificates
ETL Approved

Dimensions
491 x 272 x 273 mm

Weight
3.4 kg
