ADJ PIXIE STRIP 30 LED Pixel Strip RGB SMD 0.5m

Description:

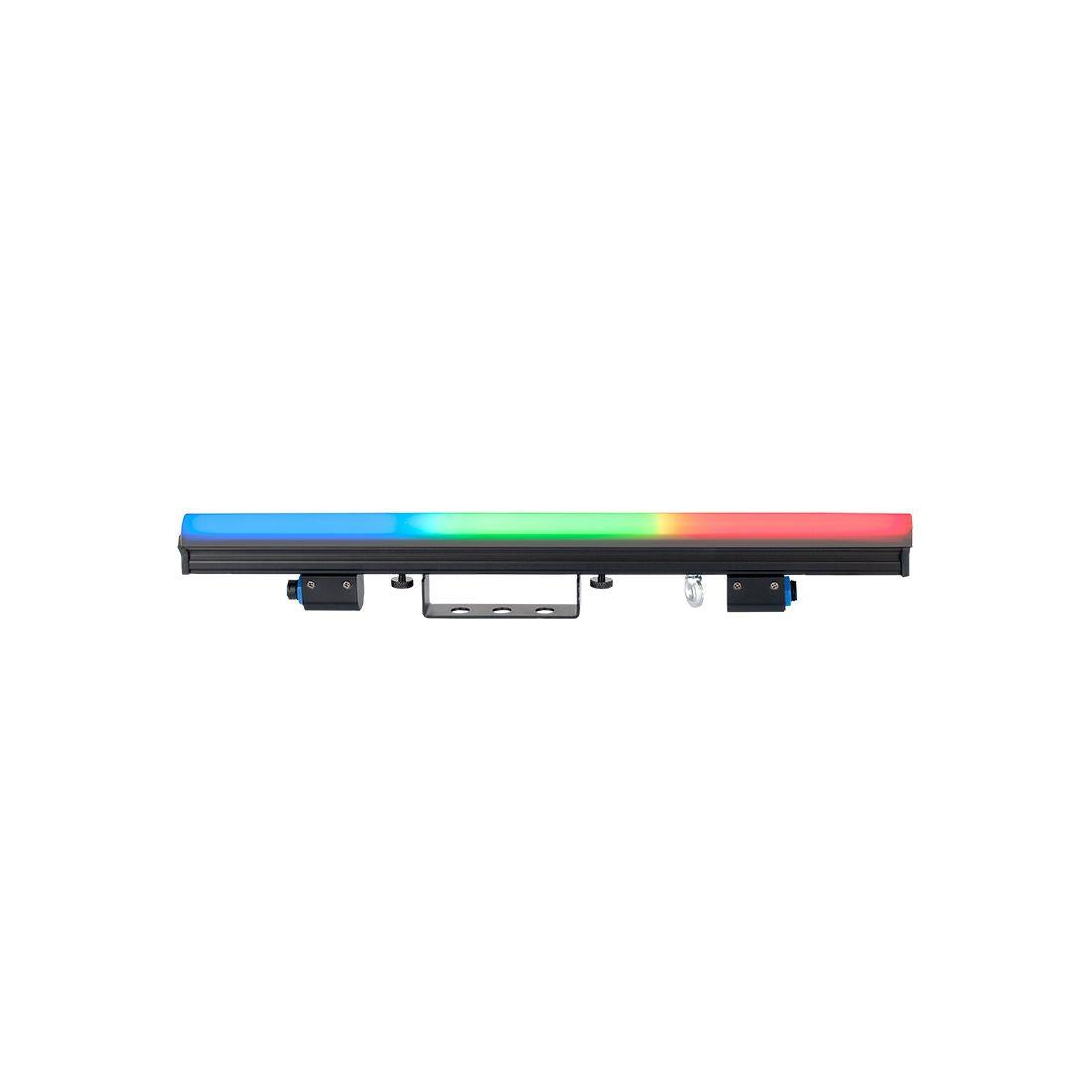

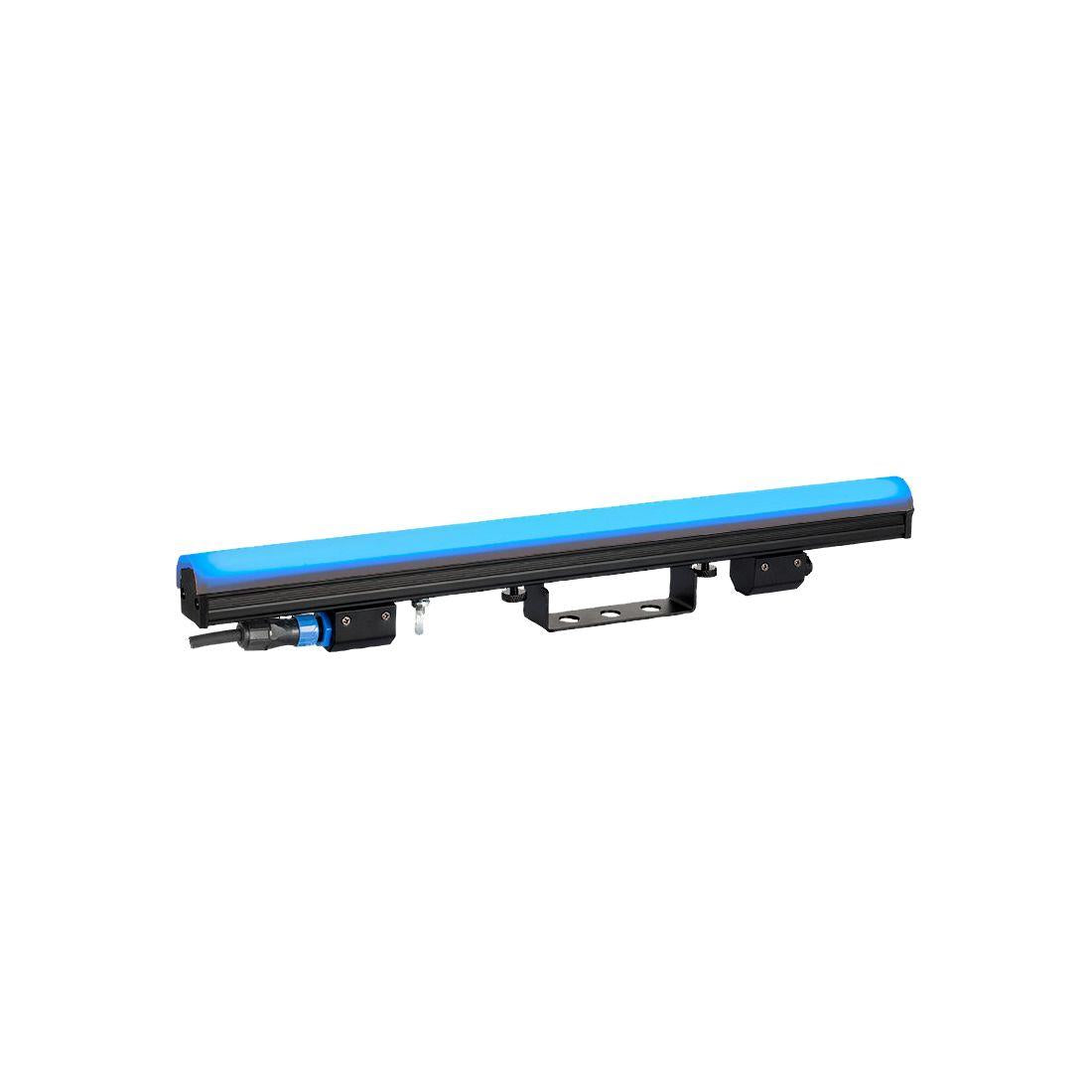

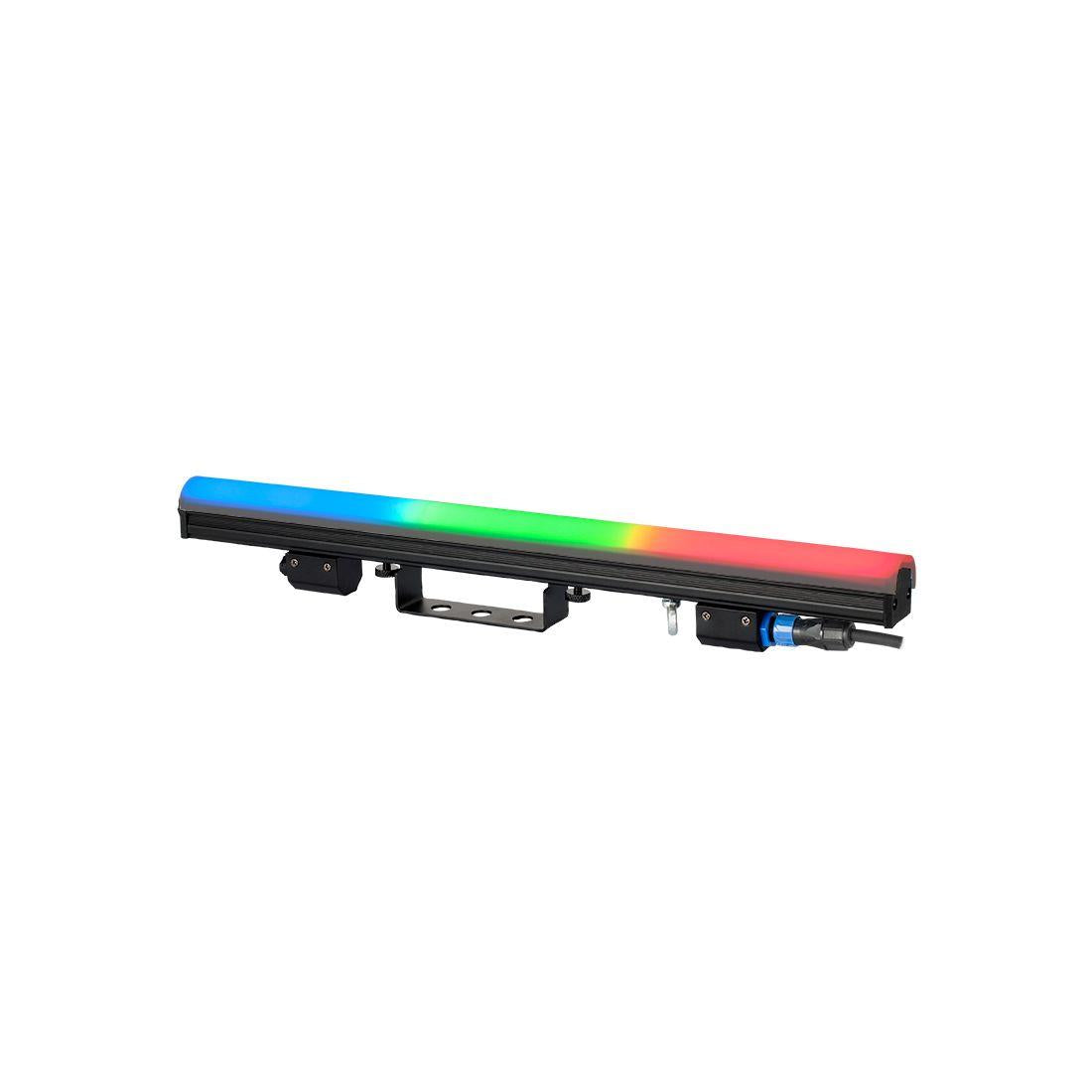

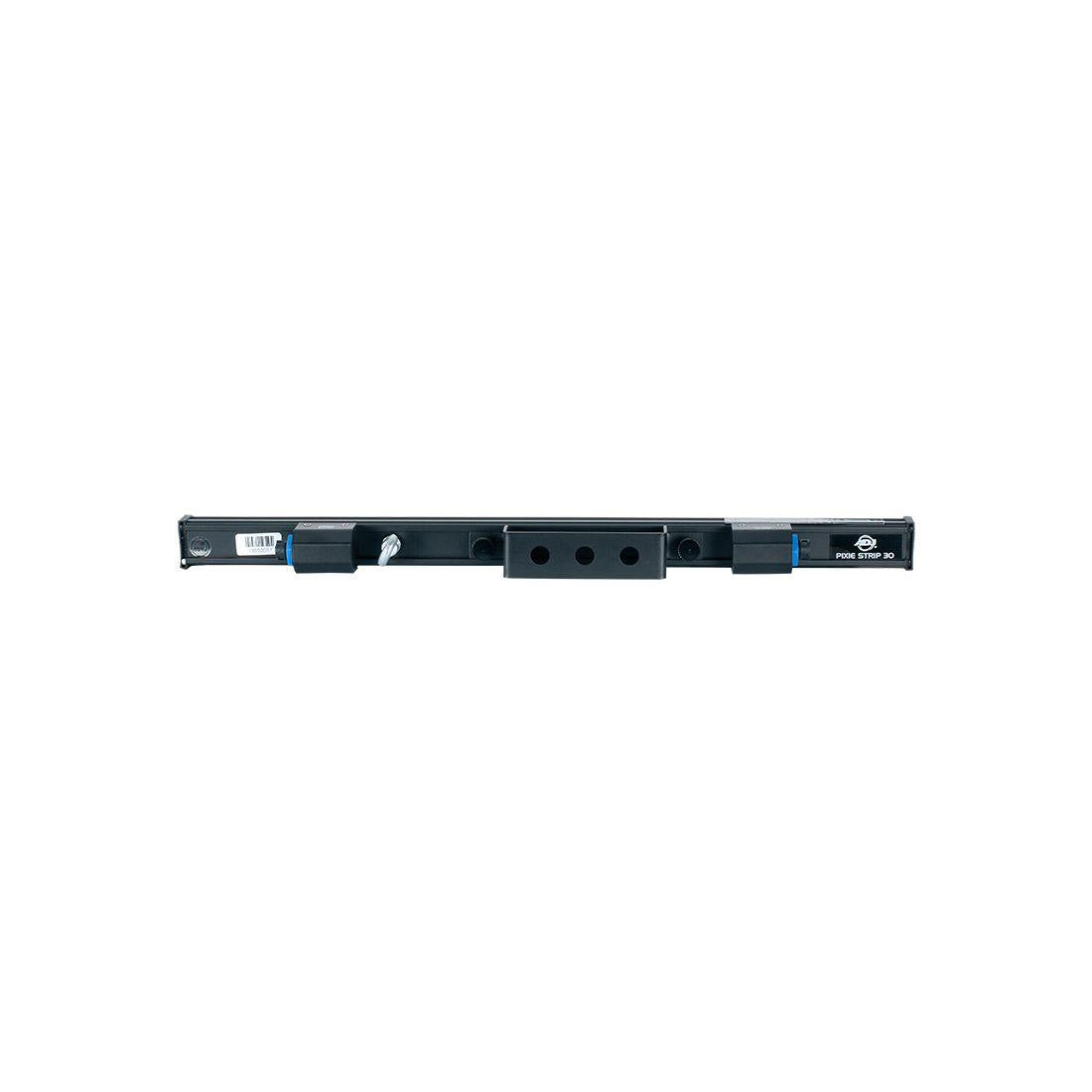

The PIXIE STRIP 30™ is a 0.5 meter, indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44000Hz for flicker free operation for broadcast TV and FILM applications. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, two integrated adjustable mounting brackets, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the Pixie Driver 2000™ (sold separately) which provides simple on-board programs, manual dimming and strobe control as well as full pixel mapping control of 2,040 max pixels via Kling-Net and 340 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary, 4pin combo cables (sold separately) which are available in lengths from 0,3 (1 cable included) to 15m

Specifications:

Source
30 SMD RGB 3-in-1 LEDs
Individual LED Wattage: 0,2W
PWM: 44kHz
Optics
Viewing Angle : 120 x 120 degrees
Pixel Pitch: 16,5mm
60 pixels/m

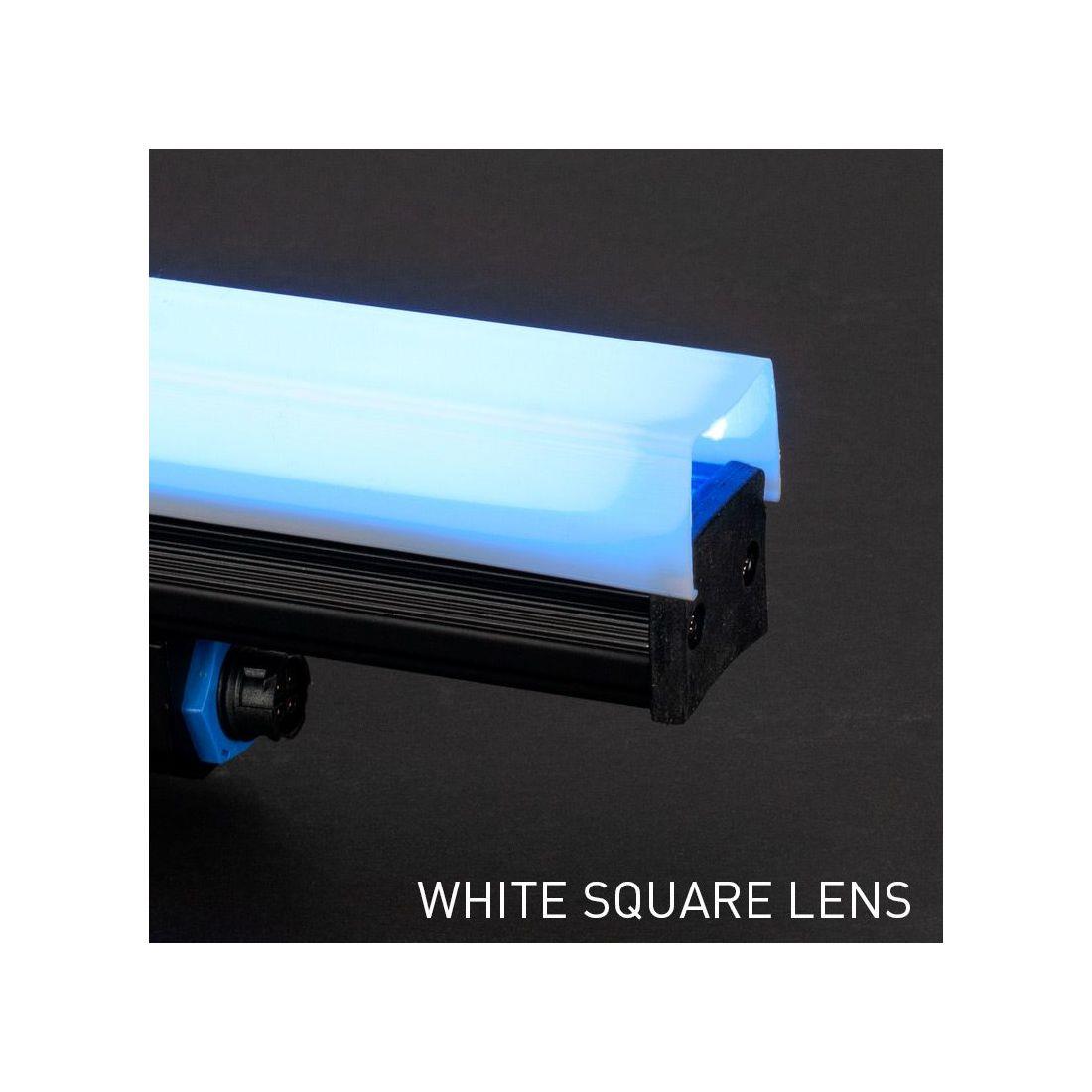

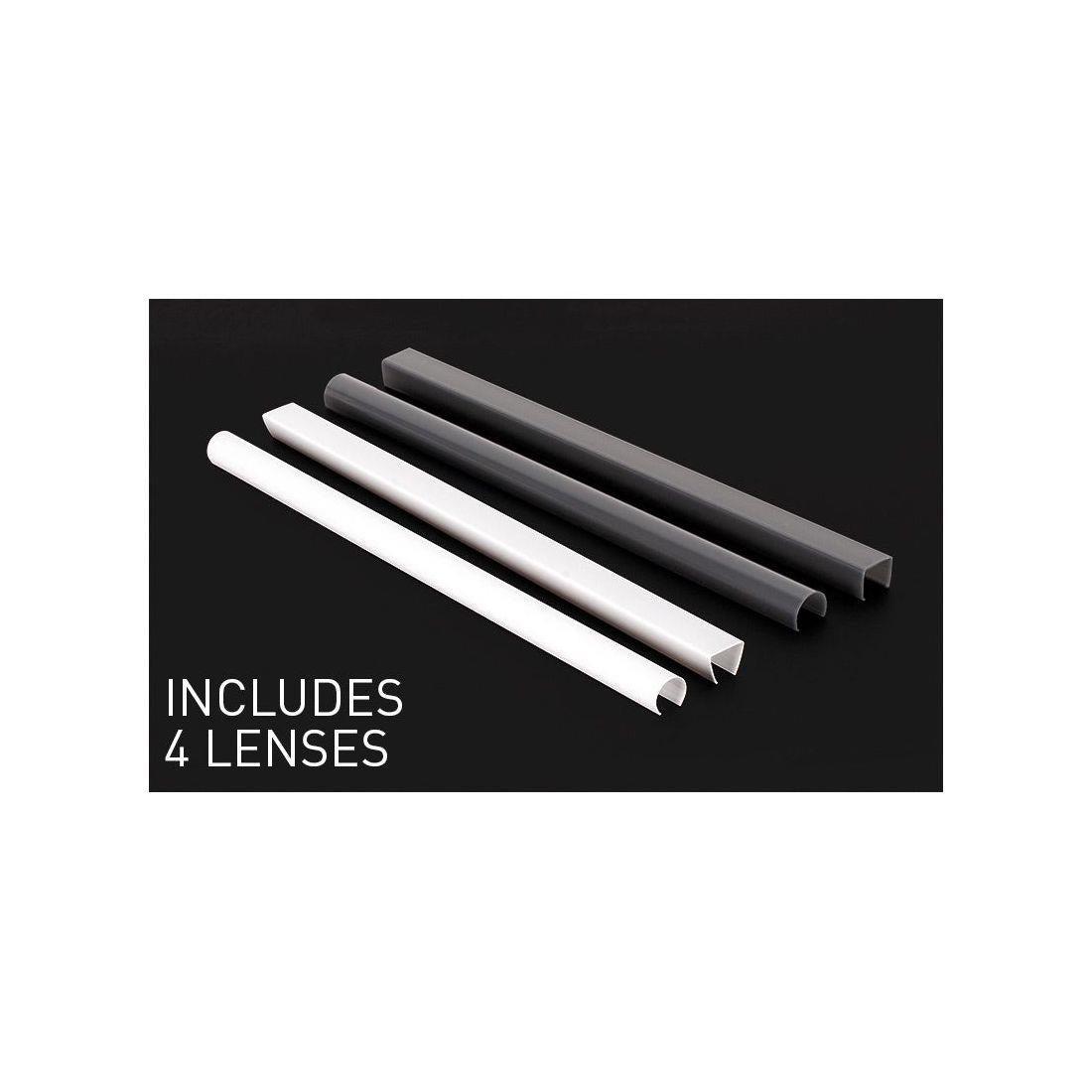

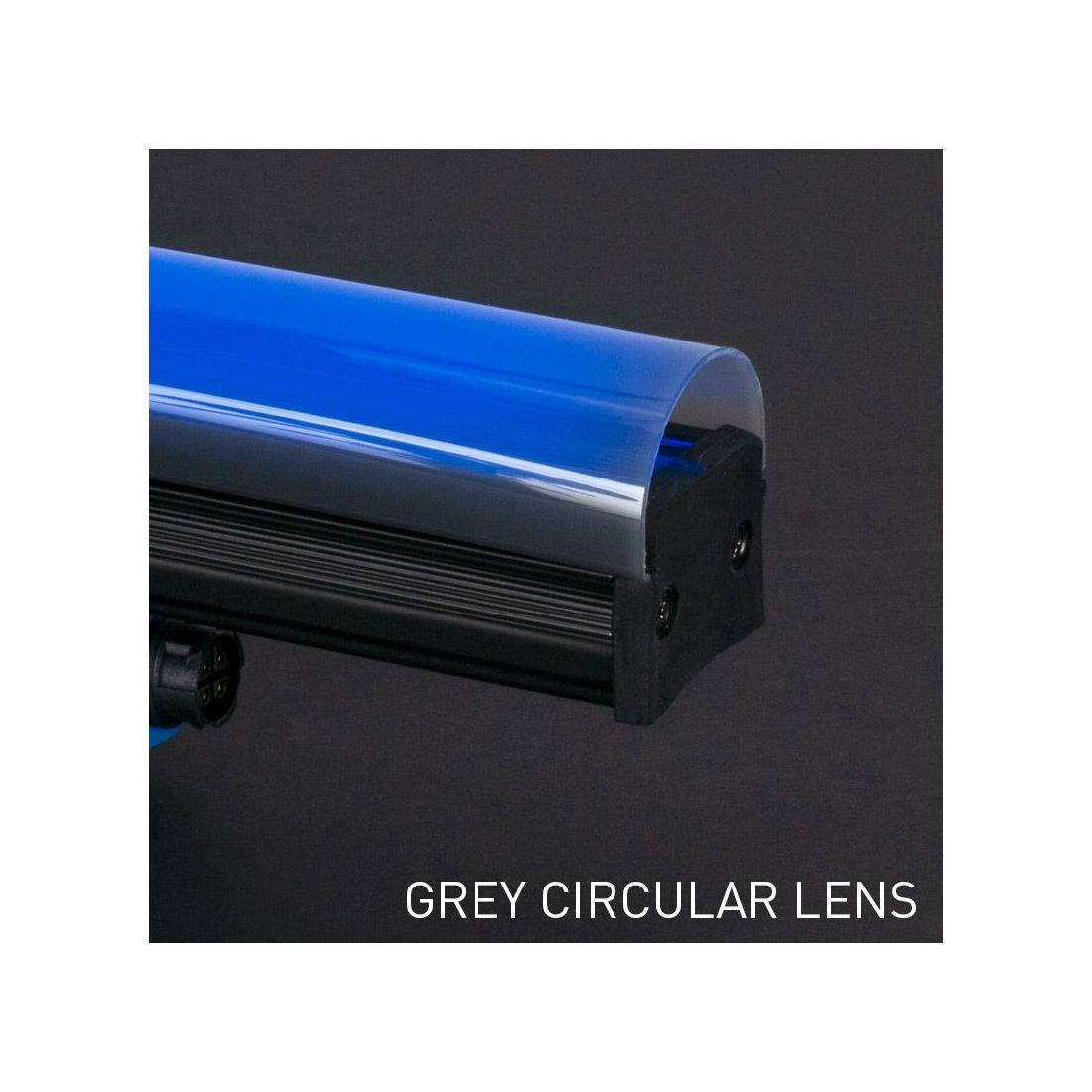

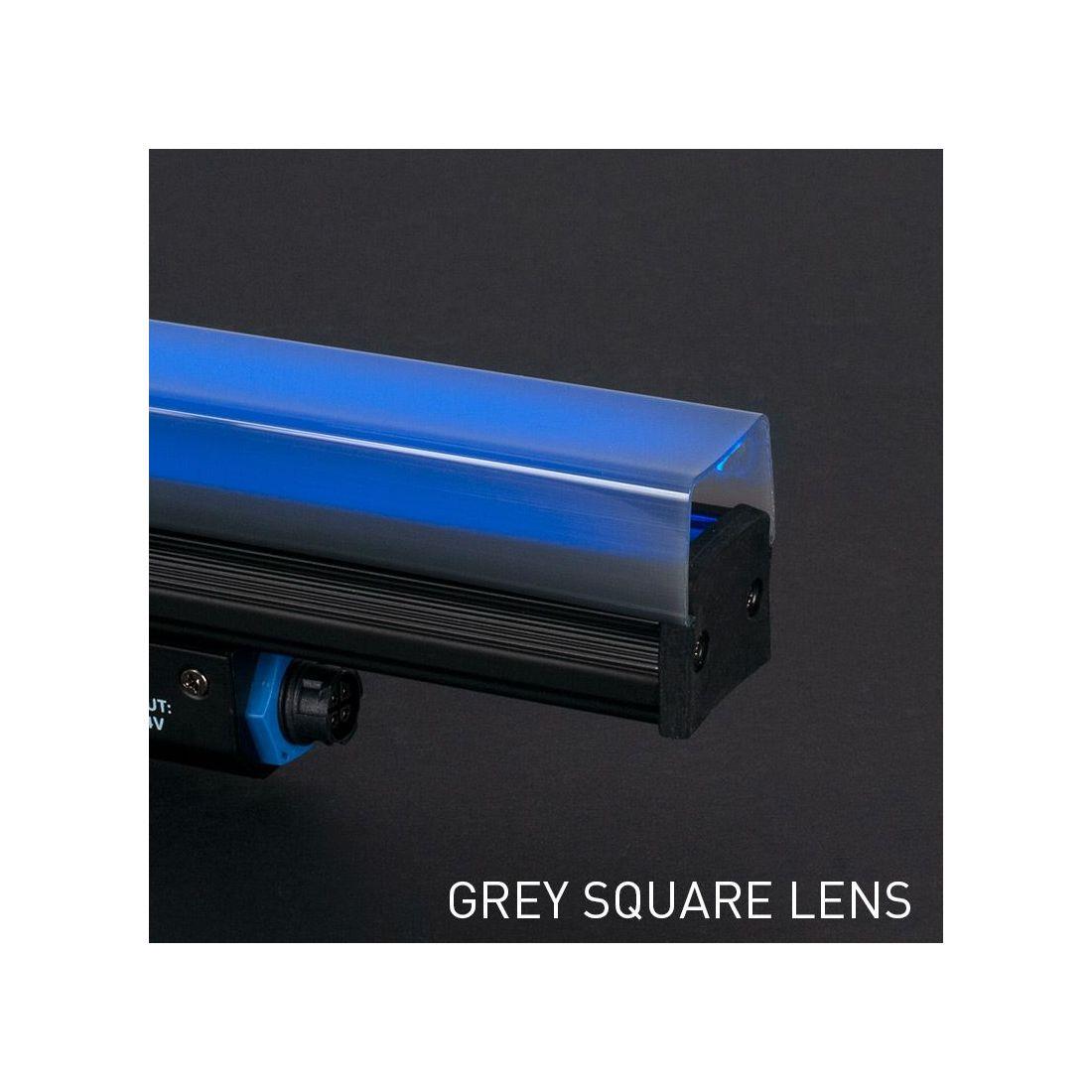

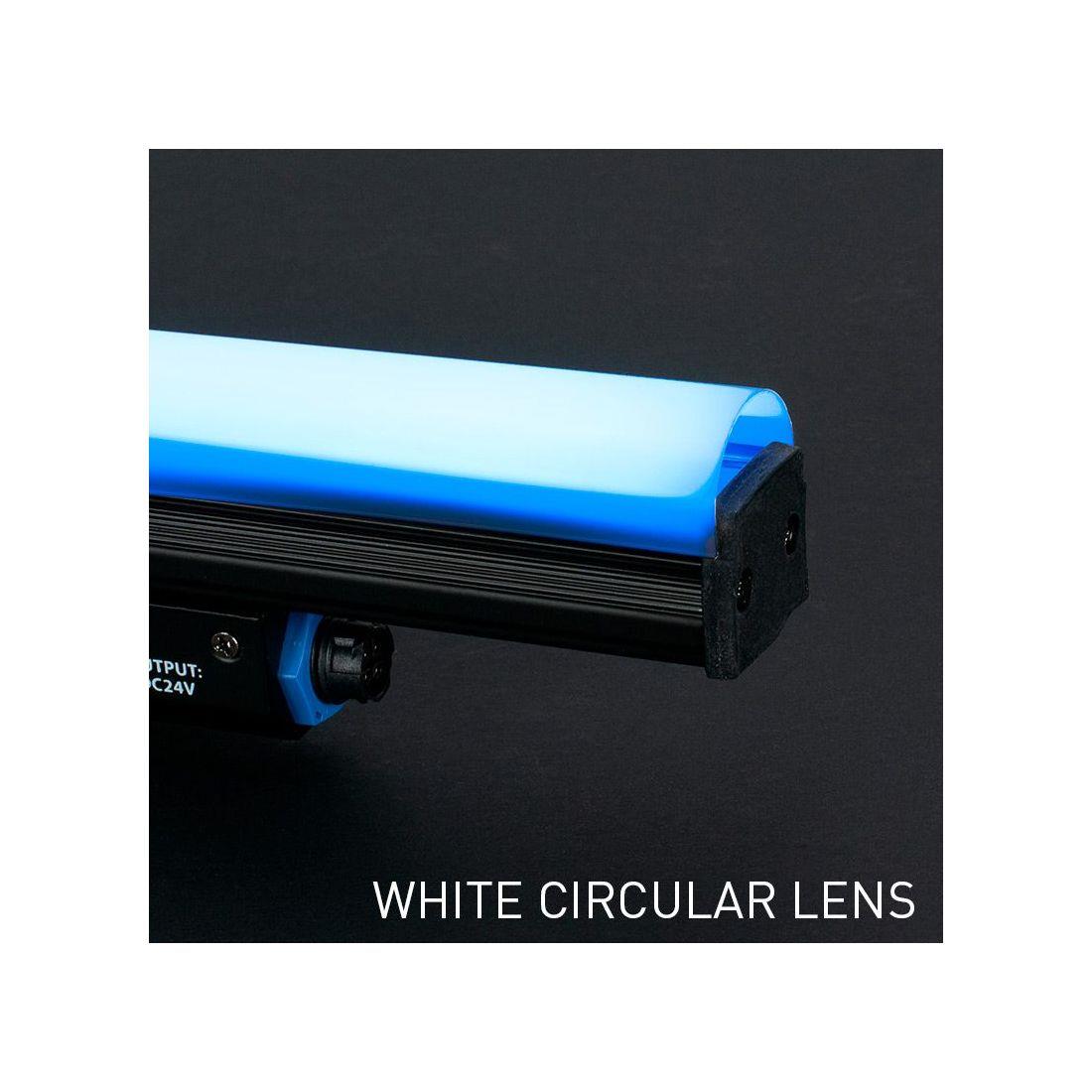

4 Frost lenses included (1 white rounded, 1 white square, 1 smoked rounded, 1 smoked square)
Control
Controlled by Pixie Driver 2000 (code 1226200064) through Klingnet or ArtNet/sACN
Colors
RGB Color Mixing
Color Resolution : 8-bit per color / 24-bit per pixel
Construction
Extruded Aluminium Metal Housing
Magnetic end-caps
Includes 1 adjustable Hanging bracket
Electrical
24V In/Out
Max. Power consumption: 6W
Connections

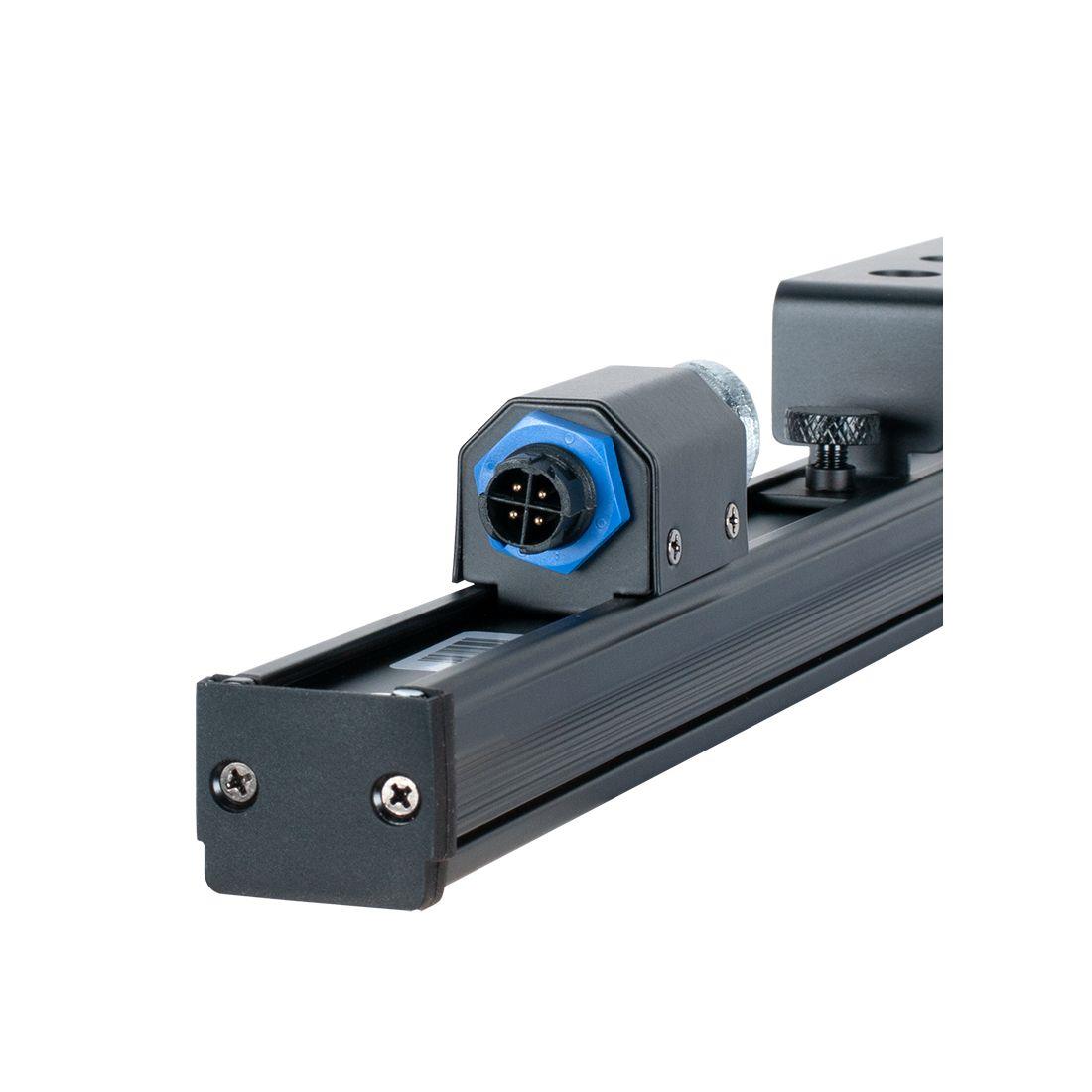

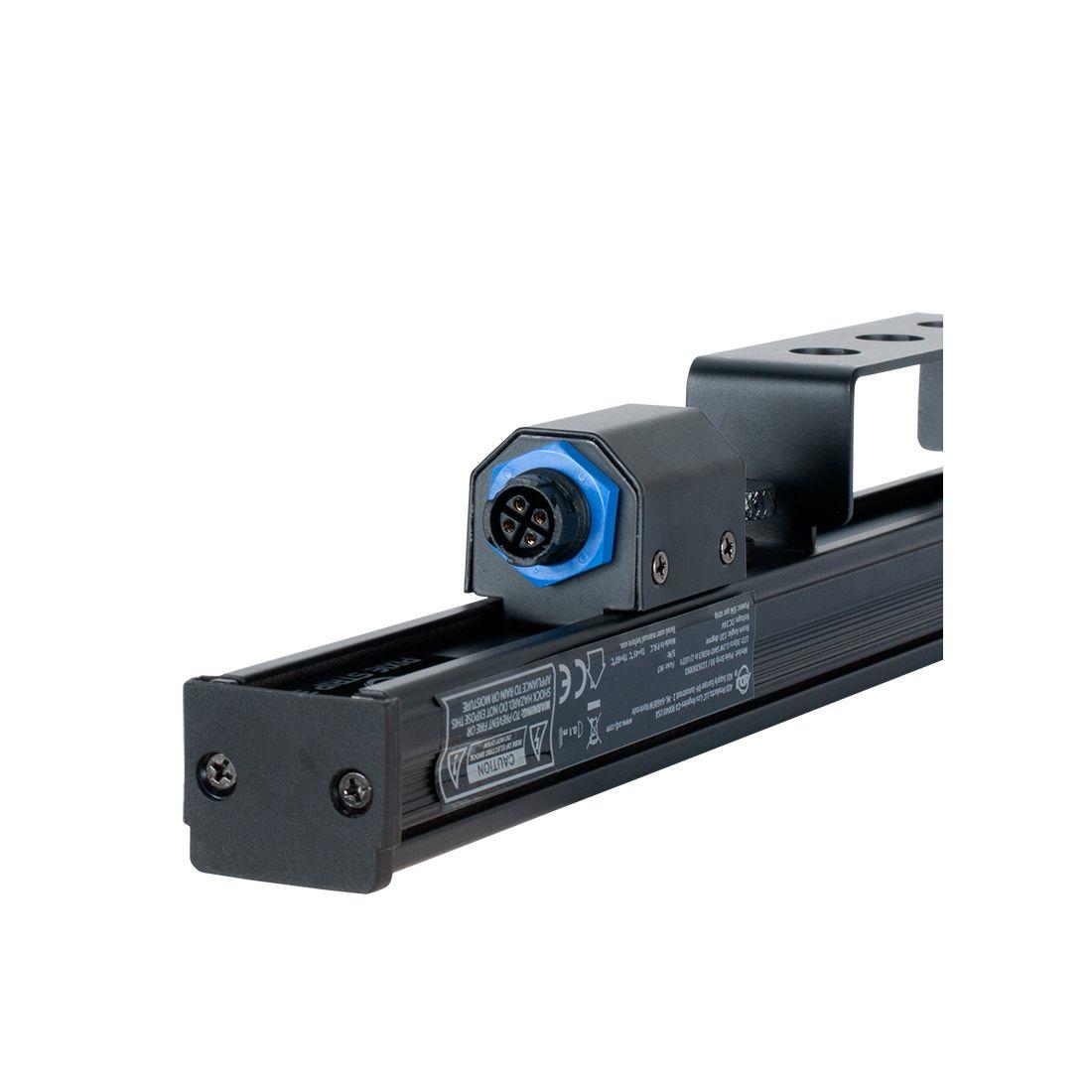

4-pin proprietary Power/Data In/Out connections
Dimensions & Weight
Dimensions (LxWxH): 500 x 32 x 67mm
Weight: 0,7kg.
