ADJ Saber Bar 6

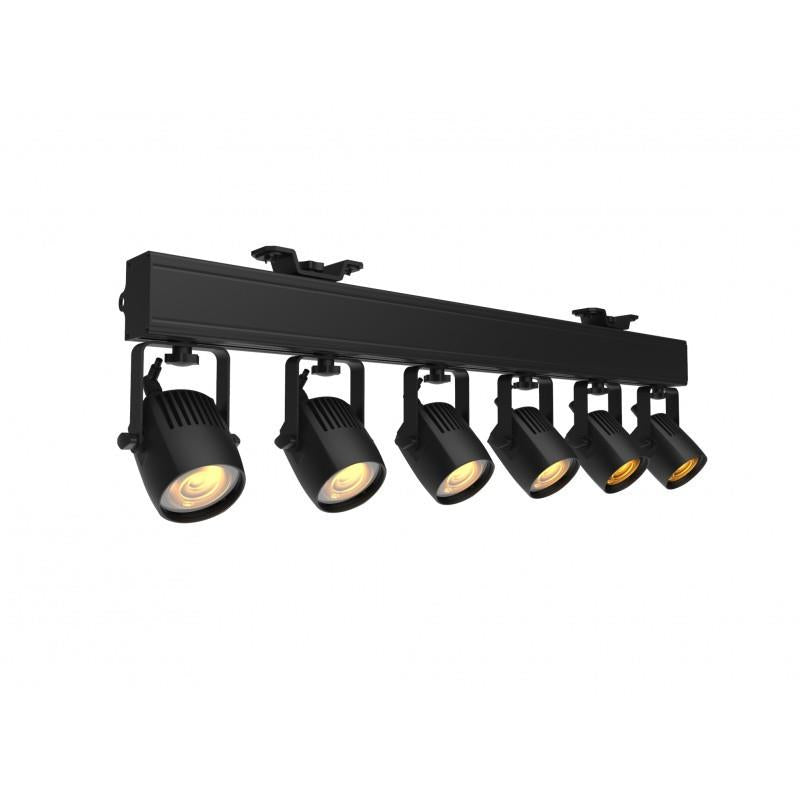

The Saber Bar 6 is a 6-head pin-spot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pin-spot is similar to the Saber Spot WW with a 15W Warm White LED (3100K) and an ACL lens that produces a razor-sharp 4-degree beam. Each fixture’s X/Y axis may be individually adjusted manually for precision angling of the beams. There are two heavy-duty adjustable brackets to mount the fixture to a ceiling or truss.

The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is s ideal for performance stages, installations, table spotting and lighting in retail stores.

Features
All metal construction with black housing
ACL lens for razor sharp beams
Additional 10 & 45 degree lenses included
RDM compatible (Remote Device management)
Includes heavy duty adjustable brackets for hanging
Individually adjust X/Y axis of each fixture manually

Specification
LED: 6x 15W Warm White LEDs (50,000 hr.)
Colour Temperature: 3100K
CRI: 96
Beam Angle: 4-degrees
Display with function buttons
Data In/Out: 3-pin and 5-pin DMX In/Out to link data
Power locking In/Out connections to daisy chain power
Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240V
Multiple DMX channel modes
Control Modes: DMX512
Built-in internal programs
0-100% Dimming + smooth 16-bit fine dimming
6 Dimming Curve Modes
Adjustable LED refresh rate
Strobe & Pulse effects
With Wired Digital Communication Network
Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
Power consumption: 85W max

Dimensions
1005 x 292 x 95 mm

Weight
11.3 kg
