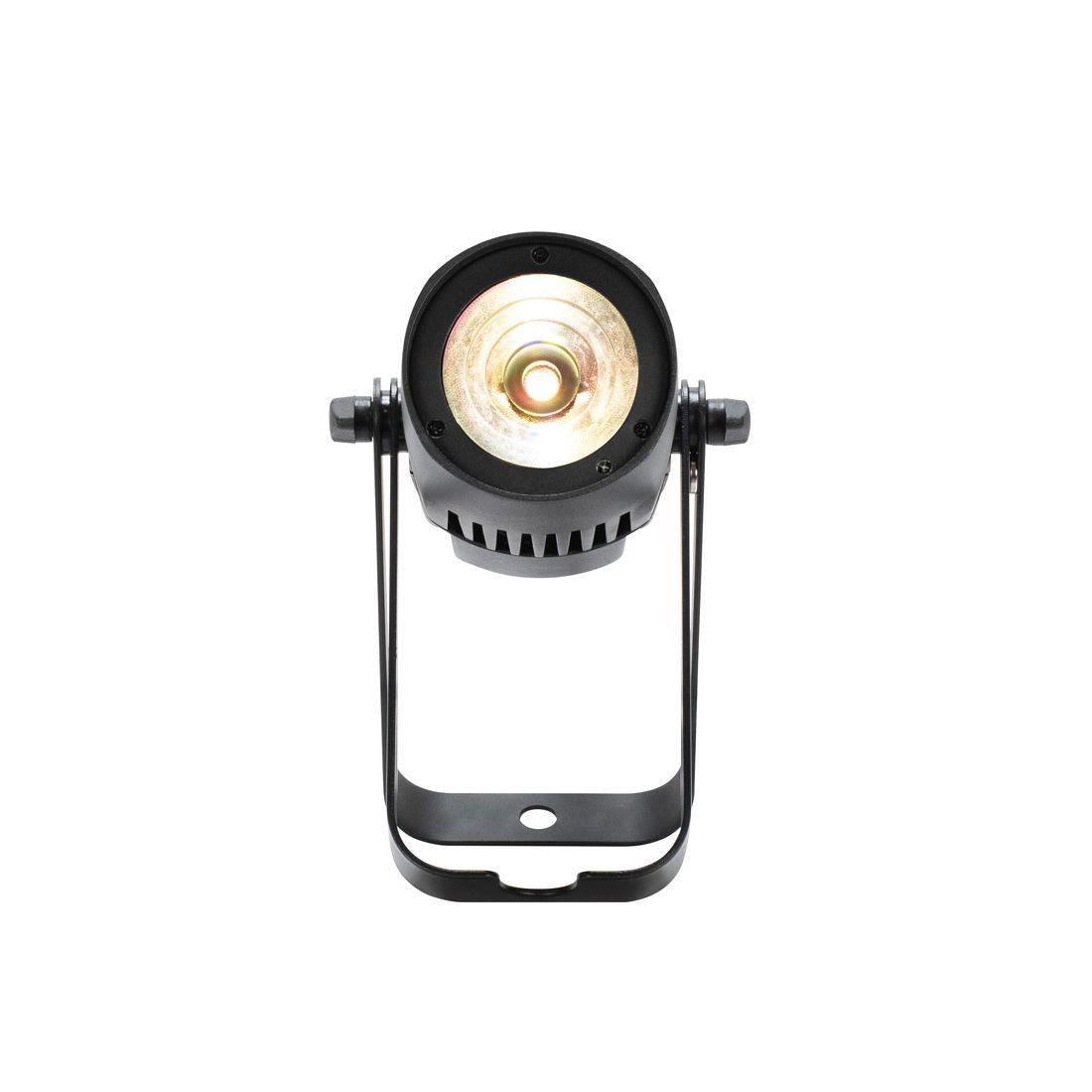

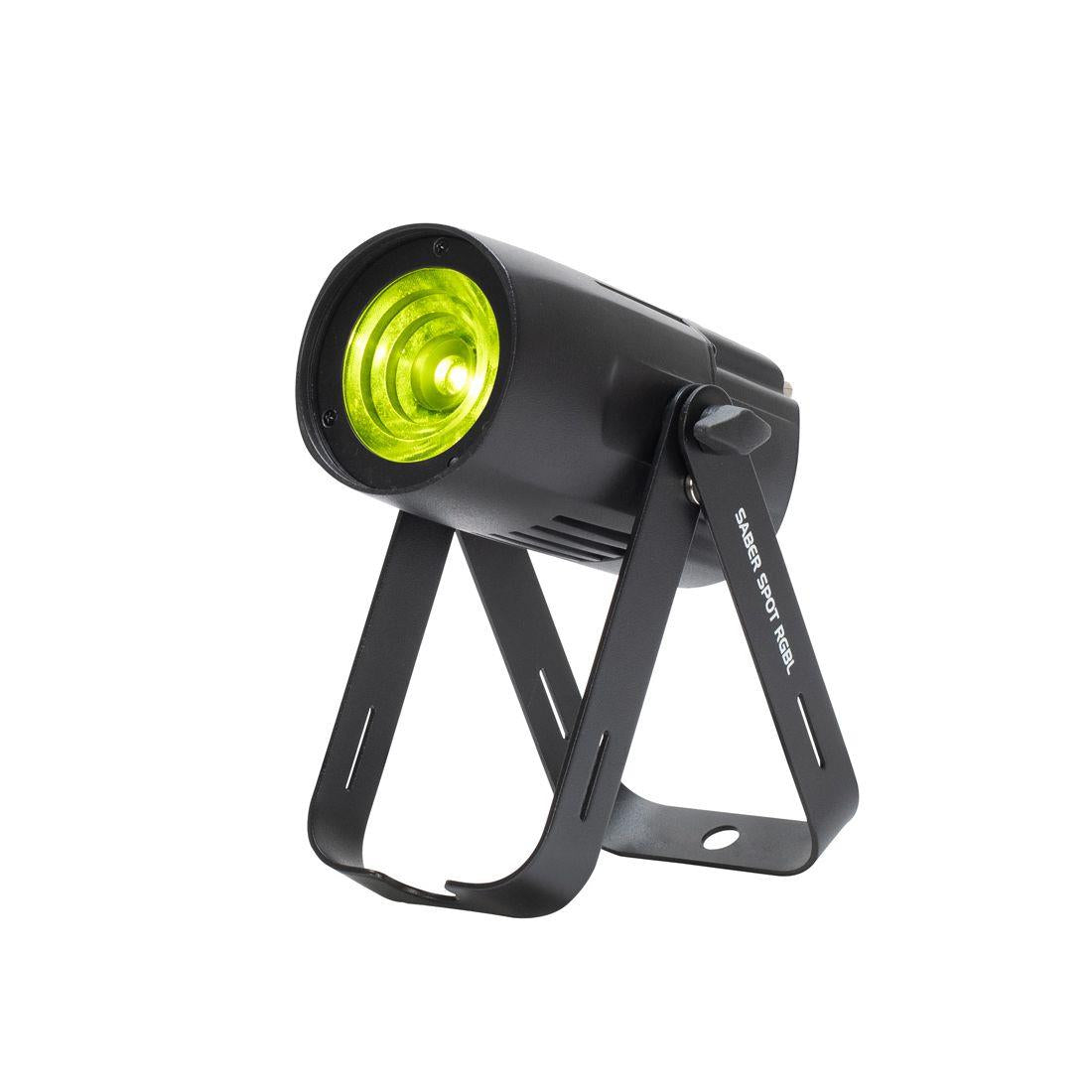

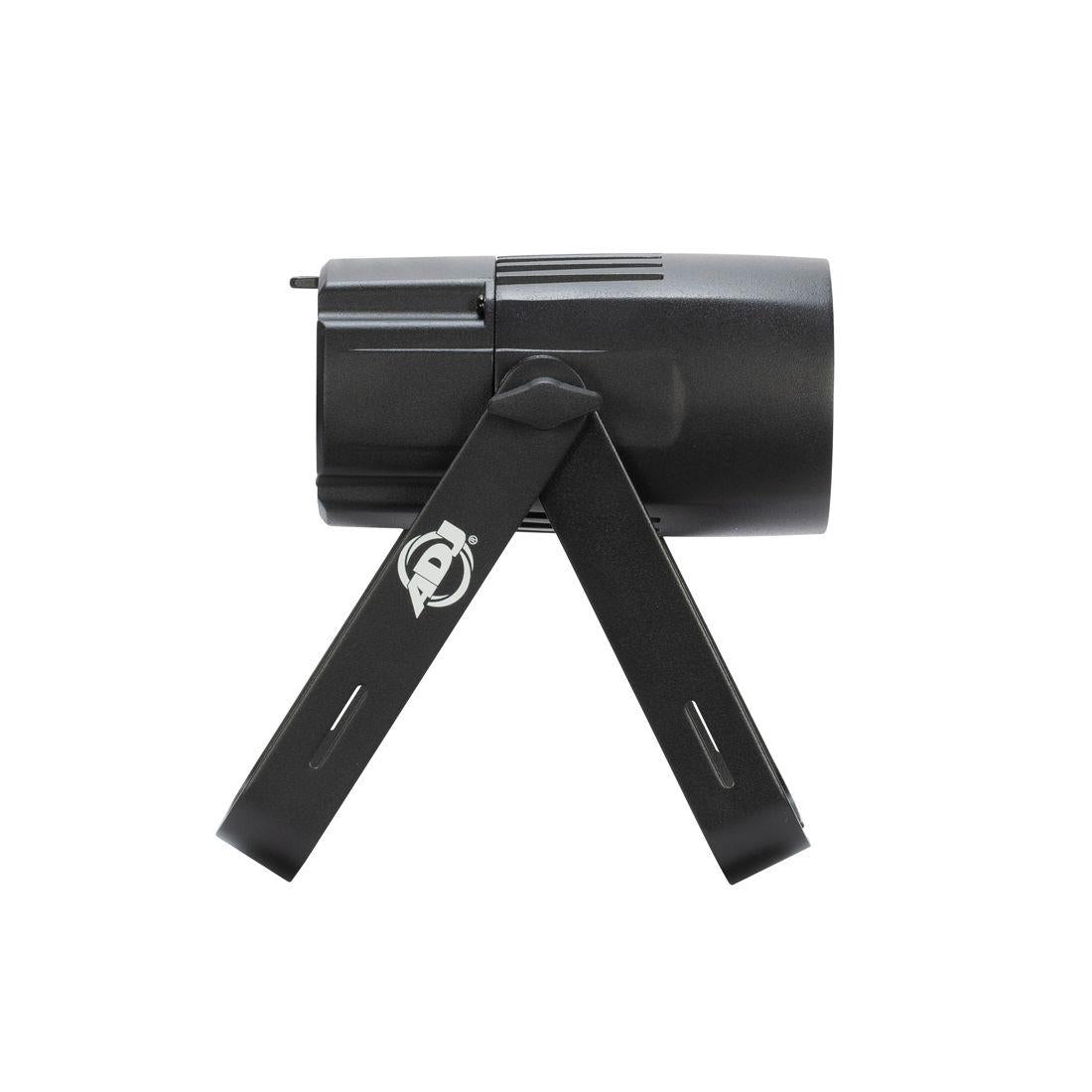

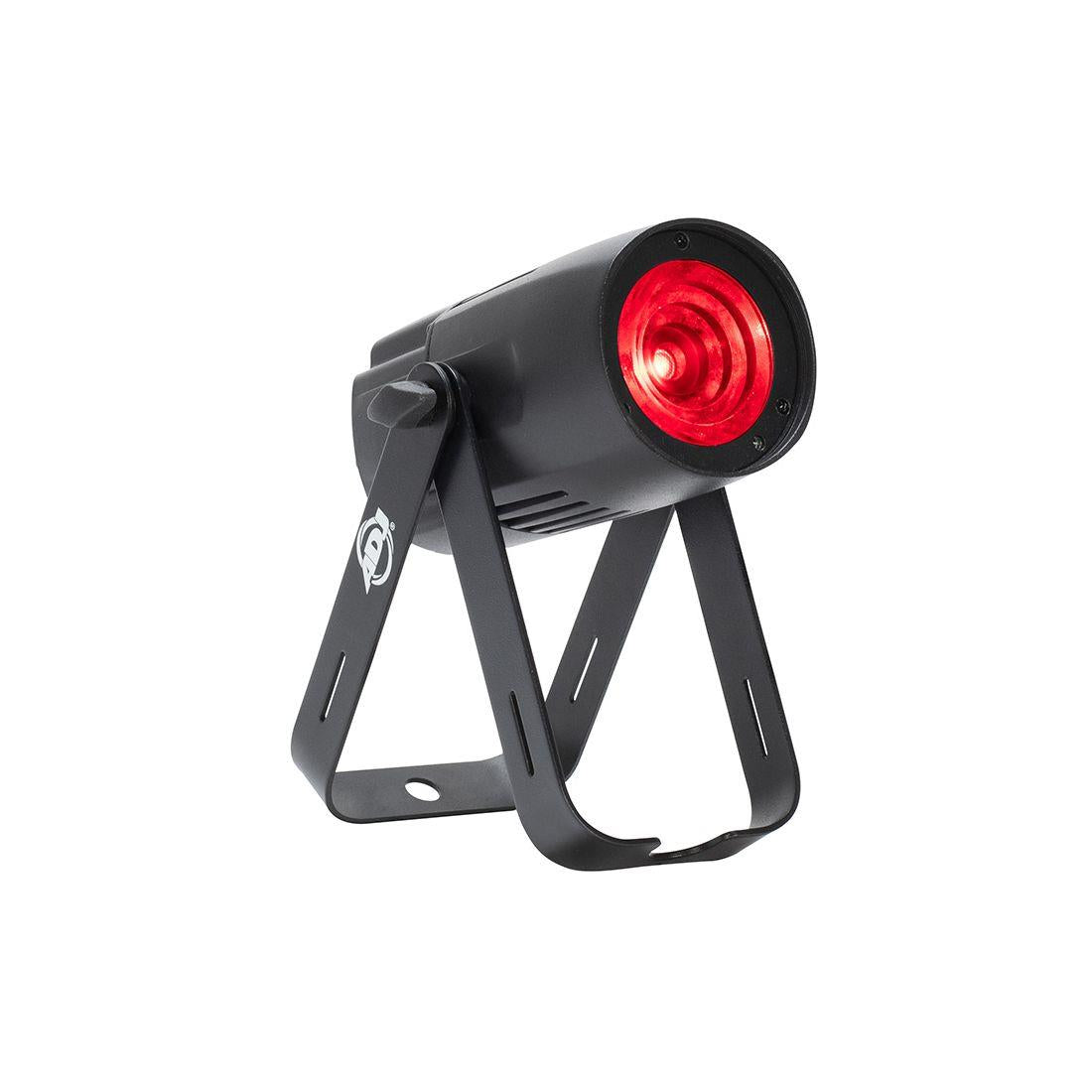

ADJ Saber Spot RGBL Pinspot 20W LED DMX RDM

Description

Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for lightshows.

This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has white color temperature presets ranging from 2000K to 9900K.

A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

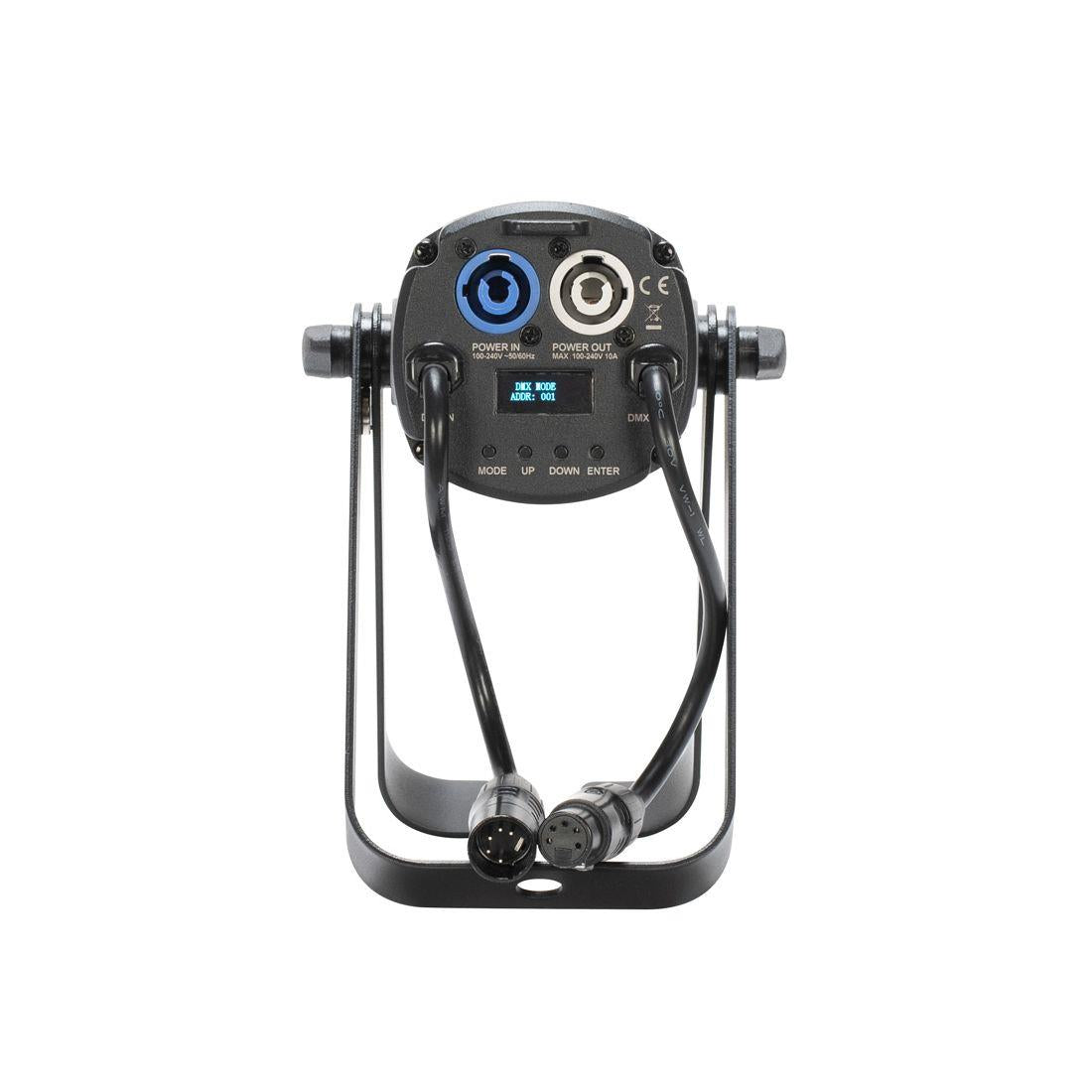

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.

Light Source: 20-Watt, RGBL LED
LED Life Expectancy: 30,000 Hrs
Beam Angle: 5.7°
Includes 2 interchangeable Frost Filter Lens (10-degree & 45-degree)
LED Refresh Rate: 3.6KHz
Features:

DMX and RDM Compliant
Color Temperature Presets (2000K – 9900K)
63 Built-in Color Macros
13 Built-in Color Changing Programs
4-button Digital Display for easy navigation
Electronic Dimming 0 – 100%
Includes a Scissor Yoke to be hung, or set on the ground
Connections:

Power Input: Indoor Power Locking
Power Pass through: Indoor Power Locking
Control: 5-pin DMX In/Out Pigtails
With Wired Digital Communication Network
Control:

12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
RDM Compliant
Electrical:

Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
Power draw:16.7W
Power Linking: 95pcs @230V
Dimensions & weight:

Dimensions (LxWxH): 170 x 135 x 215mm
Weight: 1.45 kg.
Black Die Cast Housing
Approvals/Ratings:

CE
ETL (Pending)
IP20

What's Included:

1.83m Indoor locking power cord
2 Frost Filter Lens (10-degree & 45-degree)
Metal clip ring for frost filter lens
