ADJ Vintage Bar Light

Vintage Bar is a versatile scenic lighting fixture designed to inspire creativity and captivate audiences with its dual-purpose design. It offers four 150W amber COB LEDs (2000K) for a retro blinder effect, combined with vibrant 120 SMD 5050 RGBL background LEDs configured into 20 pixel groups. This combination enables brilliant amber wash lighting, stunning multi-colour eye candy effects and smooth dimming transitions.

Its wide field angle of 160° ensures exceptional light dispersion, making it ideal for stage productions, events, theatrical applications. The fixture features advanced strobing, retro background effects, and silent operation. Additional highlights include flicker-free performance, a user-friendly OLED display, and support for DMX, RDM, and Art-NET protocols. The Vintage Bar also features the Aria X2 wireless management system for over the air firmware/software updates for streamlined control.

Built for flexibility, the Vintage Bar offers multiple control modes, pixel mapping, and interlocking capability, making it perfect for immersive lighting setups. With robust engineering and creative potential, it combines vintage charm with modern functionality for modern lighting designs.

Specifications
Main technical parameters:
Primary light source consists of 4 high-power 150W COB amber LEDs. Colour temperature is 2000K. Output exceeds 27,000 lumens with 647 lux at 5 metres. CRI is 70 and the field angle is 160°.

Secondary light source includes 120 SMD 5050 RGBL LEDs (0.8W each), arranged into 20 pixel groups with 6 LEDs per group.

Special effects include a powerful strobe from 0.5 to 33Hz and a retro RGBL background effect. The unit operates silently with low noise.

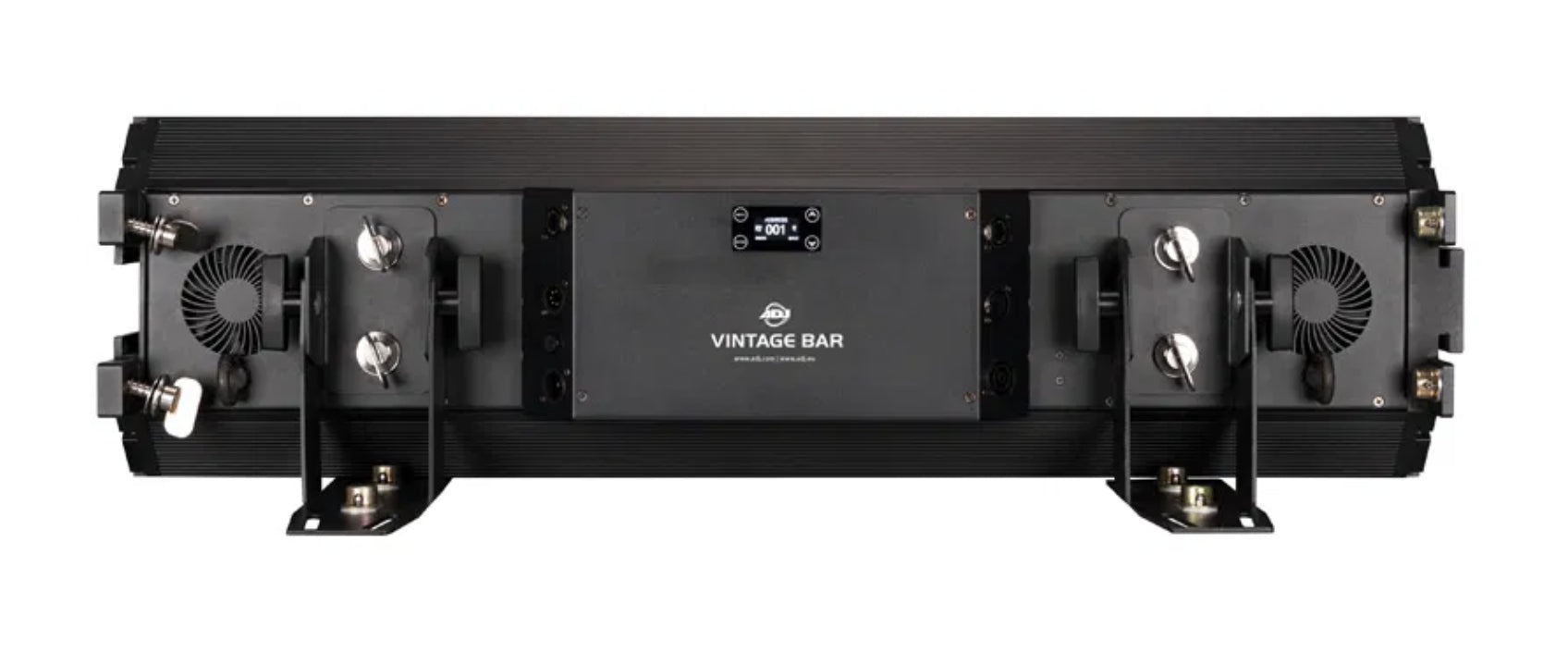

Additional features include the Aria X2 management system, flicker-free operation, an OLED display with a 4-button touch menu and the ability to interlock multiple units together. A 0–100% linear dimming system is provided.

Control modes include primary/secondary synchronisation, stand-alone mode and DMX512. There are 10 DMX channel modes: 5, 6, 8, 14, 17, 18, 84, 88, 90 and 97 channels. The fixture supports DMX, RDM and Art-NET protocols.

Connections include IP20 indoor 5-pin DMX input and thru, IP20 indoor RJ45 Ethernet, and IP65 outdoor locking power input and thru.

Dimensions and weight: 908 x 292 x 257mm, weight 19kg.

Power: AC100-230V, 50/60Hz input. Power consumption is 750W at 230V. Up to 2 units can be power-linked at 230V.
