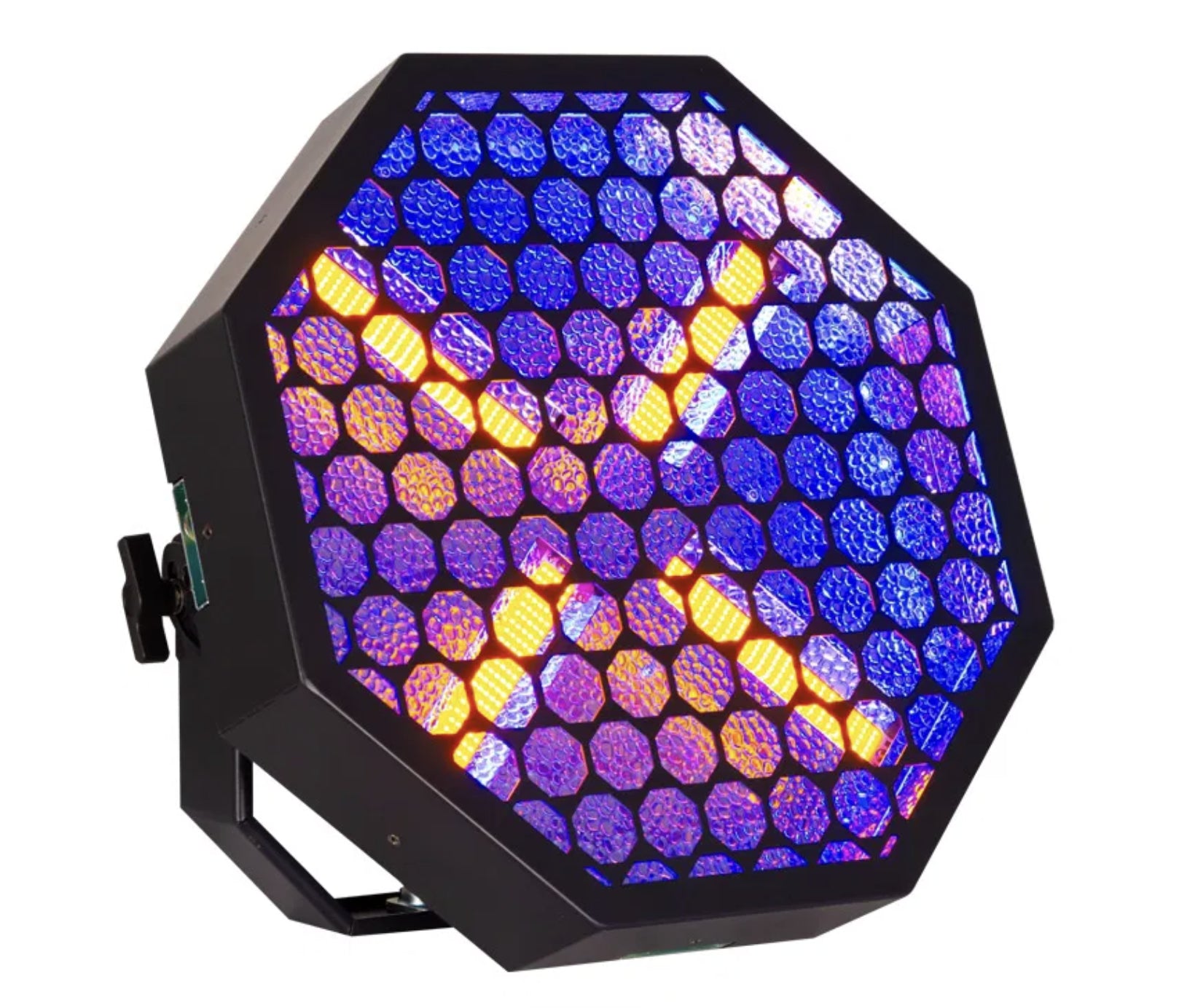

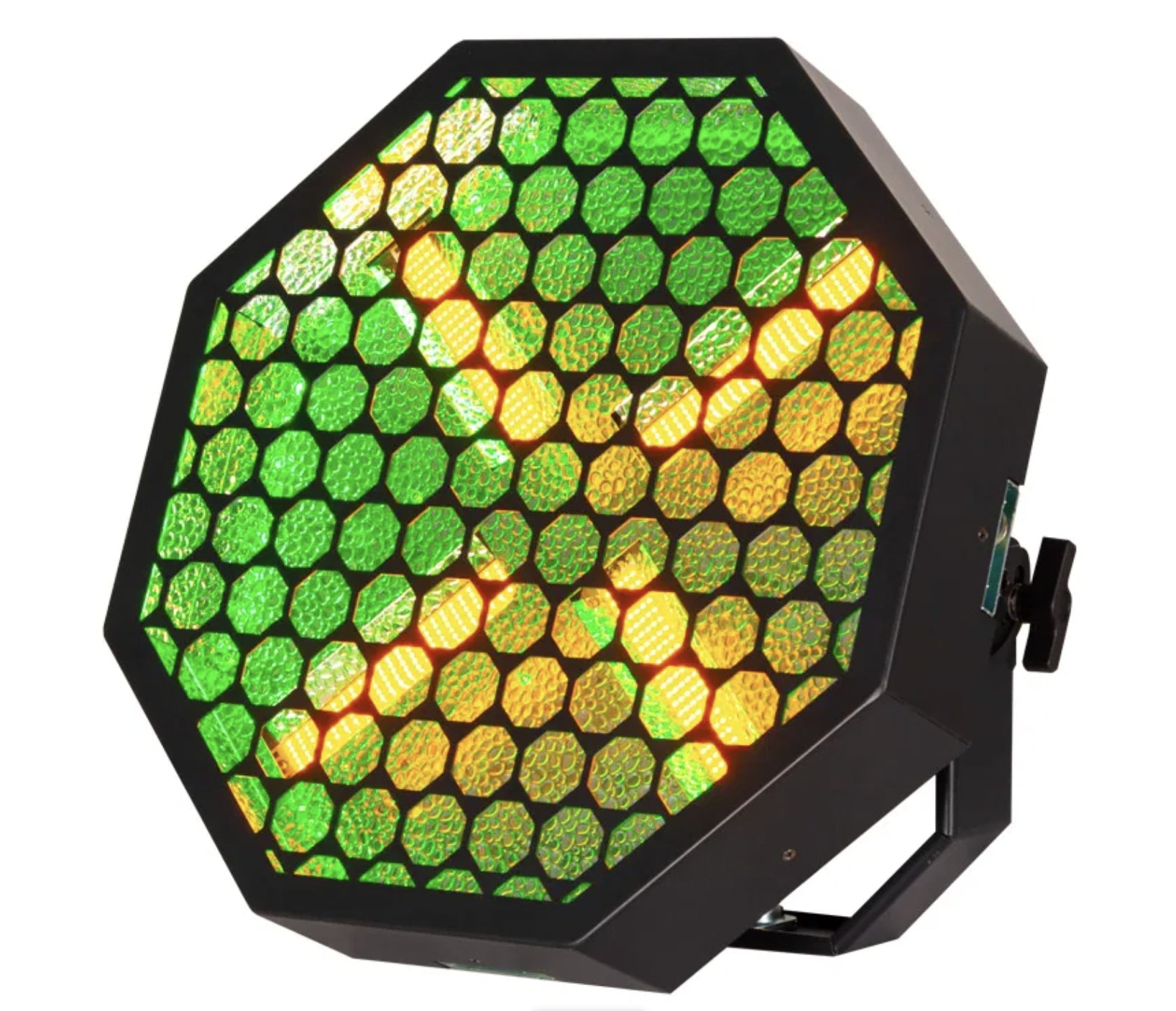

ADJ Vintage X LED light

Vintage X is a highly adaptable scenic lighting fixture that sparks creativity and captures attention with its dual-purpose design. Featuring four 60-watt foreground amber LEDs (2000K), it emulates the warm glow of tungsten for a retro blinder effect, while 64 vibrant 3-watt RGB LEDs deliver rich, dynamic colour tones and stunning effects. This combination allows for smooth dimming transitions and bold, captivating lighting displays in an intriguing octagon shaped fixture.

With its wide 150-degree field angle, the Vintage X ensures excellent light coverage, making it perfect for stage productions, live events, and theatrical applications. Additional features include advanced strobing effects, retro background lighting, and silent operation, while its flicker-free performance guarantees smooth visuals. The fixture also boasts a user-friendly OLED display and compatibility with DMX, RDM, Bluetooth, and Aria X2.

Designed for flexibility, the Vintage X supports multiple control modes, and interlocking, making it ideal for immersive lighting environments. Combining classic vintage aesthetics with cutting-edge technology, it offers both creative versatility and reliable performance for modern lighting designs.

Specifications
Source:
The fixture uses four 60W 2000K amber foreground LEDs and sixty-four 3W RGB background LEDs. Average LED life is 50,000 hours, though this can vary depending on environmental conditions, power, usage cycles, control and dimming.

Optical:
Amber colour temperature is 2000K (±50K). RGB LEDs provide a white colour temperature range from 2,700K to 10,000K. Output is 220 lux with 7,000 to 8,000 lumens. Beam angle is 140° and field angle is 150°.

Features:
The fixture includes four amber foreground LEDs and sixty-four RGB background LEDs, all individually controllable via DMX. It has built-in programs for both foreground and background LEDs, variable white colour temperature control (2,700K to 10,000K) for RGB LEDs, user-selectable refresh rates from 900Hz to 25kHz, six dimming modes and four dim curves. Electronic strobe ranges from 0.1Hz to 20Hz, and electronic dimming is also included.

Physical:

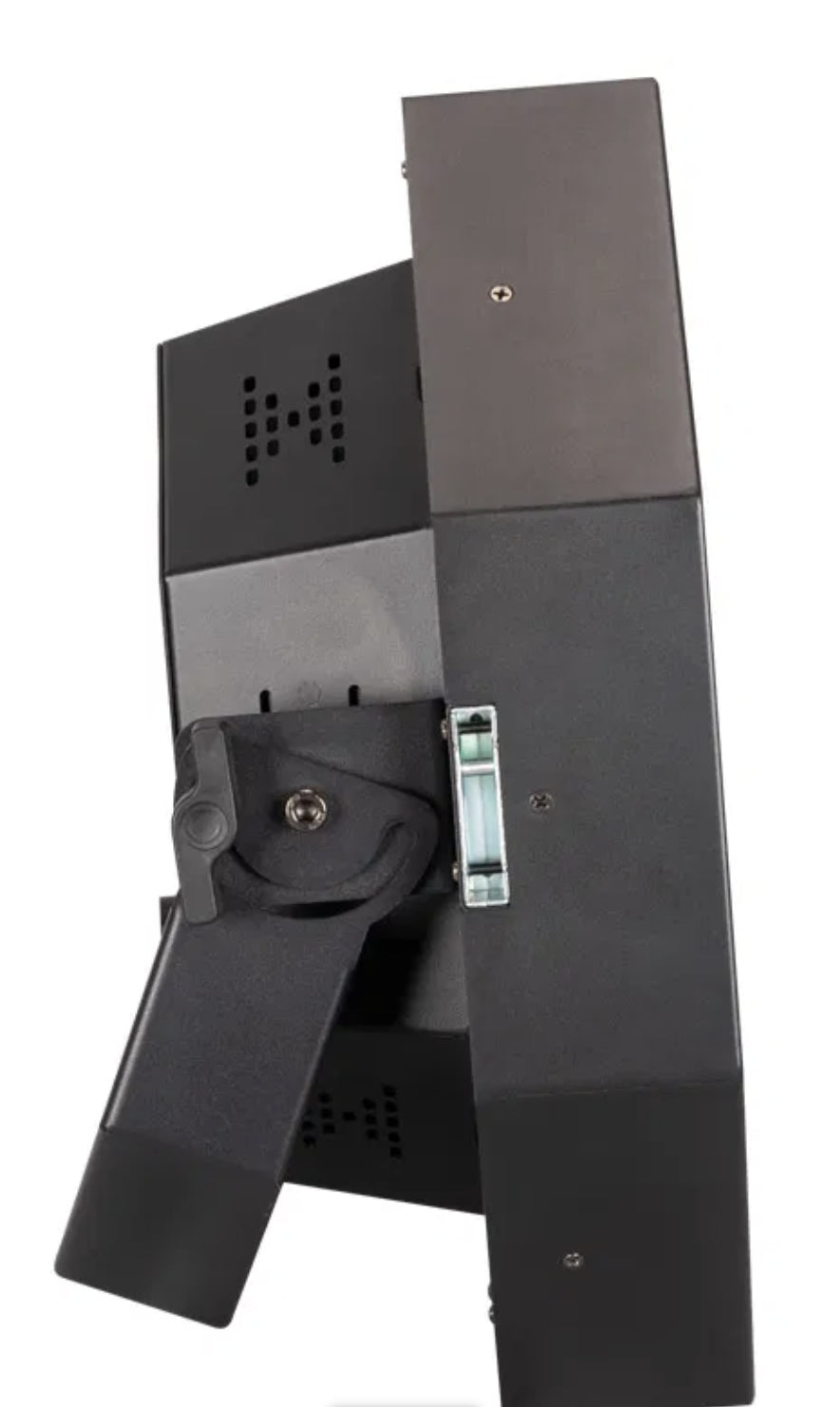

The unit has an IP20 metal housing with a safety eyelet, digital display and coffin lock system allowing up to eight units to interlock. It features an adjustable hanging bracket and omega clamp receivers (omega clamp sold separately).

Control:
It supports DMX512, Aria X2 wireless management/DMX, Bluetooth, RDM and RDM Net. There are nine DMX channel modes: 8, 13, 22, 39, 43, 196, 200, 208 and 211 channels. It also includes onboard manual control mode and primary/secondary mode.

Connections:

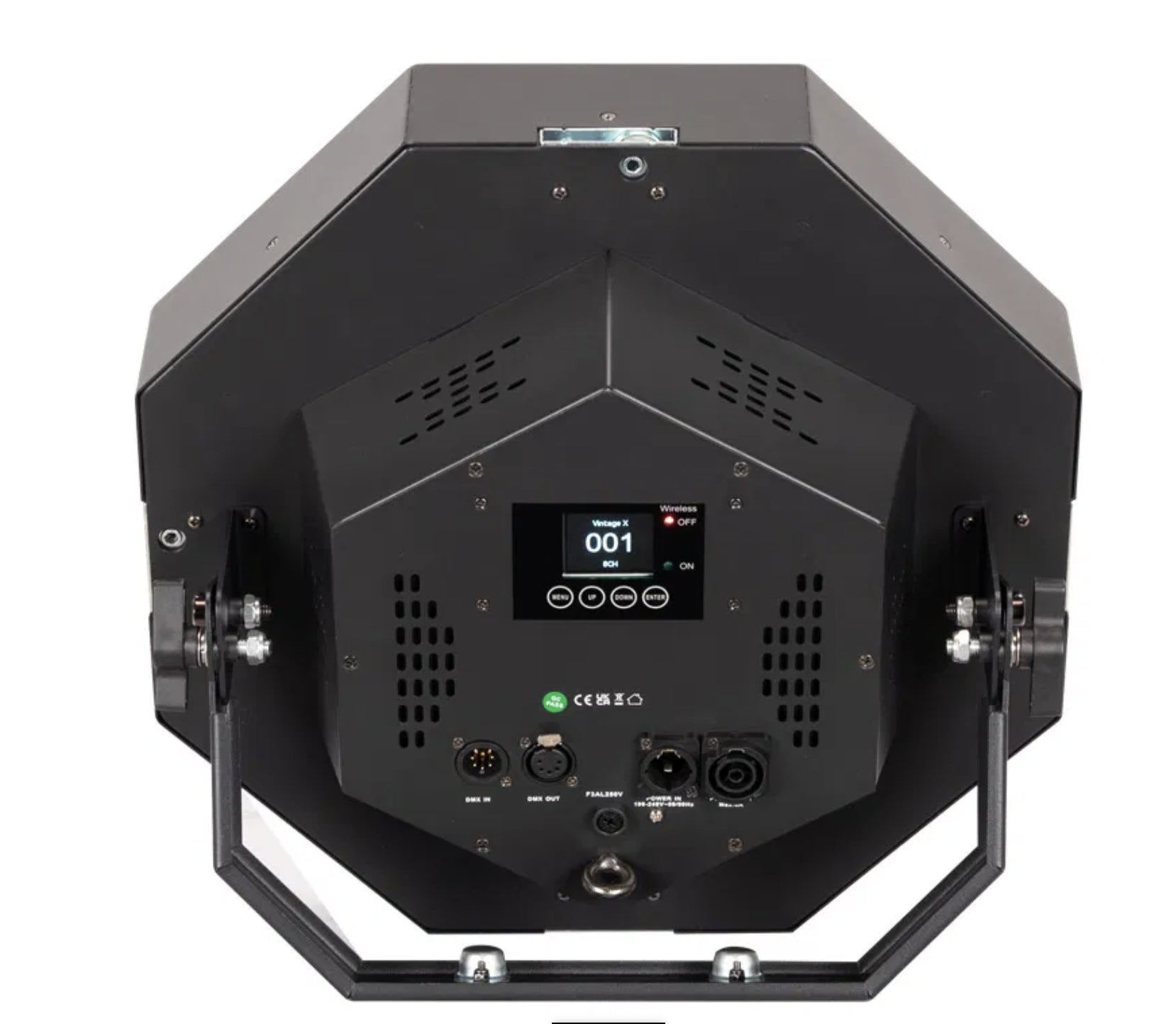

It has 5-pin XLR DMX input and output sockets, and IP65 locking power input and thru sockets.

Dimensions and weight:
Length 398.4mm, width 398.4mm, height 194mm. Weight is 8.2kg.

Power:
AC100–240V 50/60Hz input with a power consumption of 200W. Up to four units can be linked at 230V.

Thermal:
Ambient operating temperature is from -20°C to 45°C. Storage temperature is from -30°C to 45°C.

Certifications and IP rating:
IP20.

Included accessories:
One IP65 locking power cable.
