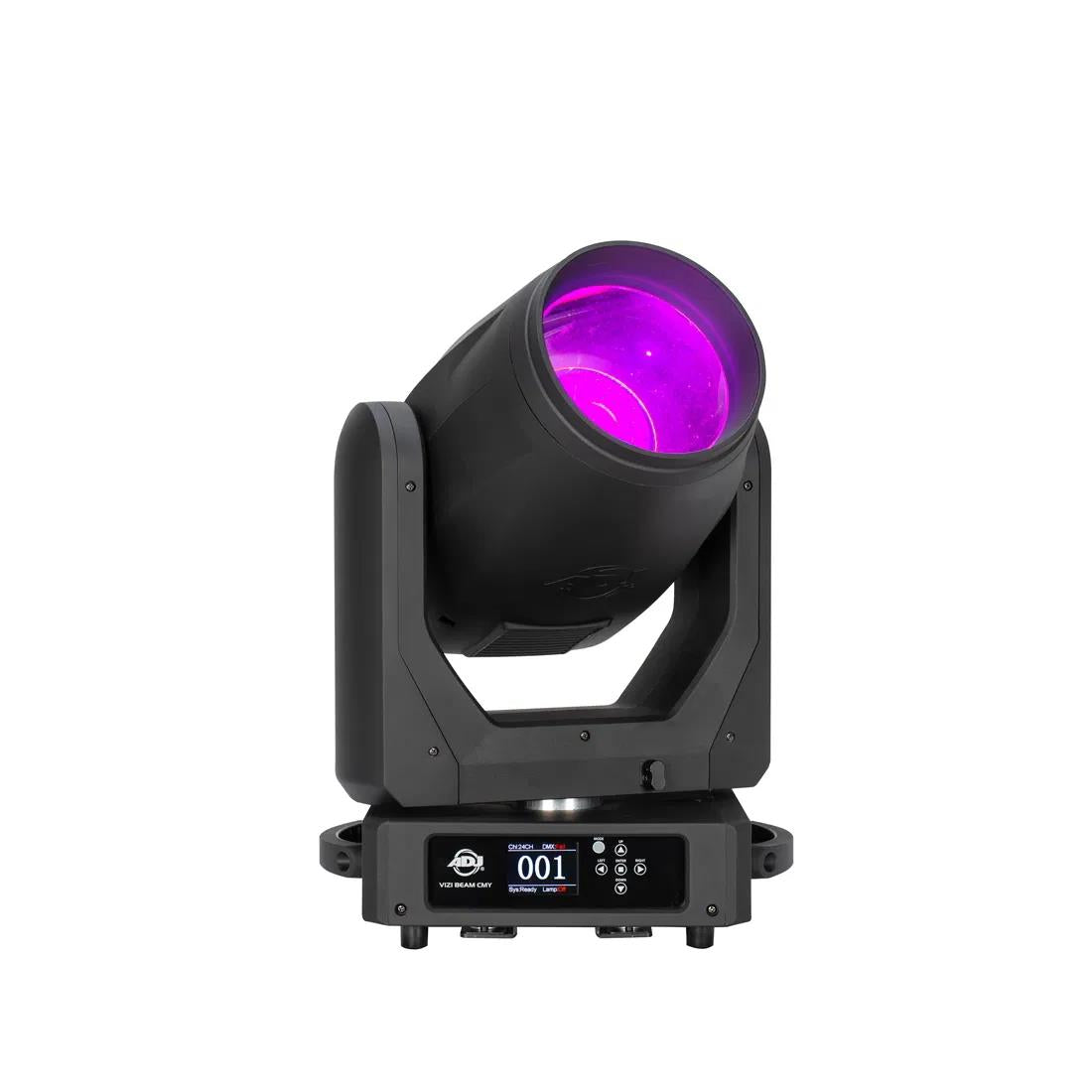

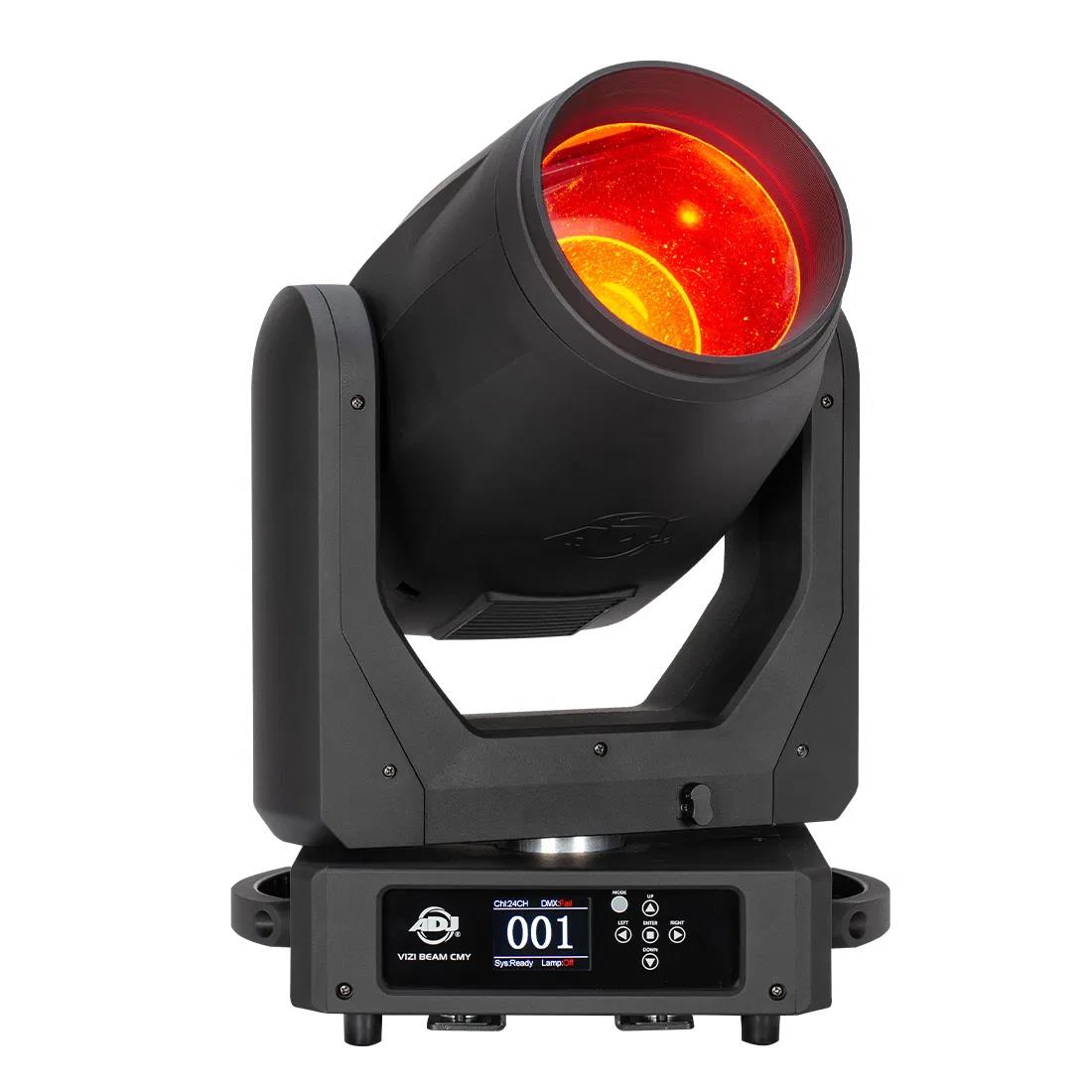

ADJ Vizi Beam CMY Moving Head

Description

Elevate your lighting design with the ADJ Lighting Vizi Beam CMY, a cutting-edge moving head beam fixture designed for the modern lighting professional. Featuring a powerful 310W Osram Sirius HRI discharge lamp with a 6,000-hour lifespan, the Vizi Beam CMY delivers stunning visuals with a precise 2-degree beam angle, as well as, 3-Phase motors for high speed pan/tilt for maximum performance.

Unlock a spectrum of possibilities with CMY colour mixing, a 14-color dichroic wheel includes CTO (3200K), CTB (9000k) & UV), and a versatile gobo wheel with 17 static gobos (4 GOBOs are beam reducers) and the dynamic GOBO Shake Effect. Enjoy the flexibility of on-board wireless DMX, motorized focus, and 16-bit fine focus for meticulous control.

The fixture boasts advanced features, including 2 rotating prisms (16-Facet circular & 6-Facet linear + prism overlay), a frost filter for creating wash effects, and pan/tilt locks for added stability. With a colour LCD display, 0-100% smooth dimming, and various strobe speeds, the Vizi Beam CMY offers intuitive control.

Designed for convenience, it features outdoor locking connections for power daisy-chaining and 5-pin DMX connections. With multi-voltage operation and CE approval, the Vizi Beam CMY is a versatile and reliable lighting solution for any event or venue. Enhance your lighting experience with the Vizi Beam CMY – where innovation meets performance.

Light Source:
OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
Colour temperature: 7850K (+/- 500K)
CRI: 86 (+/- 5)
LUX: 2,025,094 (@ 5M)
Lumens: 7,267
Features:
CMY Colour Mixing
On-Board Wireless DMX
Motorized Focus + 16-bit fine focus
2-degree beam angle
Frost Filter to create wash effect
High quality glass lens
2 Rotating prisms
0-100% smooth dimming
Pan/Tilt locks
Various strobe speeds
OTA, wireless, firmware updates
Fan cooled
Colour Wheel:
14 dichroic colours + white (Includes CTO (3200K), CTB (9000K) & UV)
Indexable colour wheel for split colours
Separate Multi-Colour Effect
GOBO Wheel:
17 static GOBOs + open (4 GOBOs are beam reducers)
GOBO Shake Effect
Prism Wheels:
2 Rotating prisms
16 facet circular and 6 facet linear prisms
Prisms Overlay
Control:
Protocols: DMX512 & RDM
Control Mode: DMX512 & Manual (On-board Controls)
2 DMX Channel Modes: 20/24 Channels
Aria X2 Wireless Management / DMX System
Colour LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network
Pan/Tilt:
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3-phase, High Speed, Pan/Tilt motors

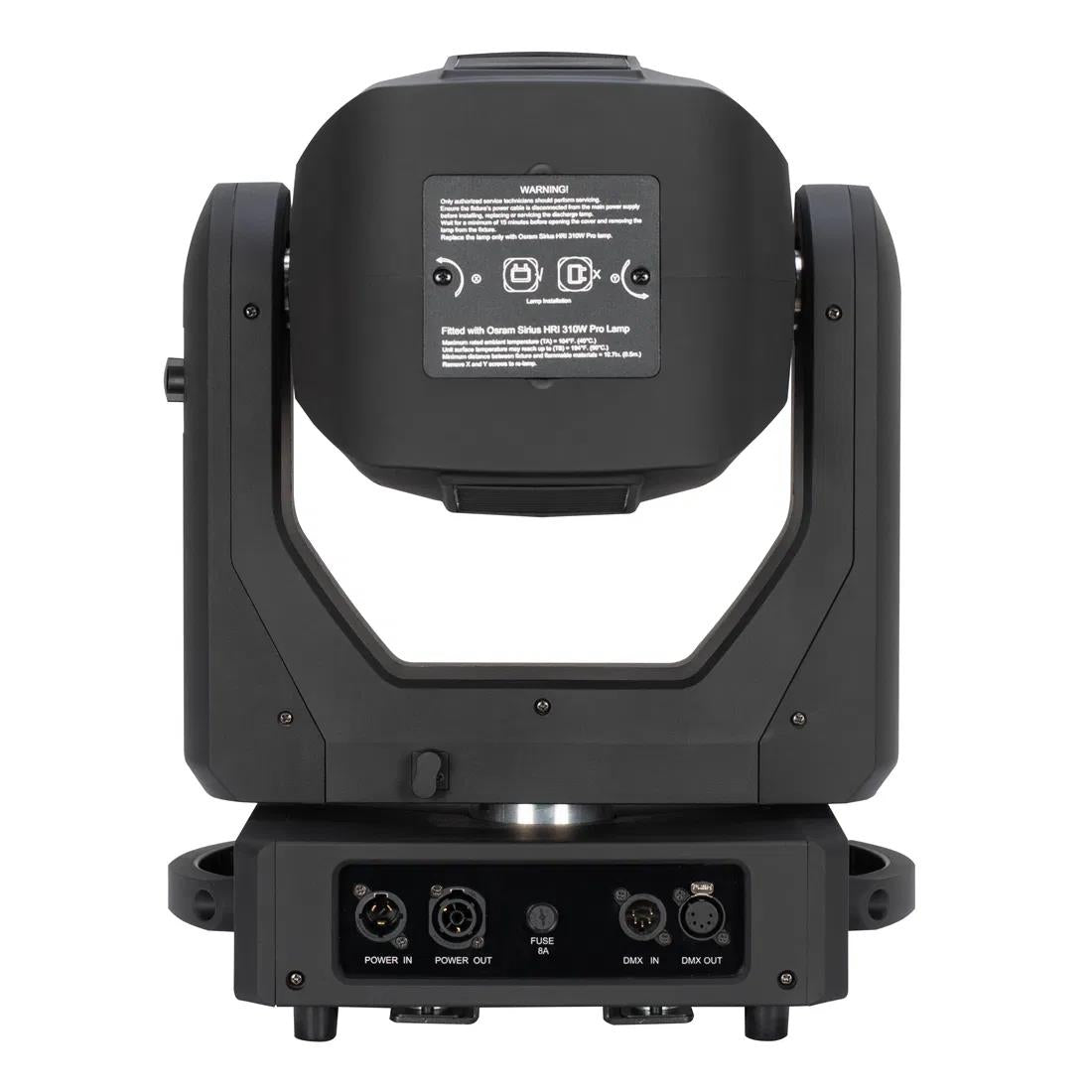

Connections:
DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical:
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 390W (@230V)
Fuse Protected: 6.5A
Dimensions & Weight:
Dimension: 248 x 364 x 536mm
Weight: 18.7 kg
What's Included:
2x Omega Brackets (107 Type - Also available as a spare part: 9900027829)
2M, outdoor locking 14AWG power cord
Specifications are subject to change without notice.
