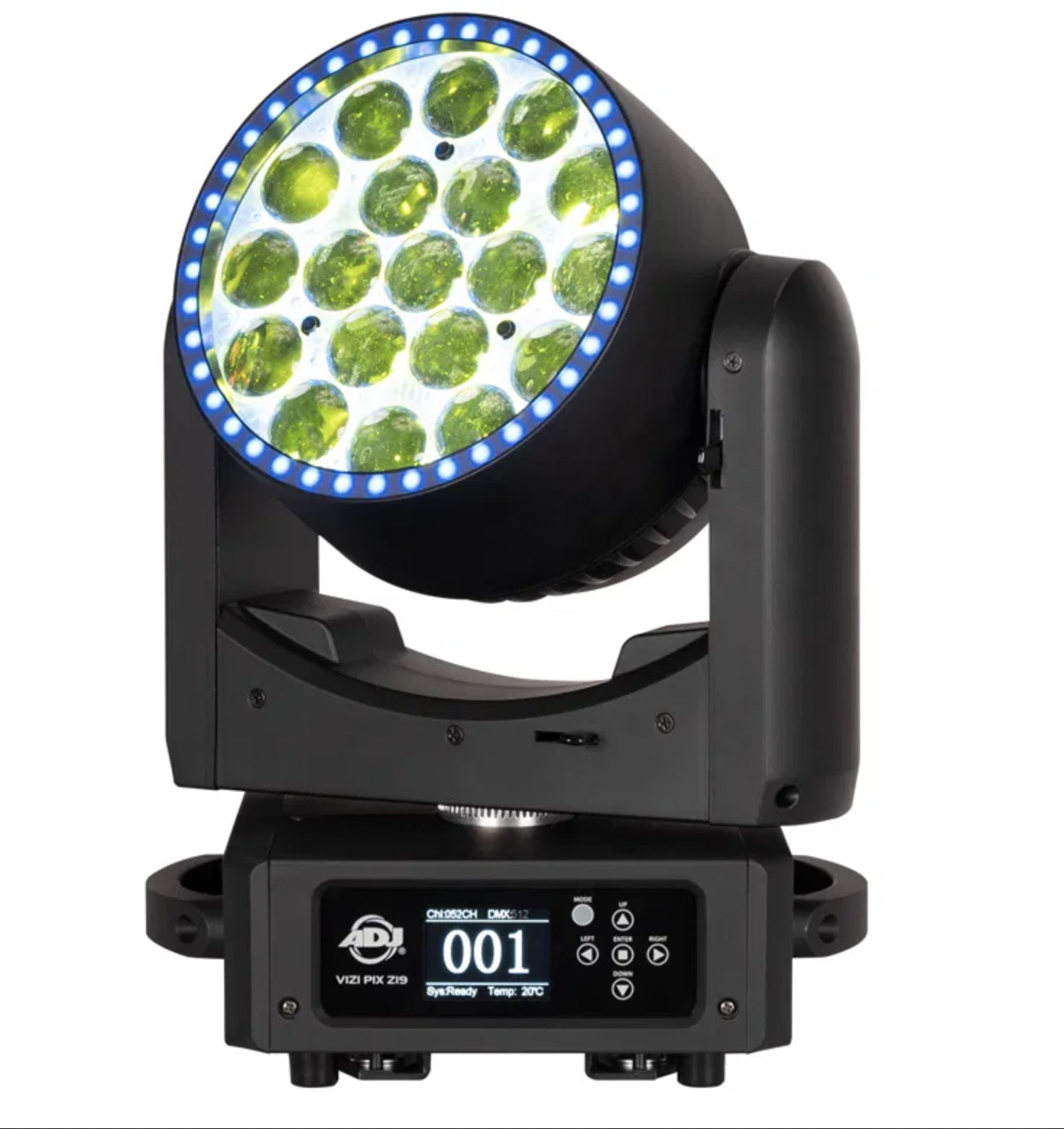

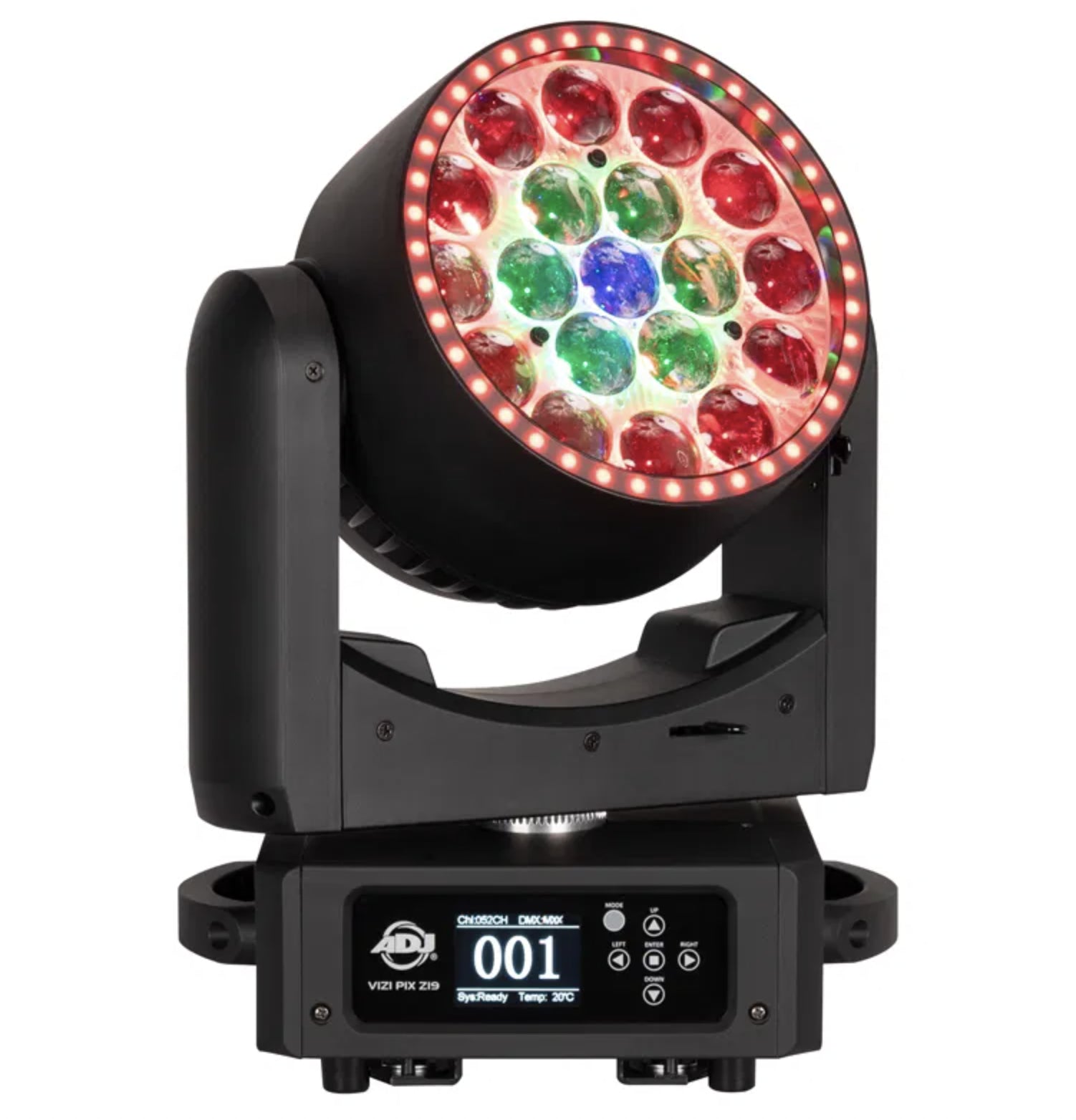

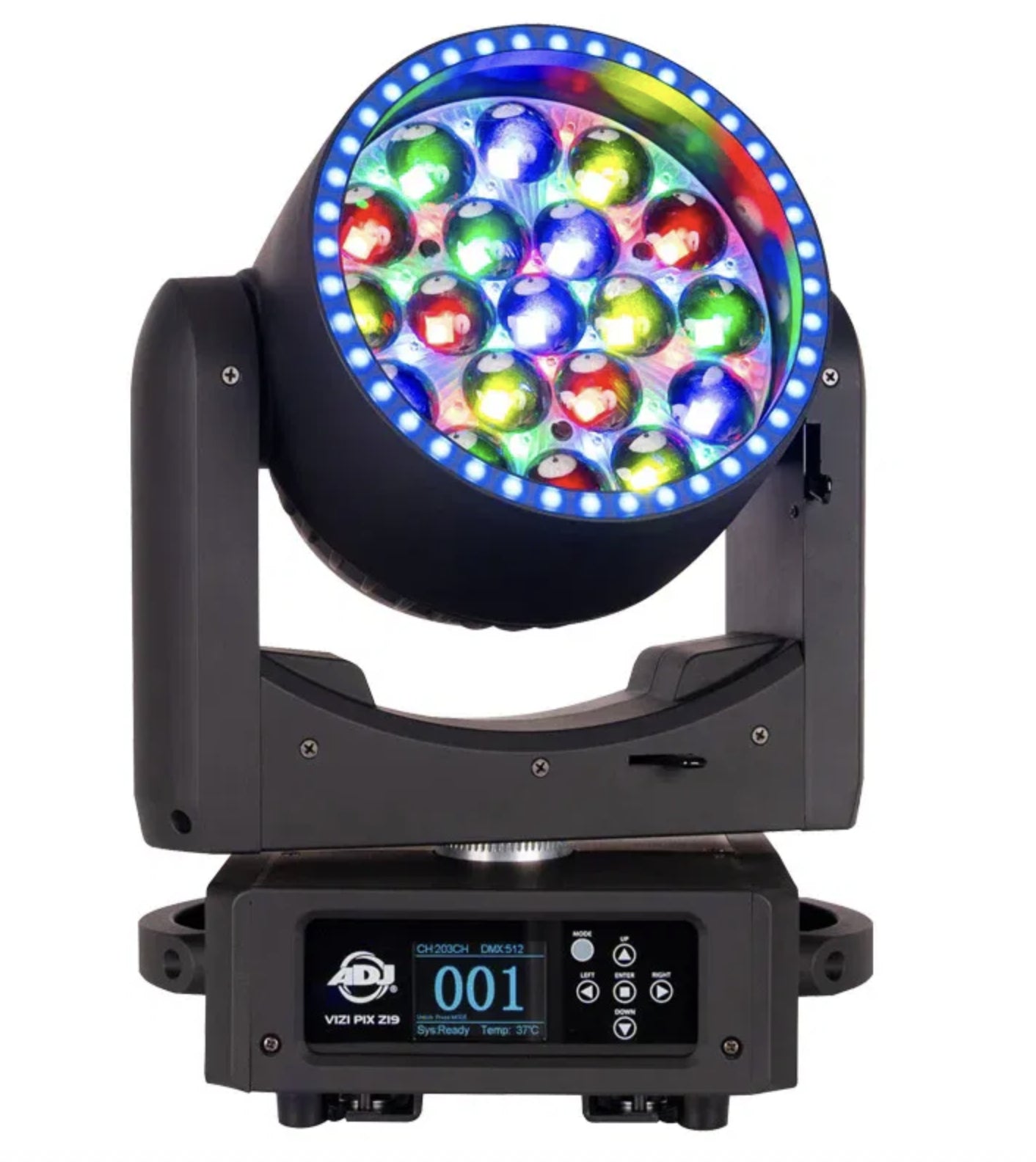

ADJ Vizi Pix Z19 LED Wash Moving Head RGBL Pixel Mapping

Description

SPECIFICATIONS
Optical (Foreground LEDs):
19 × 30W RGBL (4-in-1) LEDs with a 30,000-hour average life. CRI is 86. Output is 15,000 lux at 5 meters (zoomed to 7°). Beam angle ranges from 7° to 42°, and field angle from 9° to 60°.

Optical (Background LEDs):
30 × 0.5W SMD RGB LEDs with a 50,000-hour average life.

Optical (Ring LEDs):
40 × 0.5W SMD RGB LEDs with a 50,000-hour average life.

Features:
Moving light pixel wash with effects. Individual pixel control for foreground and background LEDs. RGB LED ring. Built-in pixel effect programs. Aria X2 wireless management system. Electronic strobe and dimmer. Pan/tilt movement: 630° or 540° pan and 270° tilt. Motorized zoom. Colour-calibrated pixels for consistent output across batches. Virtual CMY DMX control modes. Virtual foreground and background colour wheel control. Selectable LED refresh rates from 900Hz to 25kHz. Selectable dimming modes: Standard, Stage, TV, Architectural, Theatre, Stage 2 and user-settable dim speed from 0.1s to 10s. Four dim curves: Square, Linear, Inverse Square and S-Curve. Smooth 0–100% dimming. Fan cooled.

Colours:
Foreground LEDs use RGBL (red, green, blue, lime). Background and ring LEDs use RGB. Virtual CMY DMX control modes and virtual colour wheel control are supported. Built-in colour macros. Linear white colour temperature control from 2,700K to 10,000K. Preset colour temperatures: 2,700K, 3,000K, 3,200K, 4,000K, 4,500K, 5,000K, 5,600K, 6,500K, 8,000K and 10,000K.

Effects:
Foreground LEDs: 19 × 30W RGBL LEDs, fully pixel-mappable. Background LEDs: 30 × 0.5W RGB LEDs, fully pixel-mappable. Ring LEDs: 40 × 0.5W RGB LEDs with three-channel control. Variable strobe and pulse effects from 0.5Hz to 33Hz. Motorized zoom from 7° to 42°.

Connections:
Seetronic IP65 locking power input and thru. Seetronic IP20 5-pin DMX input and output. Two IP20 RJ45 network ports.

Control:
Aria X2 wireless management system. DMX-512. RDM. ArtNet. sACN. Seven DMX modes: 32, 43, M1 58, M2 58, 203, 123 and 133 channels. Built-in pixel effect programs with speed and fade control. Compatible with wired digital communication networks.

Pan/Tilt:
Pan range: 630° or 540°. Tilt range: 270°. 16-bit fine pan and tilt control. Pan and tilt locks included.

Electrical:
Multi-voltage operation from AC100–230V, 50/60Hz. Maximum power consumption is 690W at 230V.

Dimensions & Weight:
Dimensions (L × W × H): 310 × 230 × 408mm. Weight: 10.1kg.

What's Included:
Two 108mm Omega brackets and one 2m IP65-rated locking power cable.

Approvals / Rating:
IP20
