ADJ VS3 IP LED Video Panel IP65, Pixel Density: 150x150 Per Panel; 67816 Per m2

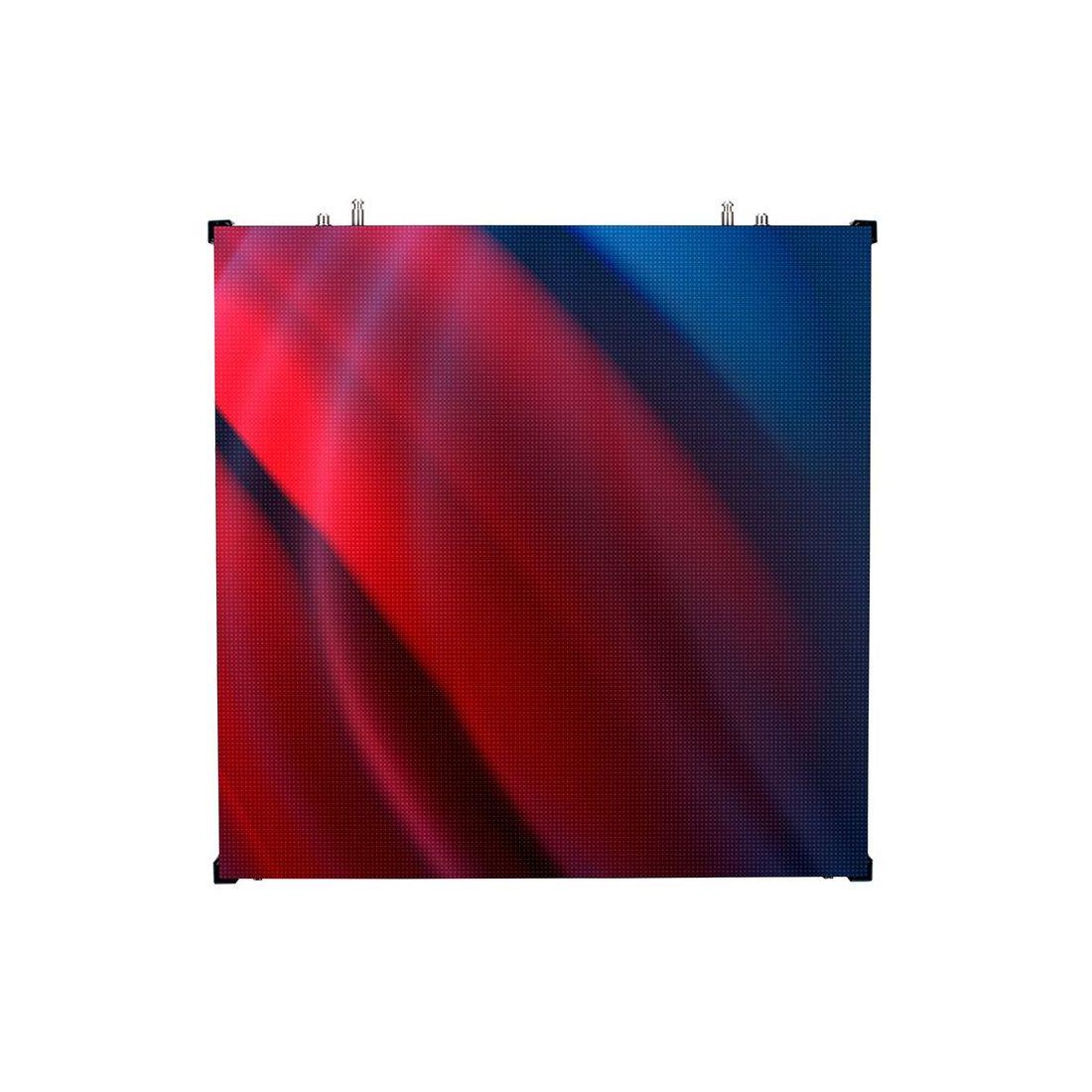

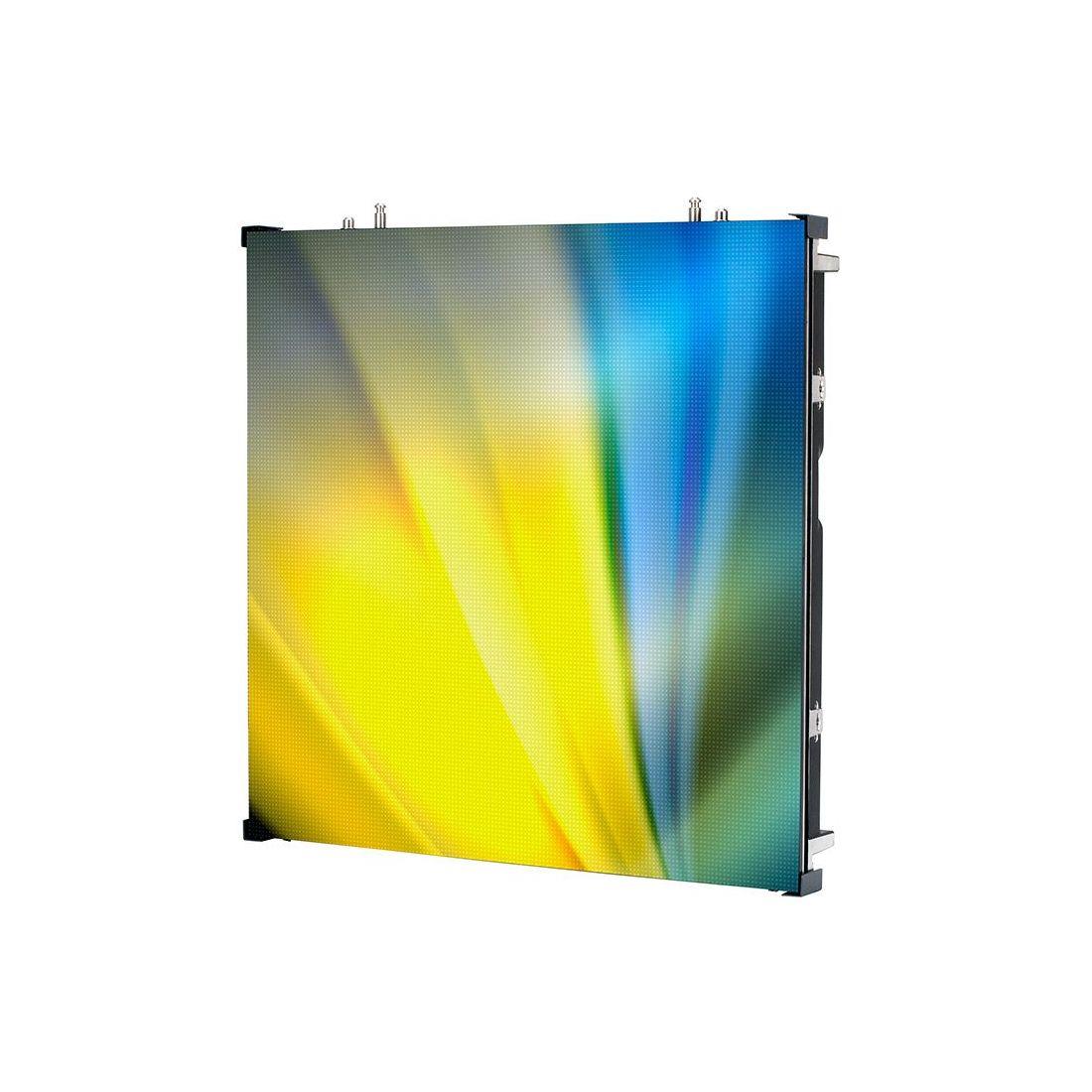

The VS3IP is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.84mm with a configuration of a 3-in-1 RGB SMD1921 LEDs. The panel is IP65 on the front and IP54 on the back, which allows for temporary outdoor use. The brightness is 4500 NITS. The panel also features MOM (Memory On Module) technology and produces a high refresh rate of 3,840Hz. The VS3IP includes IP65 locking power in/out connections and locking RJ45 ethernet in/out connections. This panel also features a built-in Novastar A5S receiving card.

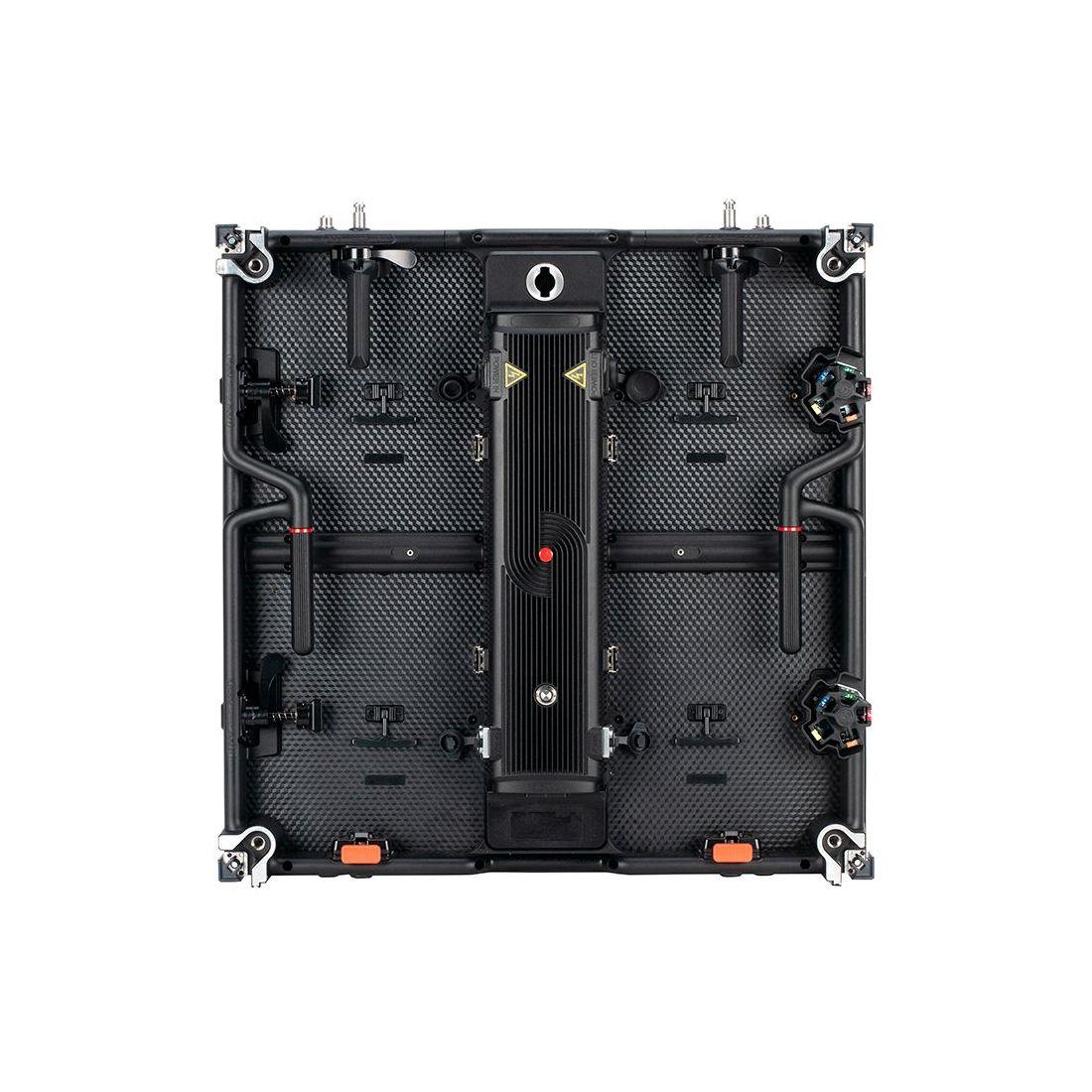

The VS3IP has four indivdual mini modules and is rear serviceable.  The VS3IPRB1 single panel, multi-purpose rigging bar may be used to vertically hang up to 20 VS3IP panels or vertically ground stack up to 8 panels. The panel is CE and ETL approved.



The VS3IP is a great video solution for indoor or outdoor use. ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.

Source
Light Source: RGB SMD1921 LED
Pixel Density: 150x150 per panel; 67816 per square meter
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Pixel Pitch: 3.84mm
Gaps<0.5mm
Optics
Brightness: 4500 NITS
View Angle: Horizontal 160°/Vertical 140° @ 3m
Gray Scale: ≥14-bit
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Display Color: 256
Processing: 14-bit
Control
Control Mode: Novastar Synchronous System
Refresh Rate: 3840Hz
Control Distance: Ethernet Cable <120m
Optional Novastar Sending Cards and Accessories available
Frame Update Frequency: 50-75Hz
Brightness Correction: Pixel, Module, Cabinet
Colors
RGB
Construction

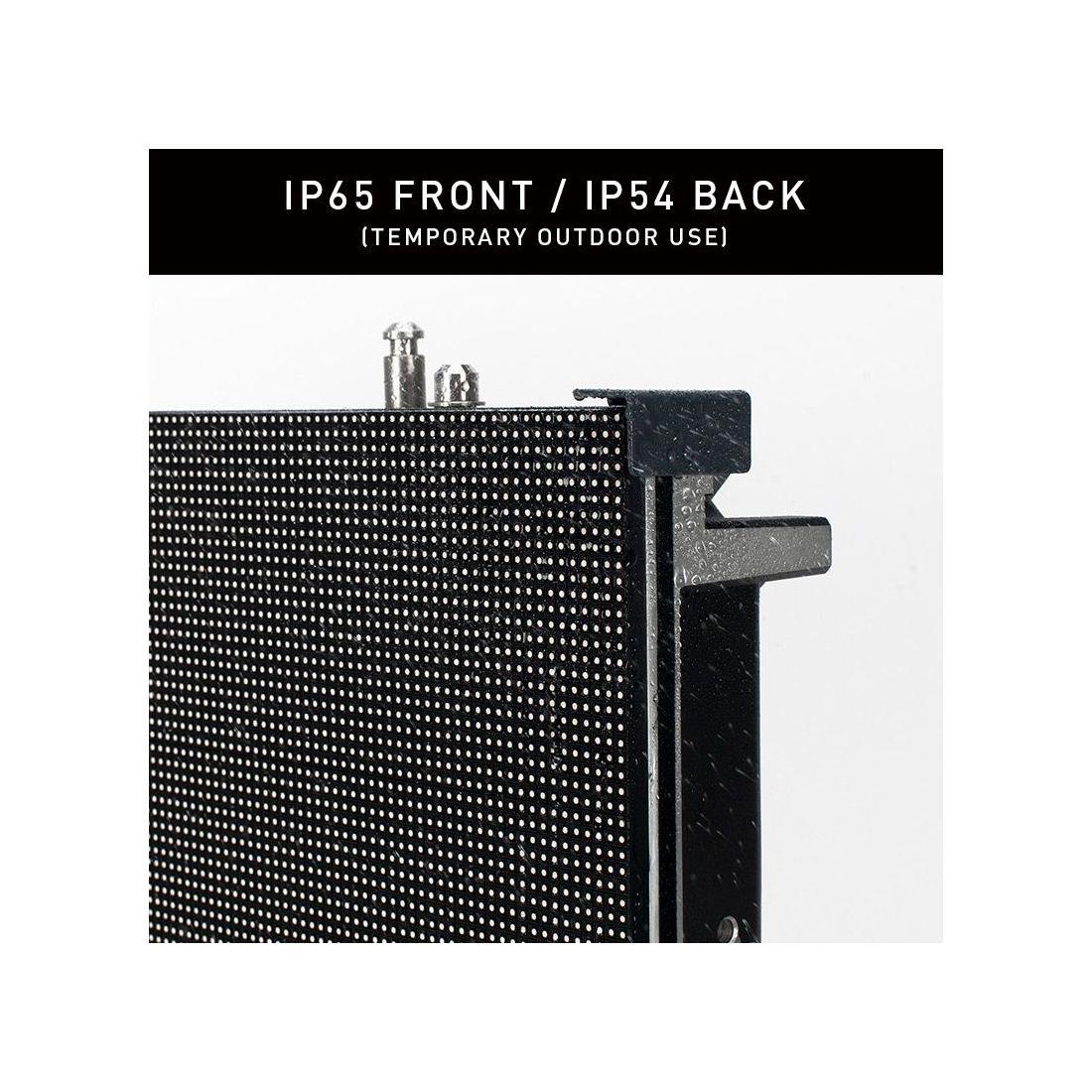

Protection Level: IP65 Front / IP54 Back
Aluminium Frame with built-in corner protectors
Module Quantity: 4
IP65 Front / IP54 Back (Temporary outdoor use)

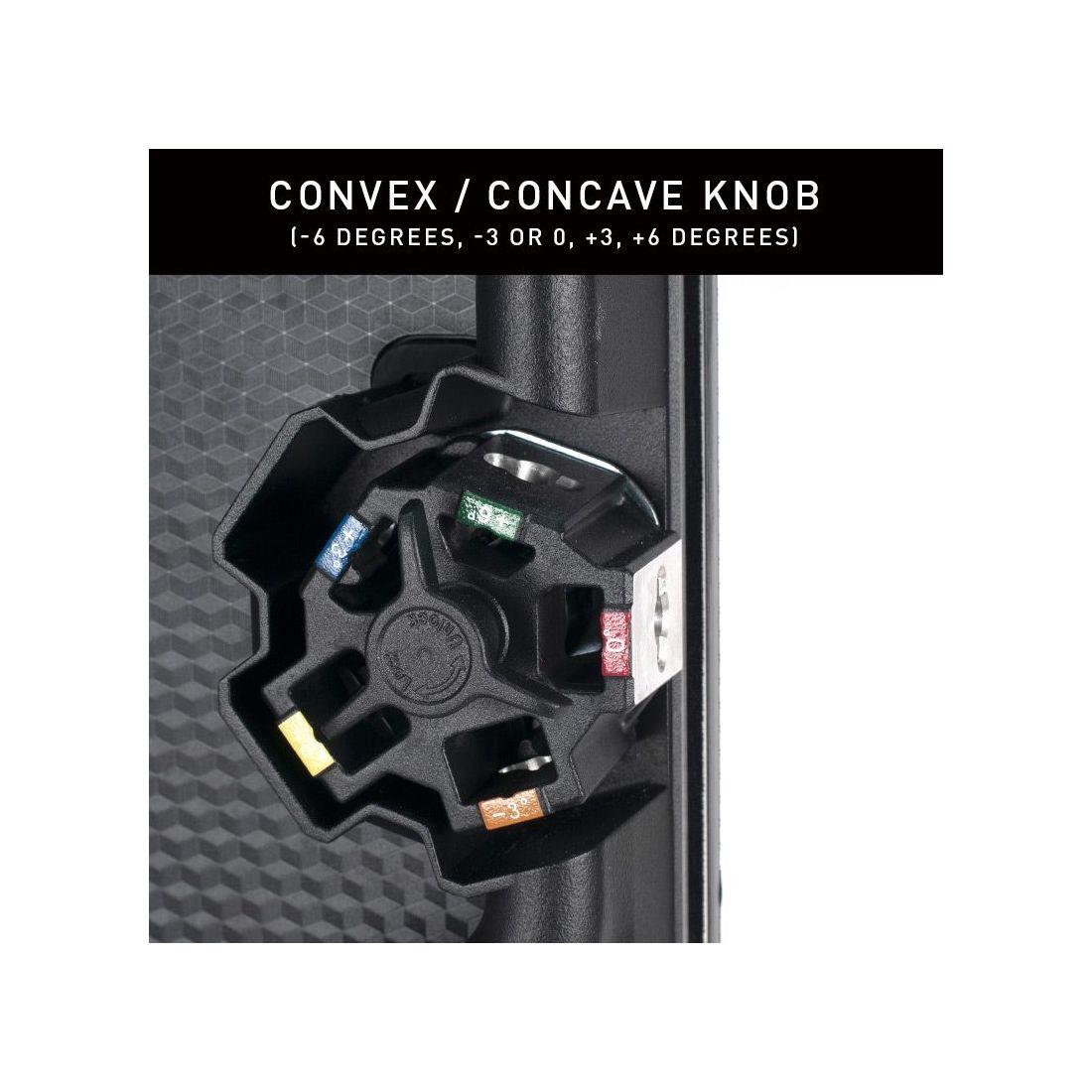

Curve panels in convex or concave -6, -3 degrees or 0,
+3, +6 degrees
Quick lock system to connect panels together
Quick release power supply / receiving card module
Electrical
Multivoltage 100-240V 50/60Hz
Max. Power Consumption: 210W/per panel
Ave. Power Consumption: 84W/per panel
Operational temperature: -20 to +40 degrees
Operational humidity: 10% — 90% (no condensation)
Connections

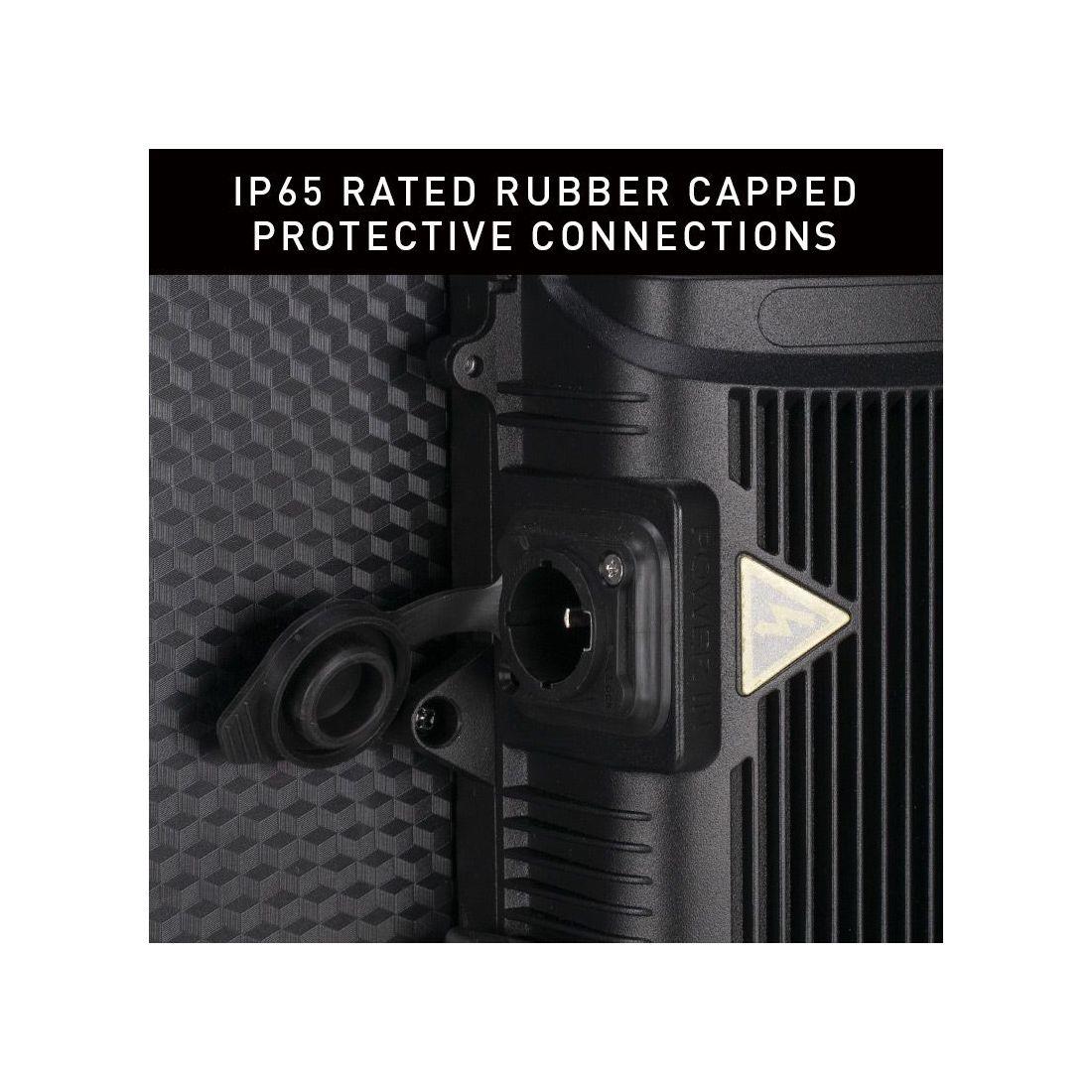

Locking IP65 RJ45 In/Out connections
Locking IP65 Power In/Out connections
Dimensions & Weight
Dimensions (LxWxH): 576 x 76.8 x 576 mm
Weight: 9kg.
What’s included
Locking IP65 RJ45 Cabinet to Cabinet Data Link Cables
Locking IP65 Power Link Cables
