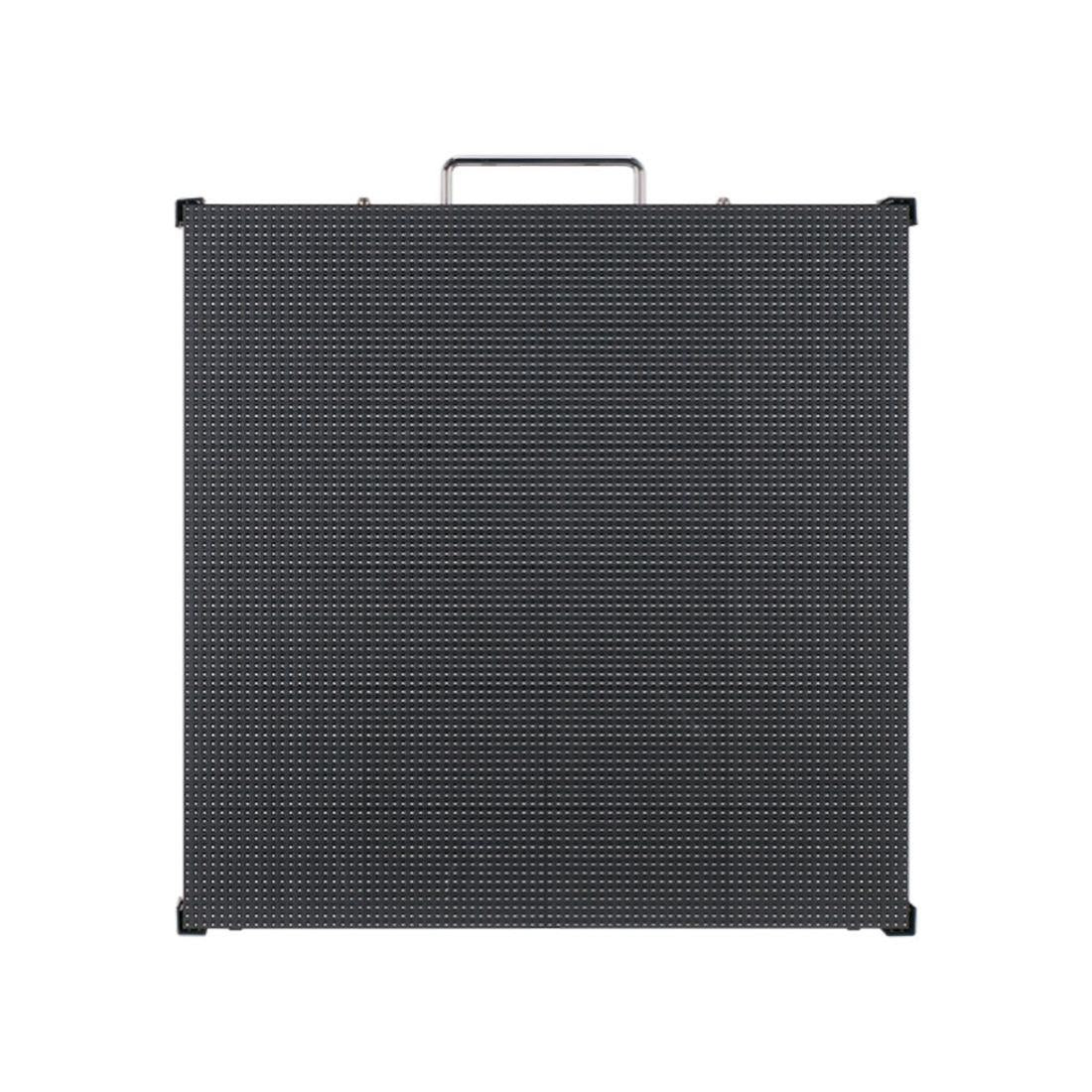

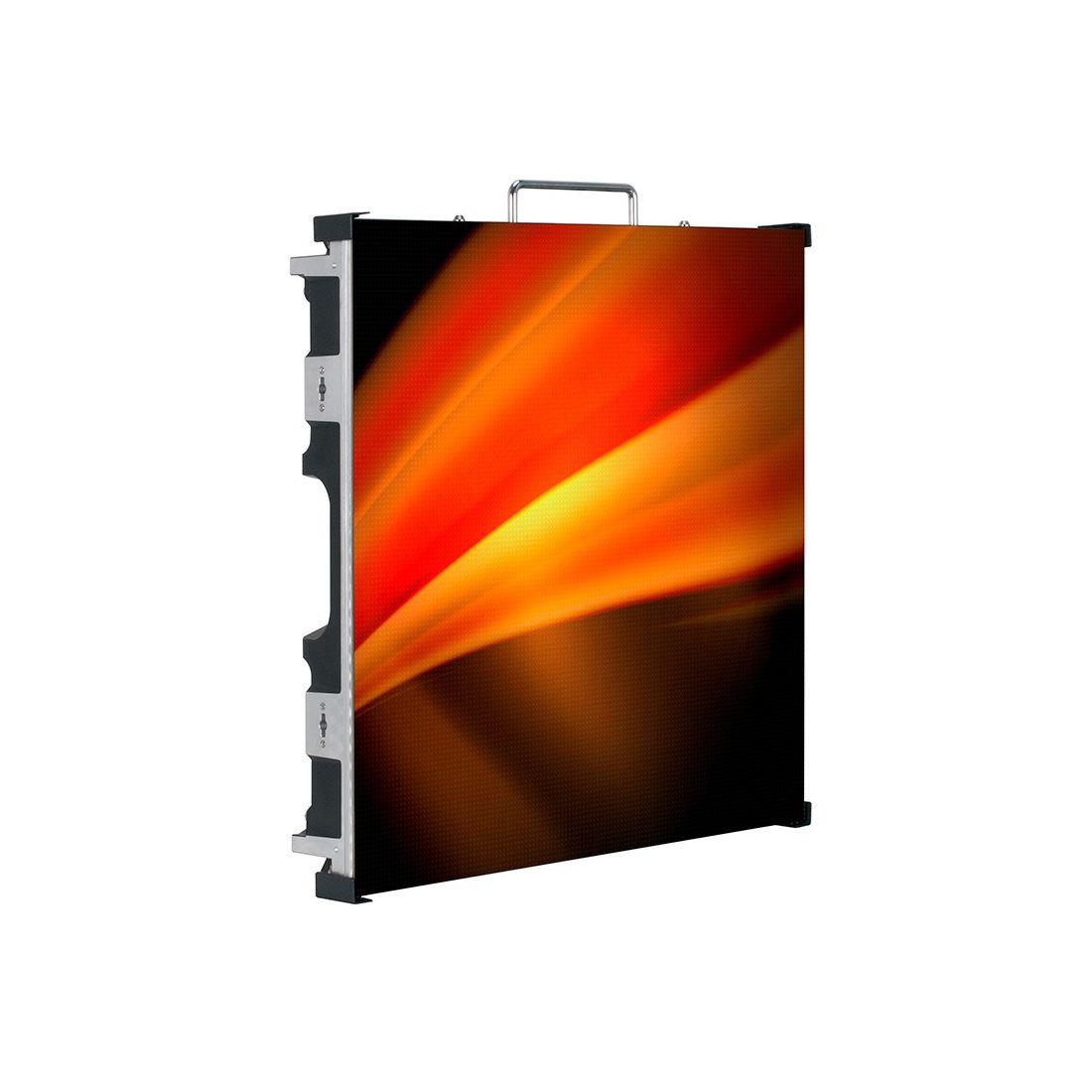

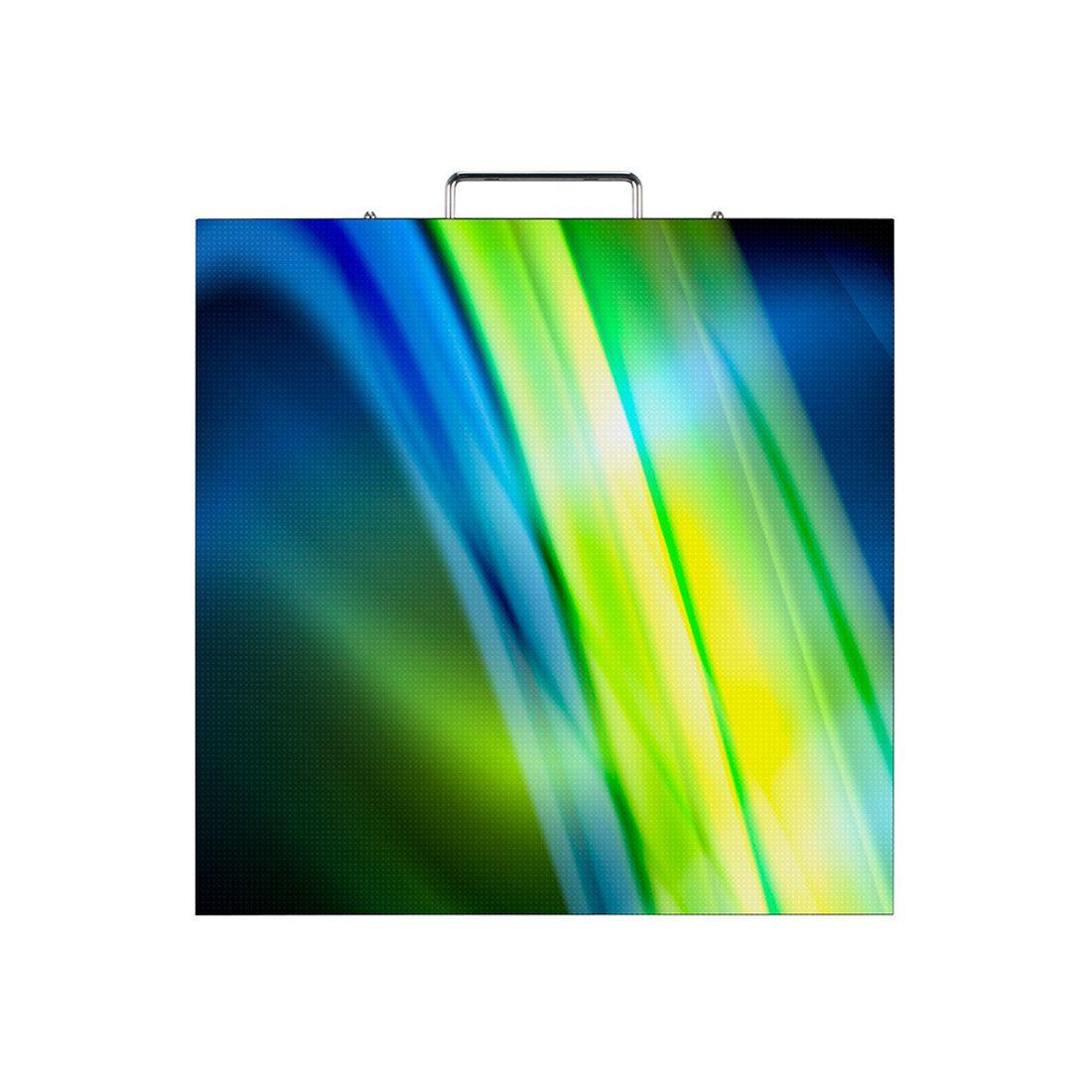

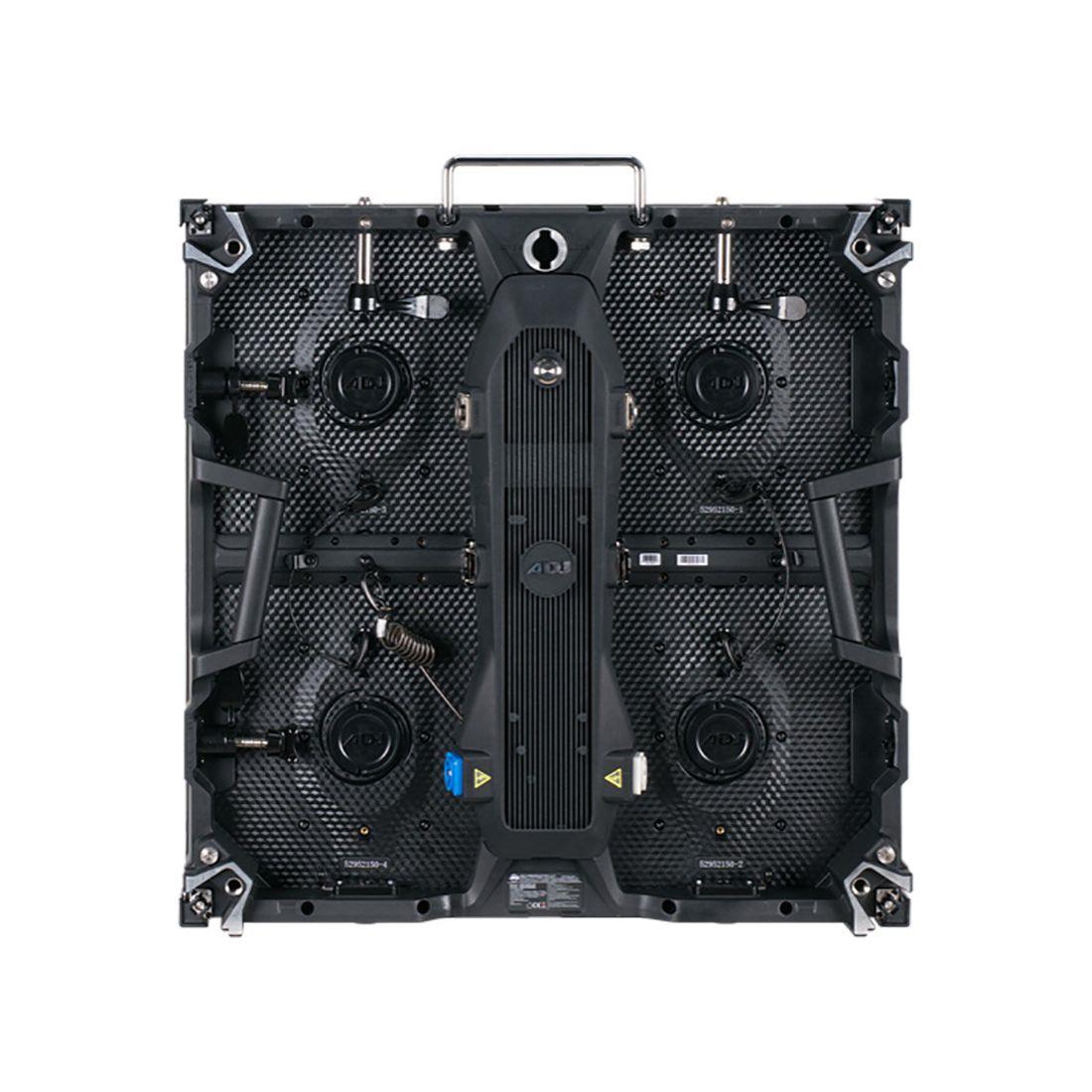

ADJ VS3 LED Video Panel, 4x Module (Each 250 x 250mm), Pixel Density 128 x 128 Pixels 65536 per m2

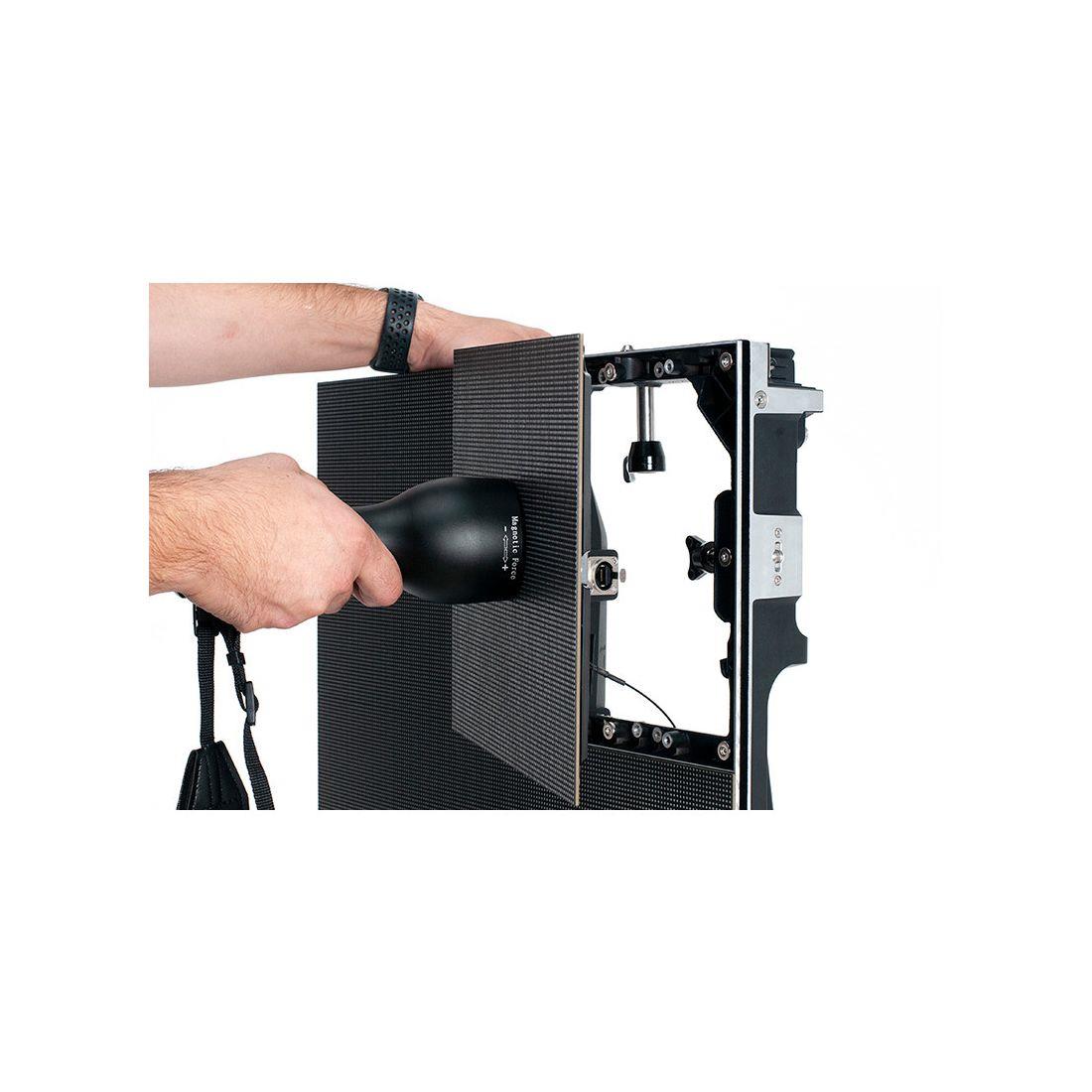

ADJ’s Vision Series video panels offer the highest quality LED binning and bright, clear output. All models (except VS3IP) are front and rear serviceable. Each model has 4 individual mini modules for quick and easy servicing. All models (except VS3IP) are built on the same frame allowing panels with different resolutions to be used together. The Vision Series (VS2, VS, VS5) panels use the same rigging bar and all fit into the same road case. All models have moveable corner protects that safe guard the corners while they are not connected. There are magnets on the top and bottom of the panels that allow users to temporary connect two panels together, let go of the panels, then securely latch them on the rear. This allows for a single user to install a full wall of panels.

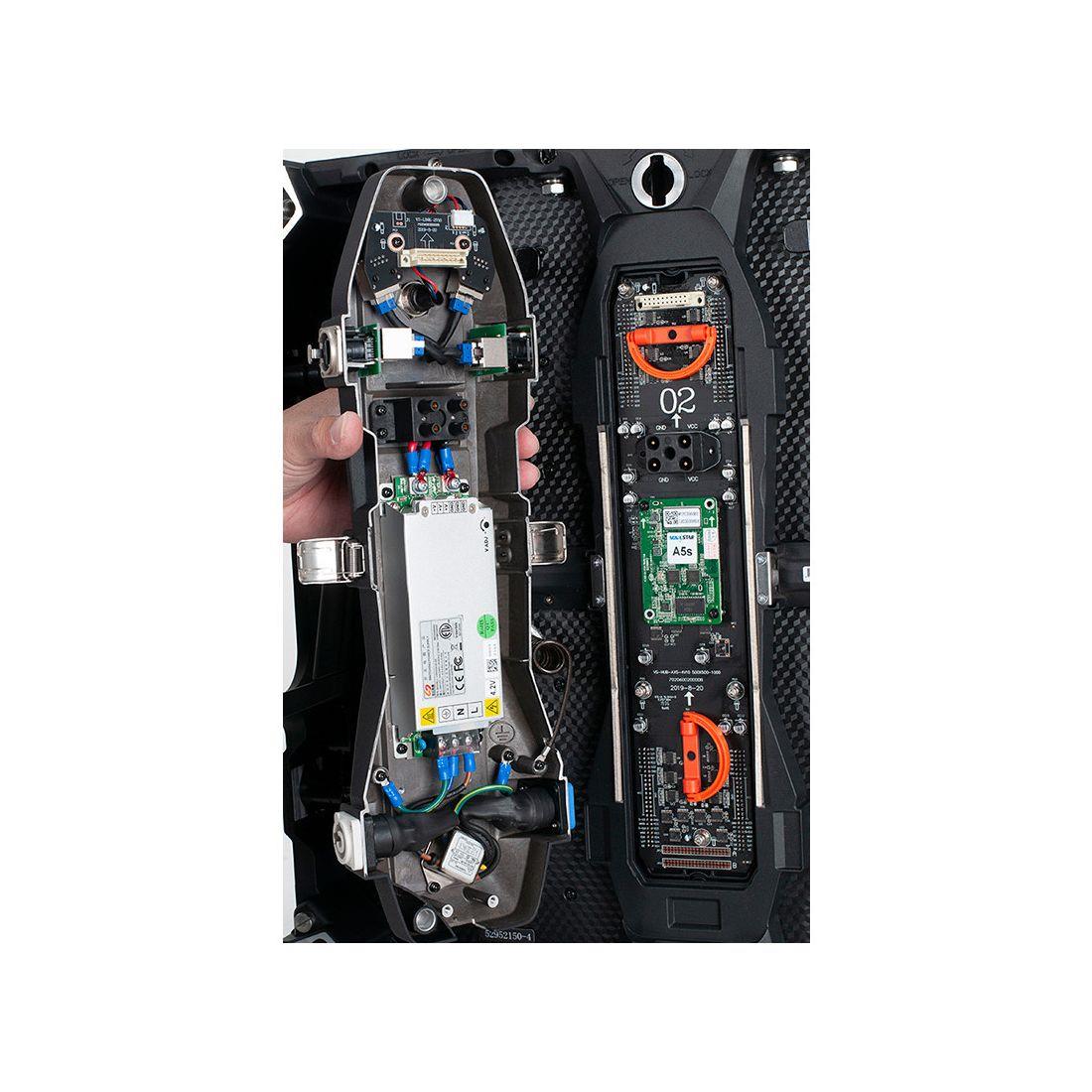

The VS3 is a high-resolution video panel with a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED, and a brightness of 1000 NITS. There are 4 LED modules per panel. This allows for easy serviceability. The VS3 connections include Locking Power In/Out and Locking RJ45 In/Out. Each panel features the Novastar A5s receiving card built-in. Hang up or stack up to 20 VS Series Video Panels vertically with the VSRB1 rigging bar.



ADJ offers full packages with video processors, cabling, rigging bars, flight cases and our truss company Duratruss offers LED frames so that you have everything you need to get up and running.

Specifications:

Source
Light Source: RGB SMD2121 LEDs
Pixel Density : 128 x 128 pixels, 65536 per square meter
Average LED lifetime/MTBF : 50,000 hrs./5,000 hrs.
Pixel Pitch: 3.91mm
Gaps < 0.5mm
Optics
Brightness: 1000 NITS
View Angle: Horizontal 160°/Vertical 140°
Gray Scale / Display Color: ≥14-bit / 256
Brightness Adjustment: 0~100% 100 Levels
Contrast Ratio: 5000:1
Processing: 14-bit
Control
Built-In Novastar Receiving Card
LED Refresh Rate: 3840Hz
Control Distance: Ethernet Cable <100m or Fiber Optic >120m
Optional Novastar Sending Cards and Accessories available
Colors
RGB
Construction

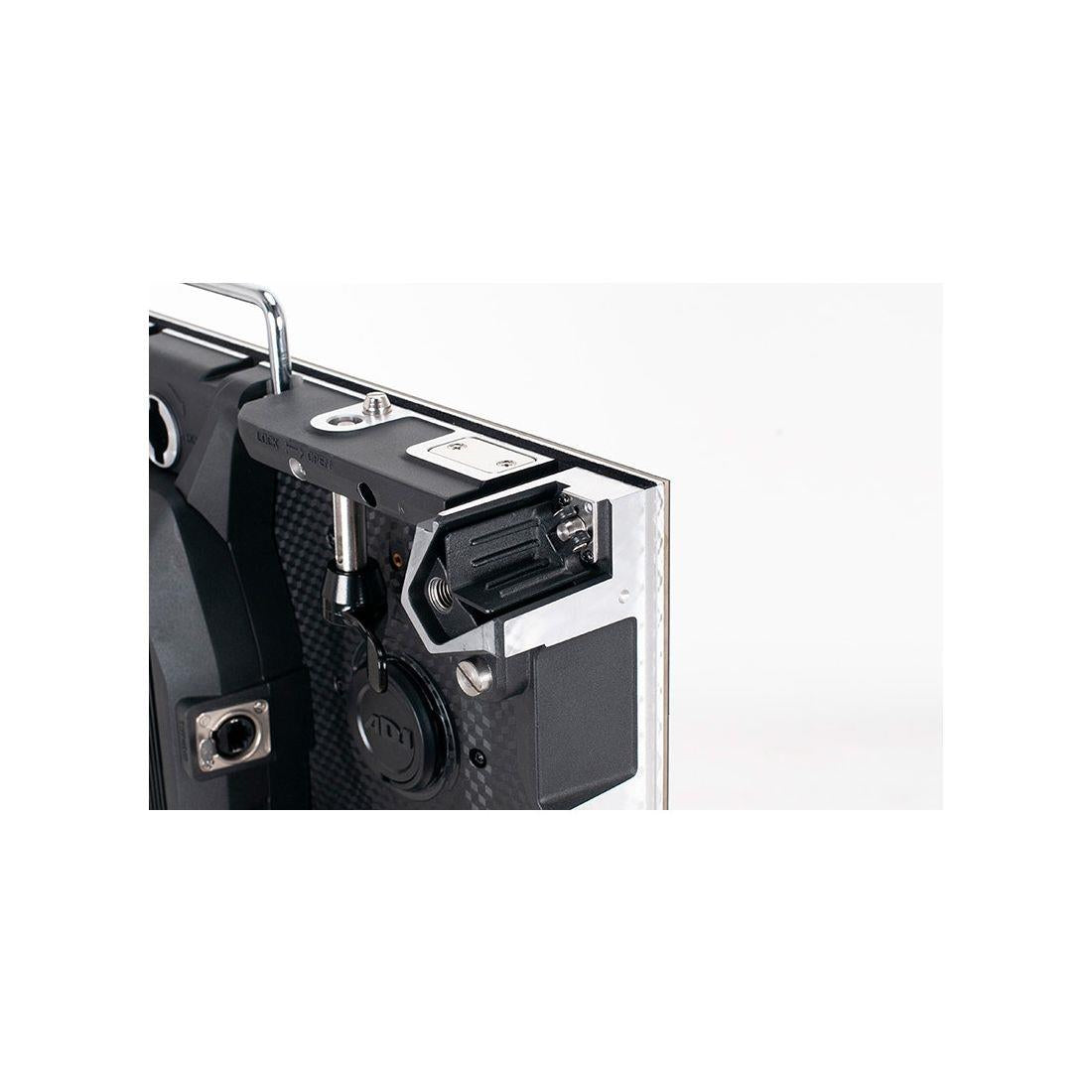

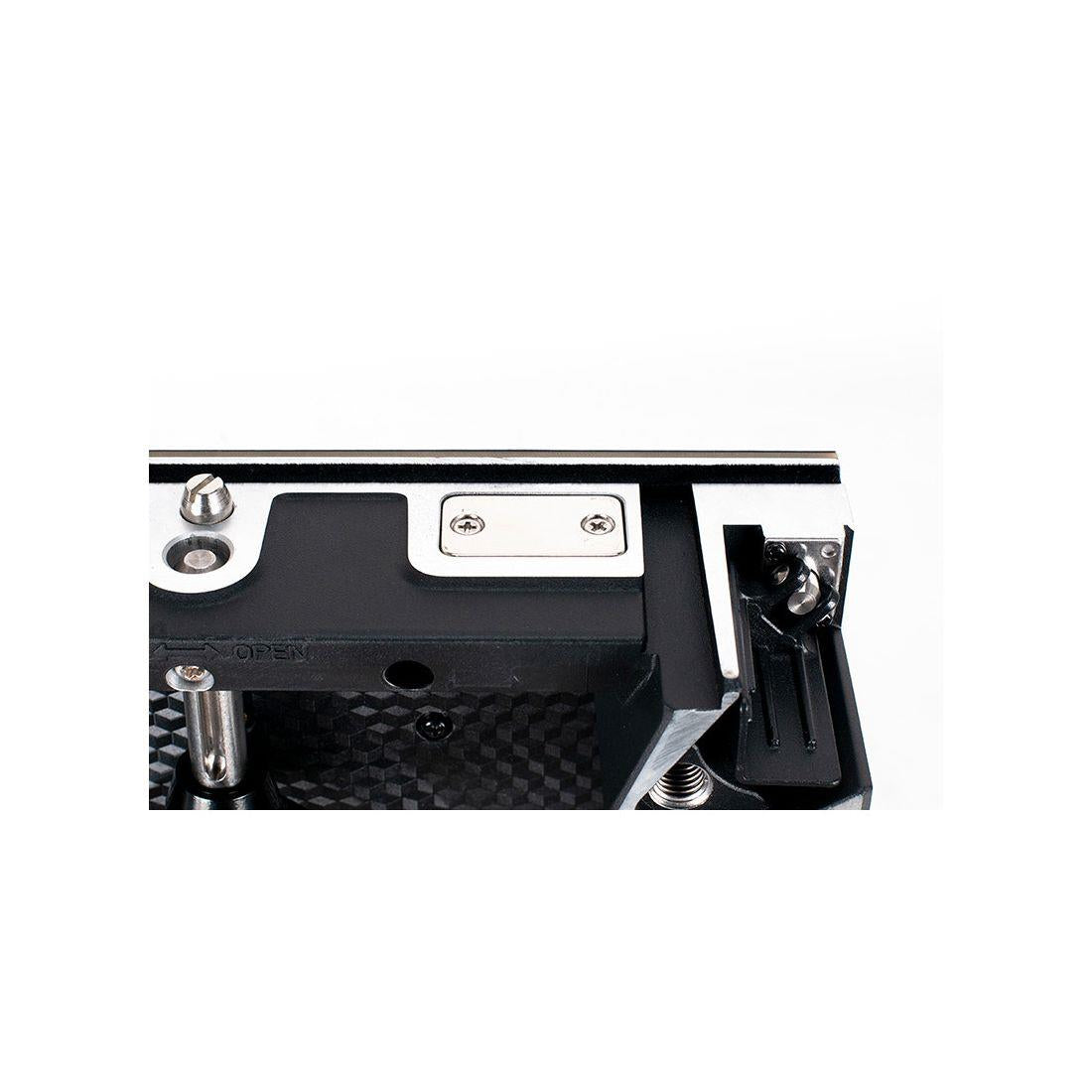

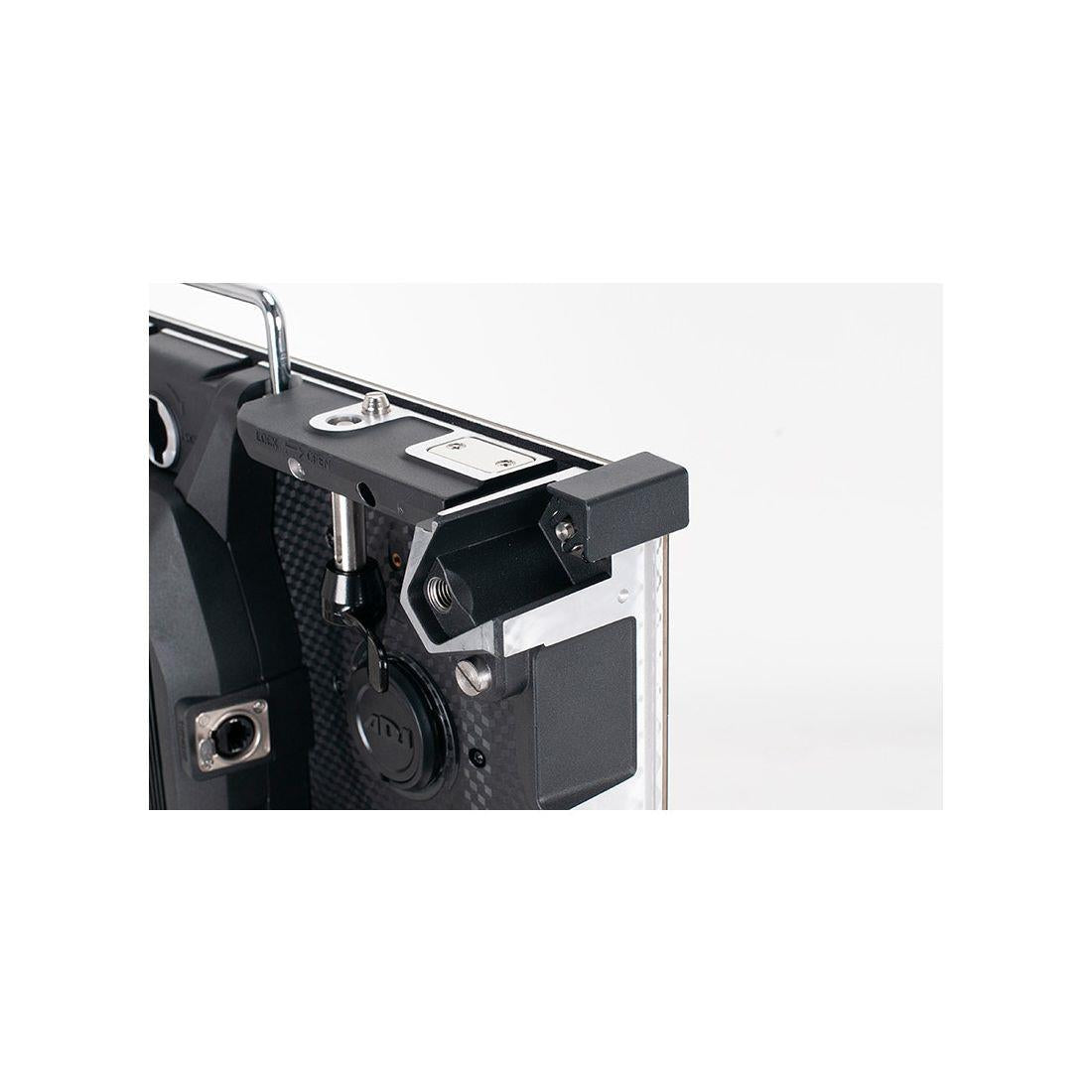

Magnetic Aluminium Frame with built-in corner protectors
Module Quantity: 4, magnetic module design
Module Size : 250 x 250mm, Front & Rear serviceable
IP Rating: IP20
Electrical
Multivoltage 100-240V 50/60Hz
Max Power Consumption: 170W/panel
Average Power Consumption: 68W/panel
Operational temperature: -20 to +40 degrees
Operational humidity: 10% — 90% (no condensation)
Connections
Locking RJ45 In/Out connections
Locking Power In/Out connections
Dimensions & Weight
Dimensions (LxWxH): 500 x 69.6 x 500mm
Weight: 7,7 kg.
