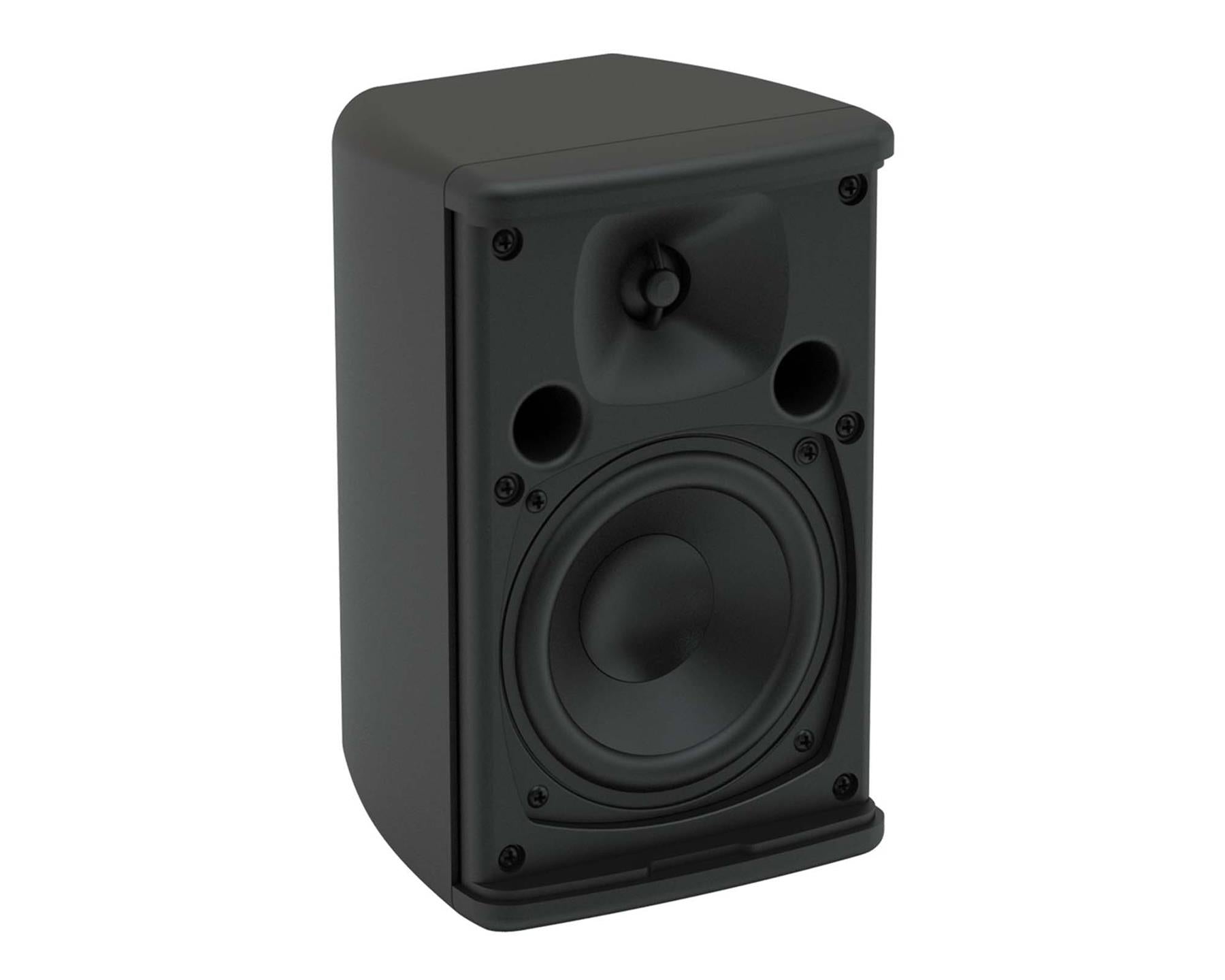

Adorn A40T 4” 2-Way Speaker 160W Inc Bracket Black 100V

Description:

The ADORN A40T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high-fidelity sound from an unobtrusive, ultra-compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

Comprising a 4” (100mm) LF driver and a 0.75” (19mm) silk-dome HF driver on a 110° x 80° horn, it handles 40W AES, 160W peak and can produce 109dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 70Hz.

Features:

Contemporary, unobtrusive design
High output capability
High fidelity sound
Low and high-frequency overload protection
70V/100V line transformer
Vertical or horizontal orientation
Wide 110° x 80° coverage
Wall bracket included
5-year warranty

Specifications:

General
Type: Ultra-Compact passive two-way system, front ported bass reflex
Frequency Response (4):98Hz-17kHz ± 3dB
-10dB @ 70Hz
Drivers:LF: 4” /1” high-temp voice coil, coated paper cone, rubber surround ferrite motor, pressed steel chassis
HF: 0.75” silk dome, neodymium motor
Rated Power: 40W AES, 160W peak
Recommended Amplifier: VIA5002 [In conjunction with suitable line transformer]
Sensitivity(4): 87dB/1W/1m
Maximum SPL (9): 109dB peak
Nominal Impedance: 16Ω
Dispersion (-6DB): 110° H x 80° V
Crossover: 3kHz passive (LF and HF auto-resetting fuses)
Transformer Taps: 70V: 20w / 10w / 5w / 2.5w
100V: 20w / 10w / 5w
Recommended High-Pass Filter: 60Hz 24dB/oct
Enclosure: ABS, UL 94V-0 rated
Finish: Black
Grille: Perforated steel
Connectors: Push Terminals
Fittings: Wall bracket included
Physical & Dimensions
Height: 200mm
Width: 124mm
Depth: 114mm
Weight: 2.13kg
