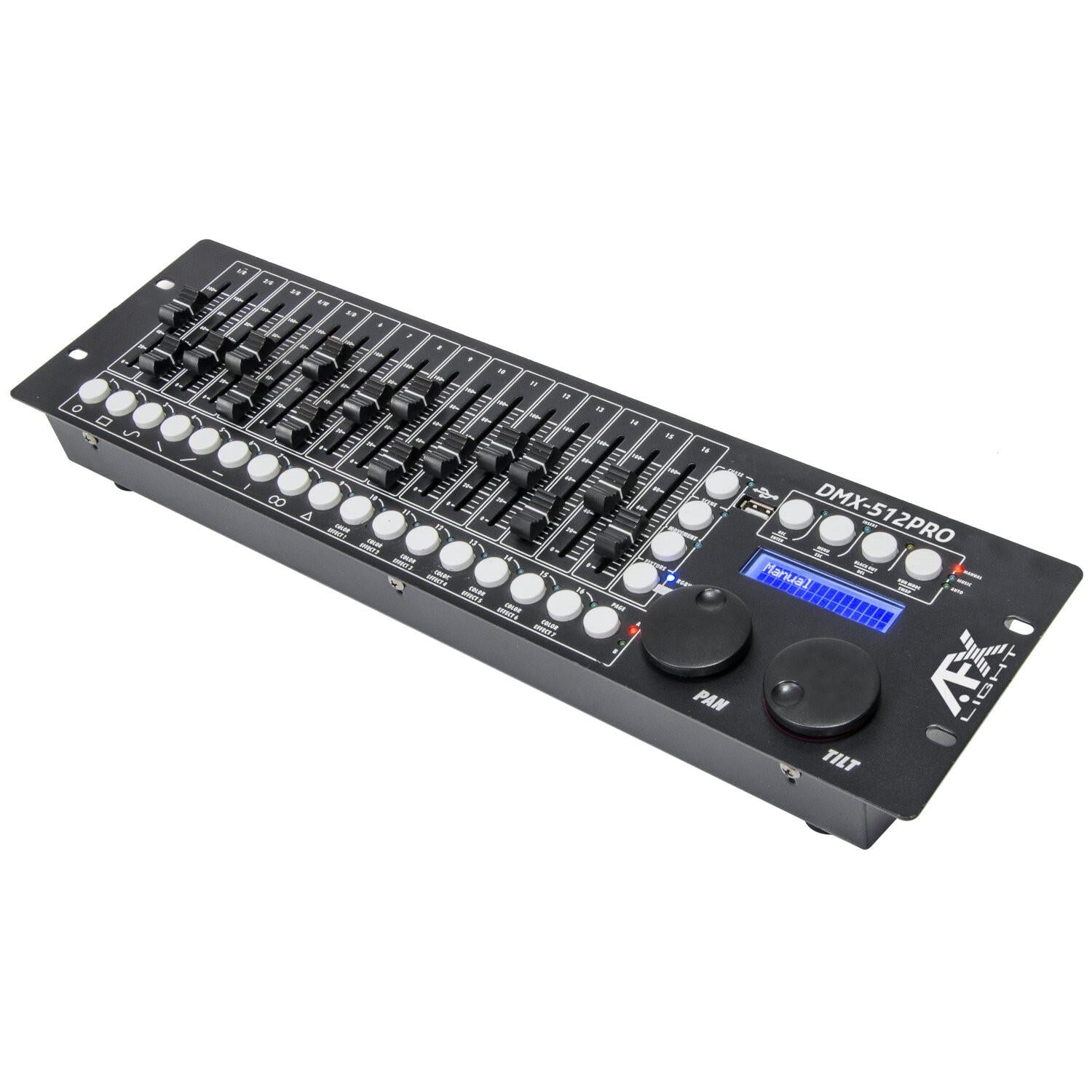

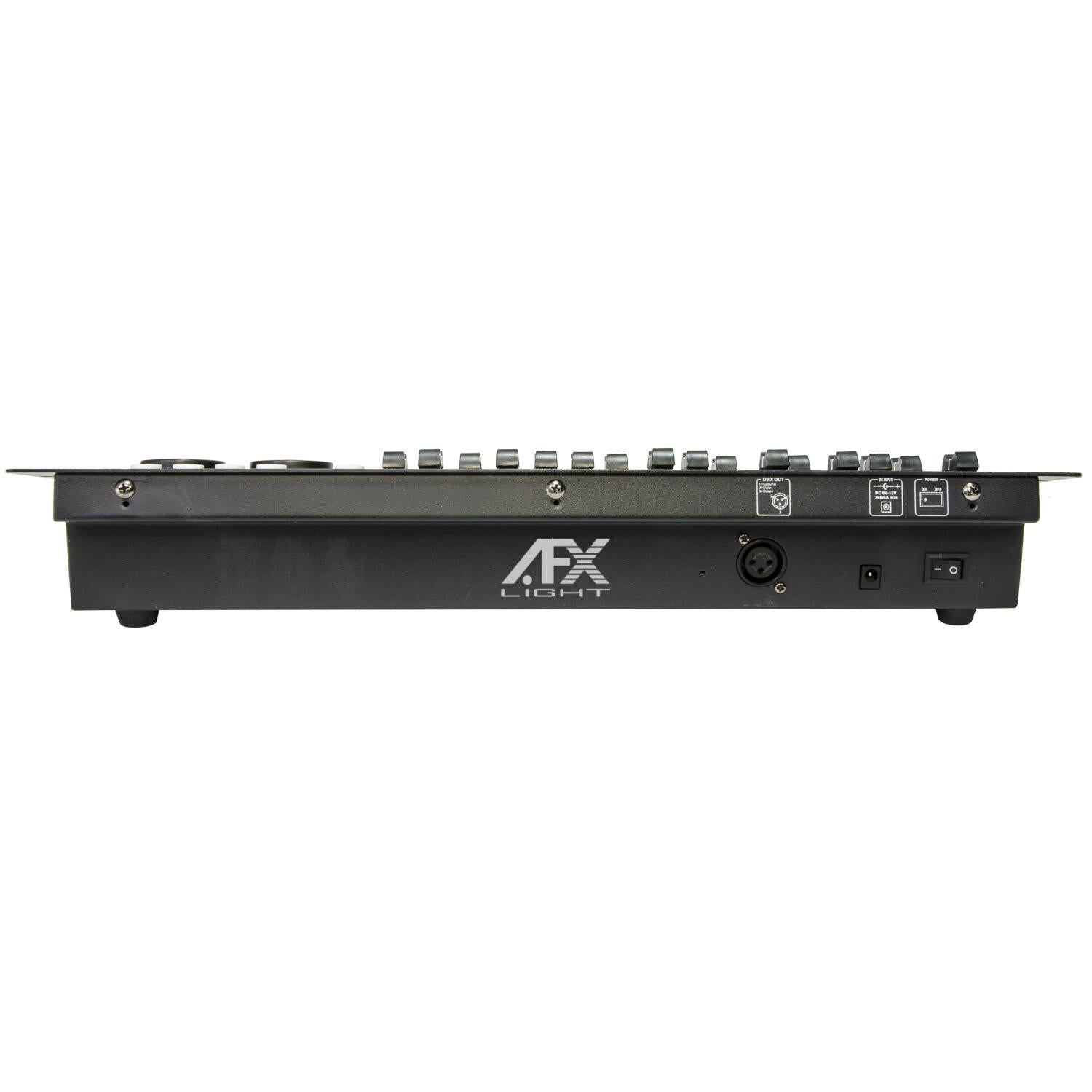

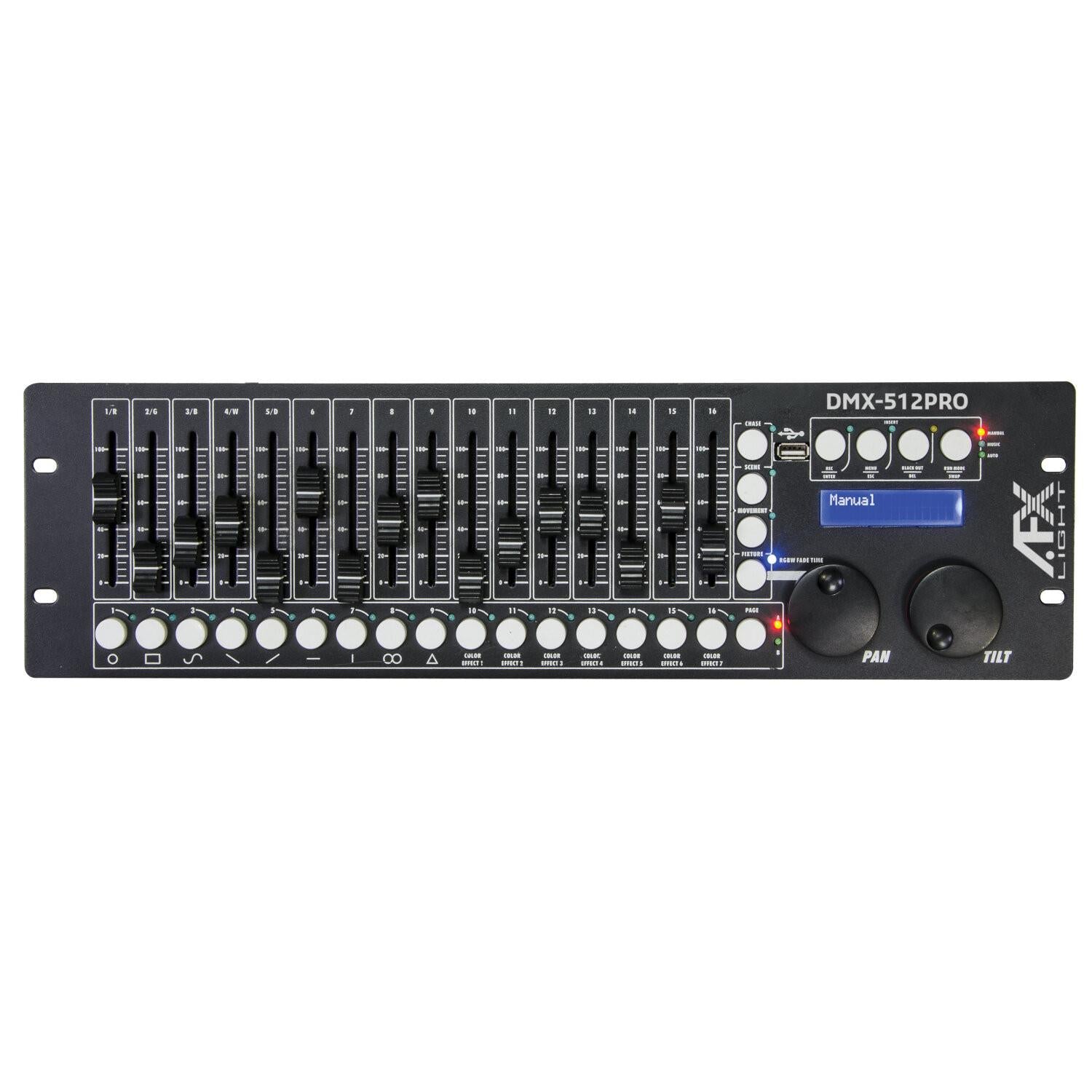

AFX DMX512-PRO Professional DMX Controller for Moving Head

Description:

DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture.

•  512 DMX channels can be assigned to 32 control channels (softpatch)
• For 28 fixtures with 18 control channels each
• USB port for storing program data
• Quick programming via 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
• 32 programmable chases with 100 scenes each can be stored
• Manual, time-controlled or sound-controlled chase running mode
• 32 programmable scenes
• 2 DMX fixture levels can be controlled, each with up to 18 channels
• 16 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Sound control via built-in microphone
• Backlit LCD (2 x 16 characters)
• RDM support (DMX address setup and identification)
• 3-pin XLR connector
• Firmware update via USB
• 3U Rack installation

Specification:

Power consumption 2.7 W
Weight 2.2 kg
Number of control channels 512
Storable scenes 32
Storable chases 32 with 100 steps each
Sound control via built-in microphone
DMX512/RDM output 3-pin XLR connector
Available storage media USB devices (FAT32)
Dimensions (LxWxH) 483 x 130 x 82 mm
Power supply 110-240V~ 50/60Hz via included mains adaptor
