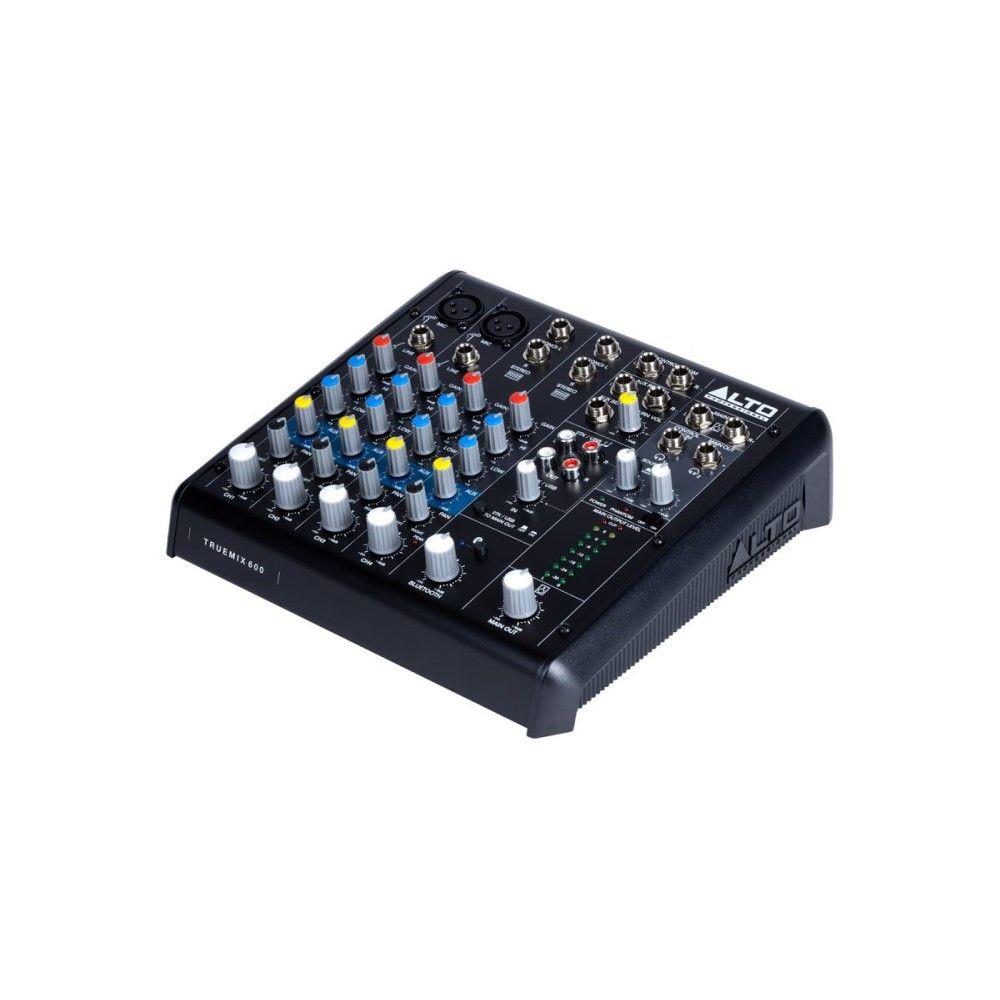

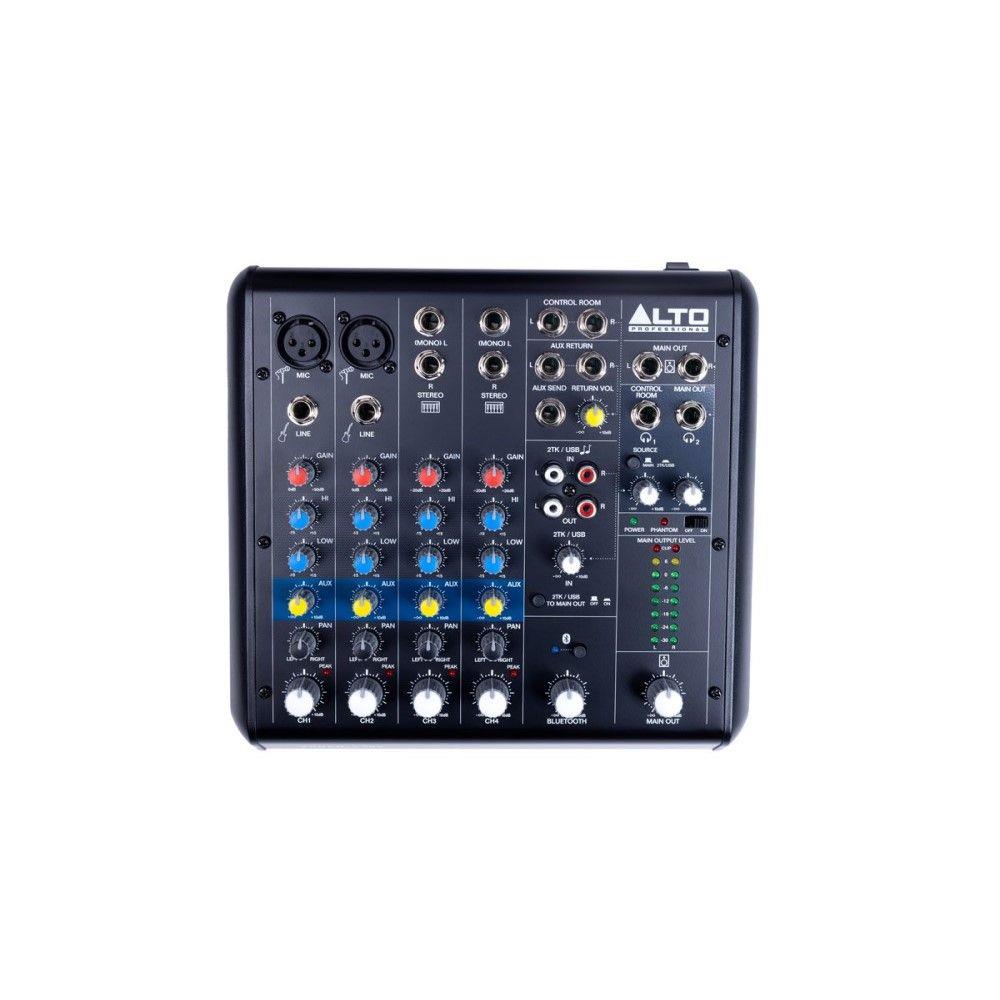

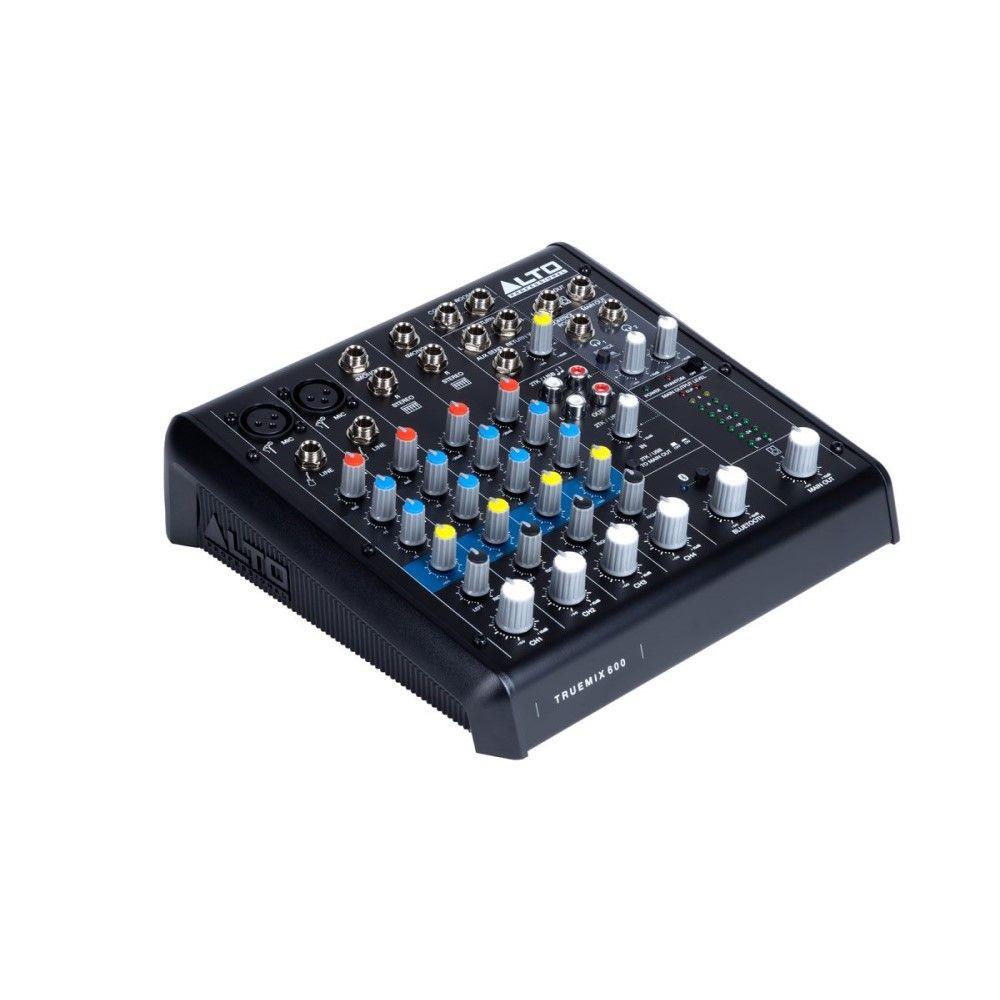

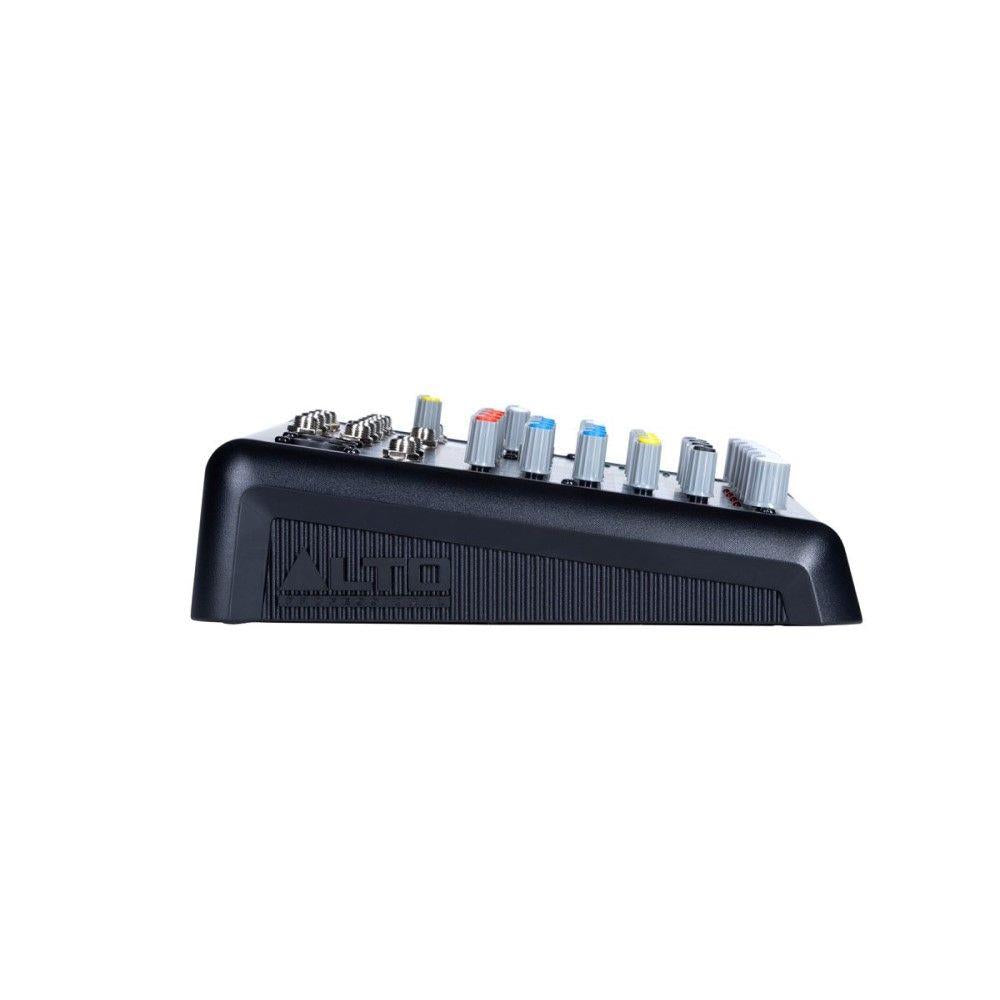

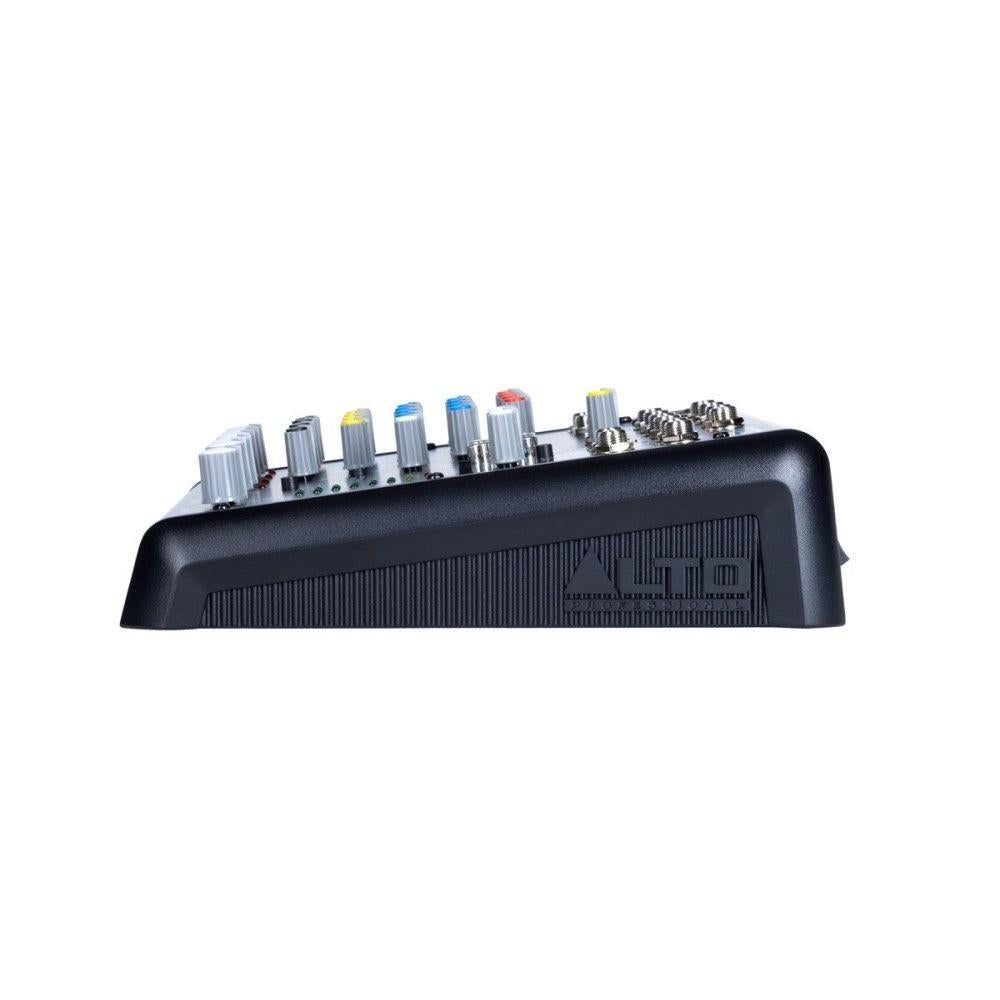

Alto TRUEMIX 600 6ch Compact Mixer USB Bluetooth

Description:

The Alto Professional TrueMix 600 is a Bluetooth-enabled, on-board stereo USB audio interface that can be used for home recording, live streaming, podcasting, or live performance. With the TrueMix 600, you can stream music from your mobile devices with ease thanks to its built-in Bluetooth connectivity.

No other audio mixer series in this category allows for feedback-free phone connecting using mix-minus technology like the Bluetooth channel does. There are six analogue inputs, and the high-headroom circuitry ensures that your signal will be clipped and distorted as little as possible.

Dynamic microphones and condenser microphones that require 48 volts of phantom power can be plugged into the Mic Input Channels' XLR inputs. In addition to microphones and line-level sources, these channels also provide balanced 14" line inputs, along with a  pair of balanced 14" TRS inputs on each of the two stereo input channels. You can plug in line-level audio sources to these inputs with no problems. The two-band EQ and colour-coded knobs on all channels make it simple to fine-tune the volume and tone, even in dim lighting.

The TrueMix 600 has instantaneous connectivity thanks to its plug-and-play support for both Windows and macOS. When portability is a priority, go no farther than the TrueMix 600, a compact audio mixer that packs a serious feature set.

Reliable Output Path

The ability to hear yourself is crucial while working on creative projects at home, such as recording music or podcasts, or broadcasting video or audio online. With its flexible output and routing choices, the TrueMix 600 can be used in a wide range of situations. Each of the two headphone jacks can be used to adjust the volume separately. Each channel has its own AUX send/return and independent AUX send controls in case you ever need to route your audio signals somewhere else, like an external effects processor. For recording purposes, you can connect the 2-Track in/out to an external recorder, which will then be routed directly to one of the headphone outputs, or you can use the USB output to send a copy of the main outputs to your computer. The TrueMix 600 provides everything necessary for complete management of audio signal flow.

Features:

USB I/O for audio playback and stereo recording
Dedicated Bluetooth channel with mix-minus return for feedback-free phone pairing
Dual headphone outputs with independent volume control
1/4” Main, Tape, Headphone, and AUX outputs
Two mic input channels with phantom power and balanced line inputs
Two stereo input channels with balanced 1/4” TRS jacks
Two-band EQ on all channels
2-track inputs w/ assignable routing: Main Mix or Headphone Out
Eight-segment LED VU meter for precise level monitoring

Specifications:

Frequency Response: All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion): All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range:Mic inputs (Channels 1-2): 0 – 50 dB
Line inputs (Channels 1-2): 15 dBu – 35 dBu
Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max Voltage Gain:70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to AUX SEND)
SNR (Signal-to-Noise ratio): All inputs: > 110 dBu
Crossover Frequency:Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
Phantom Power: +45 ~ +49V with switch control
Impedance:Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
Aux outputs: 1 kΩ
All outputs: 120 Ω
Equalization:High: ±15 dB @ 12 kHz
Low: ±15 dB @ 80 Hz
Bluetooth:Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz – 2480 MHz
Range: 100 ft. / 30.5 m
Connectors:(5) 1/4” (6.35 mm) TRS outputs
(6) 1/4” (6.35 mm) TRS stereo L/R inputs
(2) 1/4" (6.35 mm) TRS headphone output
(2) 1/4" (6.35 mm) TRS mono input
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(2) XLR inputs
(1) USB type-B input
(1) DC power input
Controls:(1) Power switch
(10) volume control knobs (1 per input, 1 aux return, 1 2TK In, 2 headphone out, 1 Bluetooth, 1 Main Out)
(4) Stereo pan control knobs (1 per input)
(4) Aux volume control knobs (1 per input)
(4) EQ Low control knobs (1 per input)
(4) EQ Hi control knobs (1 per input)
(4) Gain control knobs (1 per input)
(3) Locking switch buttons (2 source select, 1 Bluetooth)
(1) Horizontal sliding switch
Indicators:(1) Power LED
(4) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED
Power:Connection: DC
Voltage: 18V, 1A
Consumption: 18W
Dimensions (width x depth x height):8.9” x 8.5” x 2.9” / 225.5 x 217 x 74 mm
Weight: 3.2 lbs. 1.4 kg
