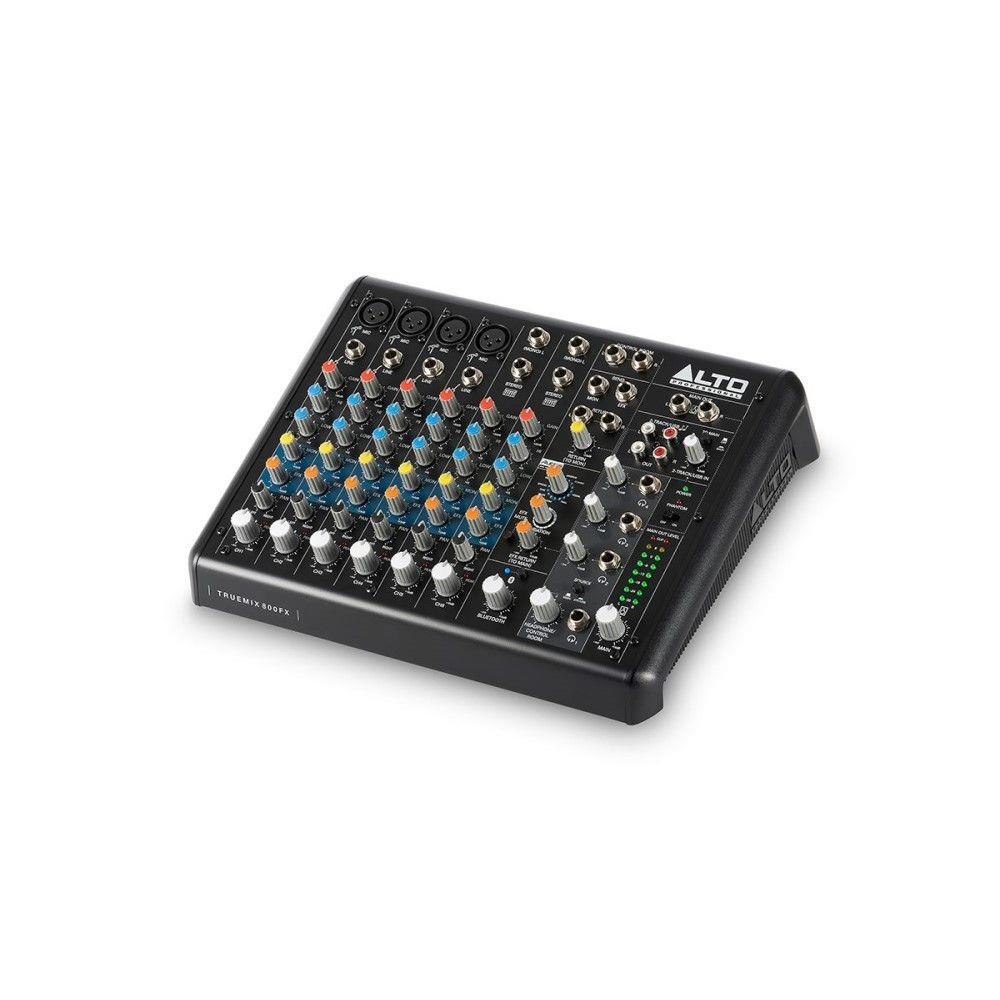

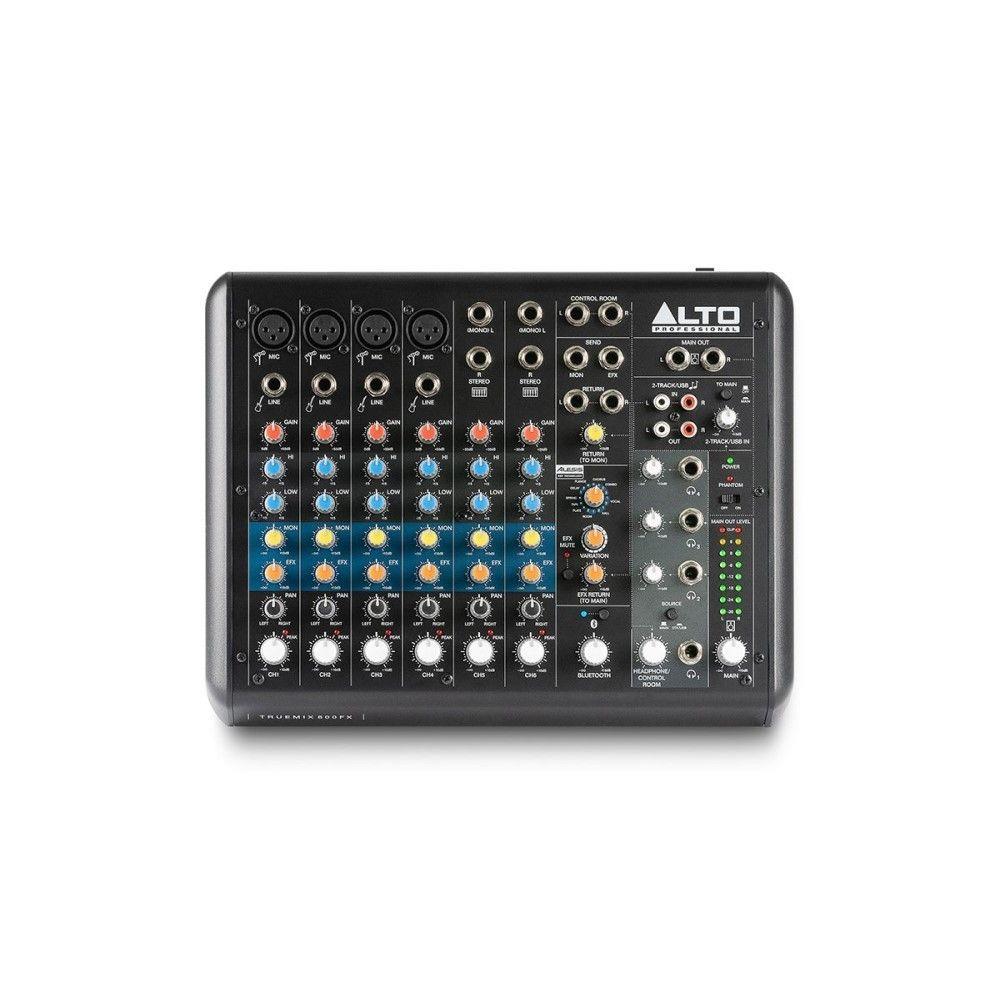

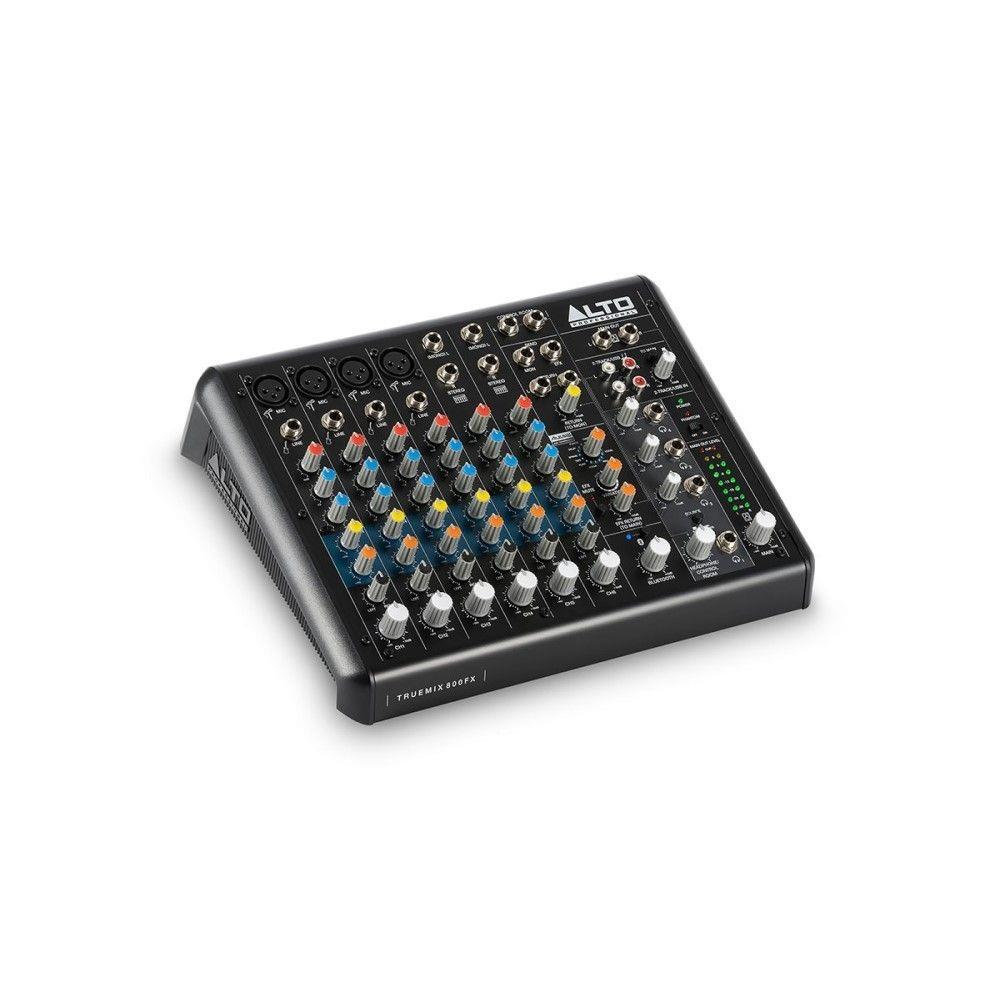

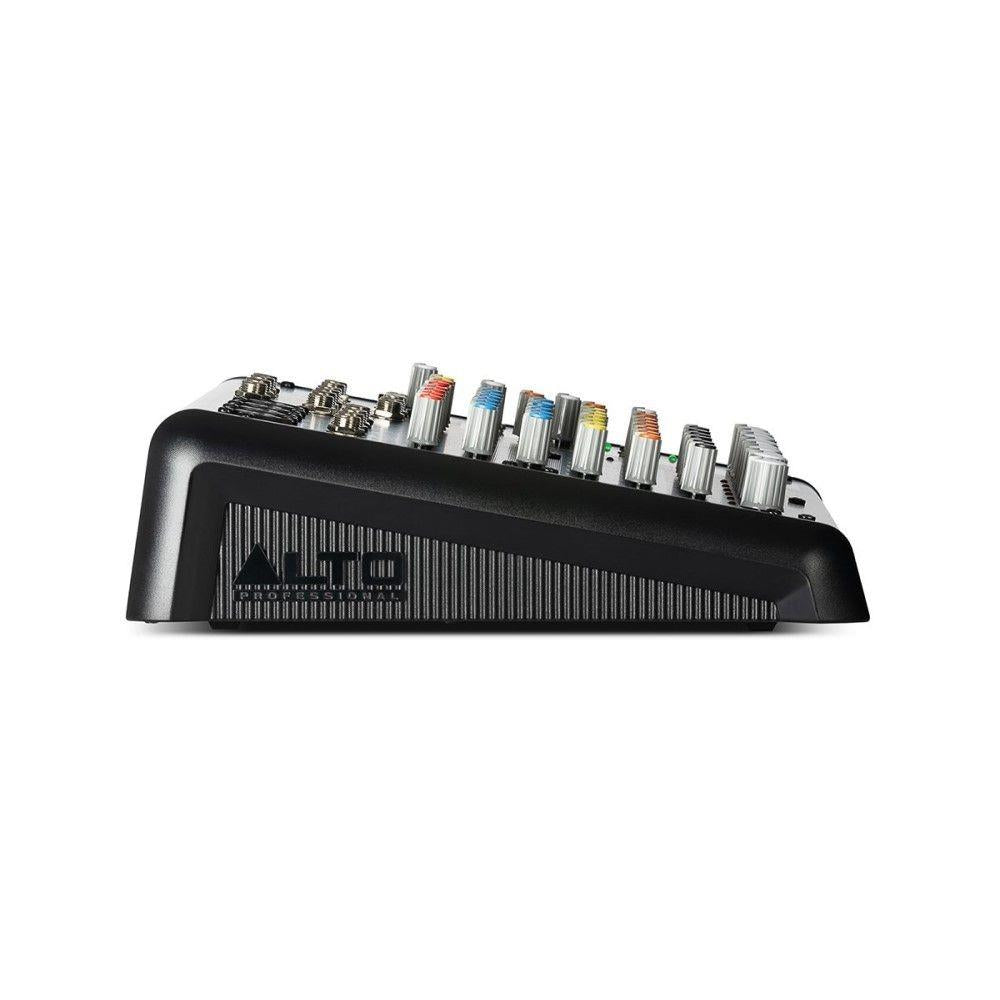

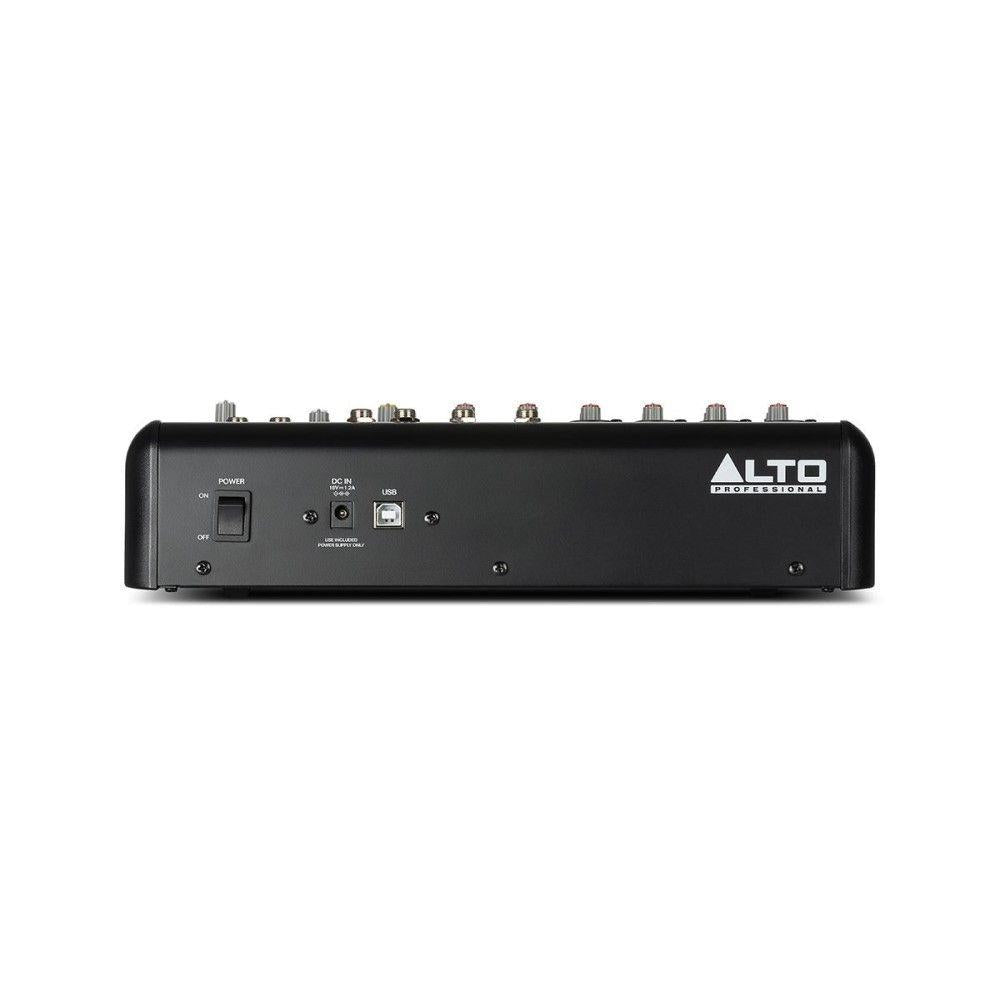

Alto TRUEMIX 800 8ch Compact Mixer USB, Bluetooth and Alesis MULTIFX

Description:

The Alto Professional TrueMix 800 FX is a portable audio mixer with integrated DSP effects that provides all the necessary tools for recording, streaming, podcasting, and performing at home. High-quality delays and reverbs are just a few of the 16 effects available on the TrueMix 800 FX. In addition, a Bluetooth channel is available for simple device streaming. Using mix-minus technology, which is exclusive to the TrueMix Series, the Bluetooth channel also allows for feedback-free phone pairing. Eight high-headroom analog inputs ensure that your signal is neither clipped or distorted.

The XLR inputs on the four Mic Input Channels are compatible with dynamic mics and condenser mics that require 48v phantom power. You may plug instruments and other line-level signals into these channels thanks to their balanced 1/4" line inputs. Both of the stereo input channels feature twin balanced 1/4" TRS jacks, and t he line level inputs are ideal for connecting your audio equipment. The two-band EQ and colour-coded knobs on each channel make fine-tuning your sound effortless even in dim conditions.

You can personalise the look of your TrueMix 800 FX to your liking with the help of the provided replacement knob caps. Furthermore blazingly quick is the TrueMix 800 FX's connection to your computer; it supports plug-and-play functionality on both Mac OS X and Windows. The TrueMix 800 FX is a powerful yet portable audio mixer with a wide variety of effects.

Alterable Destination Paths

Having a good monitor setup and an easy way to transport audio is crucial whether you're making music at home, broadcasting online, or recording a podcast. In order to adapt to every situation, the TrueMix 800 FX offers many output and routing choices. There are four headphone jacks, and you may adjust the volume independently for each. Each channel features a send knob that allows you to adjust the signal's volume before it is sent to an external monitor or effects unit. You can record your performances by connecting the 2-Track in/out to an external recorder or sending them directly to the headphones, or by using the USB output, which replicates the main outputs and sends them to the computer. When you require complete command over your audio's path, the TrueMix 800 FX has you covered.

Features:

USB I/O for audio playback and stereo recording
Dedicated bluetooth channel with mix-minus return for feedback-free phone pairing
Four headphone outputs with independent volume control
16 built-in Alesis multi-fx with dedicated return channel
1/4” Main, Tape, and AUX outputs
Four mic input channels with phantom power and balanced line inputs
Two stereo input channels with balanced 1/4” TRS jacks
Two-band EQ on all channels
2-track inputs w/ assignable routing: main mix or headphone out
Eight-segment LED VU meter for precise level monitoring
Extra knob caps included in the box for added customisation
Tech spec
Frequency Response: All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion): All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range:Mic inputs (Channels 1-2): 0 – 50 dB
Line inputs (Channels 1-2): 15 dBu – 35 dBu
Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max Voltage Gain:70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to MON SEND)
SNR (Signal-to-Noise ratio): All inputs: > 110 dBu
Crossover Frequency:Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
Phantom Power: +45 ~ +49V with switch control
Impedance:Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
Aux outputs: 1 kΩ
All outputs: 120 Ω
Equalization:High: ±15 dB @ 12 kHz
Low: ±15 dB @ 80 Hz
Bluetooth:Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz – 2480 MHz
Range: 100 ft. / 30.5 m
Connectors:(6) 1/4” (6.35 mm) TRS outputs
(6) 1/4” (6.35 mm) TRS stereo L/R inputs
(4) 1/4" (6.35 mm) TRS headphone outputs
(4) 1/4" (6.35 mm) TRS mono inputs
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(4) XLR inputs
(1) USB type-B input
(1) DC power input
Controls:(1) Power switch
(15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main)
(6) Stereo pan control knobs (1 per input)
(6) Mon volume control knobs (1 per input)
(6) EQ Low control knobs (1 per input)
(6) EQ Hi control knobs (1 per input)
(6) Gain control knobs (1 per input)
(4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select)
(1) Horizontal sliding switch
Indicators:(1) Power LED
(6) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED
Power:Connection: DC
Voltage: 18V, 1.2A
Consumption: 18W
Dimensions (width x depth x height):2.0” x 9.4” x 3.1”
305 x 238.5 x 79 mm
Weight:4.5 lbs.
2.04 kg
