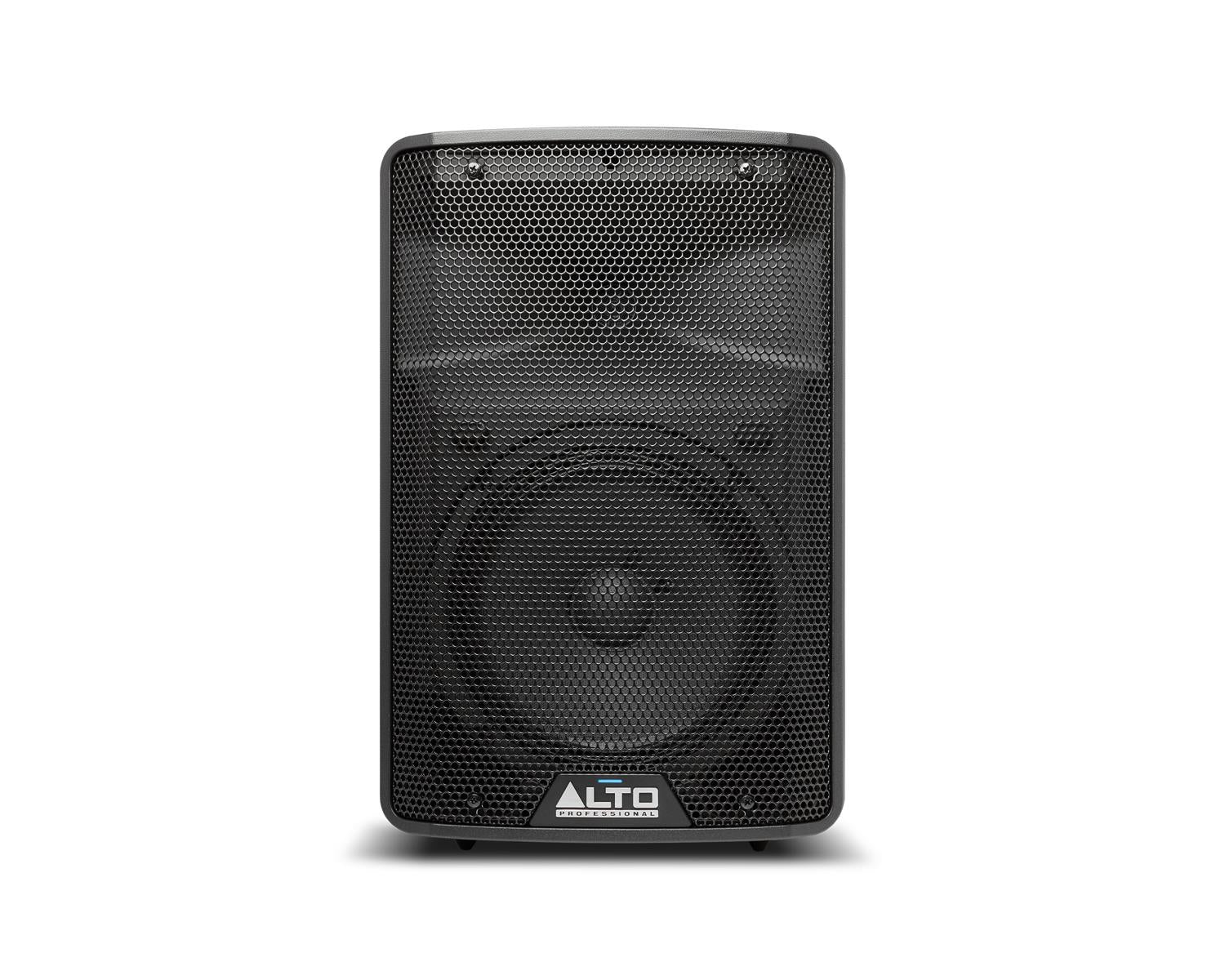

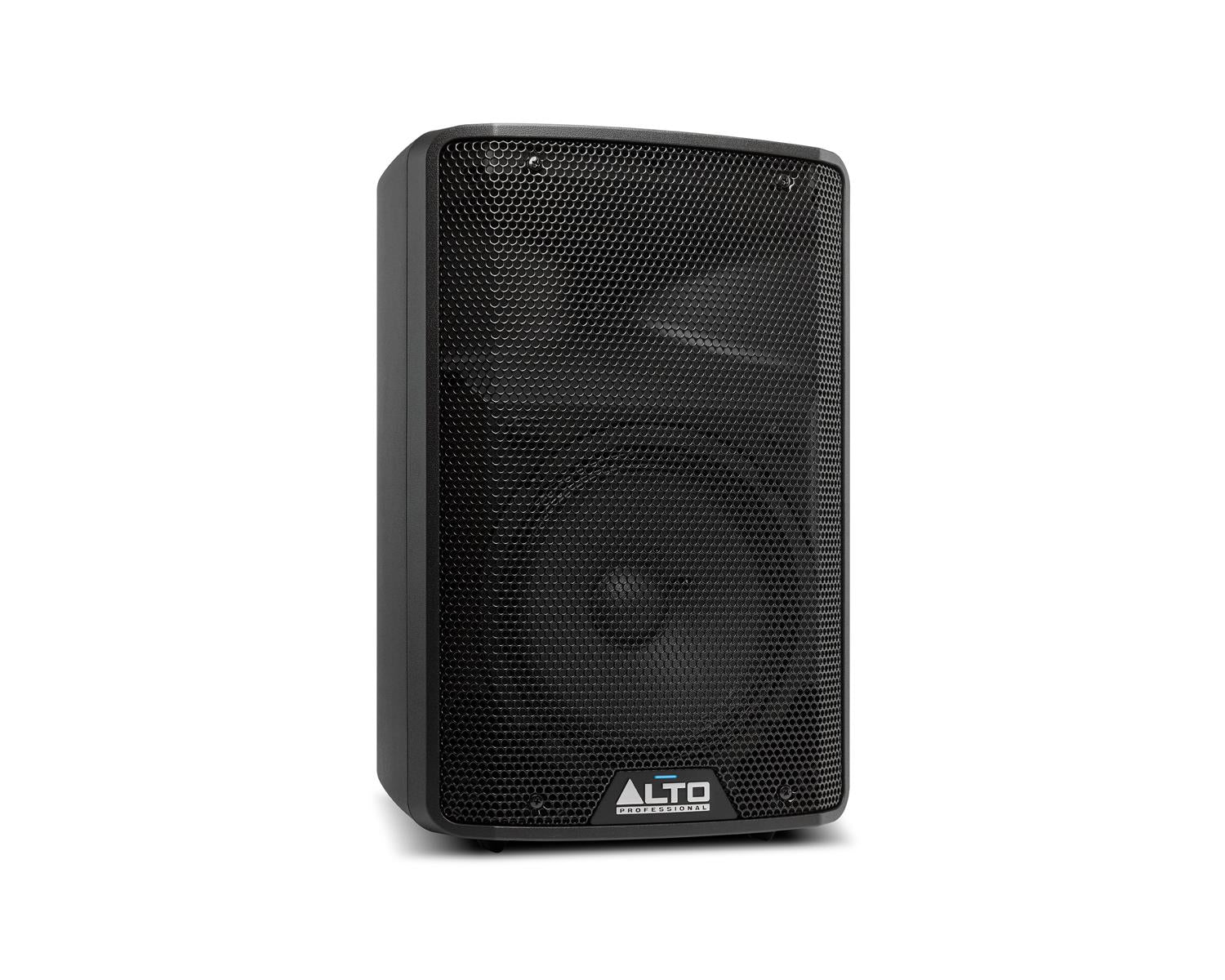

Alto TX308 Active Speaker 350W 8" Loudspeaker

Description

Alto TX308 Active Speaker 350W 8" Powered Loudspeaker Band PA Sound System

• 350 Watts peak, (175 Watts continuous Class D power)
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and provides protection for your investment.
• 8-inch (203 mm) LF driver, 1.4-inch (35.5 mm) voice coil
• 1-inch (25.4 mm) titanium diaphragm HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analog limiter and overload protection circuitry
• Designed and tuned in the USA

Introducing the Alto TX308, a 350-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of our acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best.

Specififcation

System Type: 2-way active ported loudspeaker
Drivers:

• Low-Frequency: 8.0” (203 mm) driver, 1.4” (35.5 mm) voice coil
• High-Frequency: 1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil

Amplifier: 350 watts (peak), 175 watts (continuous), Class D power
Horn Coverage: 90º horizontal x 60º vertical (nominal)
Frequency Response: 75 Hz – 20 kHz (-3 dB)
Crossover Frequency: 2.5 kHz
Max SPL: 114 dB @ 1 m

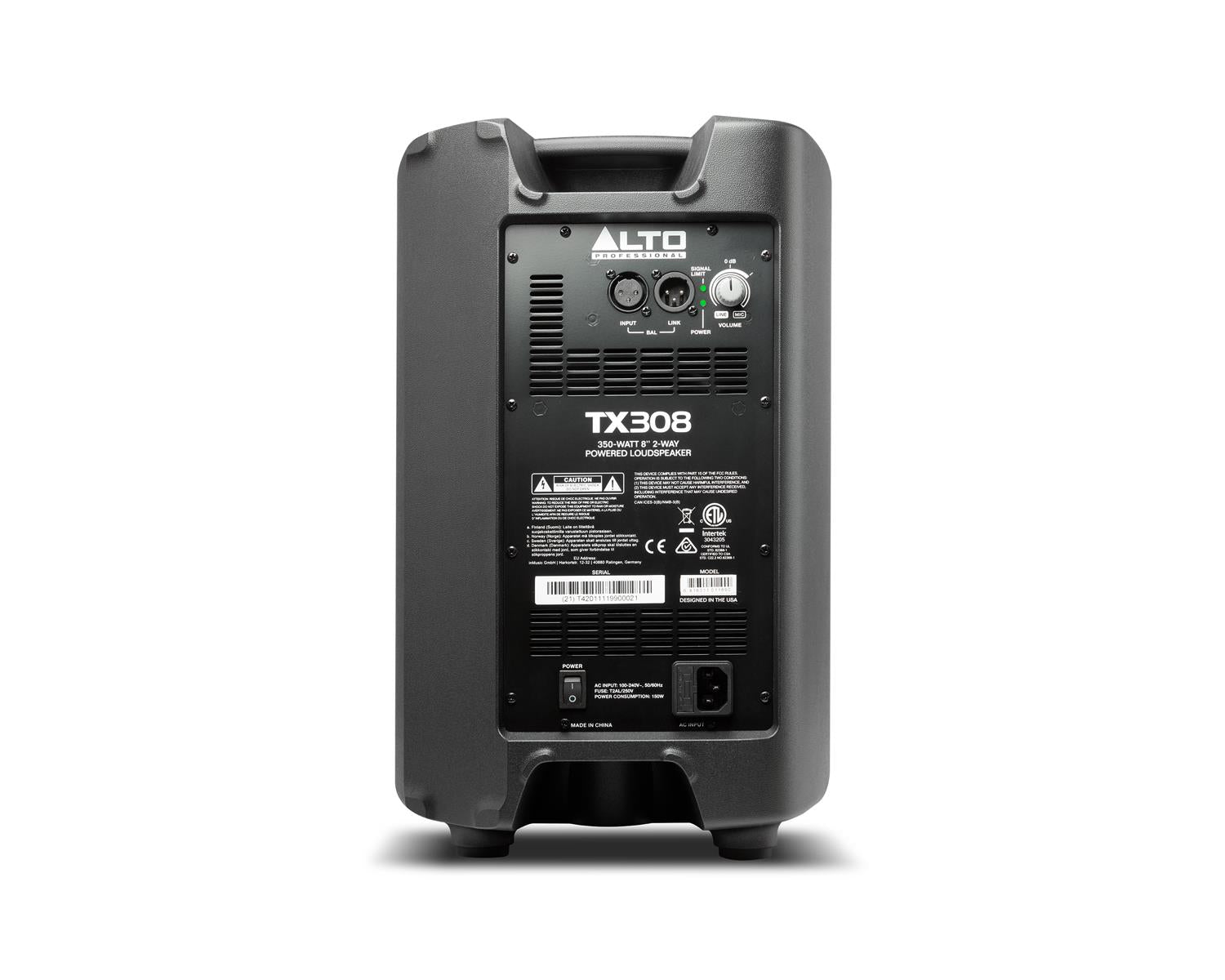

Connectors:

• (1) XLR balanced input (Line/Mic)
• (1) XLR output (Link)
• (1) IEC power cable input

Controls: Power switch, volume control knob
Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power:

• Connection: IEC
• Voltage: 100–240 V~; 50/60 Hz
• Fuse: T2AL/250V
• Consumption: 150 W

Protection: Thermal, overload analog limiter/compressor
Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting/Installation: Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth):

• 16.6” x 10.7” x 9.9”
• 422 x 272 x 251 mm

Weight:

• 12.3 lb
• 5.6 kg
