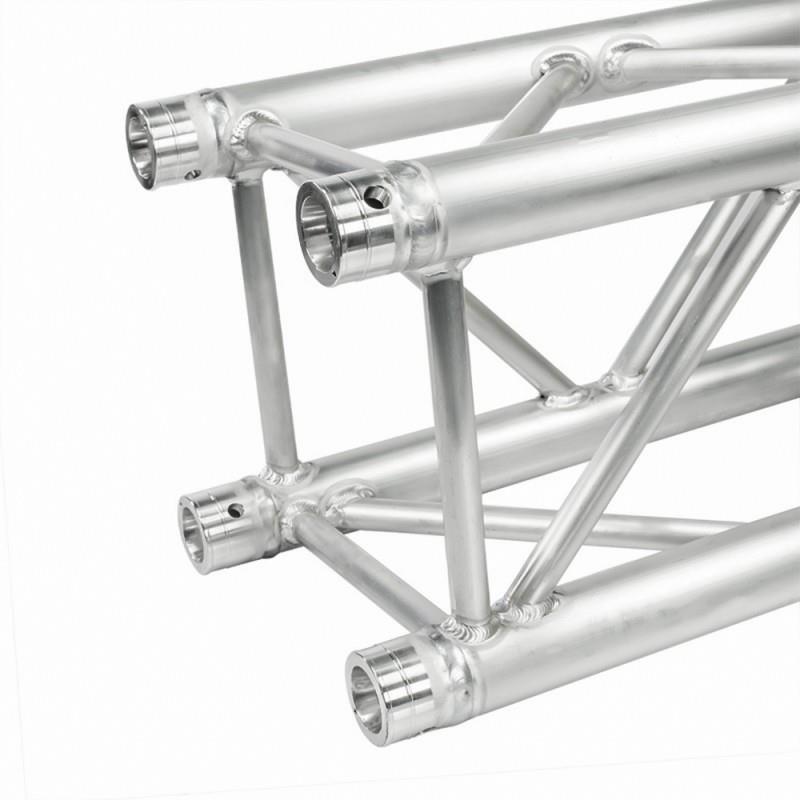

Thor TUV F34 PL AL34 Lighting Truss Quad Section 1.5M 1500mm Trussing

Alustage TUV F34 PL / AL34 Lighting Exhibition Truss Straights F34 PL Truss System 290C is made of main tube 48x3mm and braces 16x2mm. And has got SZ04.04 connection.

Width 287 mm
Depth 287 mm
Material Aluminium EN AW-6082 T6
Braces 16x2 mm
The diameter of the pipe 48x3 mm
F34 TRUSS CONNECTION KITS AVAILABLE - SEE BELOW

PROLYTE H30 & PL COMPATIBLE

System 290C is made of main tube 48x3mm and braces 16x2mm. It has got SZ04.04 connection. Thanks to their spatial design, the aluminium trusses look attractive and are very strong. They can be arranged in different ways and are successfully used as elements of stage roofs, trade fair structures, exposition structures, big screen structures, LED display screen and projection screen support frames, lighting “gates” and sound “gates”, as well as frameworks of advertising banners or stage decorations. Each truss is of the highest quality which is confirmed by ISO DIN 4113 and TÜV certificated. Each element is thoroughly inspected.
