BishopSound 15" Speaker 600w RMS 3" VC Full Range Driver 8 OHM - BDP15 8 ohm

Description:

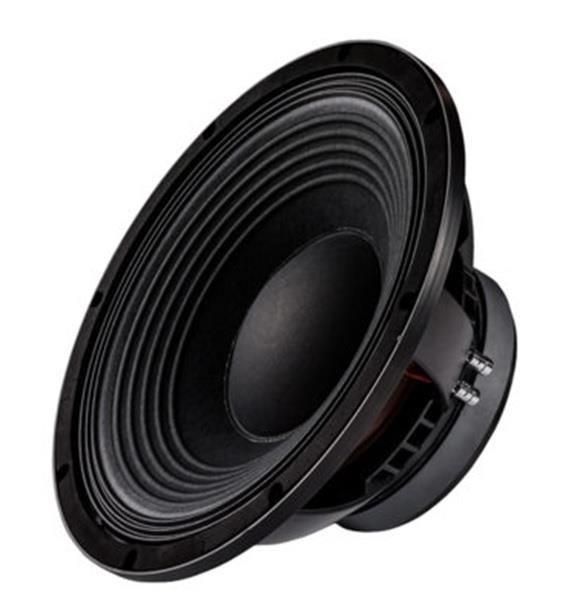

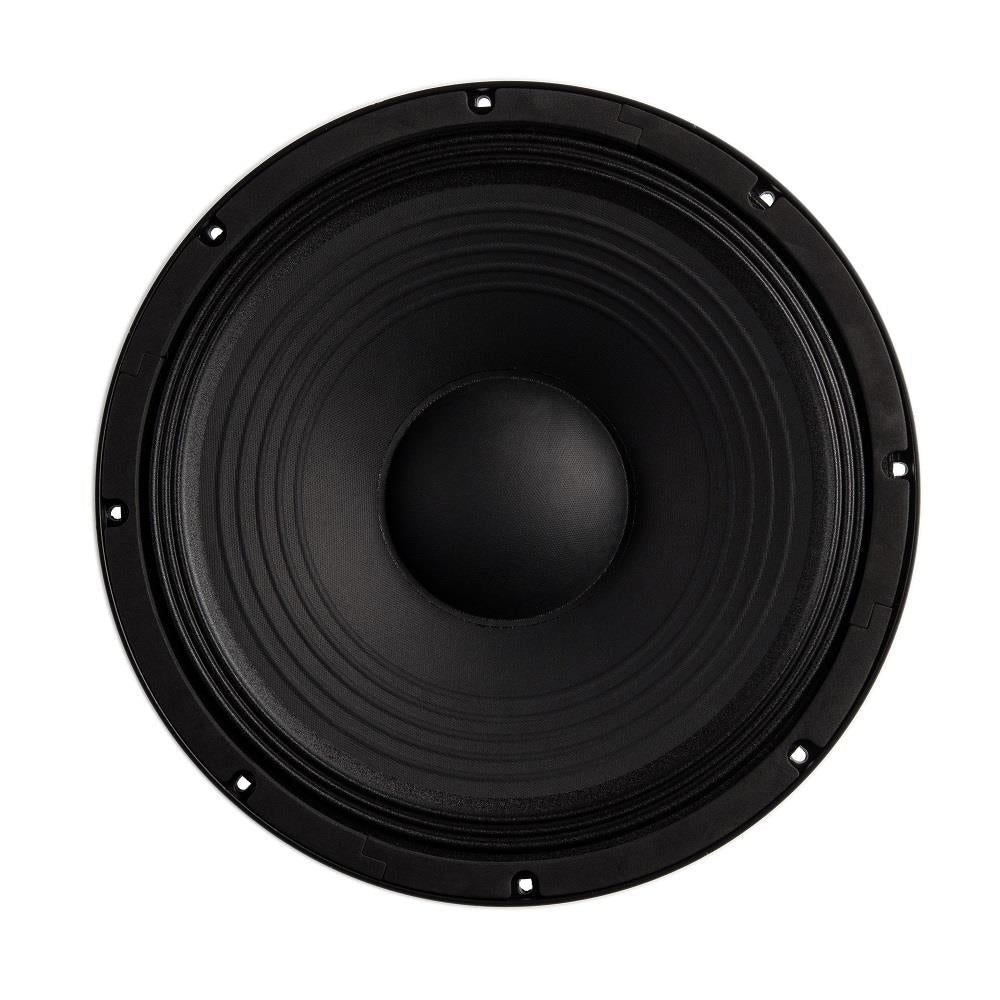

This 15" LF speaker is a high-quality PA speaker using a cast aluminium chassis. Suitable for 2-way cabinets or subwoofers. The frequency range is 38Hz - 2.7kHz

3 Inch voice coil.

Look in the Technical specifications section to learn just how superb this driver is. My speaker outperforms the Eminence Kappa 15 and is more substantial as the Kappa is only pressed steel.

Bishopsound Woofers are made from professional-grade materials the Premium Series features Kapton coils, ferrite magnets, paper cones with rolled cloth edges and faston push terminals.

Re-cone kits are available, but we sell over 2,000 drivers for every re-cone kit, sold, proving our production, QC and ultimate reliability.

Specifications:

Product Weight 10kg
Product Depth 20cm
Product Height 44cm
Product Width 44cm
Nominal Basket Diameter 15", 381mm
Nominal Impedance 8 ohms
Power Rating 600w
Music Program Power 1200W
Resonance 39Hz
Usable Frequency Range 38Hz - 2.7kHz
Sensitivity 99dB
Magnet Weight 95 oz.
Gap Height 0.37", 9.53mm
Voice Coil Diameter 3", 76.2mm
Resonant Frequency (fs) 39Hz
DC Resistance (Re) 5.4
Coil Inductance (Le) 1.27mH
Mechanical Q (Qms) 6.08
Electromagnetic Q (Qes) 0.41
Total Q (Qts) 0.38
Compliance Equivalent Volume . (Vas) 159 liters / 5.6 cu.ft
Peak Diaphragm Displacement Volume (Vd) 471cc
Mechanical Compliance of Suspension (Cms) 0.15mm/N
BL Product (BL) 18.6 T-M
Diaphragm Mass Inc. Airload (MMs) 105 grams
Efficiency Bandwidth Product (EBP) 95
Maximum Linear Excursion (Xmax) 5.5mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 10.4mm
Vented 62-193 liters / 2.2-6.8 cu.ft.
Driver Volume Displaced 251.7 cu.in. / 4.12 liters
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Cast Alloy Basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
