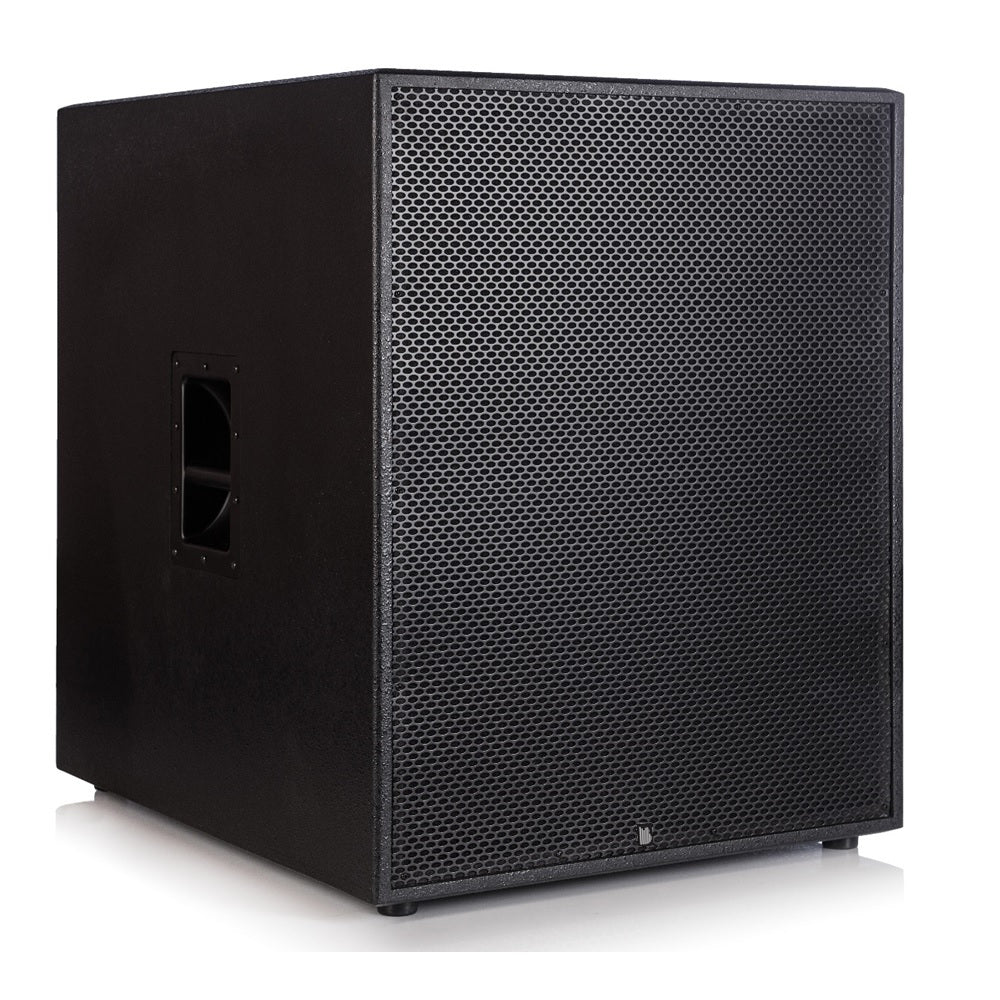

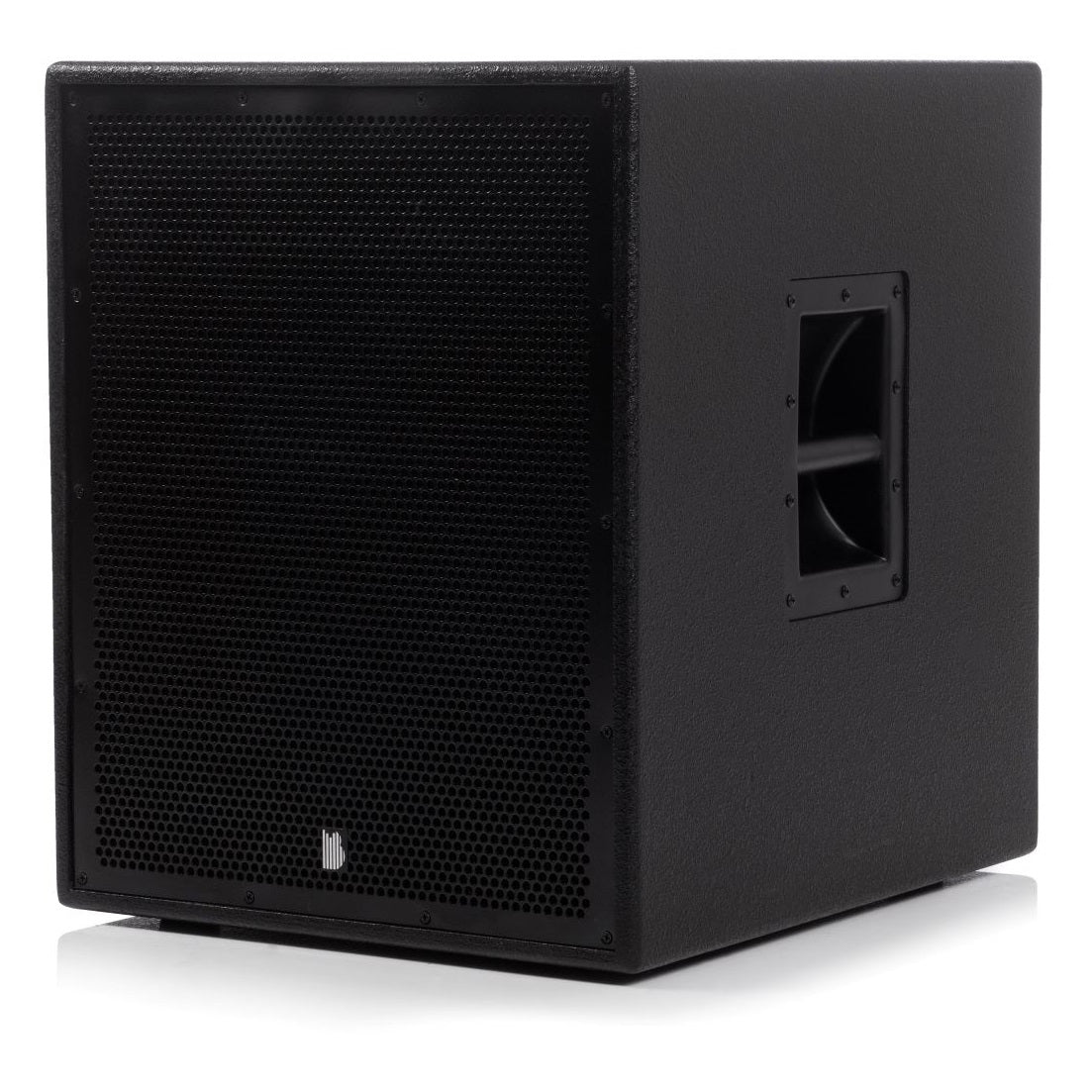

BishopSound Delta 18" Birch Plywood Passive 1000w RMS Touring Grade Subwoofer

Description:

Made from 18mm 13-ply braced, air pocket free BB grade birch plywood and 1000w RMS (4000w peak). Available in 4 ohms and 8 ohms.

British engineering enables this ported subwoofer to go down to 30 Hz - with a max SPL of 134dB. We manufacture the cast alloy 1kw driver so we control the performance and quality of this subwoofer.

The cabinet is finished in 4 coats of Heavy Duty black splatter PU paint it will withstand all the knocks and scrapes gathered through touring. No crossover is fitted in the box as all users should use a speaker management processor.

Important information about subwoofers

Subwoofers are designed to reproduce low-bass audio signals between 30Hz and 150Hz. Driving them with full frequencies will cause permanent damage, so they should only be operated with a passive low-pass filter, a crossover network, or an active electronic crossover or speaker management system.

Features:

18mm 13 ply air pocket free BB Grade Birch Plywood
Acoustic foam behind grill to prevent water and dust ingression

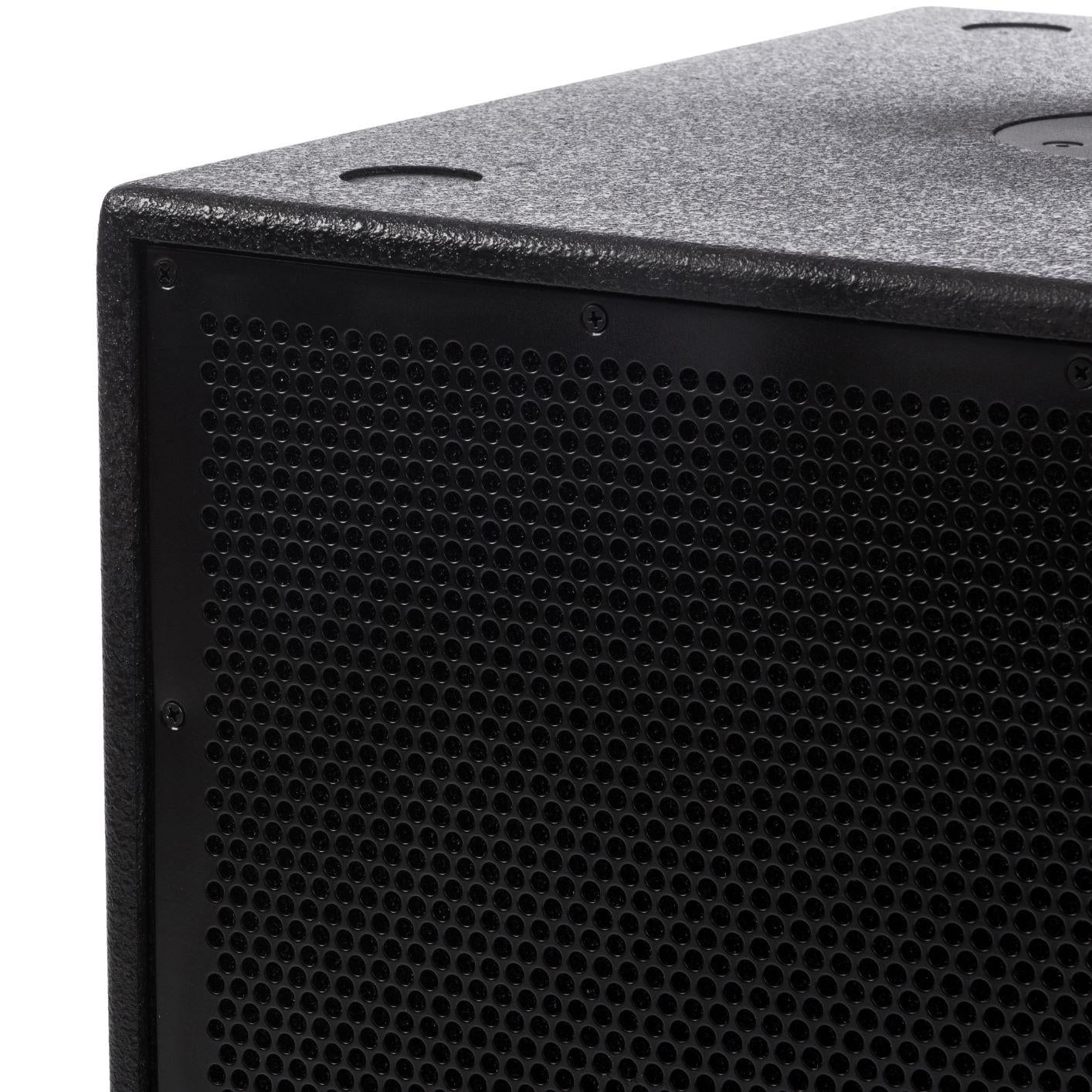

Countersunk 3mm powder coated machine punched "ding proof" grille to prevent grill damage when on tour
Four Coats of scratch and chip-proof, high impact, textured jet-black paint for protection

Specifications:

Product Weight 42kg
Product Depth 58cm
Product Height 68cm
Product Width 73cm
RMS Power 1000w
Peak Power 4000w
Audio Type: Passive
LF Type Ferrite BDP18 with 4" Voice Coil

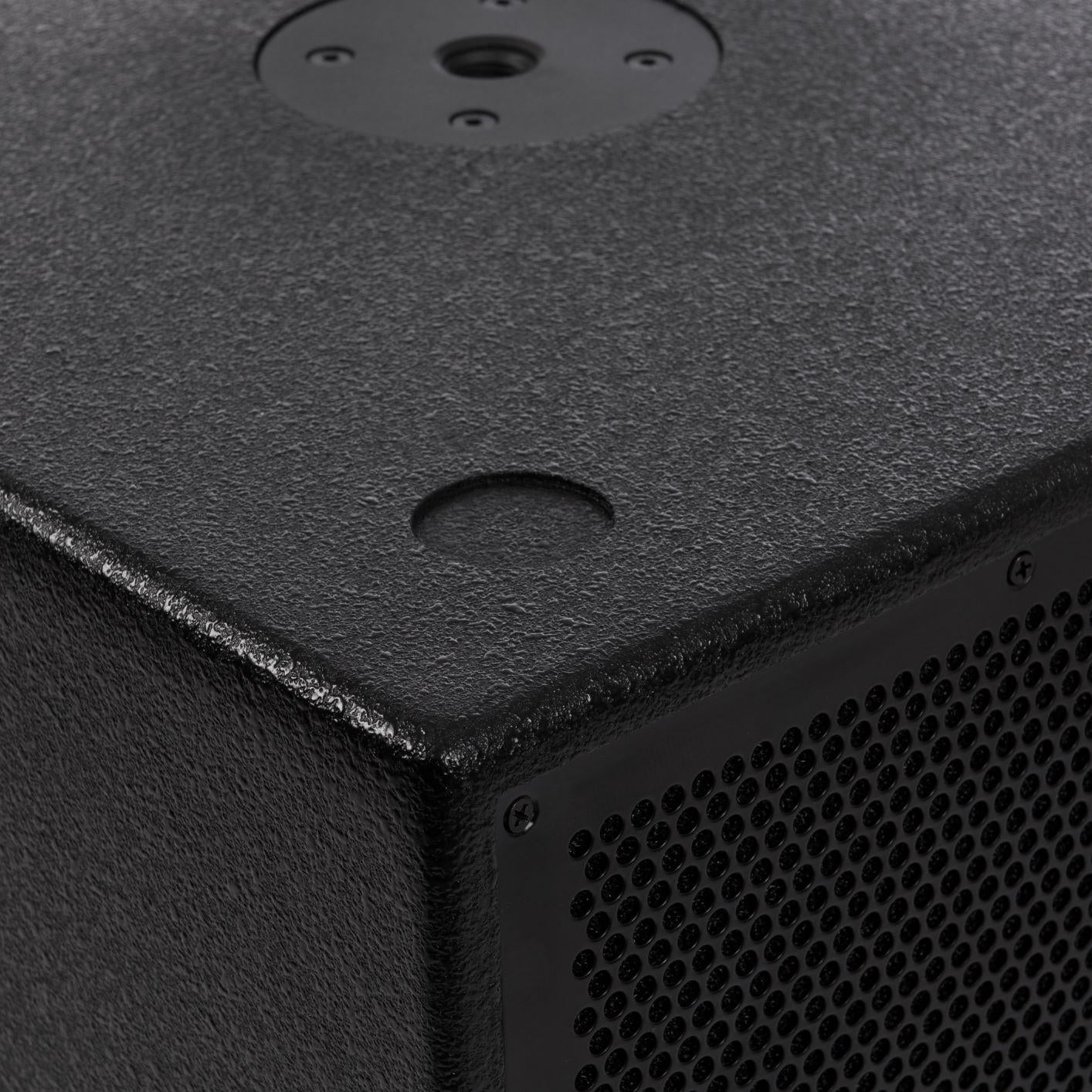

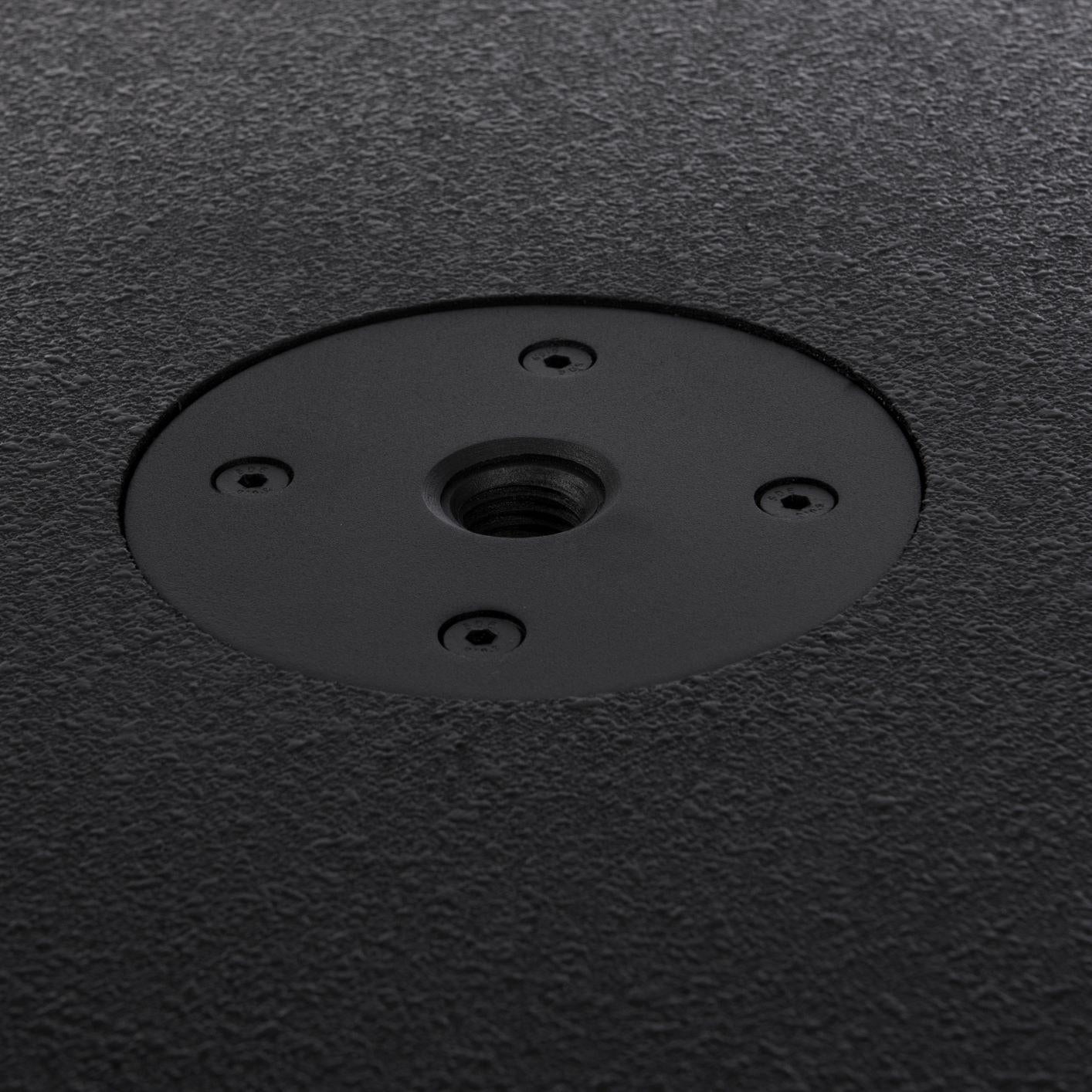

Top hat 20mm threaded Inverted in top of the cabinet for pole mount
Force Factor BL: 20.87 Wb/m
Equivalent Acoustic Volume 219.7 It
Acoustic foam behind grill to prevent water and dust ingression
Grill Powder coated punched steel thick metal
Frequency Range 30~250 Hz
Impedance: 8 Ohm or 4 Ohm (select at time of order)
Max SPL: 134db
Suggested x/over point 105dB
Connections: Speakon connector x 2 (in and out)
Plywood 18mm 13 laminate air pocket free BB Grade sustainably sourced
