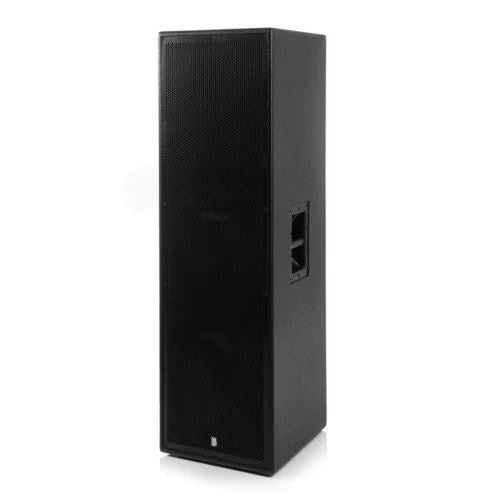

BishopSound Delta Triple 12" Passive Birch Plywood PA Full Range 3-way Speaker Trapezoidal 3X12" 1300W RMS 4 Ohm

DescriptionIf you seek clarity in your music you need the BD312. Originally designed in the 80s by Carlsbro Sound, BishopSound reintroduced this concept in Birch Plywood and to our knowledge, we are the only makers of this configuration. Every customer who has these speakers is full of praise.

Sound engineers feel the BD312 delivers studio sound reproduction "Annie Lennox and Dave Stewart would have loved these when they started gigging as the Eurythmics in 1983" stated one prestigious tour engineer.

The Delta 312 - 1300w RMS (5200w Peak) passive has three 12" 400w RMS Ferrite cast alloy 3" Voice coil, BishopSound drivers sitting one on top of the other, the upper of the three is a subwoofer being fed via a 3 Way crossover so that it handles bass frequencies, leaving the lower two 12" drivers to handle mid-range responsibilities.

This arrangement means that the BD312 has imposing bass properties in its own right, although if you need ultra bass for big venues you can get a stunning set-up by pairing a 312 with our 15" or 18" subs. But what is really different about the Delta 312 is what it does to the mid-range and the fantastic effect this can have for both live bands and DJs. Fast to set up, simply Plug and Play.

Made in Britain from 100% 15mm Birch 13-Ply Plywood for exceptional strength and audio reproduction the clarity of these speakers never ceases to amaze audiences and are easy to carry and transport.

Purpose-made "stage risers" (plinths) are available on request.
Technical SpecificationsProduct Weight
37kg
Product Depth
38cm
Product Height
122cm
Product Width
35cm
RMS
1300
Peak Power
5200
LF
Purpose designed ferrite cast alloy 12"
Handling
Balanced handles therefore a simple "One Person Lift"
Horn dispersion
60° x 120°
Plywood
15mm9 laminate air pocket free BB grade Birch plywood from a sustainable source
Nominal Impedance:
4 Ohms
Connections

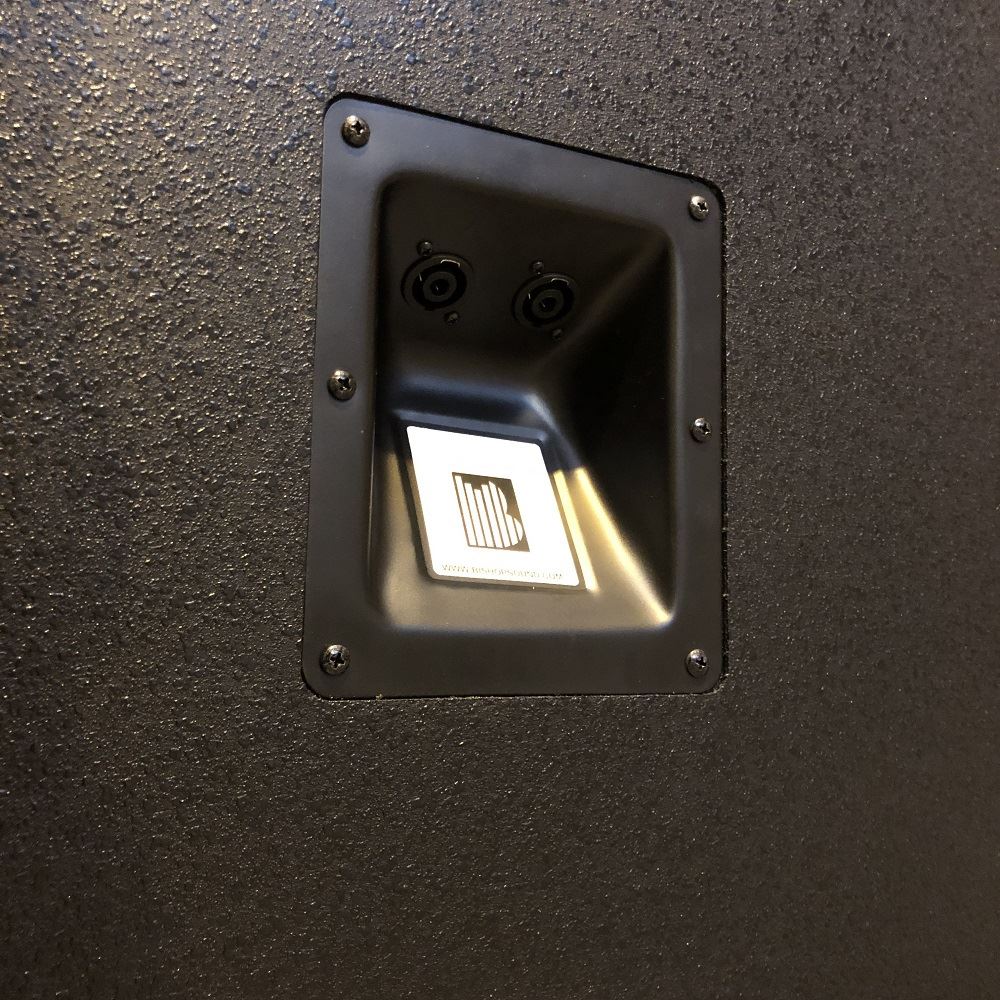

2 x In/Out Upward facing NL4 Speakon Sockets to Stop Water Ingression
Frequency Response:
45Hz - 20kHz
Crossover
3-way Protection Crossover fused with a lamp
Easy Lift Handles:
2 x Steel Acrylic coated enamel, black
Grille:
3mm metal powder coated grill backed with black acoustic foam
Max SPL
136dB
Style
Trapezoidal, 15mm Plywood enclosure
