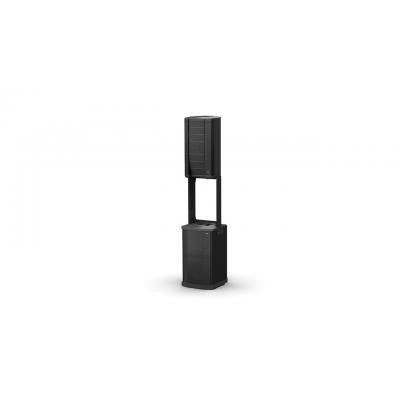

Bose F1 Model 812 Array Loudspeaker and F1 Subwoofer Stereo System

Bose F1 Model 812 Flexible Array Loudspeaker
The performance you deserve
Thanks to its innovative design, the F1 Model 812 ensures that every aspect of your sound is reproduced with astounding detail. A unique crossover design with a lower crossover point makes sure that vocals are delivered with the upmost clarity. Whilst shimmering highs and a warm, full midrange give you a rich and balanced sound across the entire audio frequency spectrum.

It's time to get flexible

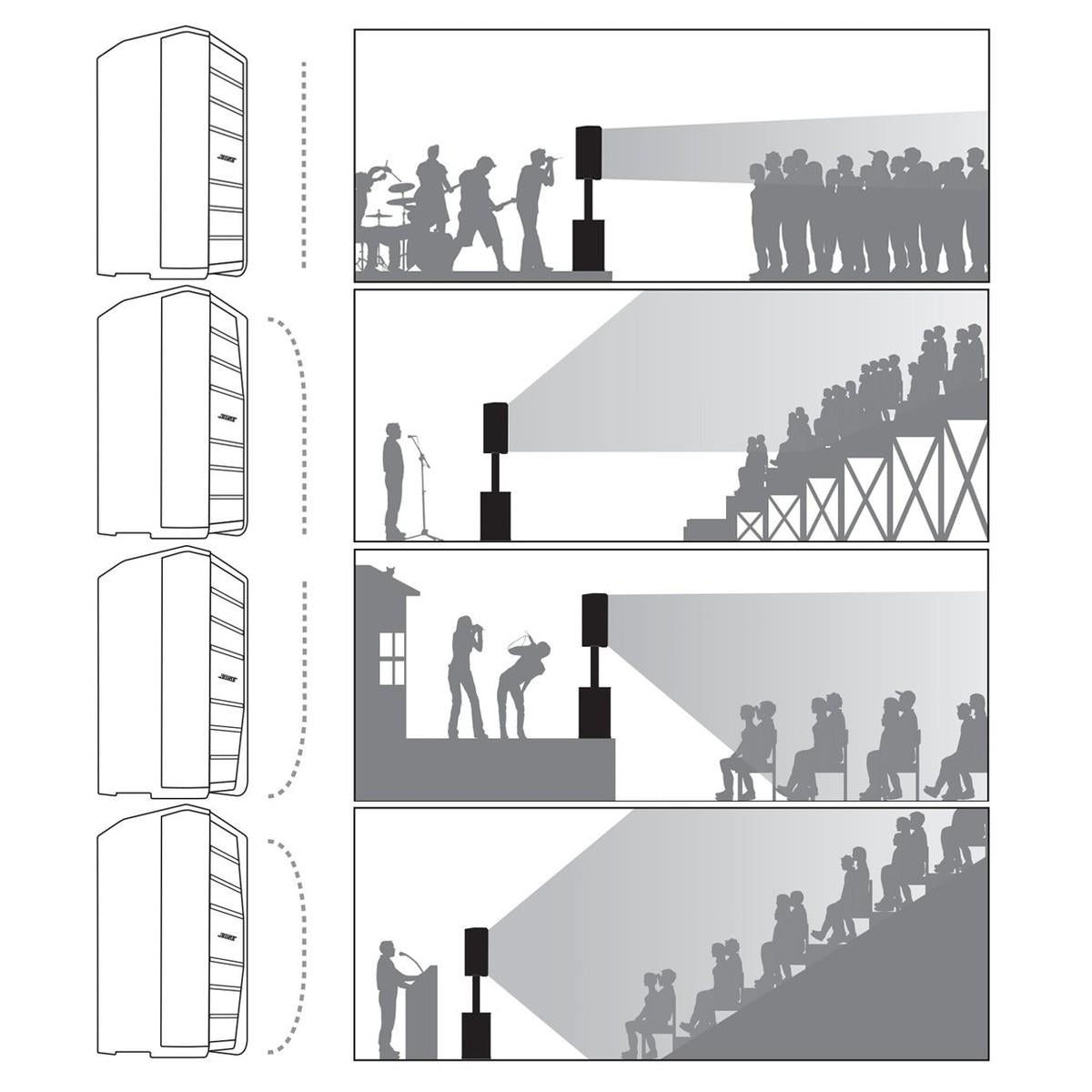

The F1 Model 812 has been built to adapt to any situation, so you can be ready for anything the world throws at you thanks to its unique Flexible Array technology. All you need to do is simply push or pull the speaker's array into the desired position, and you can create an optimised coverage pattern for any situation. There are four patterns to choose from - Straight, J, Reverse J, and C. You move the array into position, and the speaker will do the rest. A powerful automatic EQ system will adjust itself based on the position of your array, so your tonal balance remains optimised for each and every pattern.

Bose F1 High Performance Subwoofer
Pack a punch
Looking to extend the low-end of your Bose F1 system? You're in the right place. The Bose F1 Subwoofer is the ultimate choice for enhancing the bass performance of your PA system. With two 10'' high-excursion drivers in a precision-crafted, ultra-lightweight enclosure driven by a 1000W amplifier module, you can add phenomenal impact and definition to your sound.

Built for systems
When pairing with the F1 Model 812 Flexible Array Loudspeaker, simply raise the integrated extension bracket for quick and easy stacking. All without the need for an extra speaker pole or tripod stand. It's simple to build a professional system that gives you the performance you deserve.

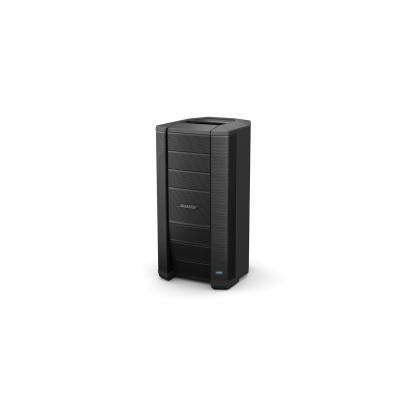

Bose F1 Model 812 Flexible Array Loudspeaker
Powerful full-range loudspeaker
132dB peak SPL with LF performance own to 43Hz (-10dB)
Portable standalone design with integrated 1000W amplifier

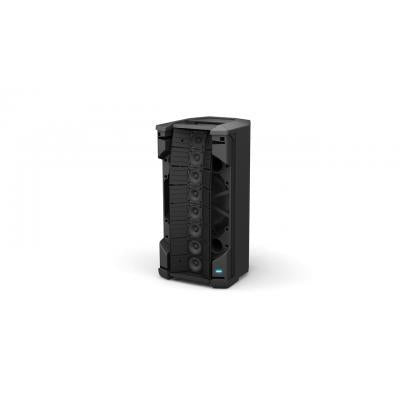

Nine transducers - 8 x high-output drivers and 1 x 12" high-powered woofer
Lower crossover point thank conventional loudspeakers
Clear and natural vocal reproduction, even at high volumes

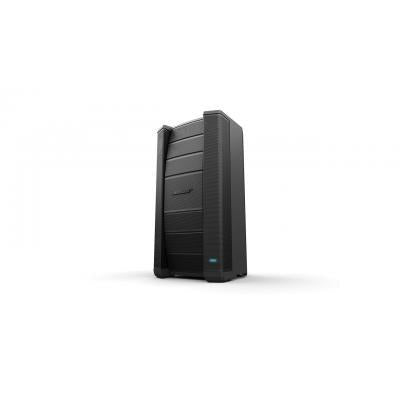

Flexible Array technology lets you easily adjust the coverage pattern
Straight, C, J, or Reverse J configurations for different spaces
Suitable for floor level, on stage, for raked seating or stands, and more
Automatic EQ adjusts to maintain the optimum tonal balance for each coverage pattern
Built-in handles for easy transport
Compatible with standard 35mm speaker stands

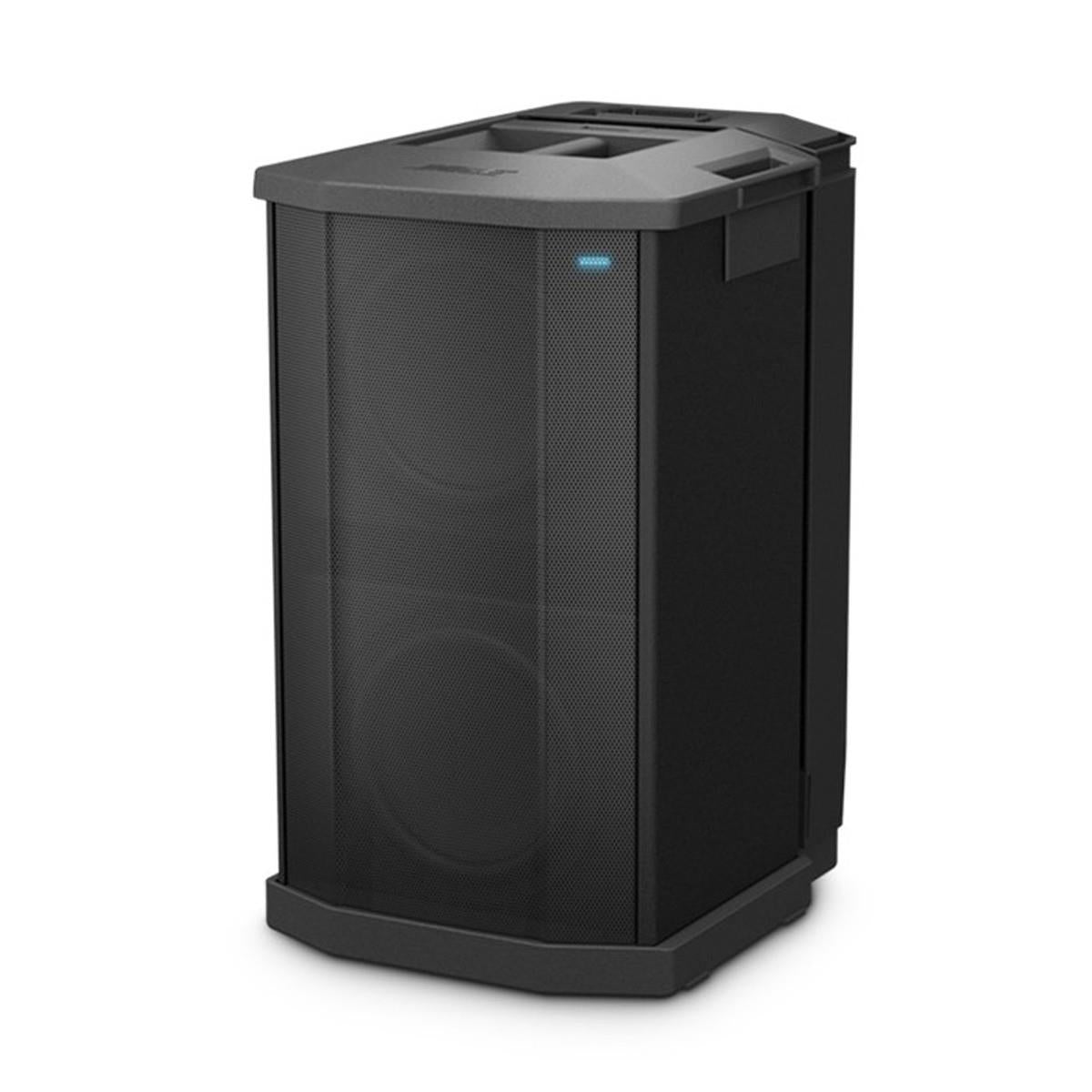

Bose F1 High Performance Subwoofer
1000W subwoofer from the revered Bose F1 family
All the performance of a large subwoofer in a much more compact design
Two 10'' high-excursion drivers inside a lightweight, portable enclosure
Polarity switch with NORM and REV options for correcting LF overlaps
Lint output EQ sets the output to a high-pass filter or full-range
Easy crossover selection when used with your main loudspeaker
Ideal for bands, solo musicians, DJs, venues, presentations, and more
Extension bracket integrated into the subwoofer eliminates the need for poles or tripods

Specifications
Bose F1 Model 812 Flexible Array Loudspeaker
Frequency Response: 52 Hz - 16 kHz (-3 dB)
Frequency Range: 43 Hz - 20 kHz (-10 dB)
Nominal Dispersion: C: 100° x 40° (H x V)
Maximum SPL: 132 dB (peak) at 1 m
Rated Power: 1000 W
Construction: High-impact composite materials
Power Supply: 100-240 V, 50/60 Hz
Dimensions: 665 mm x 334 mm x 373 mm (H x W x D)
Weight: 20.18 kg
Product Code: 731419-2110
Bose F1 High Performance Subwoofer
Frequency Response: 40 Hz - 250 Hz (-3 dB)
Frequency Range: 38 Hz - 250 Hz (-10 dB)
Maximum SPL: 130 dB (peak 6 dB CF) at 1 m
Crossover Frequency: 40-100 Hz Butterworth bandpass, 100 Hz 4th order Butterworth HPF at Line Out
System Power: 1000 W (0.1-percent max distortion at rated power, 30 Hz - 15 kHz)
Limiter: Dynamic
Transducers: 2 x 10'' high-excursion drivers

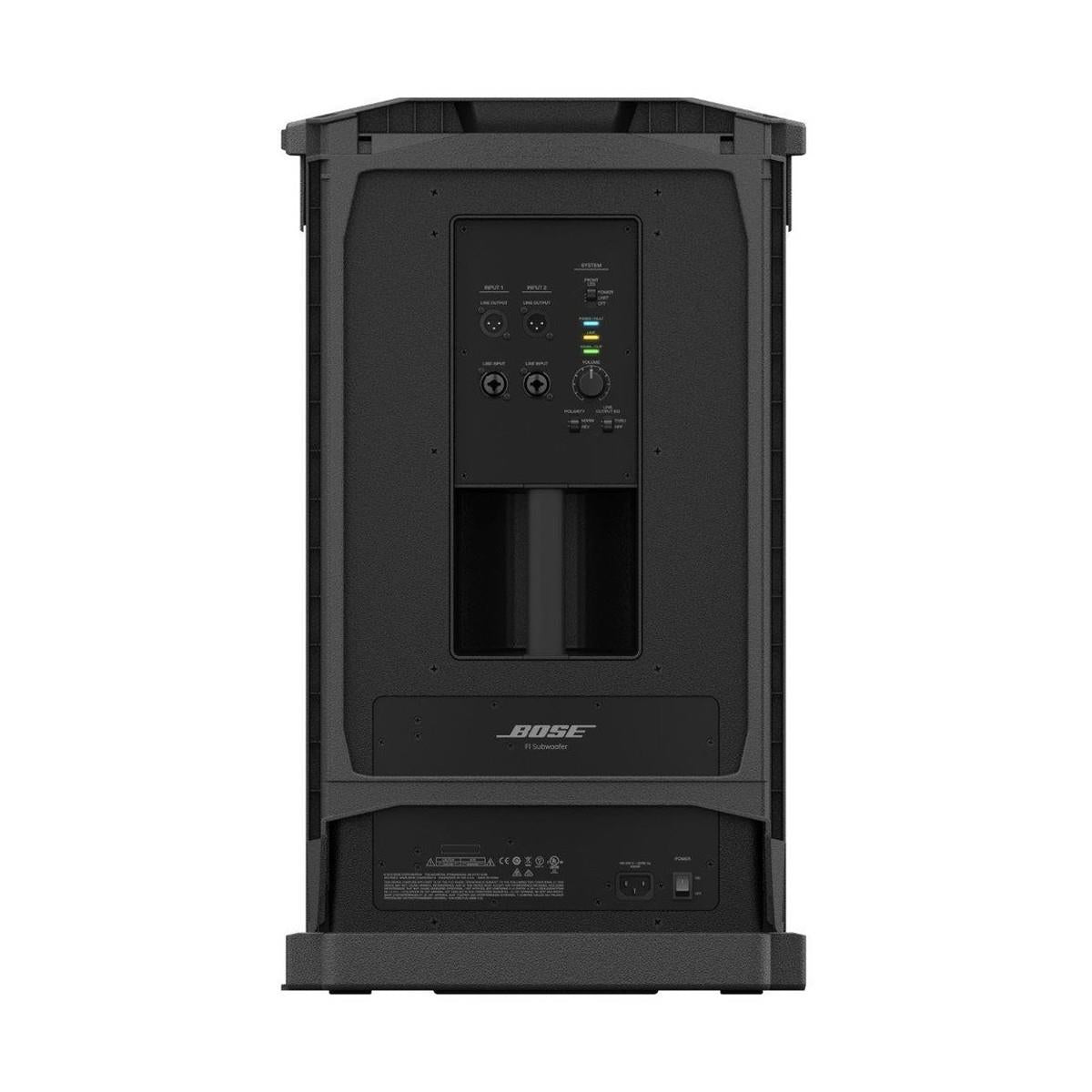

Input Connections: 2 x XLR-1/4'' combo

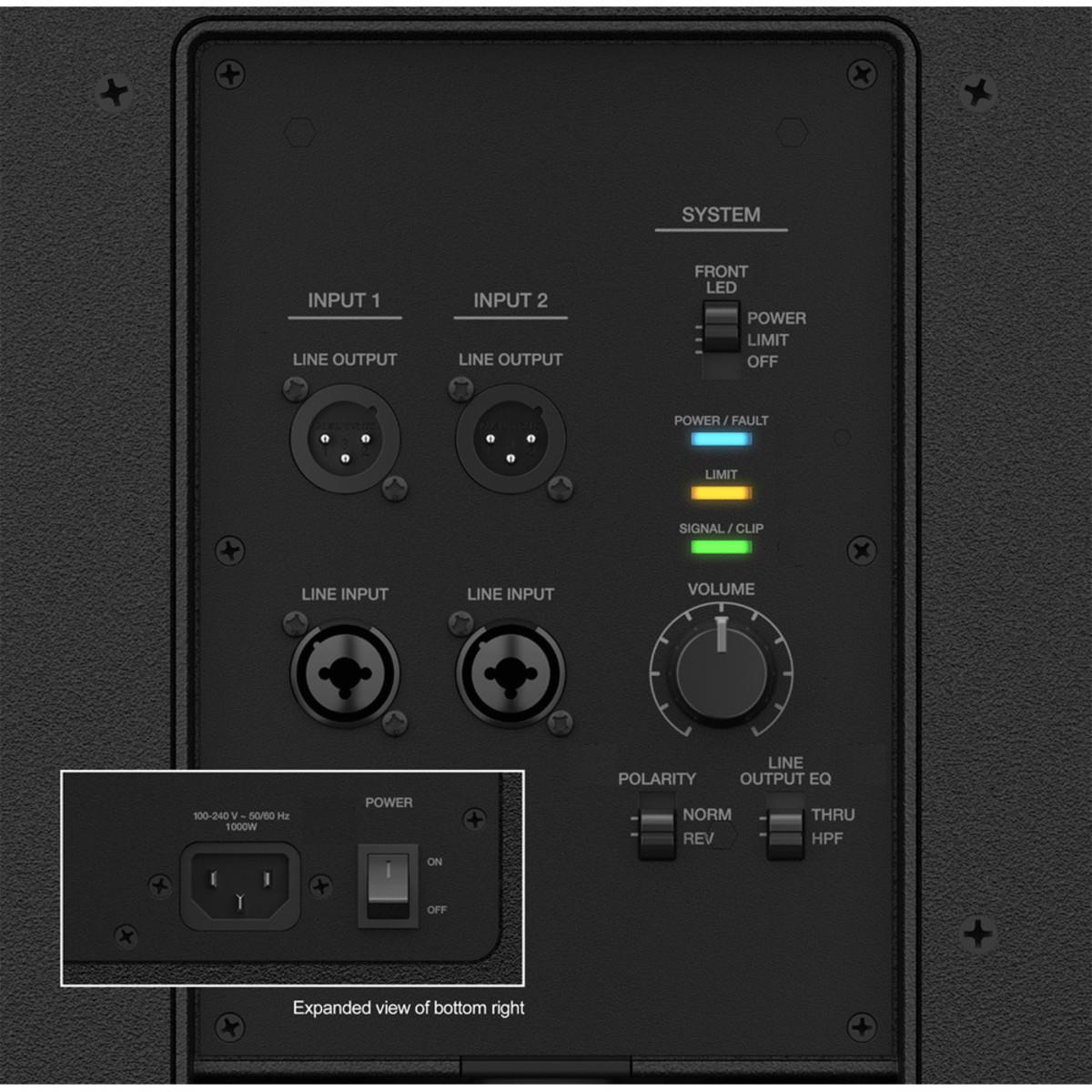

Controls: Volume level, Front LED function select, Power ON/OFF, Polarity select, Line output EQ
Output: XLR, balanced
Enclosure: Wood cabinet with high-impact composite end caps
Grille: Powder-coated perforated steel
Power Supply: 100-240 V, 50/60 Hz
Dimensions: 688 mm x 410.16 mm x 448.5 mm (H x W x D)
Weight: 24.9 kg
Product Code: 731444-2110
