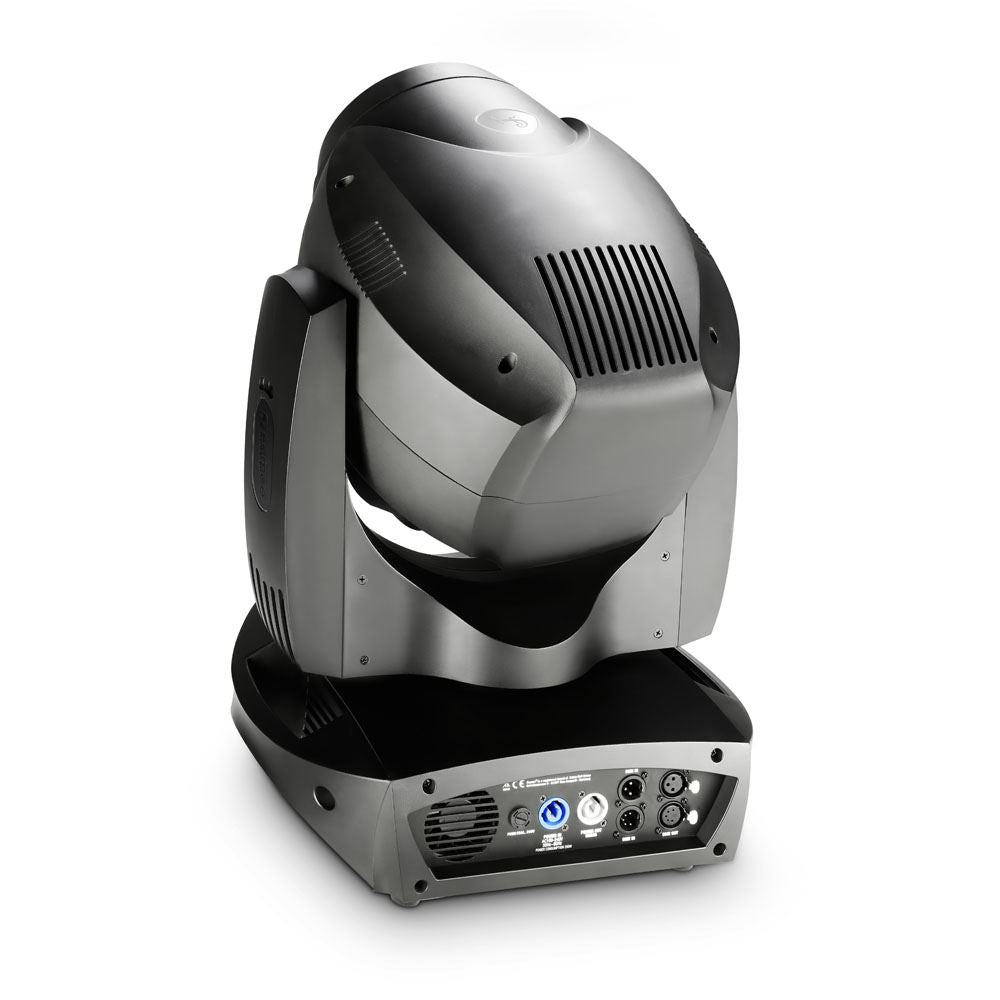

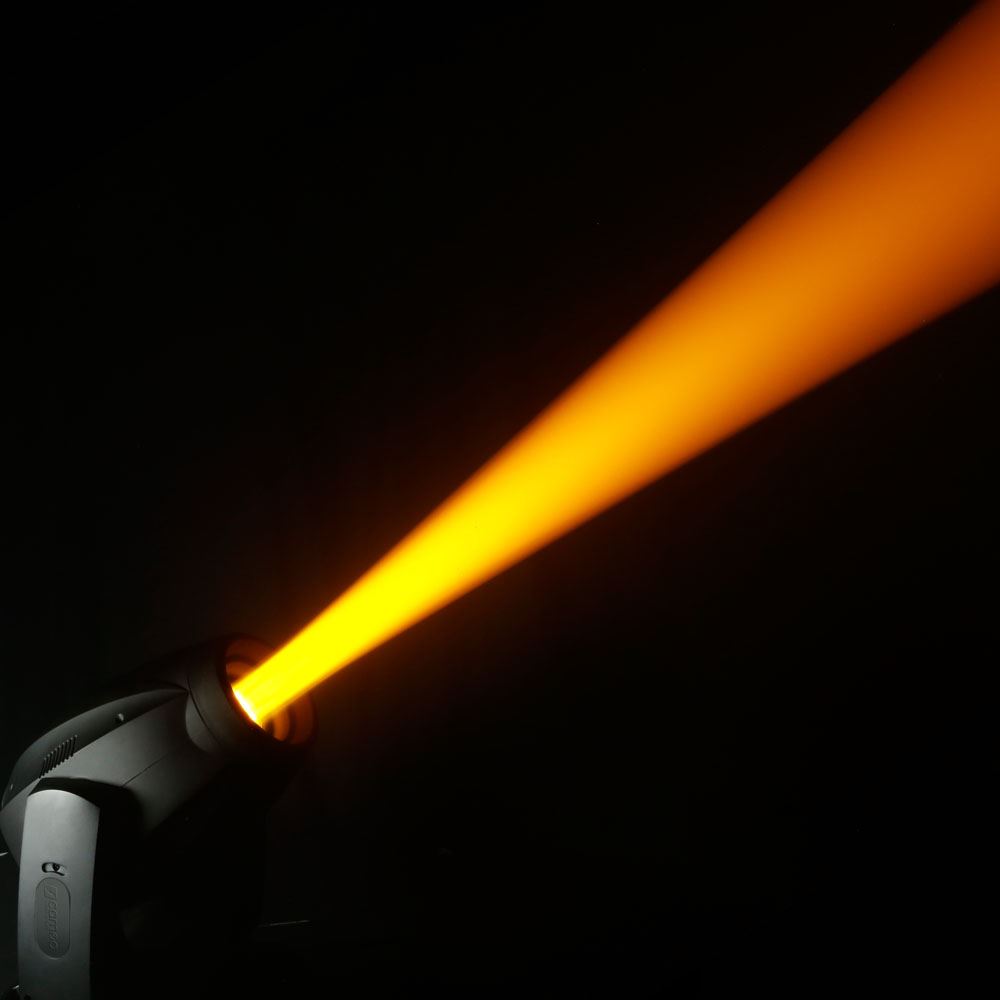

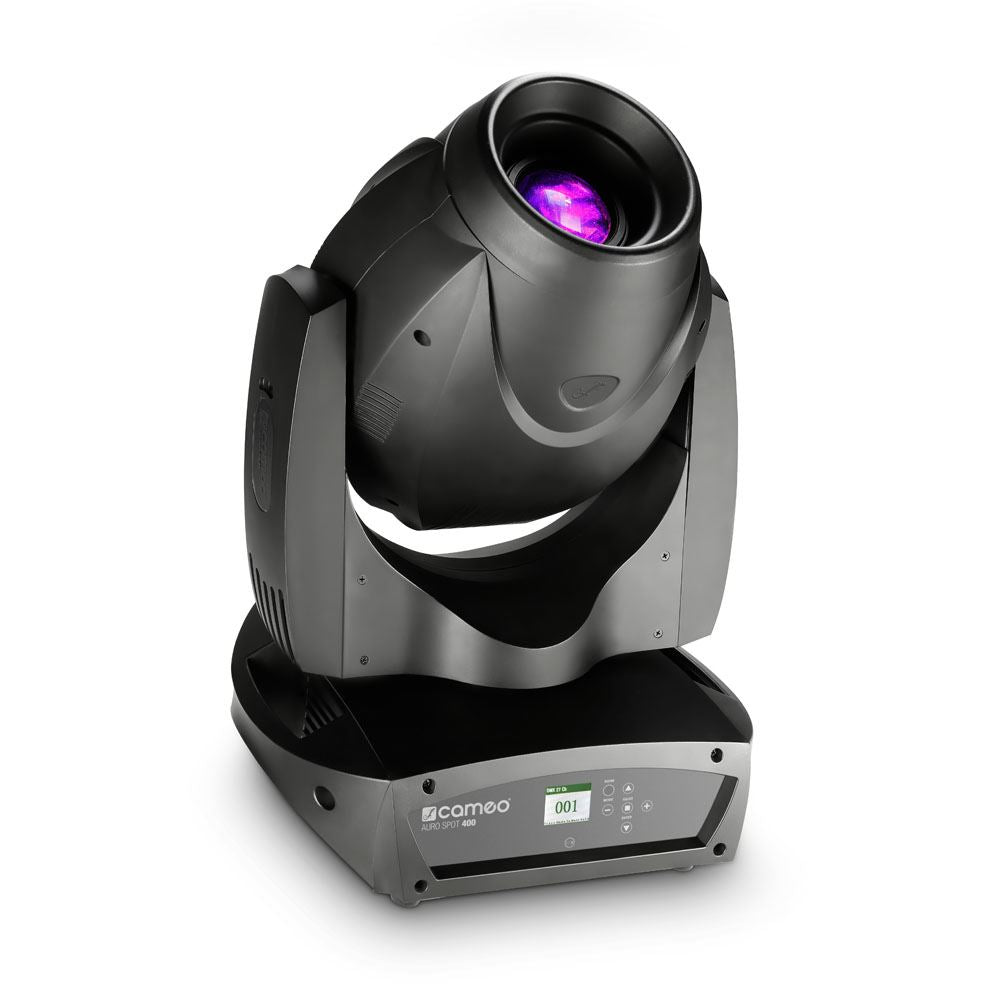

Cameo AUROA SPOT 400 LED Moving Head

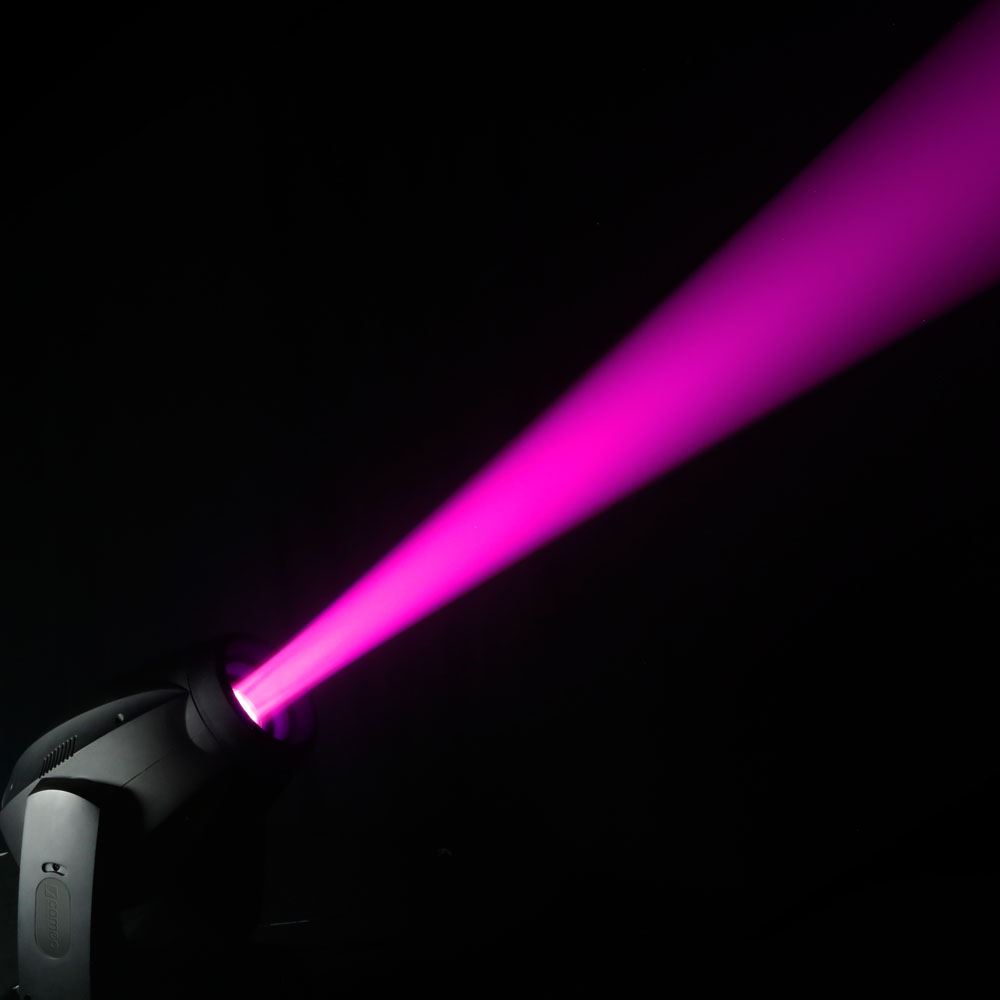

Featuring 16-bit resolution and high speed 3-phase motors for 630° pan and 230° tilt,the Cameo AUROA SPOT 400 is a professional moving head with RDM capability and powerful, ultra bright single LED. The fixture sports 2 gobo wheels, rotating and fixed gobos, 2 colour wheels and a choice of 3 rotating prisms enabling spectacular lighting and stunning effects with 12 intense colours, split colours and two temperatures of white.

The AUROA SPOT 400 provides 5-channel, 19-channel and 27-channel DMX control and auto programs , so that operation as master, slave and standalone is possible. Functions include motorized focus, frost filter, a choice of 4 smooth dimming curves, shake effects and a fast 0 - 20 Hz cycle strobe.

The heavy-duty compound enclosure integrates a battery-powered 6-button display that allows convenient offline configuration, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON connectors and a temperature-controlled low-noise fan. The multi- voltage AUROA SPOT 400 runs on 100 - 240 V AC.

Features
RDM-capable moving head with high-power single LED
200,000 lx @ 1 m, 4470 lm
High-speed 3-phase motors
Motor focus, pan and tilt with 16-bit resolution
Automatic positioning correction
2 colour wheels, 12 colours, split colours, warm and cold white plus open

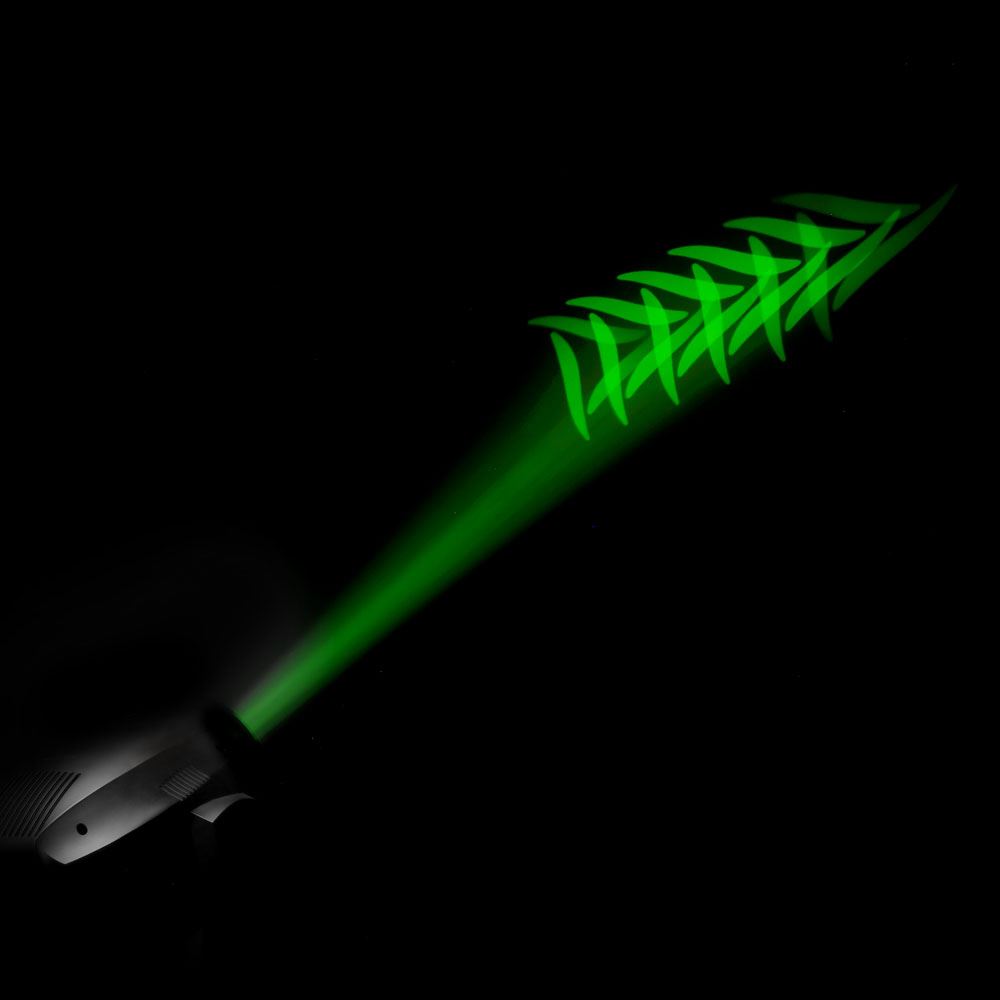

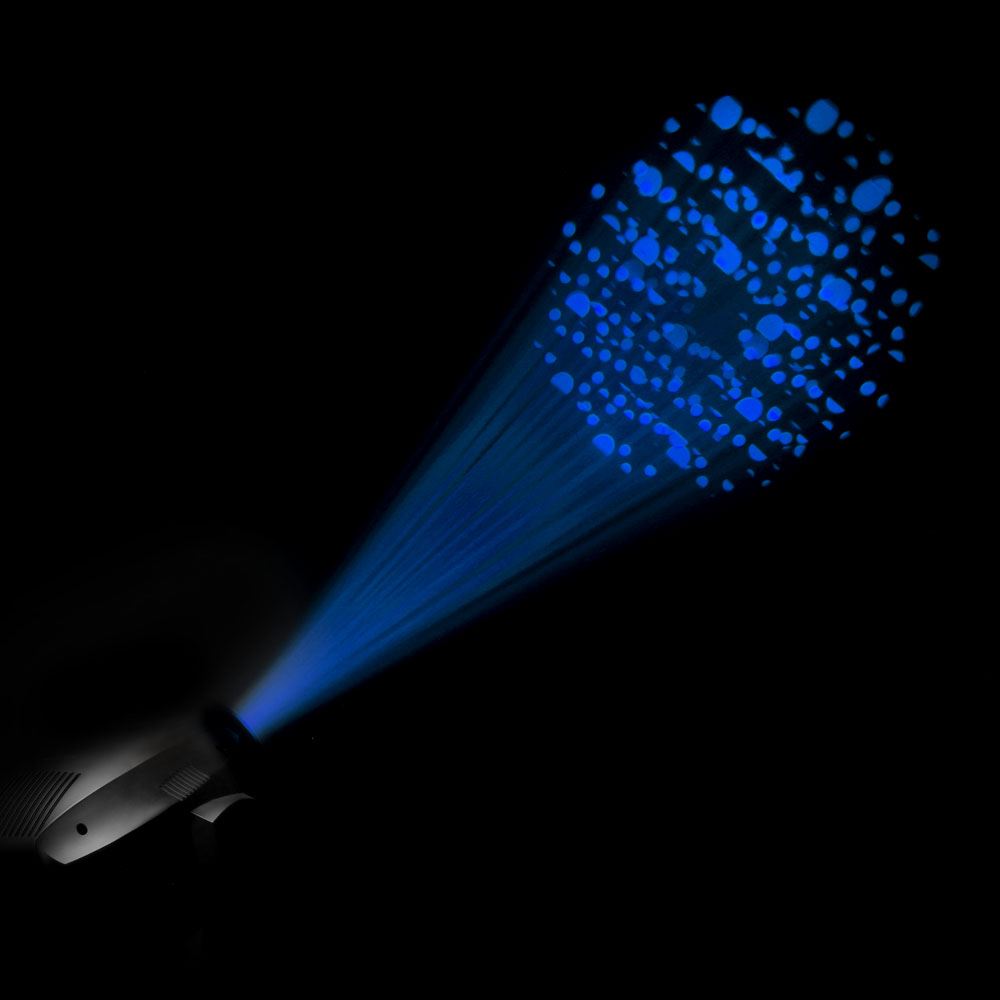

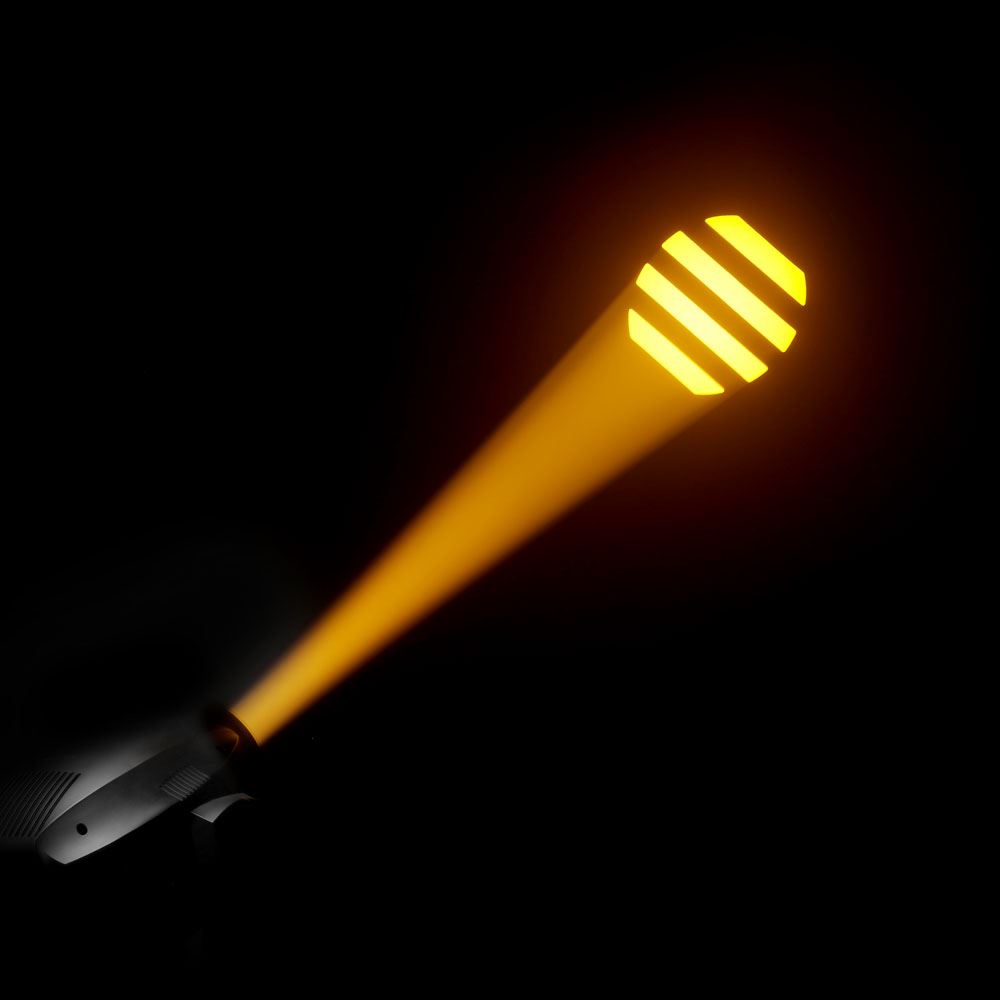

2 gobo wheels, 7 rotating, 9 fixed gobos plus open
Frost filter

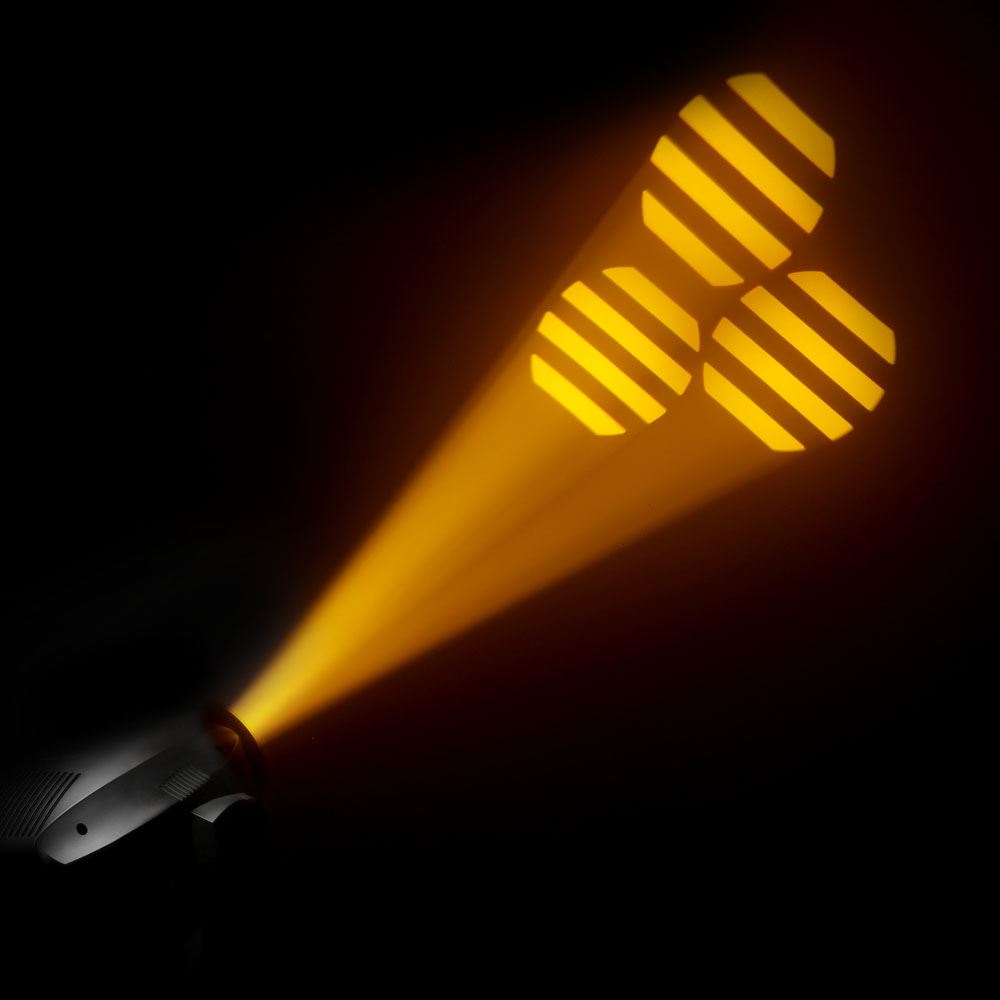

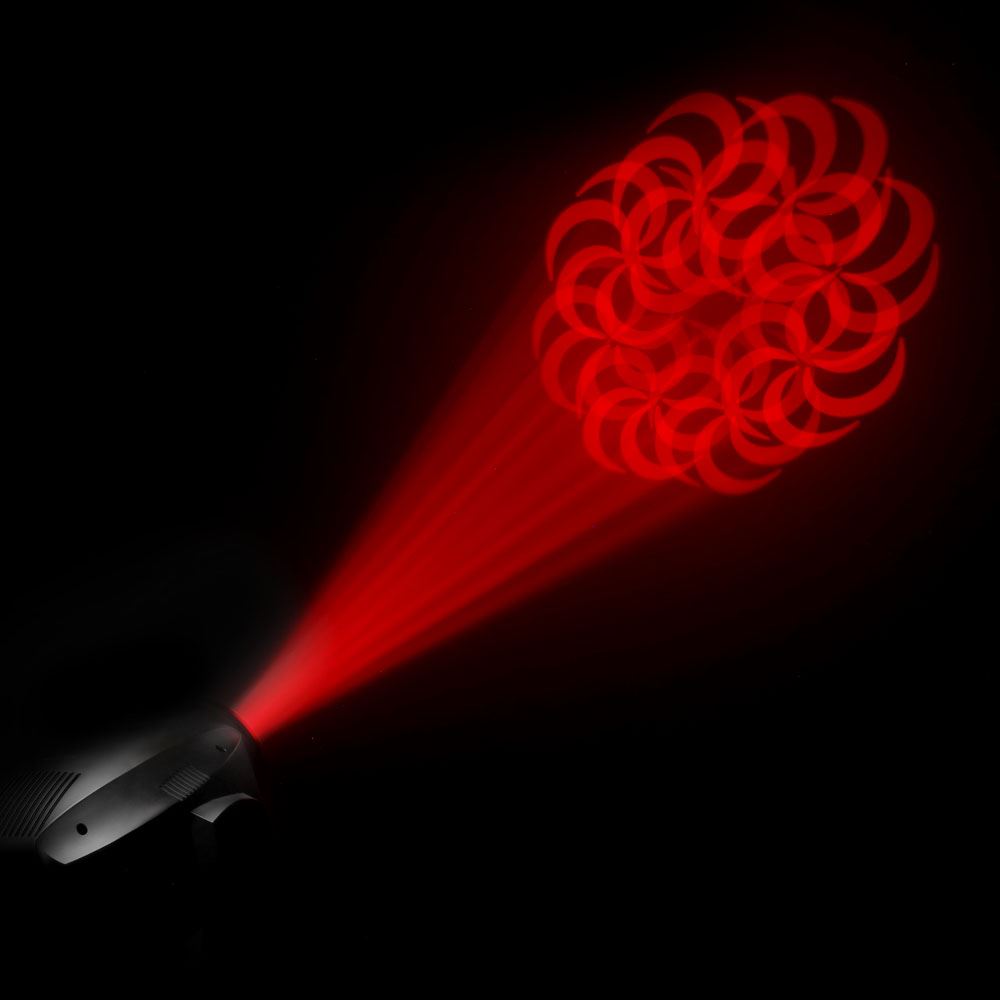

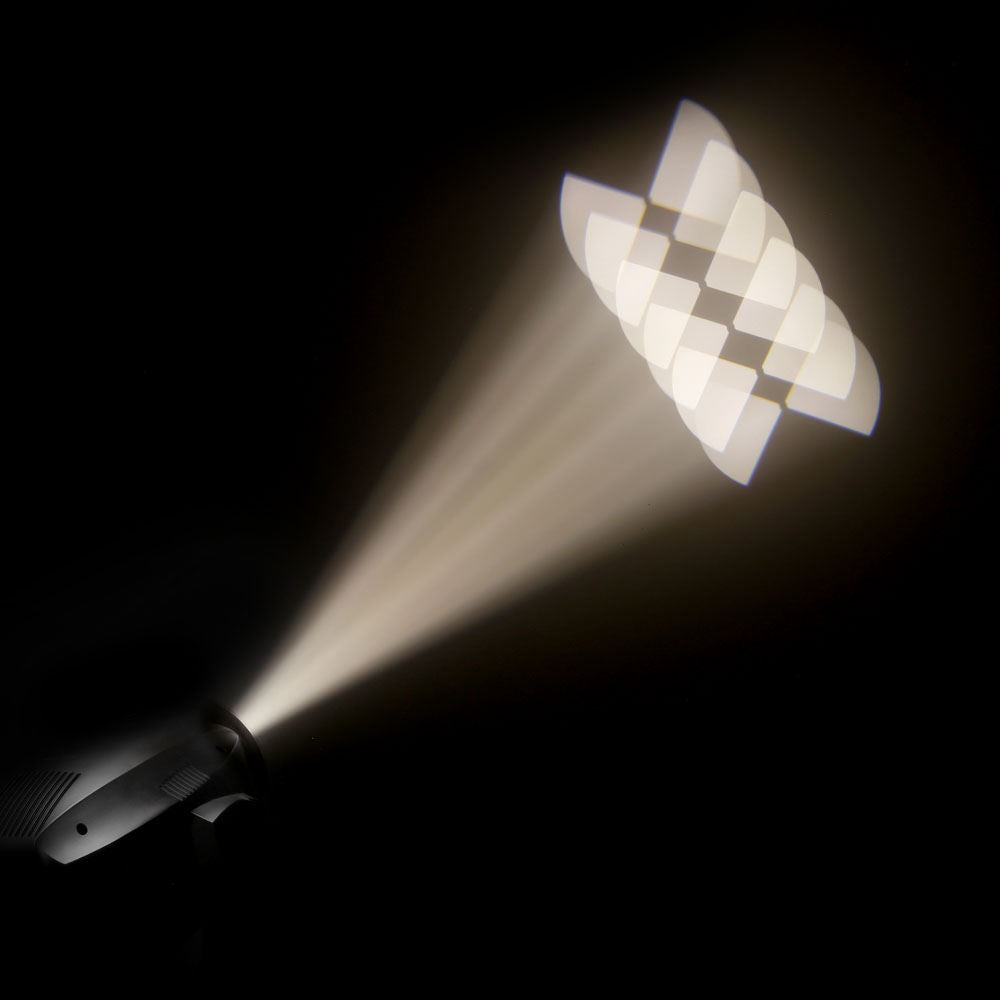

Rotating 3, 5 and 8-facet prisms
0 - 20 Hz strobe
Smooth 100 - 0% dimming with 4 selectable curves
Temperature controlled low-noise fan

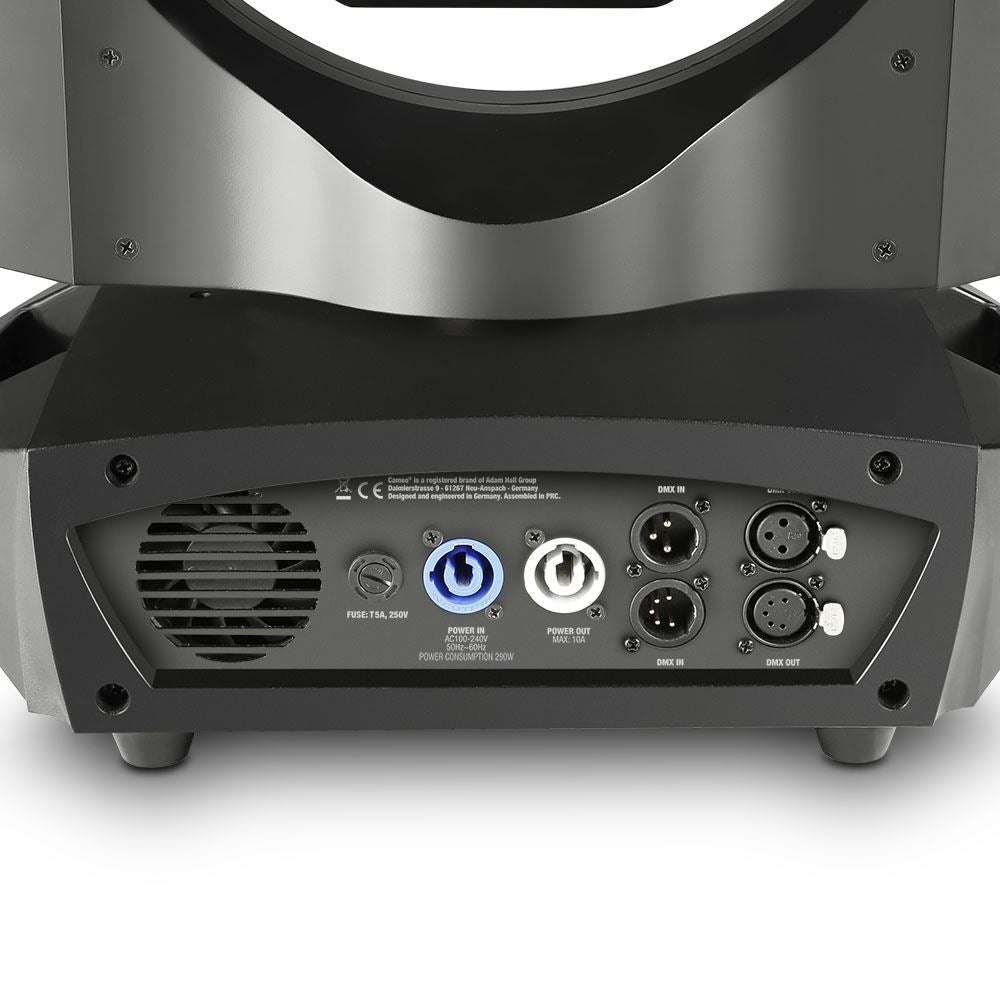

3 and 5-pin DMX and Neutrik powerCON inputs and outputs

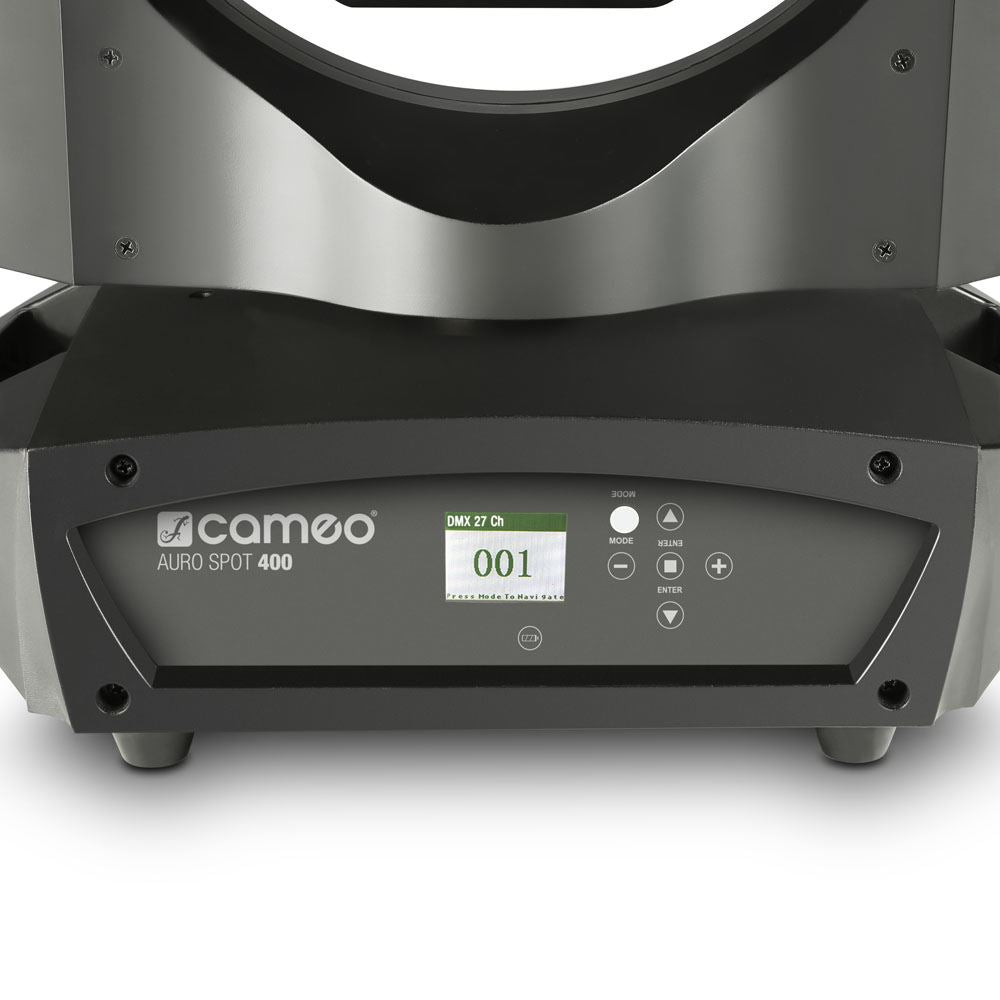

Battery powered 6-button display for offline configuration

Specifications
Product type: LED Moving Lights
Type: Moving Head
Colour spectrum: cold white
Number of LEDs: 1
Colour temperature: 9300 K
LED type: 180 W
Refresh rate: 3600 Hz
Dispersion: 12°
Number of gobos: 16
Gobo Size: Exterior Diameter: 20.4 mm - Motif: 16.5 mm
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 19-channel, 27-channel, 5-channel
DMX Functions: 3 x Prism, Auto programs, Colour wheel, Dimmer, Dimmer Curves, Focus, Frost, Gobo Rotation, Gobo Shake, Gobo wheel, Motion Macro, Pan/Tilt, Pan/Tilt fine, Stroboscope
PAN movement: 540° / 630°
TILT movement: 230°
Standalone modes: Auto programs, Master/Slave Mode, Static Mode
Controls: -, +, Battery Display, Down, Enter, Mode, Up
Indicators: colour LC display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 290 W
Power connector: Neutrik PowerCon
Housing material: ABS, metal
Cabinet colour: Black
Cooling: temperature-controlled fan
Illuminance: 200000lx @ 1m
Luminous flux: 4470 lm
Width: 405 mm
Height: 565 mm
Depth: 285 mm
Weight: 16 kg

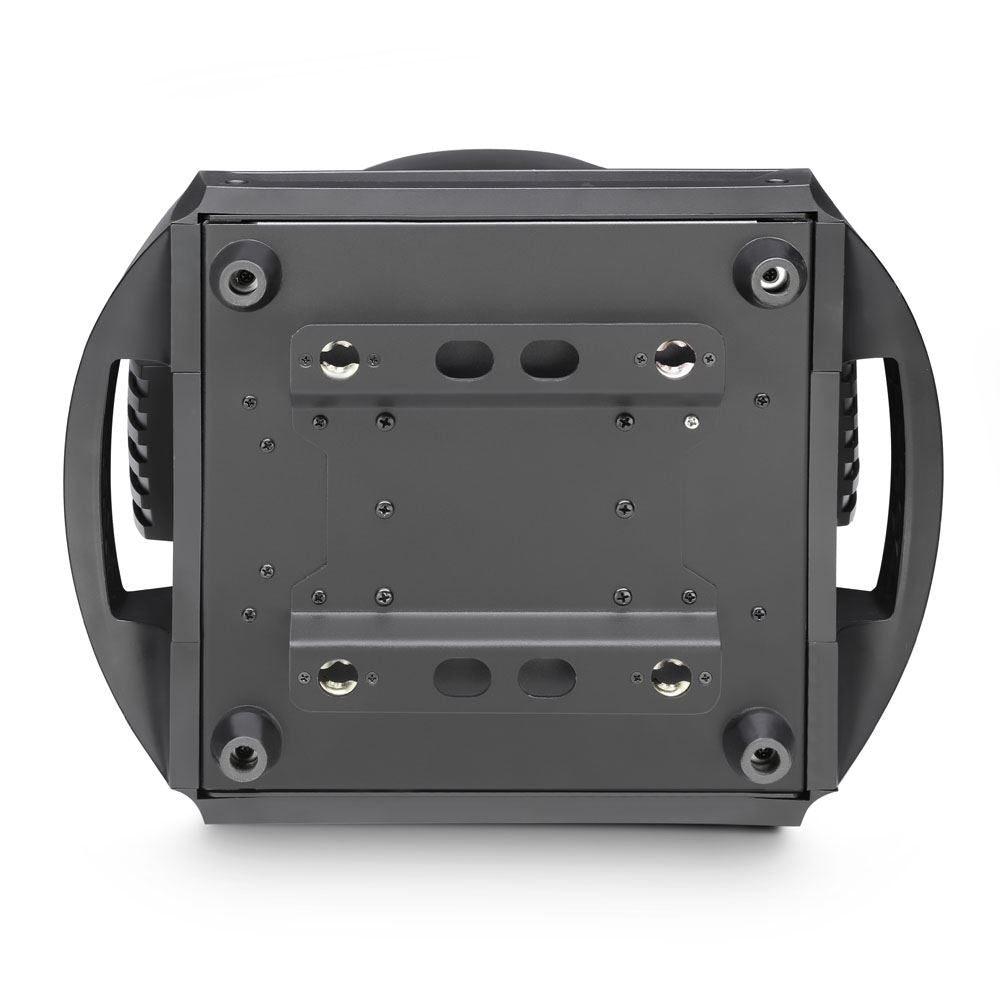

Features: 1m power cable with Neutrik powerCON connector, 2 x omega mounting
