Cameo PIXBAR 400 PRO Professional 12 x 8 W RGBW LED Bar

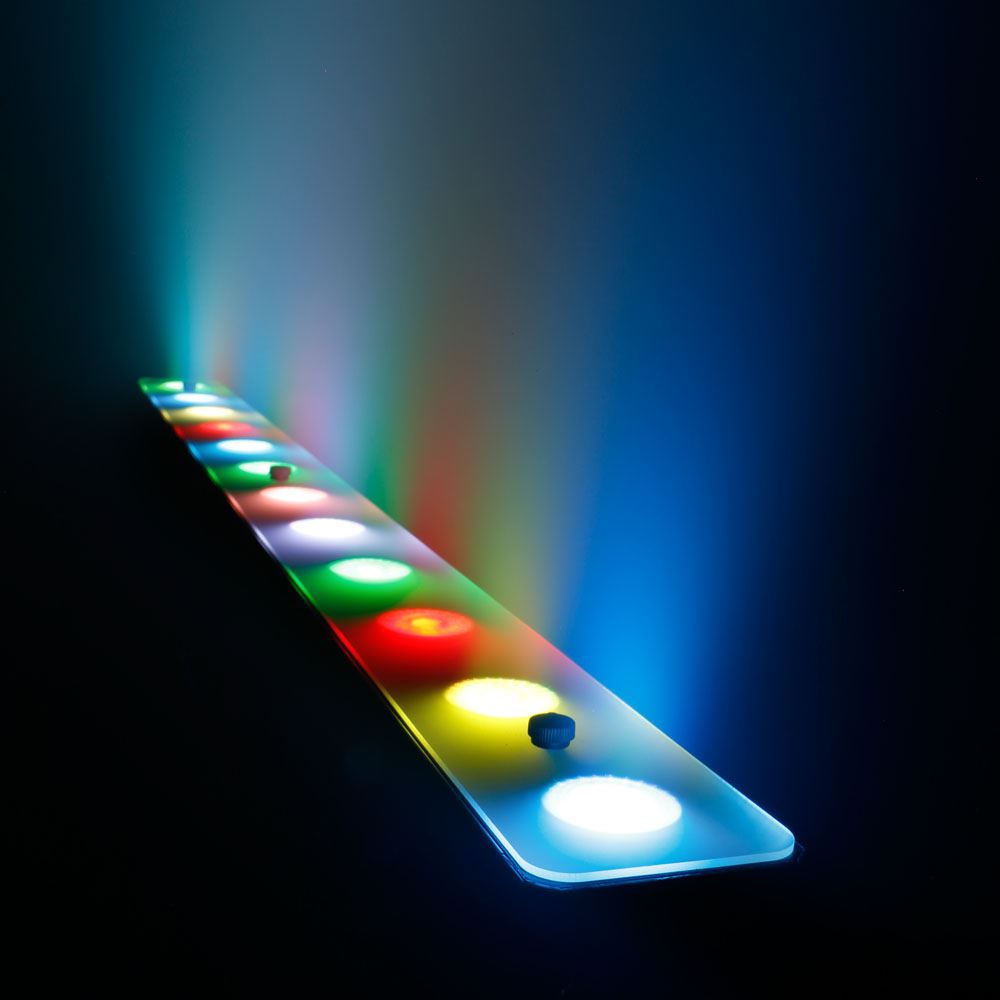

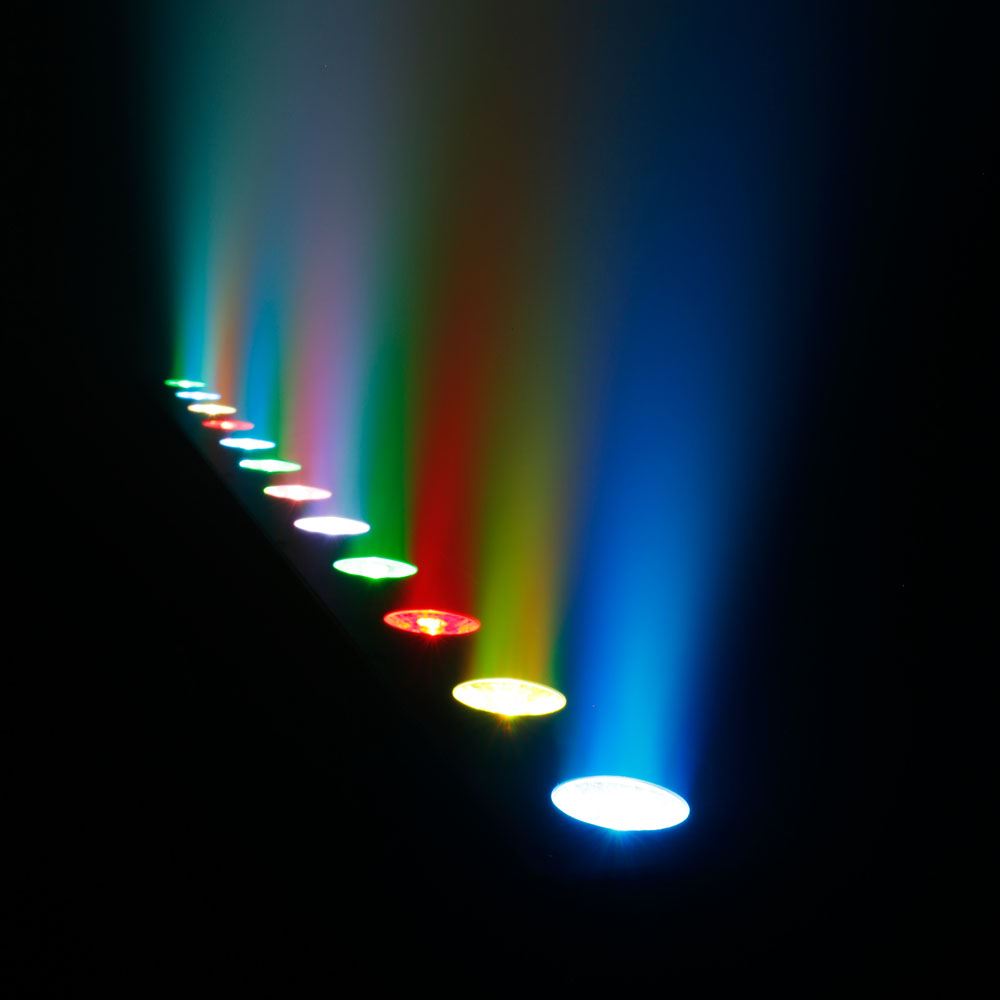

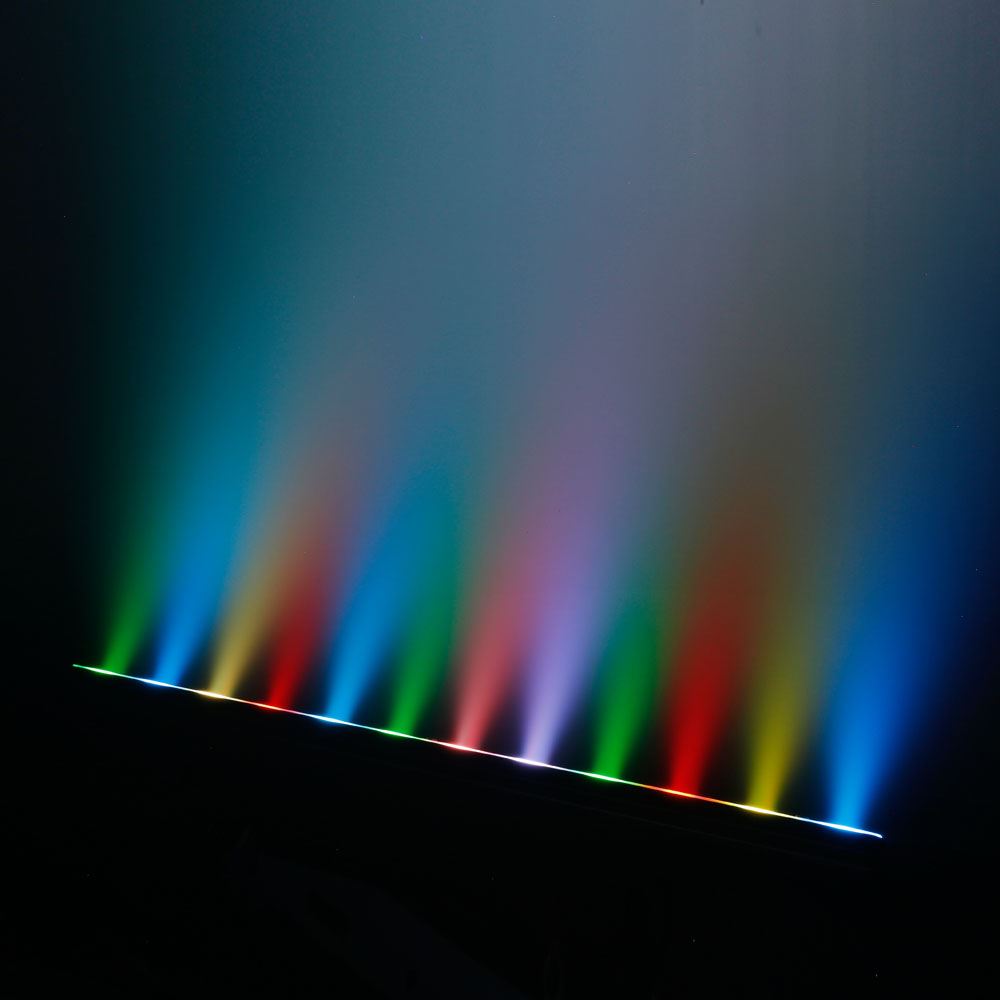

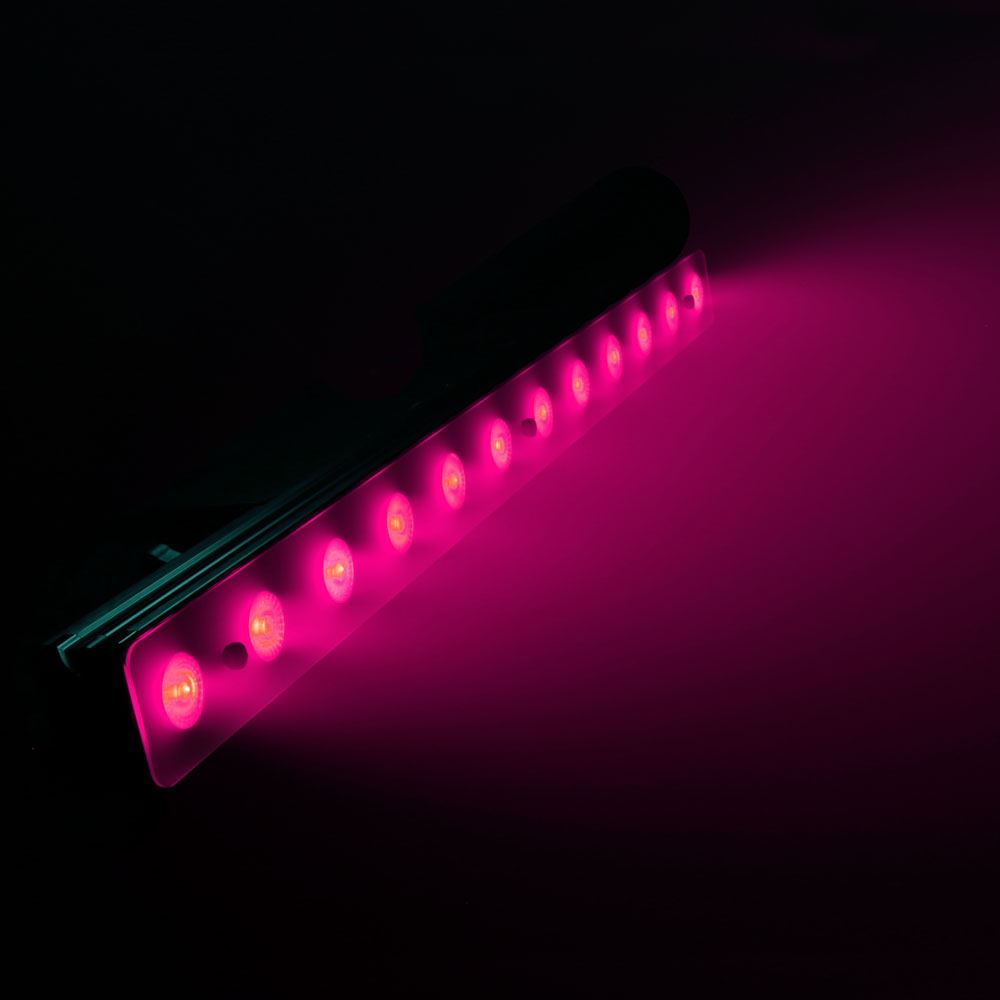

The Cameo PixBar 400 PRO is a professional LED bar with 12 ultra bright 8 watt Quad-LEDs and RDM compatibility enabling bi-directional communication. It provides vibrant RGBW colour mixes, 4 selectable dimming curves, macros calibrated to the LEE filters standard and single pixel control for stunning chase effects.

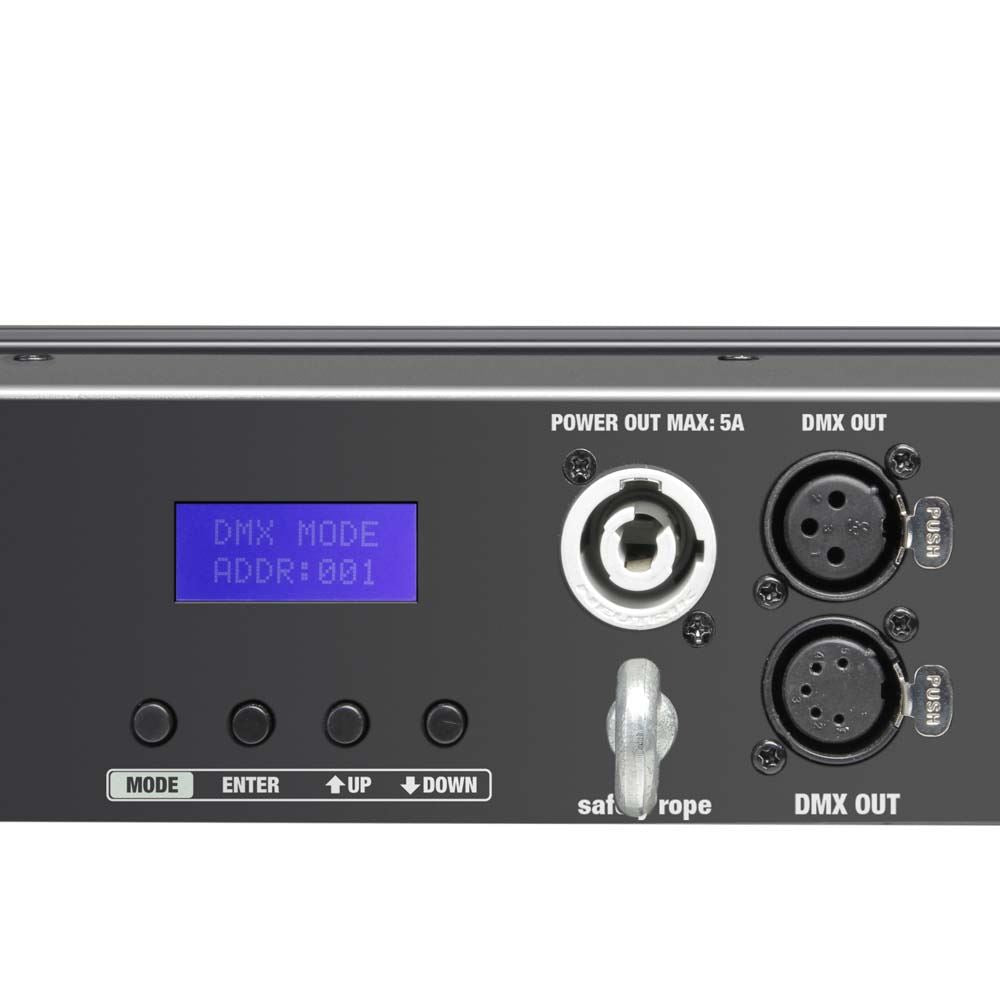

Attached to a dedicated controller the RDM protocol enhancement allows convenient addressing, configuration and status monitoring of the PixBar 400 PRO. The fixture is also capable of standard DMX control in 7 modes and standalone, master or slave operation. It features autorun software, a built-in microphone for music control and a backlit display with Mode, Enter, Up and Down keys for manual control.

With highly efficient convection cooling the PixBar 400 PRO is absolutely noiseless, and the 3,000 Hz refresh rate ensures flicker free performance. Additional features of the fixture are colour temperature correction and 3 temperatures of white: warm white, white, cool white.

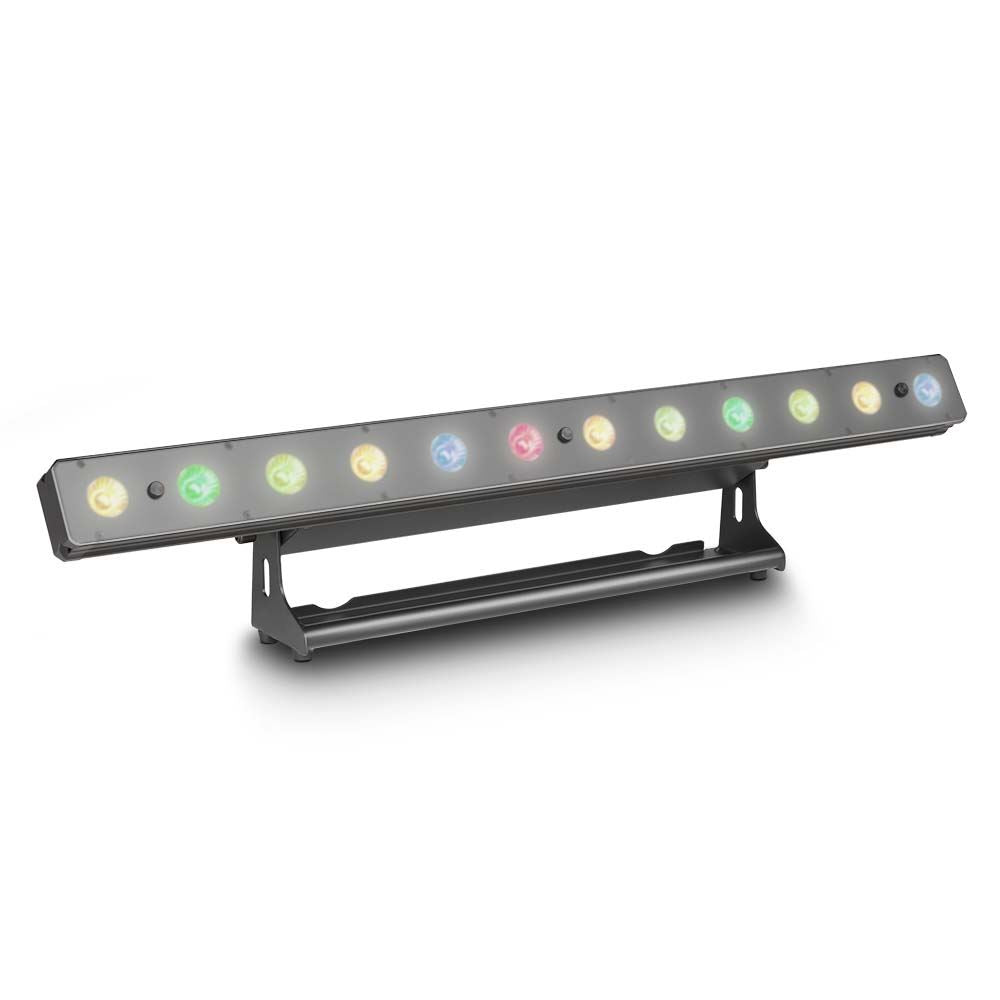

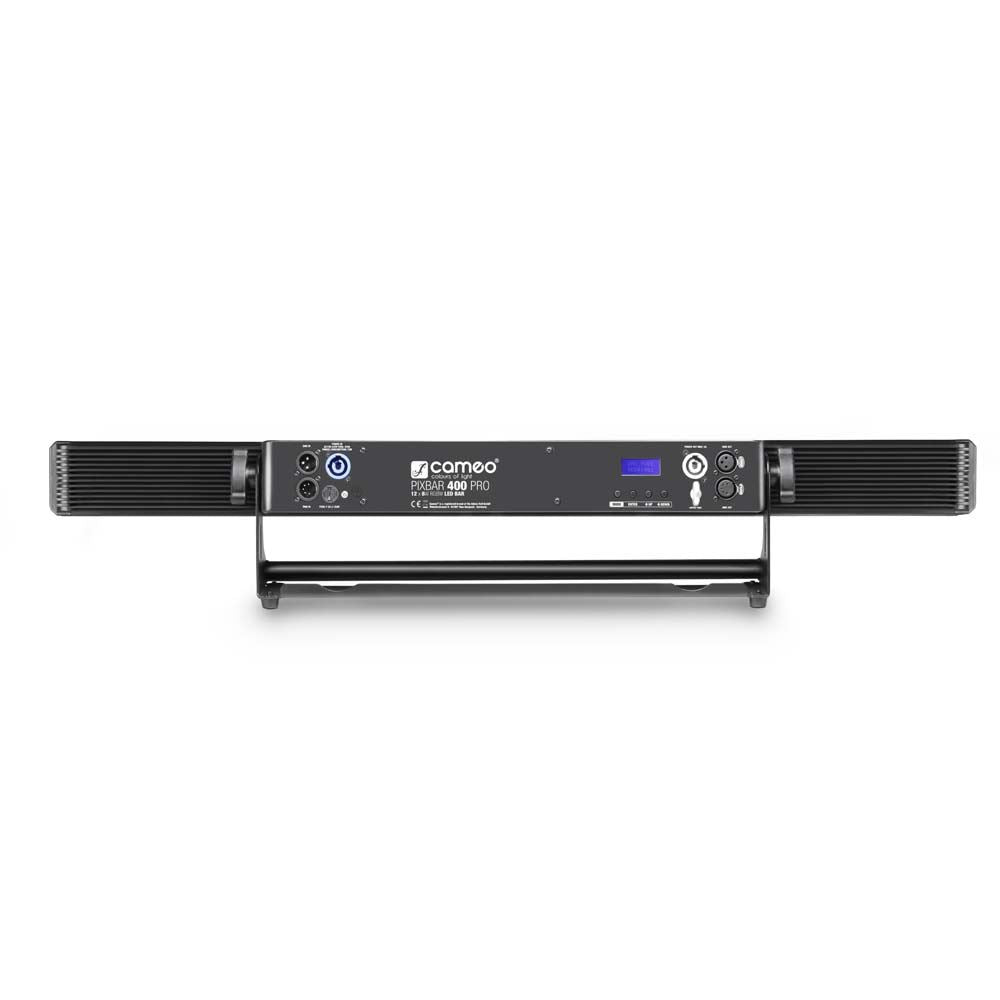

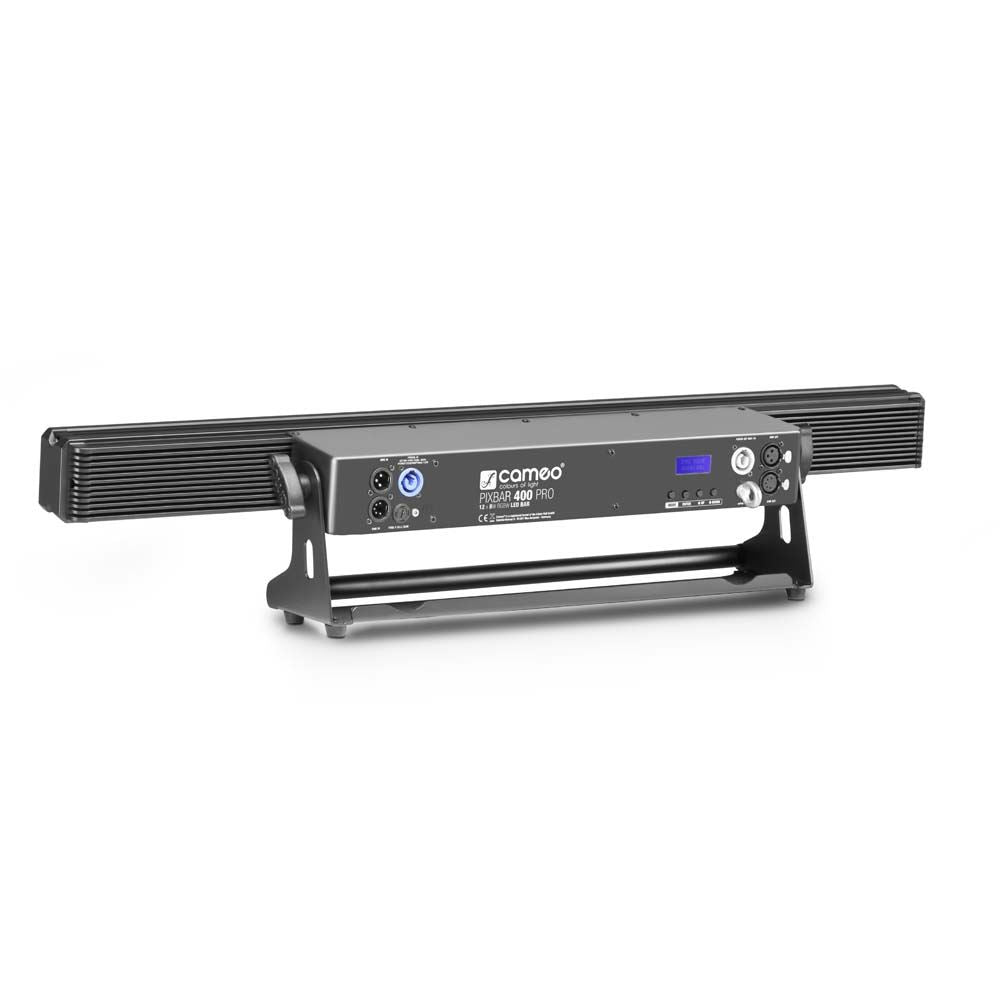

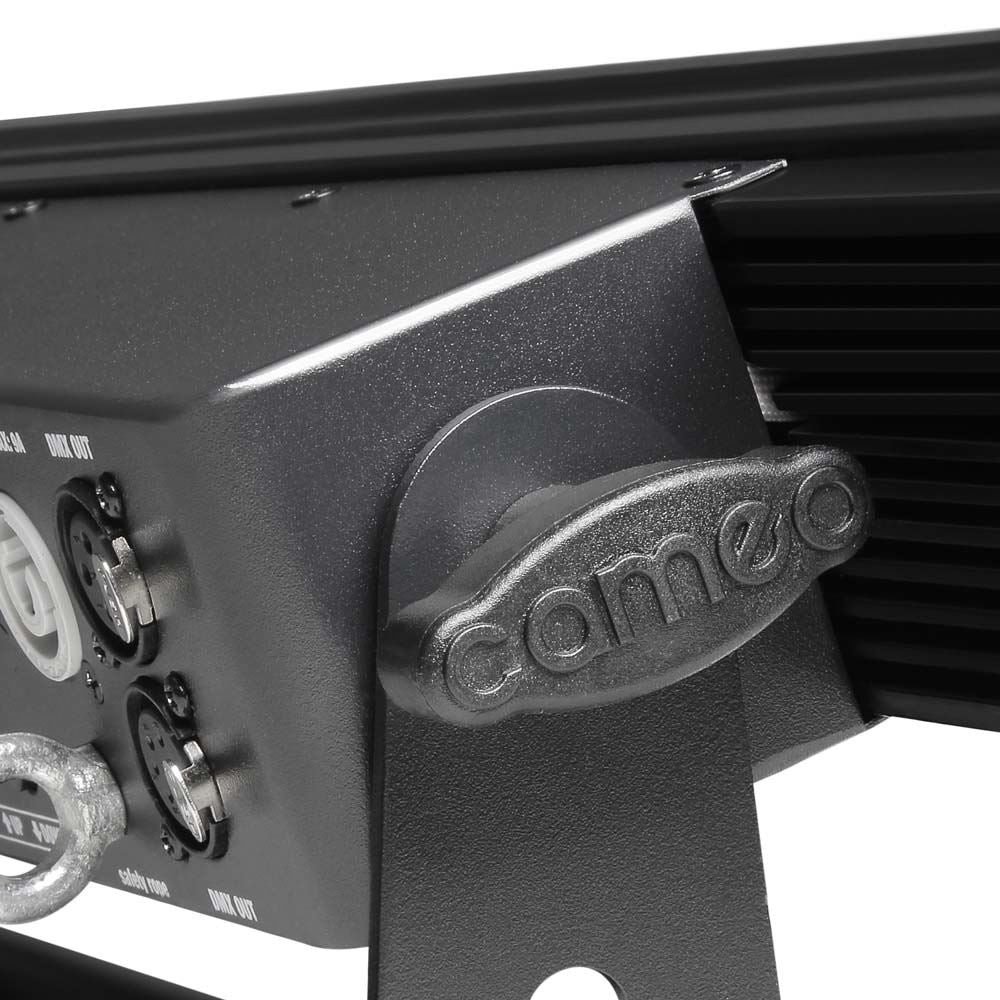

The PixBar 400 PRO comes in a rugged aluminium enclosure with 3 and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a solid stand that doubles as mounting bracket.

Features
12 ultra bright 8W Quad-LEDs
LED single pixel control for stunning chase and pixel mapping effects
Absolutely silent operation due to efficient convection cooling
Flicker free

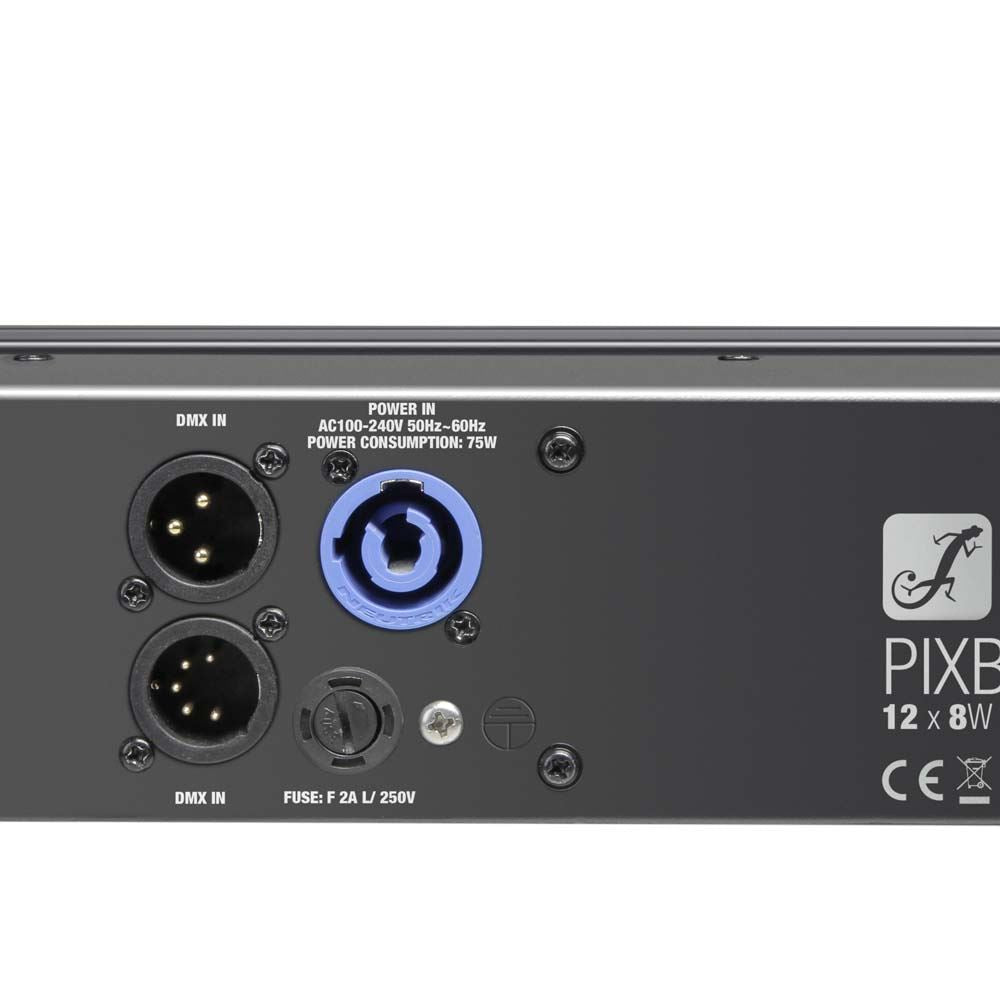

Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O
RDM enabled
7-mode DMX control plus standalone operation with master and slave modes

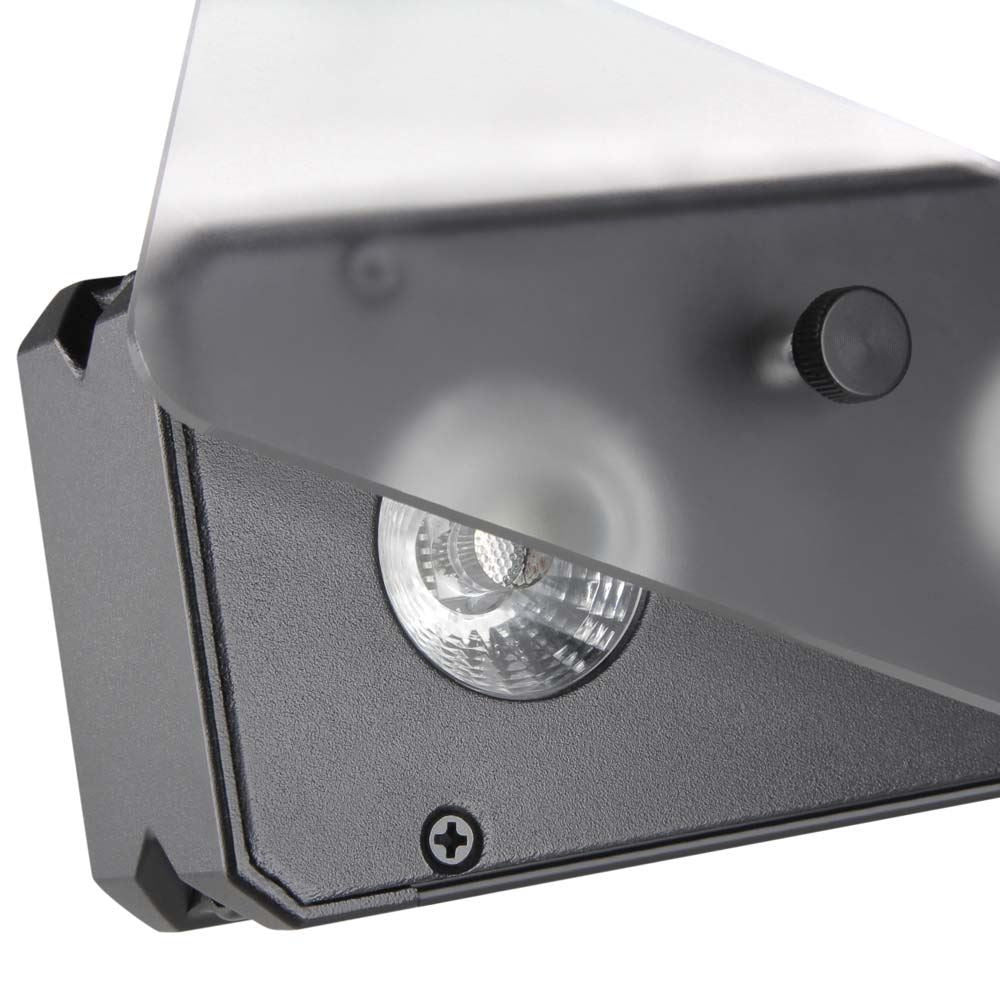

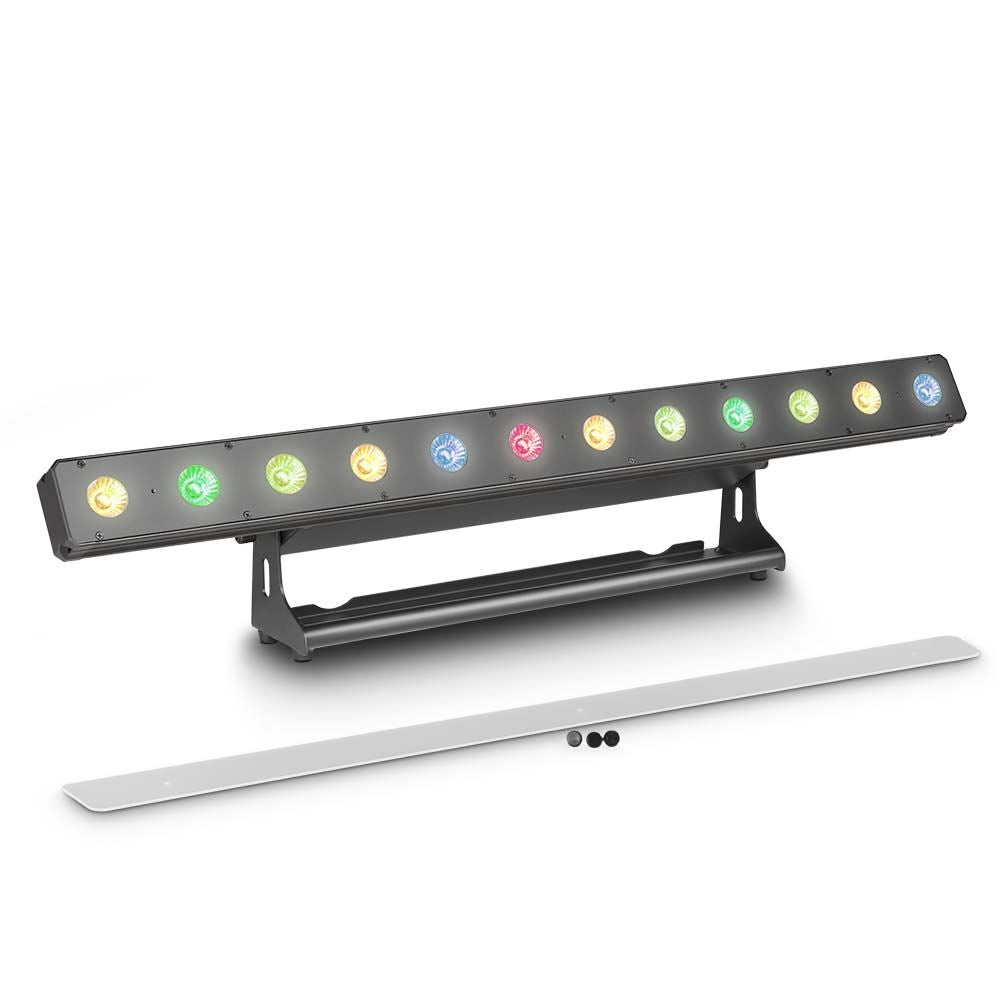

Diffusion lens included for a smooth wash with minimum dazzle
4 selectable dimming curves
Colour temperature correction
3 temperatures of white: warm white, white, cool white
Rugged die-cast aluminium housing

Specifications
Product type: LED Bars
Type: Indoor
Colour spectrum: RGBW
Number of LEDs: 12
LED type: 8 W QUAD Colour
Dispersion: 18°
Refresh rate: 3000 Hz
DMX input: XLR 3-pin male, XLR 5-pin male
DMX output: XLR 3-pin female, XLR 5-pin female
DMX mode: 10-channel, 2-channel, 4-channel 1, 4-channel 2, 50-channel, 54-channel, 6-channel
DMX Functions: Auto programs, colour macro, Colour temperature correction, Dimmer, Single Pixel Control, sound programs, strobe
Standalone modes: Auto programs, sound programs, static colour, strobe
Controls: Enter, Mode, Value Down, Value Up
Indicators: LC display
Operating voltage: 110 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 90 W
Power connector: Neutrik PowerCon
Housing material: Die-cast aluminum
Cooling: Convection
Cabinet colour: Black
Illuminance: 550lx @ 1m
Dimensions without mounting bracket
Width: 900 mm
Height: 117 mm
Depth: 70 mm
Dimensions of the mounting bracket (incl. rubber feet): 495 x 140 x 100 mm
Weight: 6 kg
