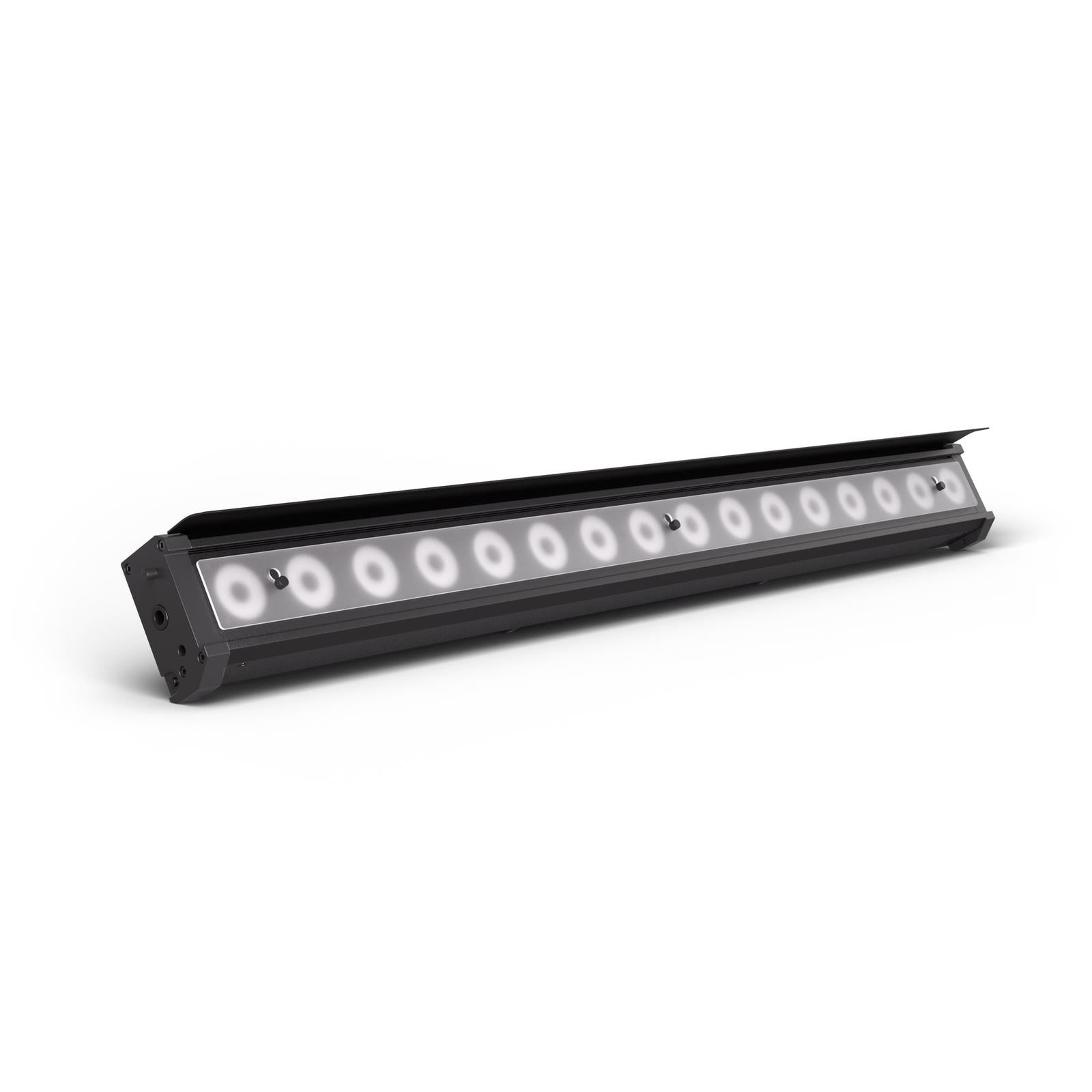

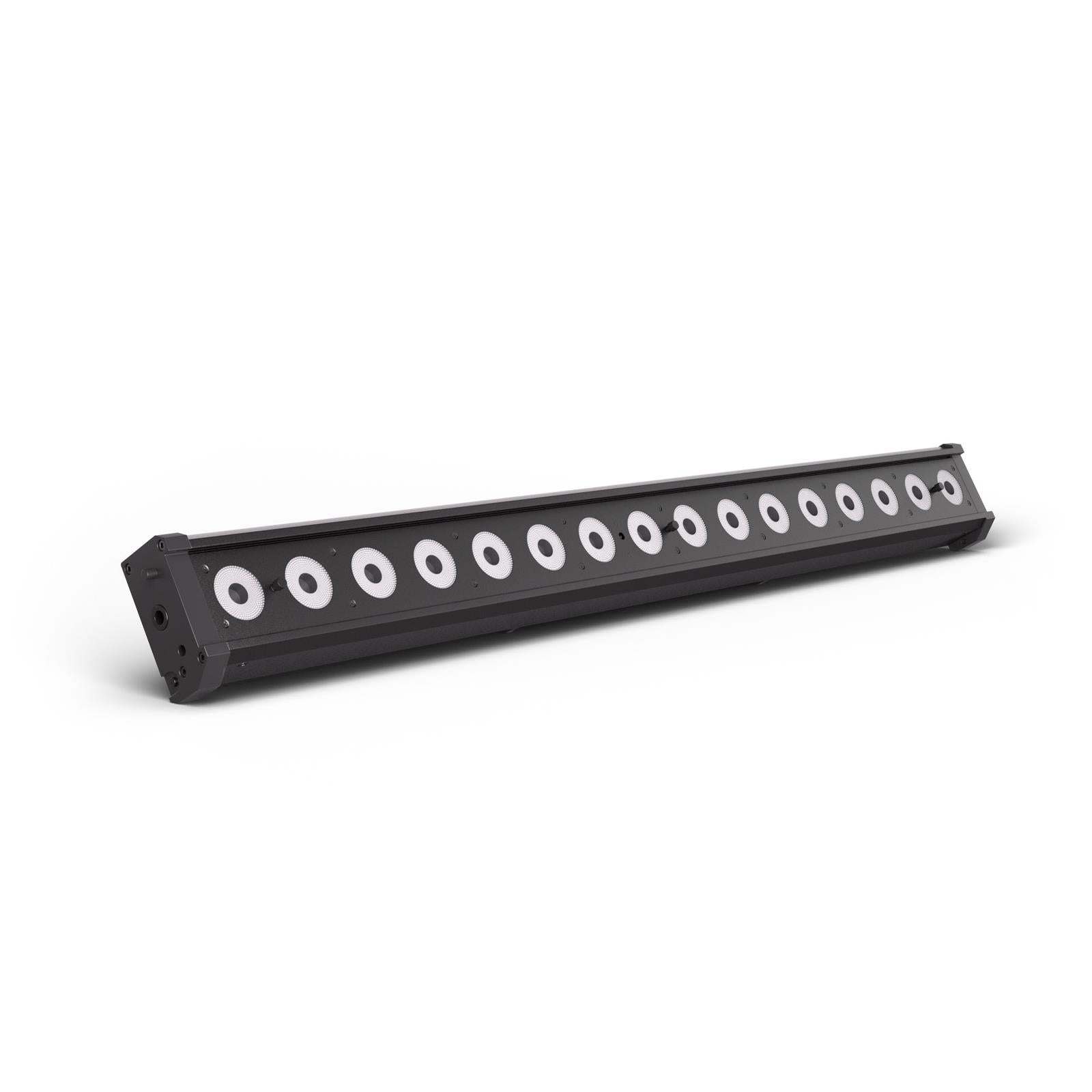

Cameo ROOT BAR 6 16 x 12W RGBAW + UV LED Bar

Description

The Cameo ROOT BAR 6 is a professional LED lighting bar featuring 16 x 12W RGBWA+UV LEDs, designed to deliver vibrant colours, smooth dimming and versatile lighting effects. Ideal for clubs, bars, live events, stages and creative lighting installations, it combines powerful illumination with a compact, flexible design. With a luminous flux of 6000 lumens and six-colour LED technology, the ROOT BAR 6 produces rich colour mixing, saturated effects and impressive UV illumination.

Featuring Cameo's innovative magnetic Quick Alignment System, the ROOT BAR 6 allows multiple fixtures to be positioned and aligned quickly for seamless lighting displays. Its versatile mounting design supports various angles, standing or suspended installation, while the included frost filter, neon tube filter and glare shield provide additional creative possibilities. The fanless convection cooling system ensures completely silent operation, making it ideal for theatres, presentations and noise-sensitive environments.

The ROOT BAR 6 offers comprehensive DMX512 control, standalone operating modes and optional wireless DMX connectivity using the Cameo iDMX Stick. Its patented EZchase DMX delay function simplifies the creation of dynamic chase effects and colour transitions, while 16-bit dimming ensures smooth, precise light output. With TRUE1-compatible power connections, 3-pin XLR DMX input and output, and power linking capabilities, the ROOT BAR 6 provides a professional solution for creative lighting applications.

Features

Professional LED Lighting Bar with 16 x 12W RGBWA+UV LEDs

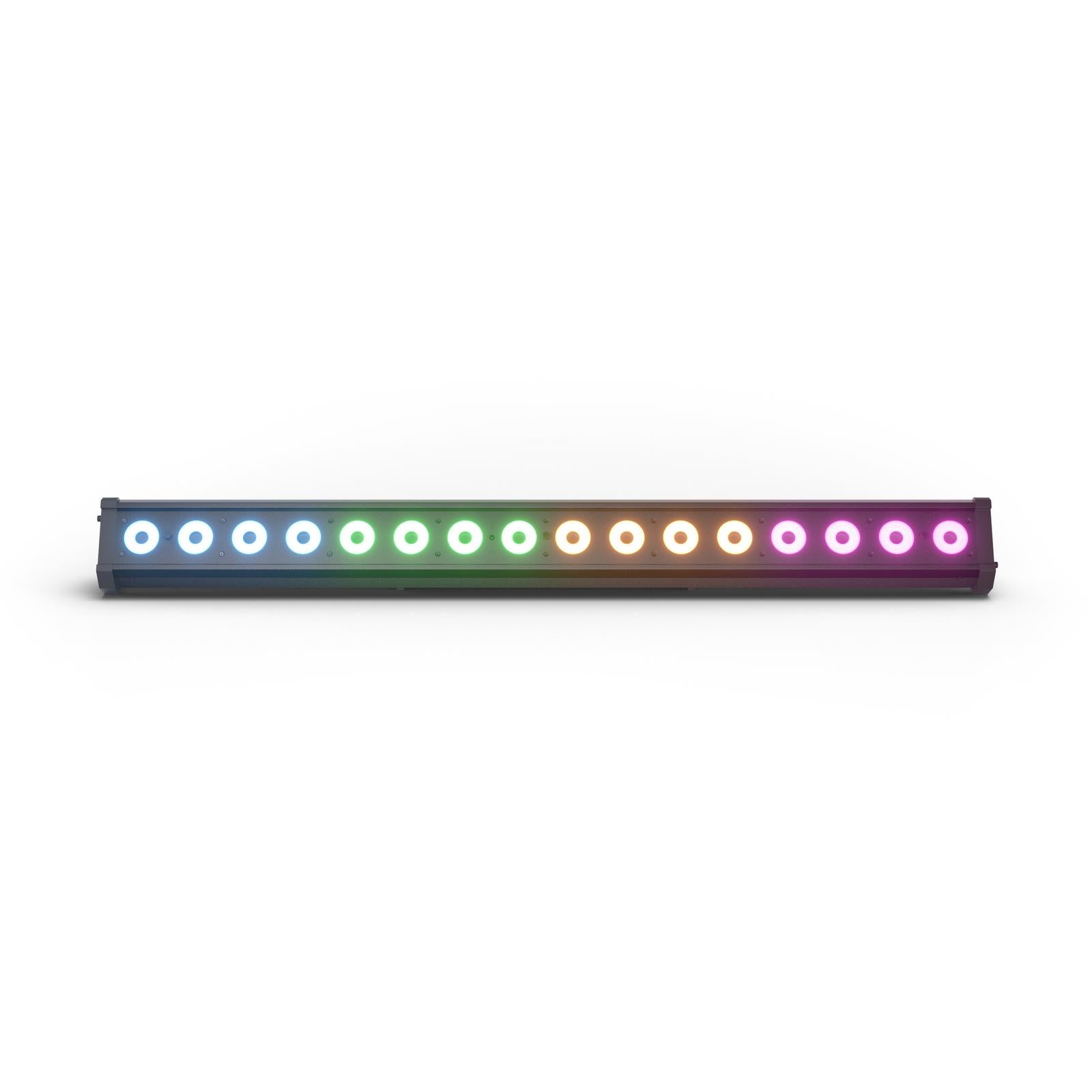

6-in-1 LED Technology with Red, Green, Blue, White, Amber and UV

6000 Lumen Light Output

19° Beam Angle and 36° Field Angle

16-Bit Dimming for Smooth Colour Transitions

Magnetic Quick Alignment System

Quick Lock Options for Connecting Multiple Fixtures

Flexible Standing and Suspended Mounting

Adjustable Positioning at Multiple Angles

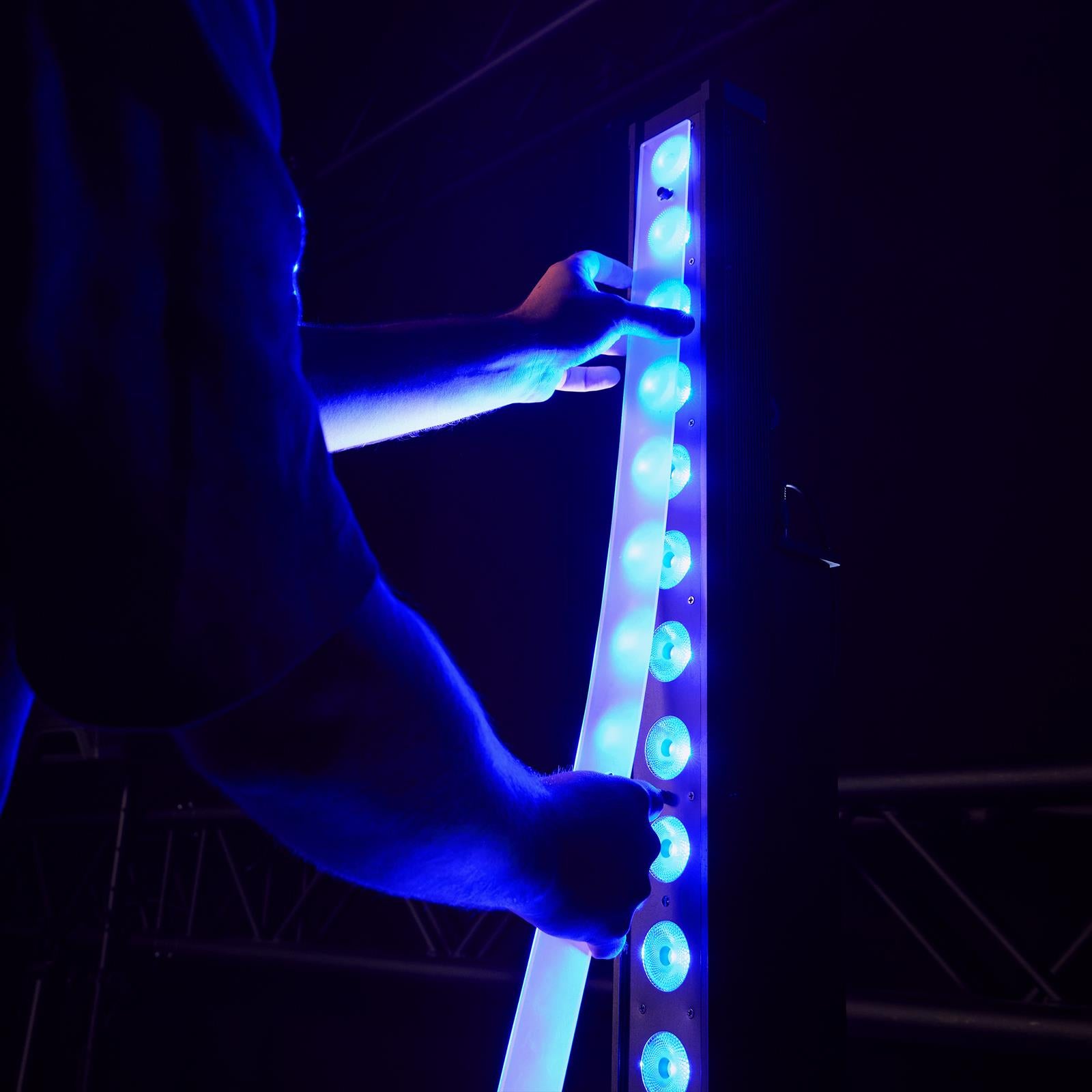

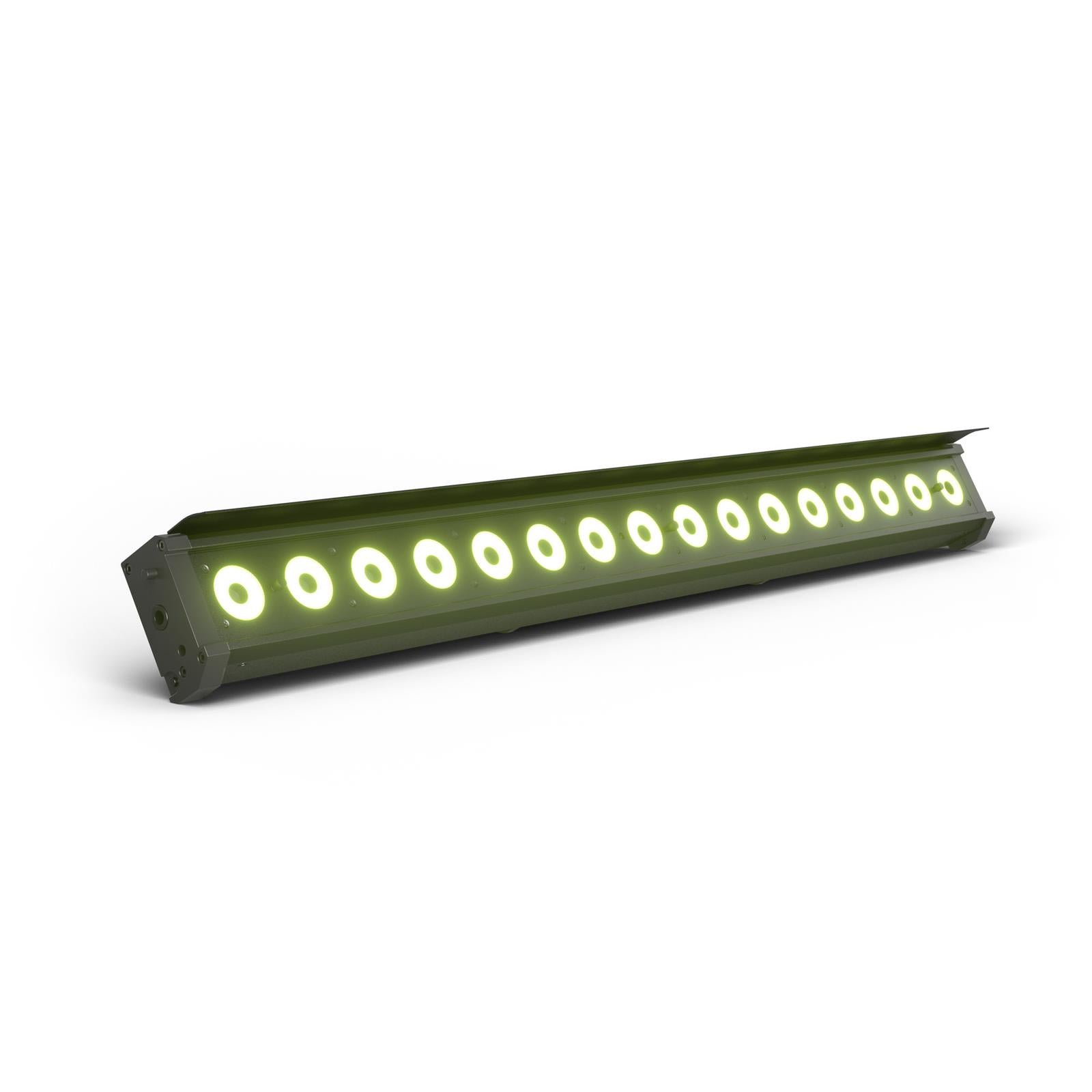

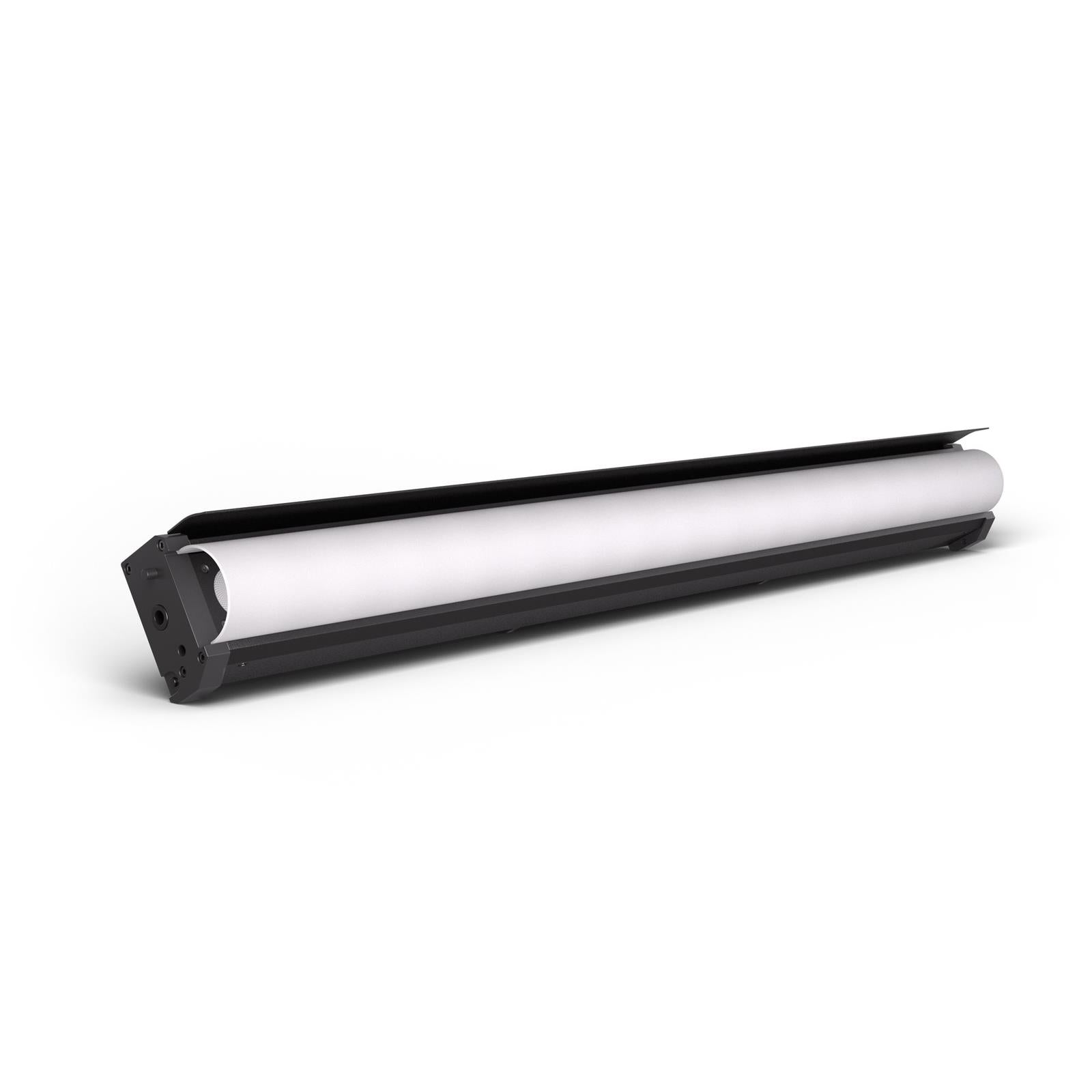

Included Frost Filter, Neon Tube Filter and Glare Shield

Patented EZchase DMX Delay Function

DMX512 Control Compatibility

Optional W-DMX Wireless Control via Cameo iDMX Stick

Optional Infrared Remote Control

Sound-Activated and Automatic Operating Modes

Master/Slave and Static Lighting Modes

LED Segment Dimming Control

Adjustable Strobe Effects from 0–20Hz

Selectable LED PWM Frequencies

Completely Silent Fanless Cooling

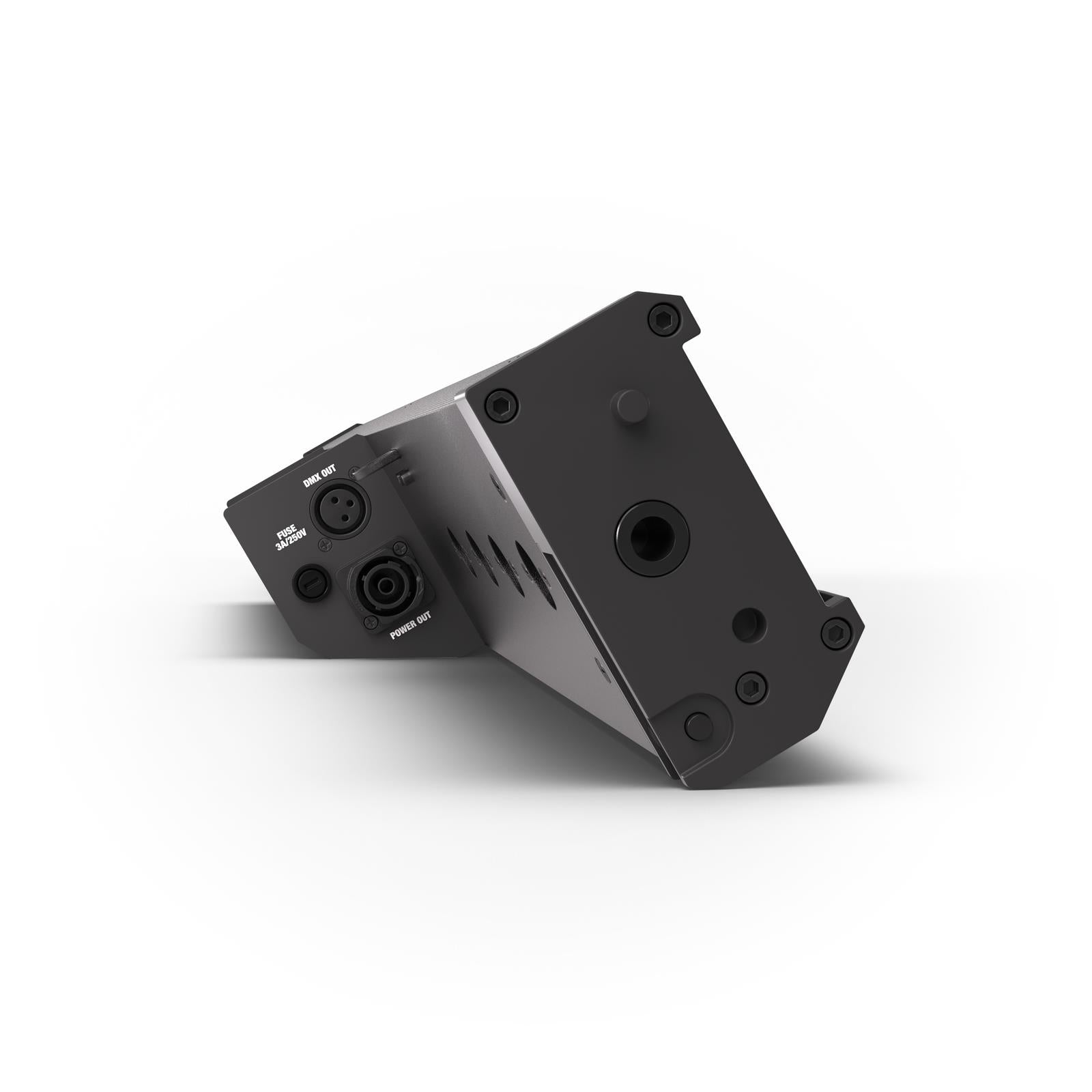

TRUE1-Compatible Power Input and Output

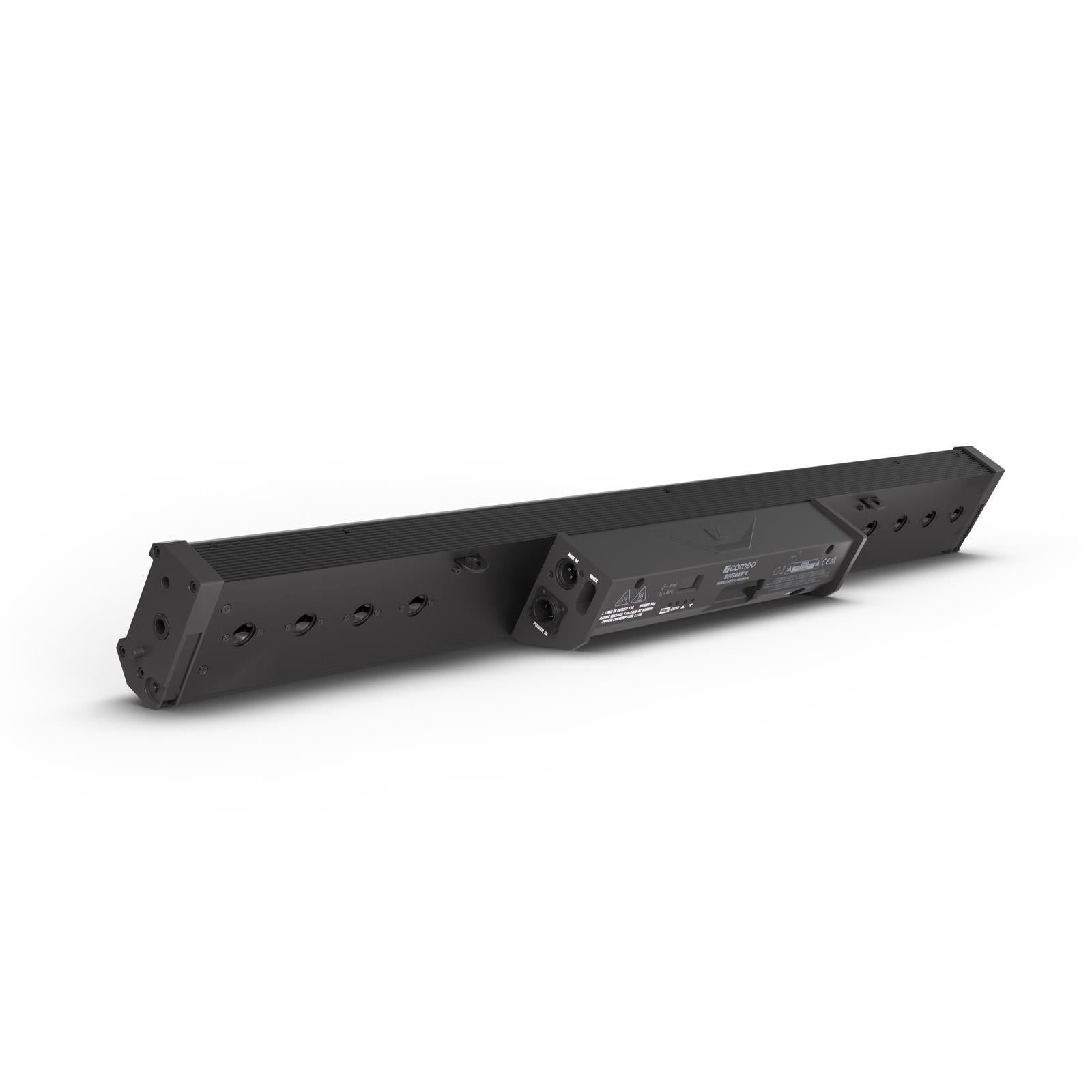

3-Pin XLR DMX Input and Output

Power and DMX Daisy-Chaining Support

Durable Aluminium and Plastic Housing

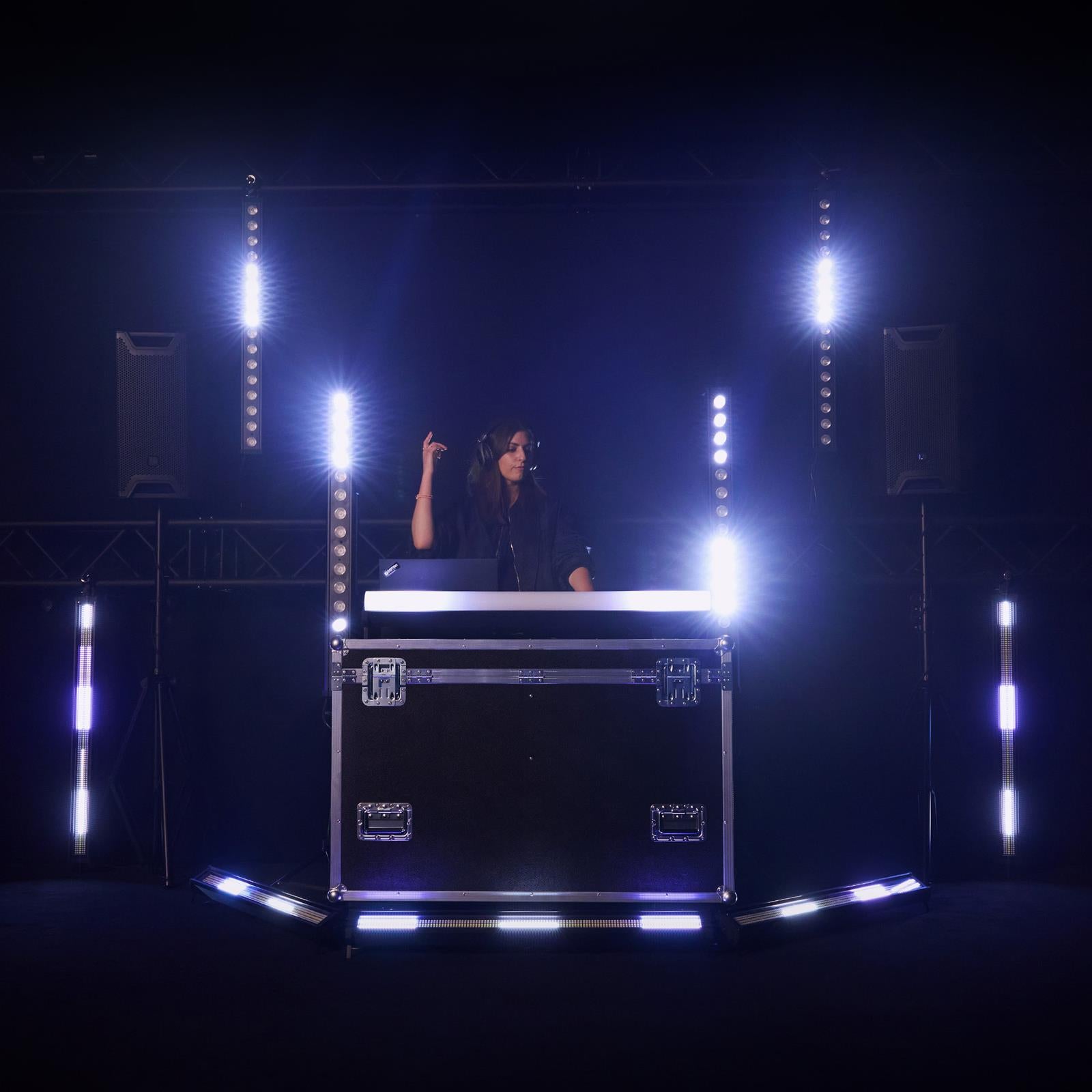

Ideal for Clubs, Bars, Events and Stage Lighting

Specifications

Product : Cameo ROOT BAR 6

Brand : Cameo

Series : ROOT BAR

Type : LED Lighting Bar

Light Source : 16 x 12W RGBWA+UV LEDs

LED Configuration : 4 x 4

LED Technology : 6-in-1

LED Colours : Red, Green, Blue, White, Amber, Ultraviolet

Luminous Flux : 6000lm

Beam Angle : 19°

Field Angle : 36°

Colour Mixing : RGBWA+UV

Dimmer Resolution : 16-Bit

LED PWM Frequencies : 650Hz, 1530Hz, 2000Hz, 4000Hz

Strobe Frequency : 0–20Hz

Control Protocol : DMX512

Additional DMX Functions : DMX Delay, LED Segment Dimmer, System Settings

Chase Function : Patented EZchase DMX Delay

Standalone Modes : Sound Control, Autorun, Master/Slave, Static, Endless Loop

Wireless DMX : Optional via Cameo iDMX Stick

Infrared Control : Optional IR Remote

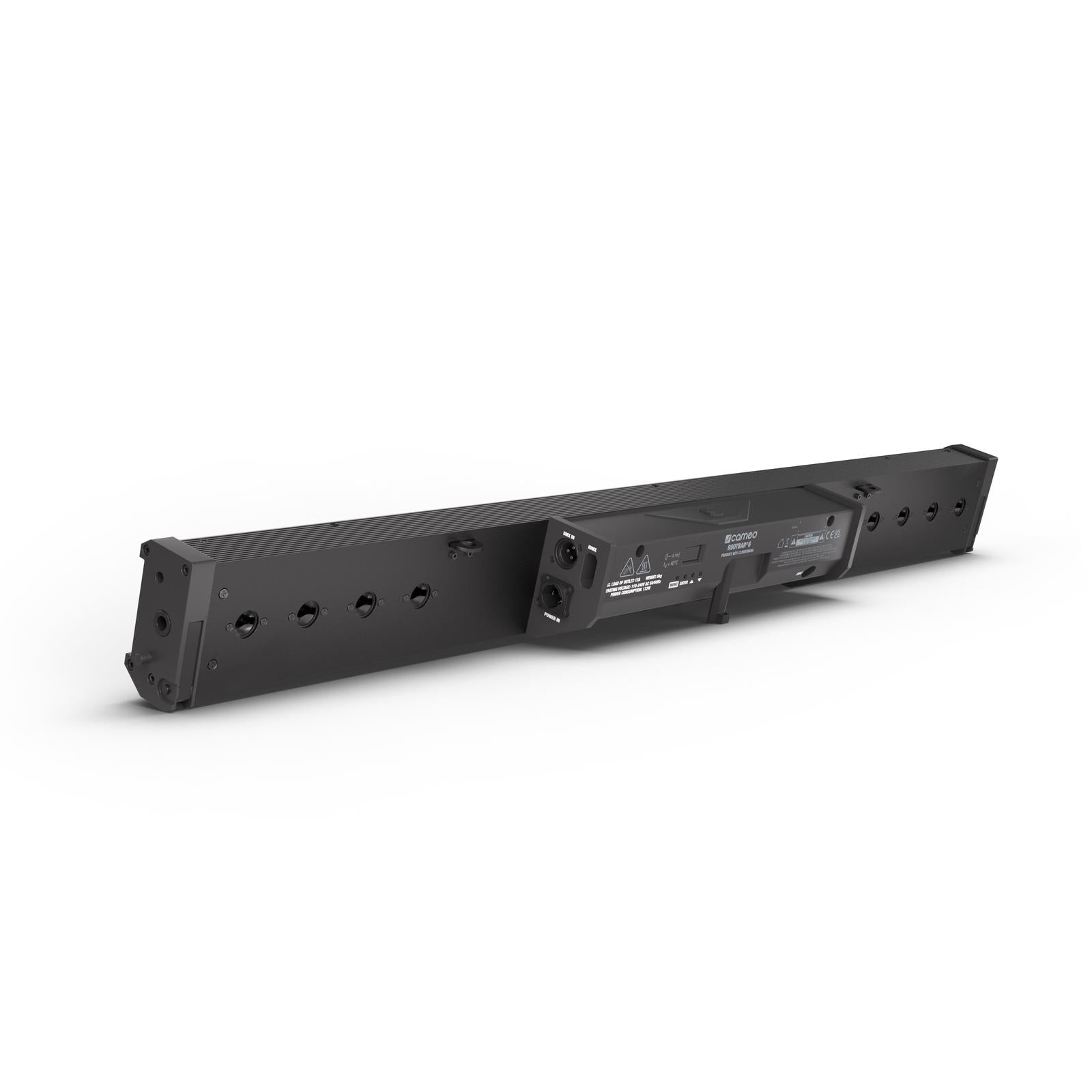

DMX Input : 3-Pin XLR Male

DMX Output : 3-Pin XLR Female

Operating Voltage : 100–240V AC, 50/60Hz

Rated Power Consumption : 133W

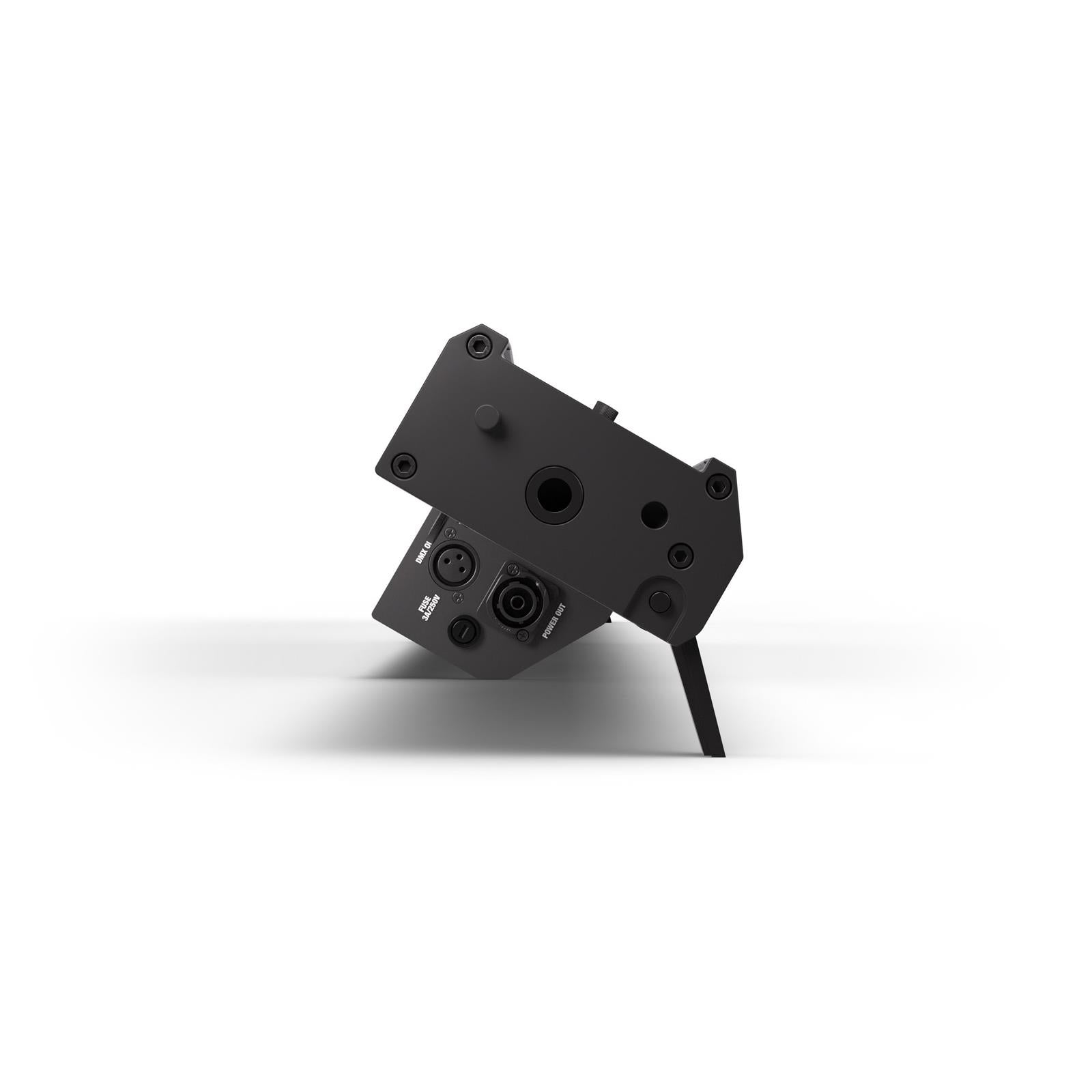

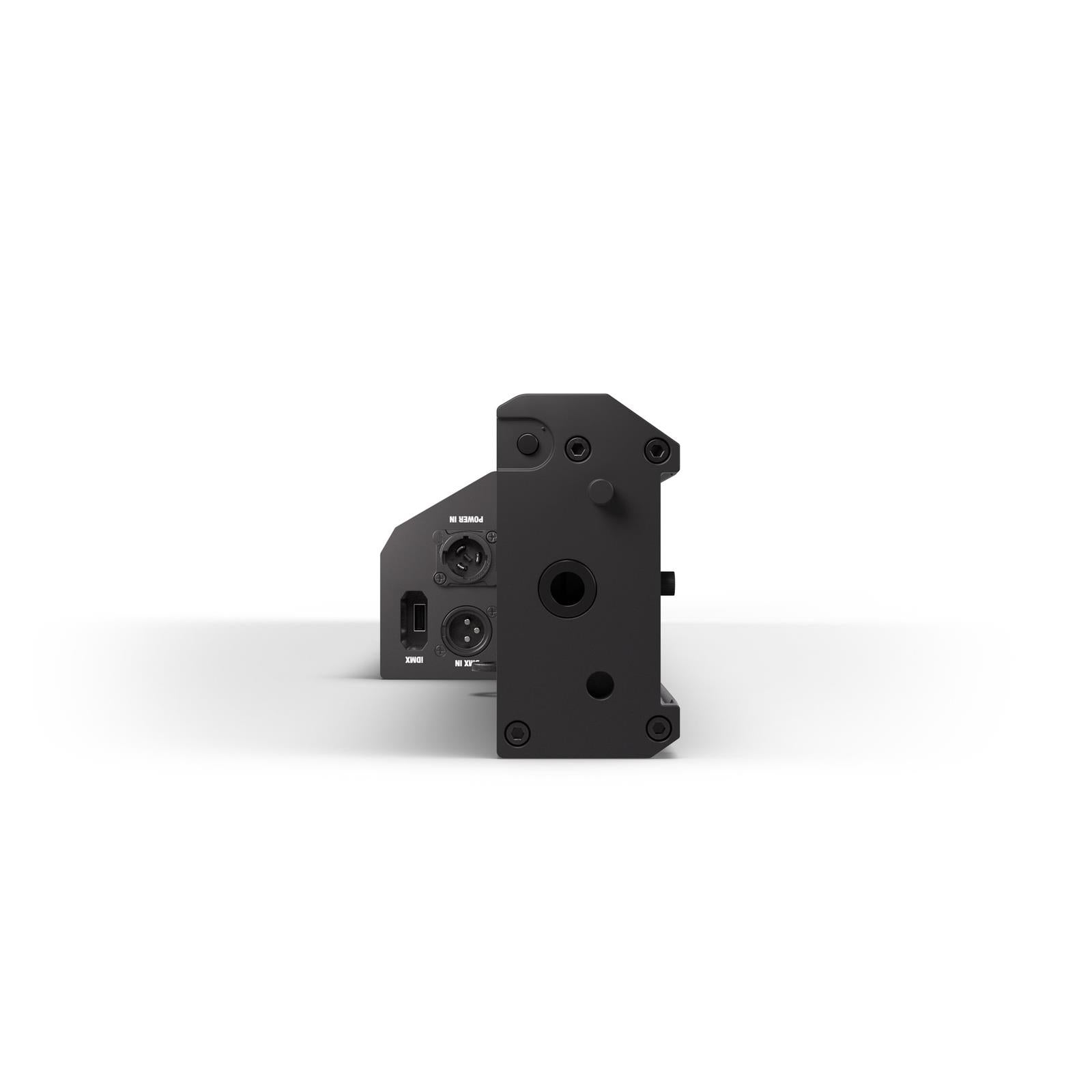

Power Input : TRUE1-Compatible Outdoor Mains Connector

Power Output : TRUE1-Compatible Outdoor Mains Connector

Mains Fuse : F3AL / 250V

Cooling System : Passive Convection Cooling

Operating Noise Level : 0dB

Housing Material : Aluminium and Plastic

Housing Colour : Black

IP Rating : IP20

Operating Temperature : 0°C to 40°C

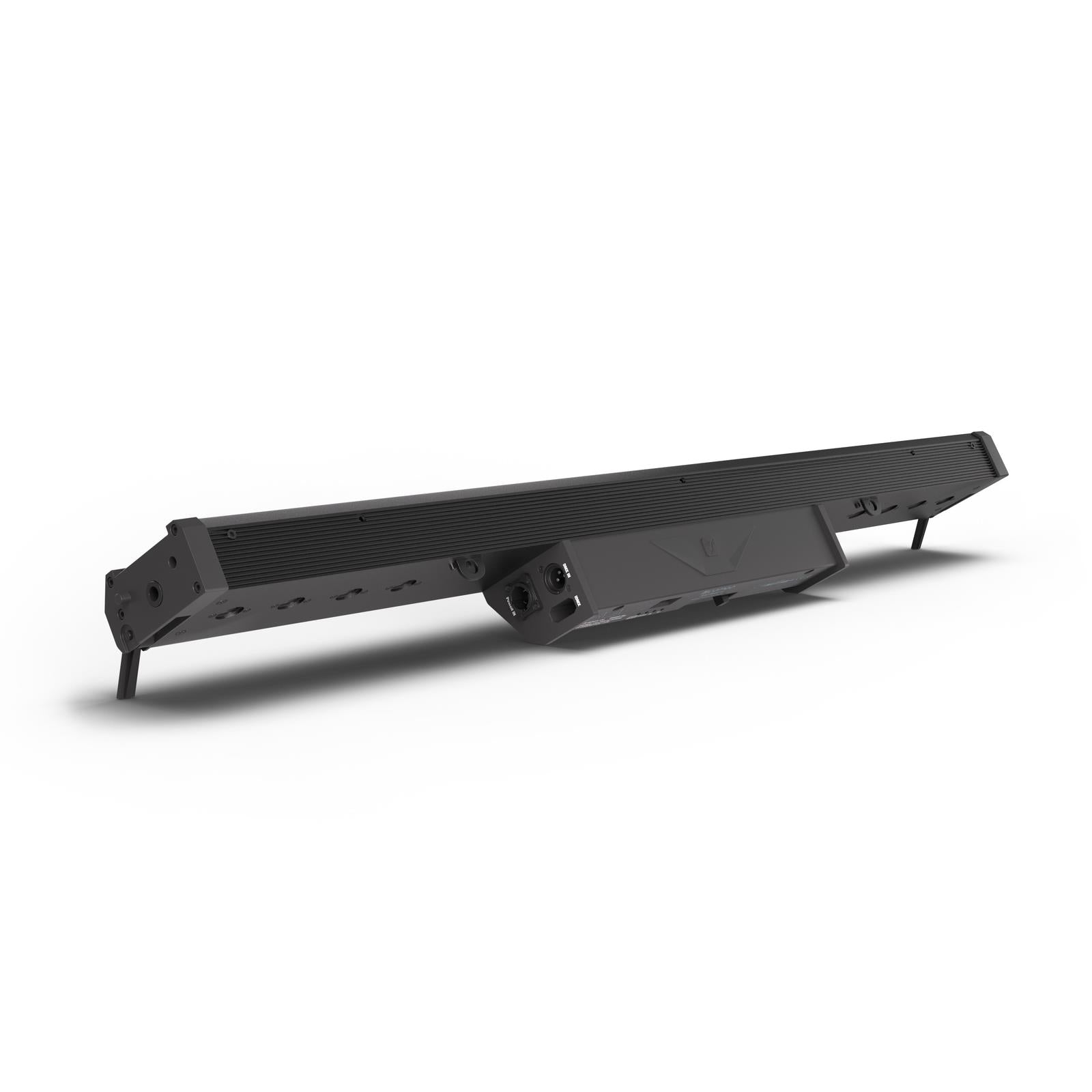

Mounting Options : Standing and Suspended

Alignment System : Magnetic Quick Alignment System

Replaceable Lens : No

Replaceable Optics : No

Width : 1026mm

Height : 157mm

Depth : 105mm

Weight : 5kg

Included Accessories : Frost Filter, Neon Tube Filter, Glare Shield
