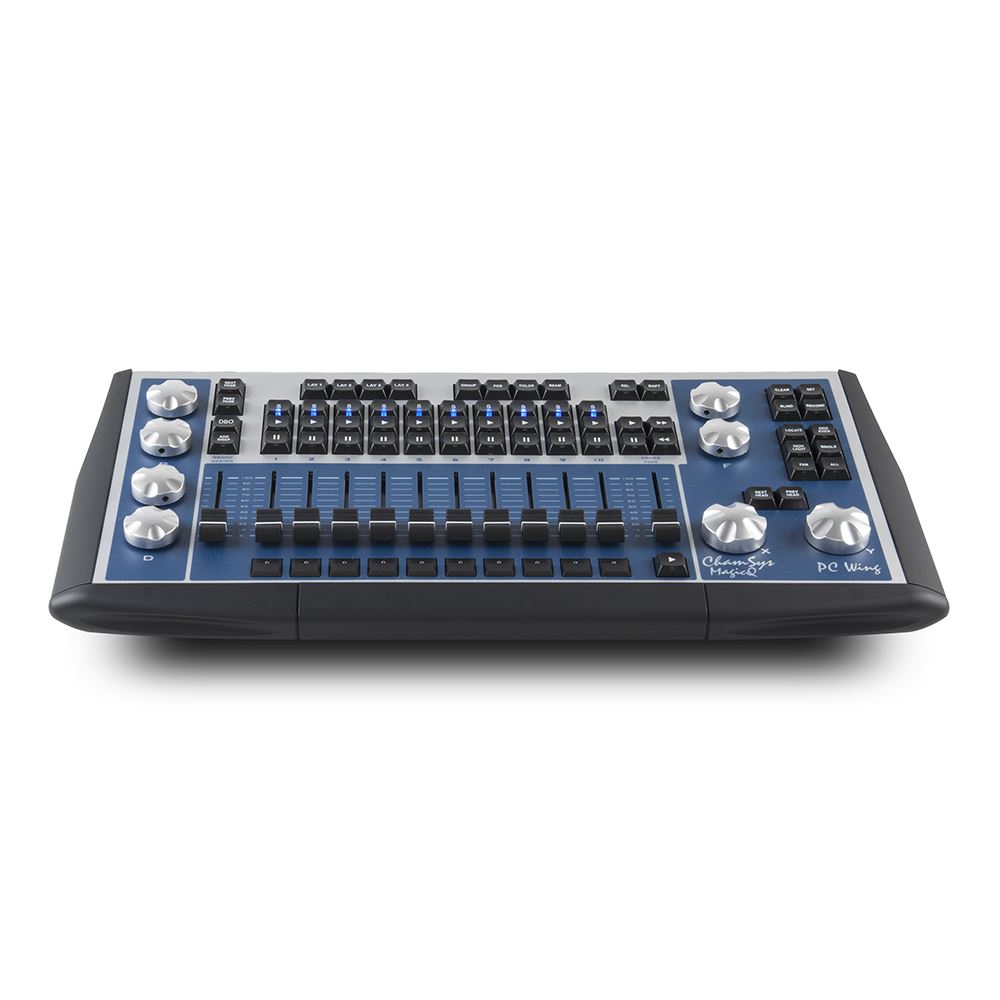

ChamSys MagicQ PC Wing Compact

The MagicQ PC Wing Compact is a powerful USB control wing for connecting to your PC or Mac to control lighting, video and LED with the MagicQ PC software. MagicQ PC software runs under Windows, Linux or OSX.

Small enough to fit within hand-luggage restriction, the powerful MagicQ PC Wing Compact is packed with features. It has 2 built-in DMX512 outputs and can output up to 64 universes (via Ethernet) without the need for additional licenses or dongles. The design of the MagicQ PC Wing Compact provides quick access to fixture parameters via the 8 rotary encoders, and live show control through the 10 playback faders and cue stack control buttons.

The MagicQ PC Wing is ideal for use by touring Lighting Designers, or for installing into theatres, clubs, and venues. This affordable solution allows you to create a powerful lighting console with the addition of a personal computer.

MagicQ software includes the free MagicVis visualizer enabling simple visualization of all 64 universes of lighting control. MagicQ software also includes the free MagicHD media player enabling playback of up to 8 layers of HD media through your PC or Mac 2nd monitor port.

Features
USB Connection to PC or Mac
Windows, Linux or OSX
Programming & Playback Buttons
8 Encoders, 12 Faders
2 Direct DMX Outputs
Addition of the Previous Page, Group and four Macro Buttons
Dimmable LED Desk Lamp
64 Universes
In-built Power Supply
In-built USB Hub
Audio Input
Fits Hand Luggage Restrictions
Improved Styling

Specifications
Universes: 64
Channels: 32768
Number of fixtures: Up to 32768
Cues: 5000
Cue Stacks: 2000
Palettes: 3096
Groups: 5000
Media Server support: 50 (each different content)
Encoders: 8
Faders: 12
Buttons: 71
Direct DMX512 ports: 2
USB ports: 5 (4 output, one input)
Audio input: 1 channel (3.5mm jack)
Dimmable LED console lamps: 1 Dual Colour
Remote trigger input: 1
Security lock fixing: 1
Choice of colours: Blue
In-built Power Supply: 110 to 240 VAC

Dimensions
51.5 x 25.7 x 8.8

Weight
3.6kg
