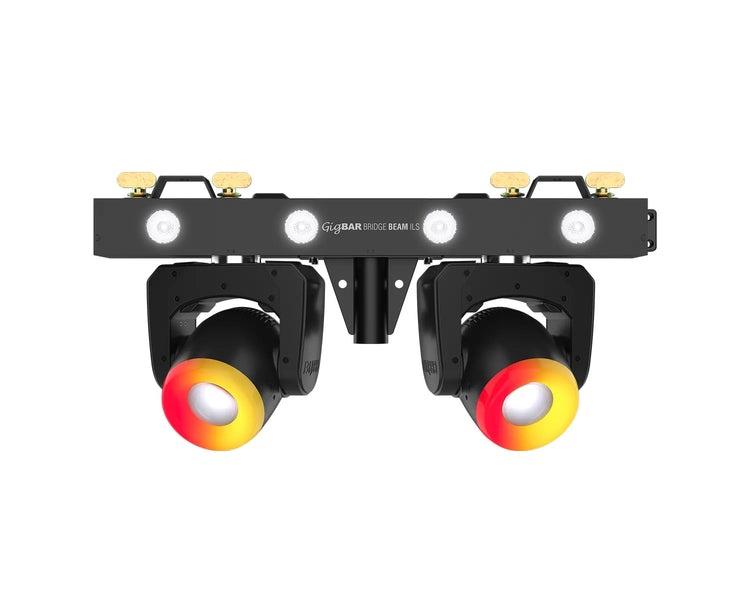

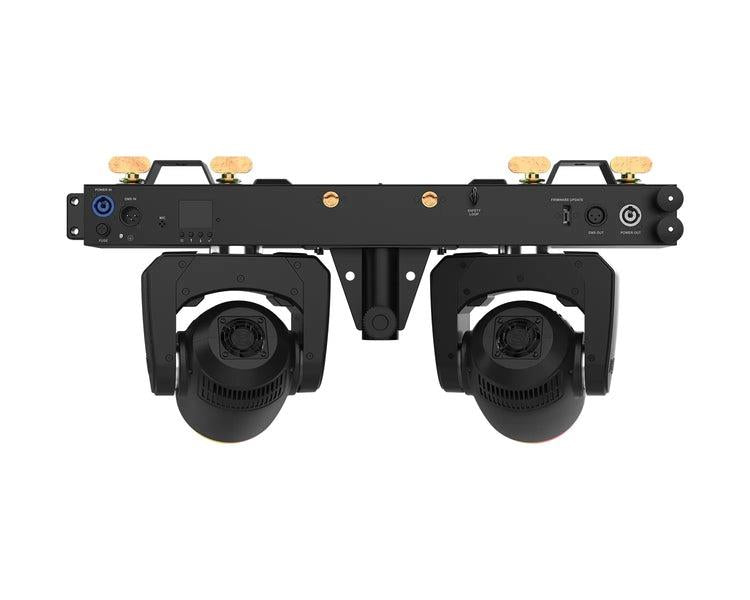

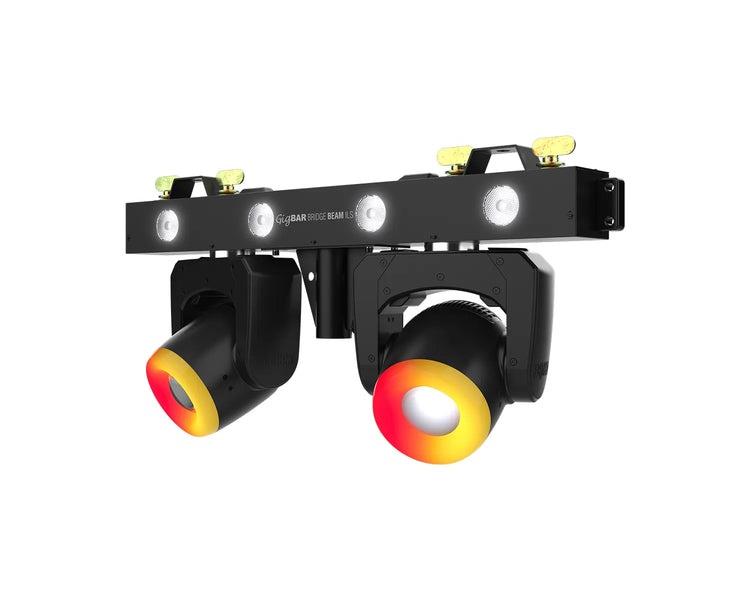

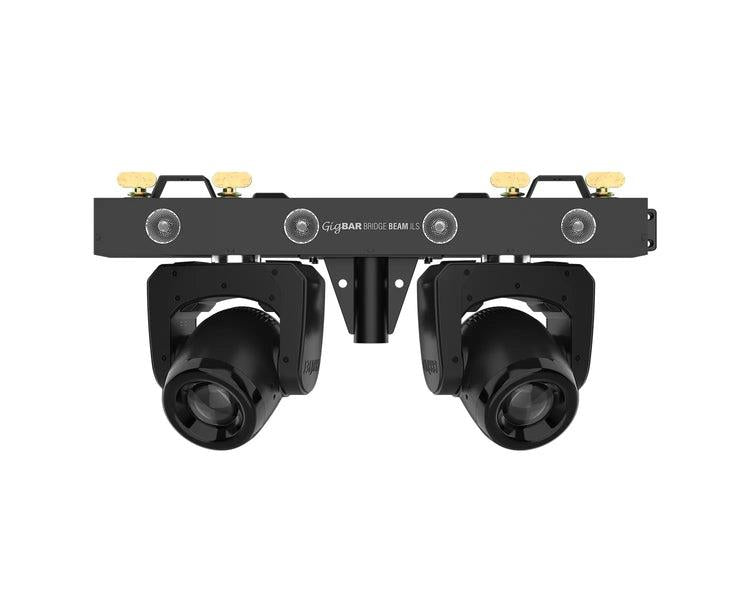

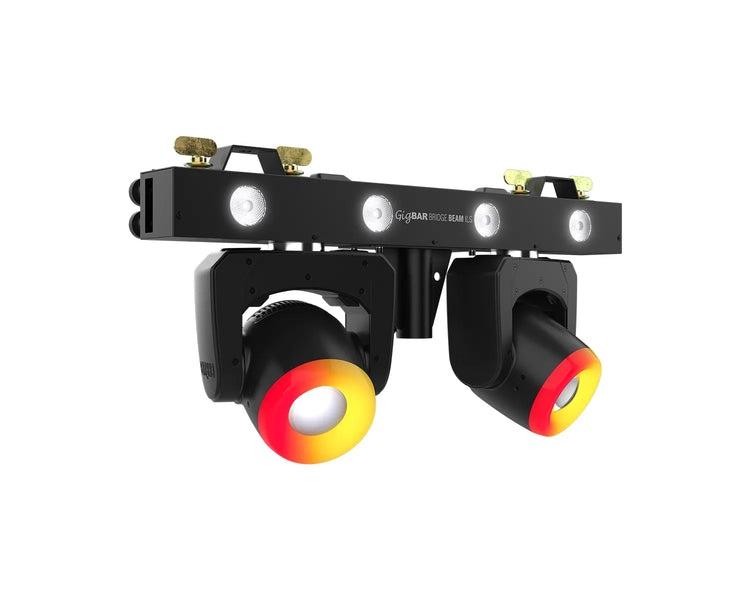

Chauvet DJ Gigbar Bridge Beam ILS Moving Head Bar

Description

The GigBAR Bridge Beam ILS is a complete 3-in-1 lighting system combining moving heads, wash effects, and animated LED ring effects into a single pre-mounted bar for fast and professional event lighting setups. Designed for mobile DJs, entertainers, live events, and party venues, this versatile system delivers sweeping narrow beams, vibrant colour washes, and dynamic eye candy effects from one compact fixture.

Dual moving heads project sharp RGBW beams across the dance floor, while the RGBAW+UV wash fixtures provide rich colour mixing including ultraviolet effects and crisp whites. Integrated RGBW LED rings add animated visual effects to enhance the overall light show. Built-in D-Fi wireless technology and ILS compatibility allow seamless integration into wireless lighting setups, while the included RF remote enables quick access to built-in programs without requiring line of sight.

Features

3-in-1 lighting system with moving heads, wash lights, and RGBW LED rings
Pre-mounted fixtures on a single bar for quick setup
Dual moving heads produce sharp narrow beam effects
RGBAW+UV wash lights provide vibrant colour mixing and ultraviolet effects
Integrated RGBW LED rings create animated eye candy effects
Built-in D-Fi transceiver for wireless DMX or ILS communication
ILS compatible for synchronised lighting shows
Full-colour LCD display for easy menu navigation and setup
Totem mode keeps moving heads focused on the dance floor
Built-in locking system for secure fixture connection
Suitable for mounting on truss or lighting tripods
Power linking capability for simplified cabling
RF remote included for wireless triggering of built-in shows
Optional control via DMX, RF remote, footswitch, or ILS Command

Specifications

Power supply: 100–240 V AC, 50/60 Hz auto-ranging
Power consumption: 147 W
Power and current: 147 W, 1.2 A @ 120 V, 60 Hz / 144 W, 0.6 A @ 230 V, 50 Hz
Light source (moving heads): 2 x RGBW LEDs, 80 W total
Light source (wash): 4 x RGBAW+UV LEDs, 40 W total
Light source (LED rings): 48 x RGBW LEDs, 10 W total
LED lifespan: 50000 hours
DMX channels: 3, 24, or 60 selectable
DMX connections: 3-pin XLR
Pan and tilt: 540° pan / 270° tilt
Selectable pan ranges: 180°, 360°, or 540°
Selectable tilt ranges: 90°, 180°, or 270°
Beam angle (moving heads): 5°
Beam angle (wash): 20°
Field angle (wash): 37°
Strobe rate: 0 – 20 Hz
Illuminance (moving head): 24670 lux @ 2 m per head
Illuminance (wash): 525 lux @ 2 m per section
Operating frequency: 2.4 GHz
Maximum unobstructed D-Fi range: 183 m
Power linking: 9 units @ 120 V, 18 units @ 230 V
Display: Full-colour LCD display
Control modes: DMX, ILS, D-Fi wireless, RF remote, footswitch
Fits tripod sizes: 37.4 mm
Approvals: CE, RoHS, FCC
Dimensions (W x D x H): 635 x 65 x 290 mm
Weight: 7.5 kg

Included

GigBAR Bridge Beam ILS
Power cable
Carrying case
2 hanging brackets
RF remote
Quick reference guide
