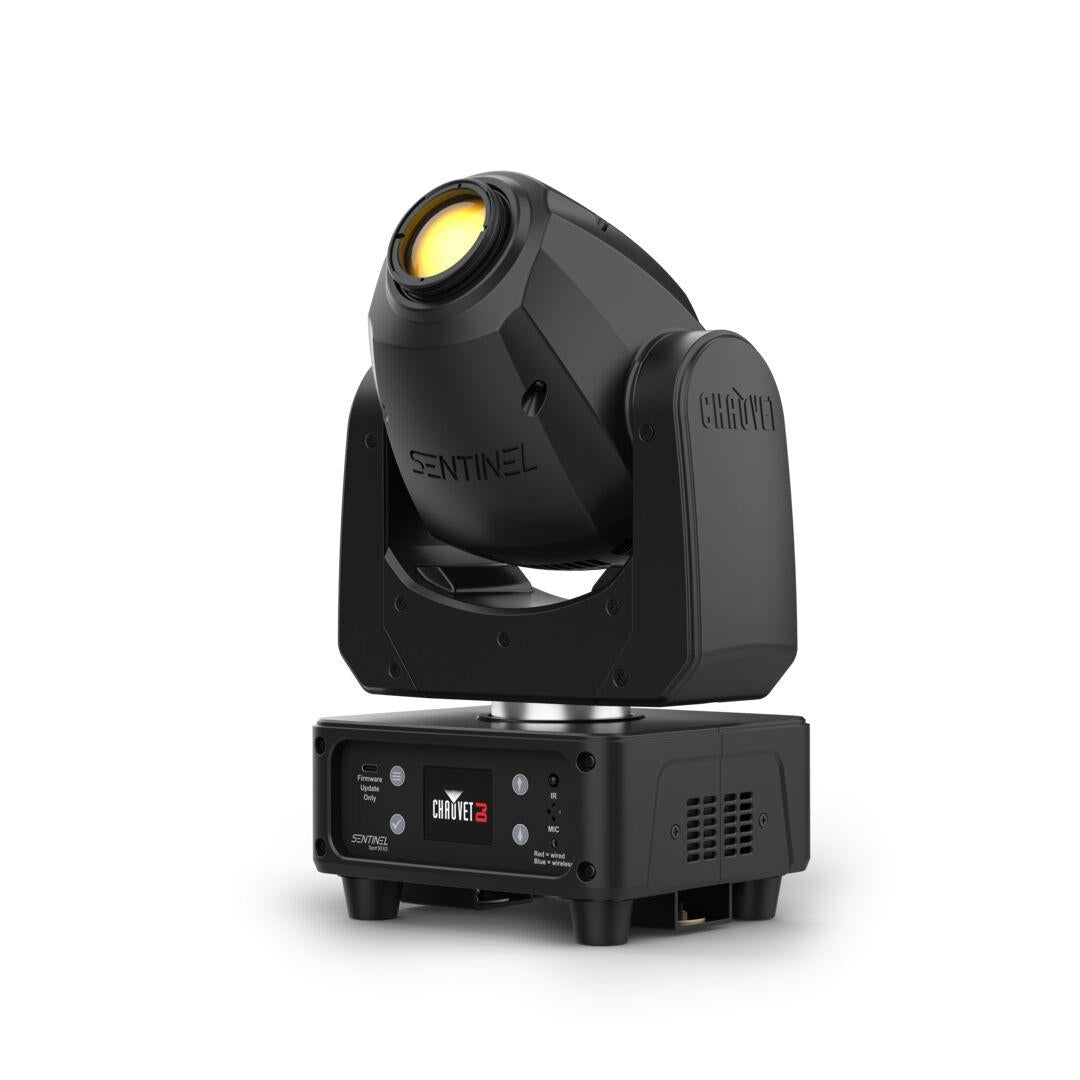

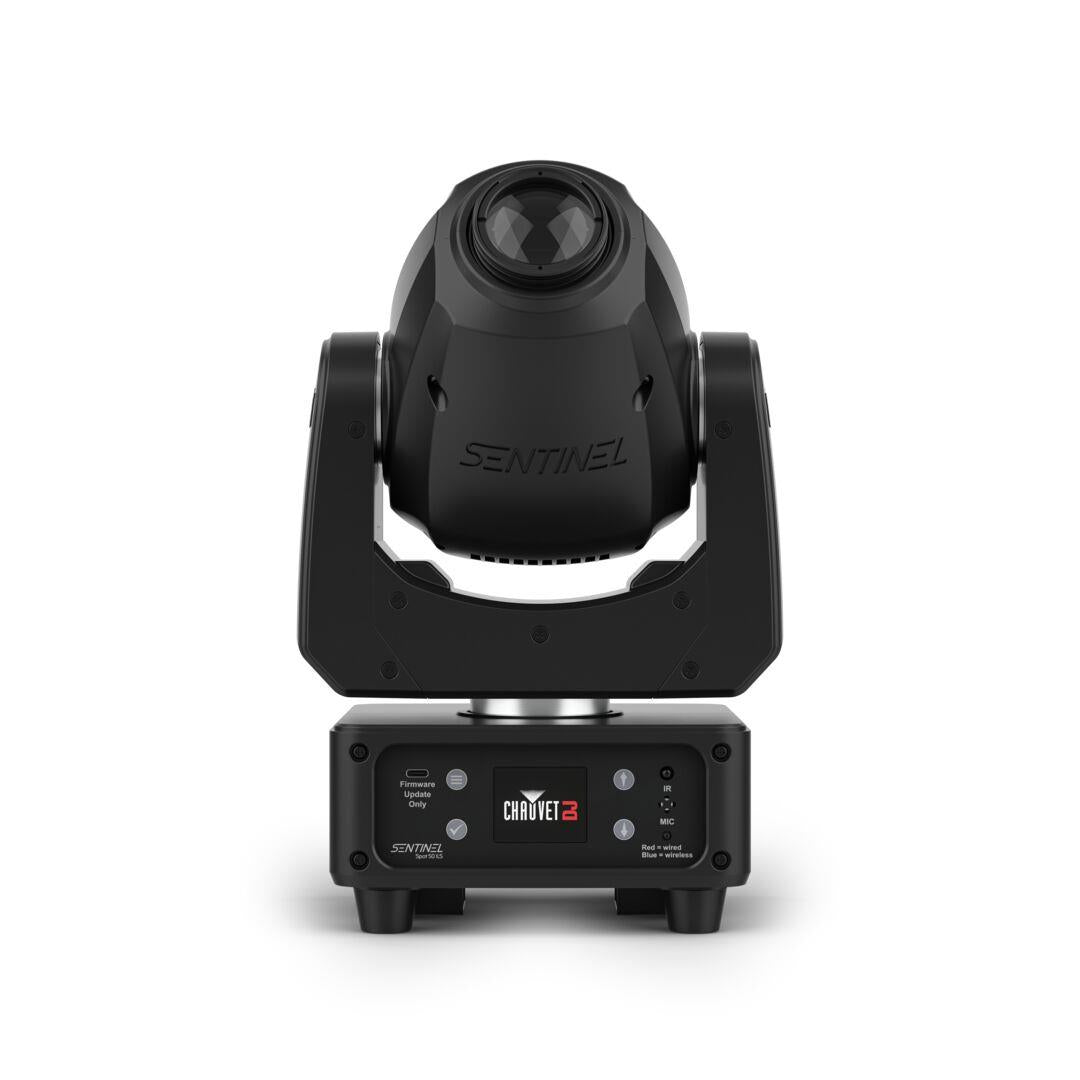

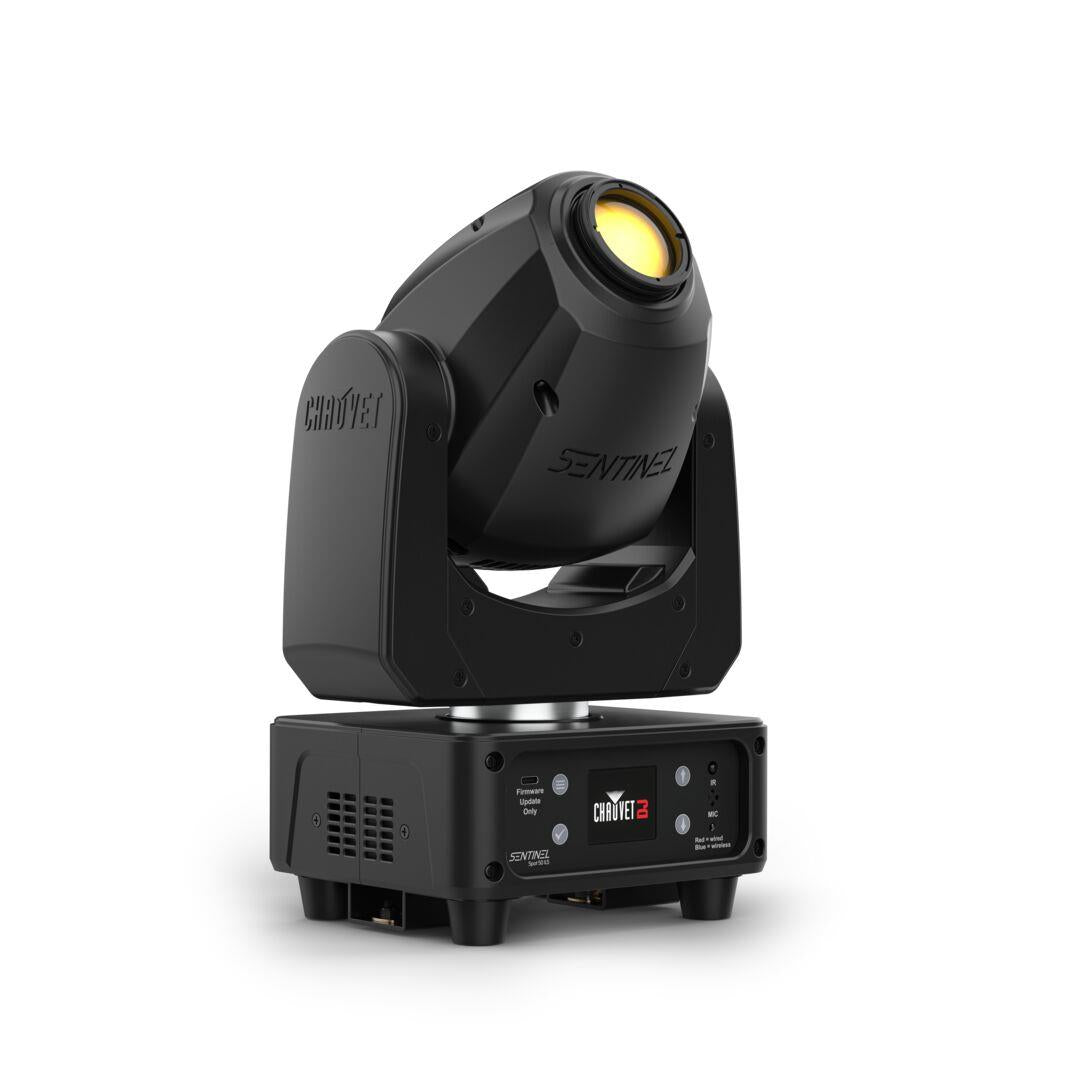

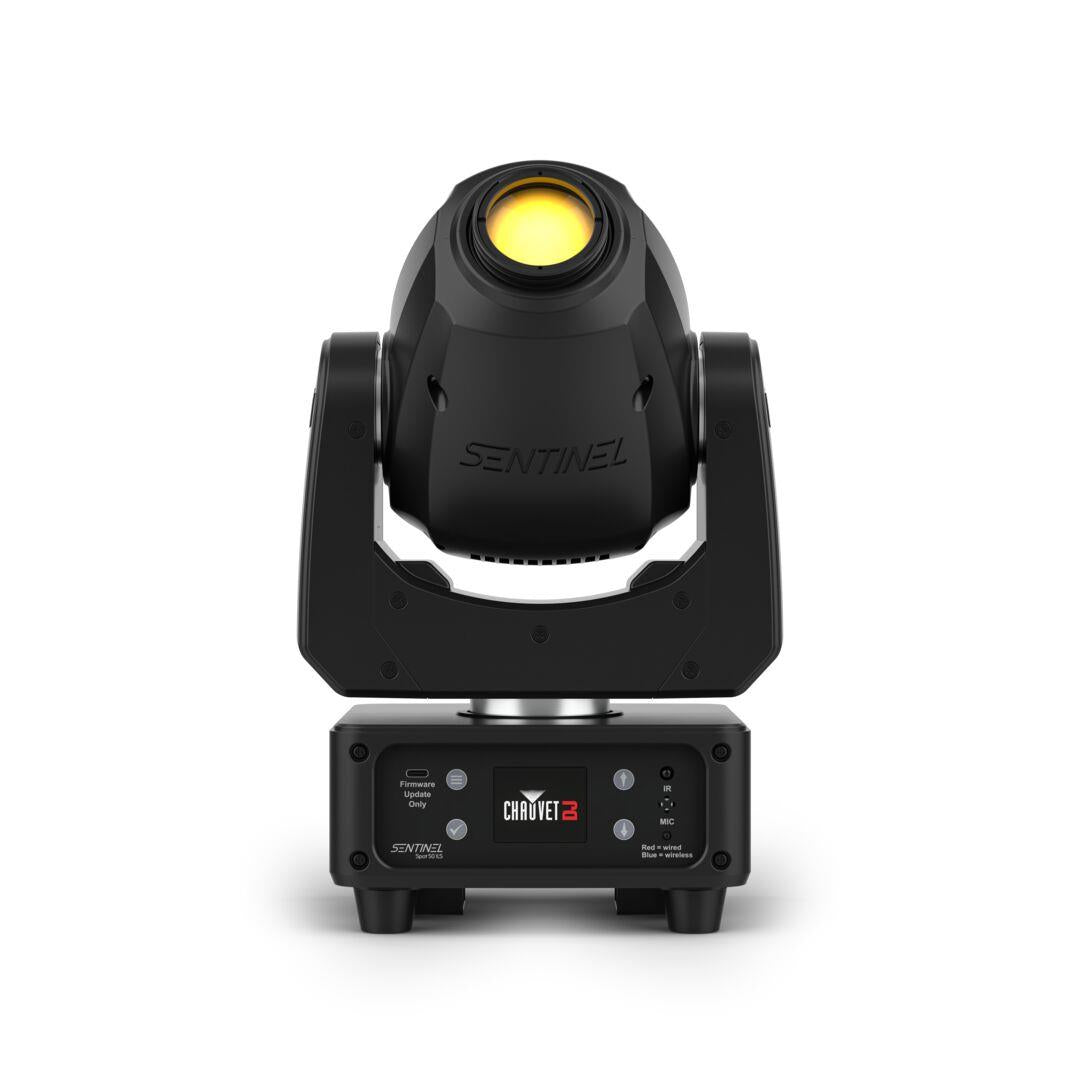

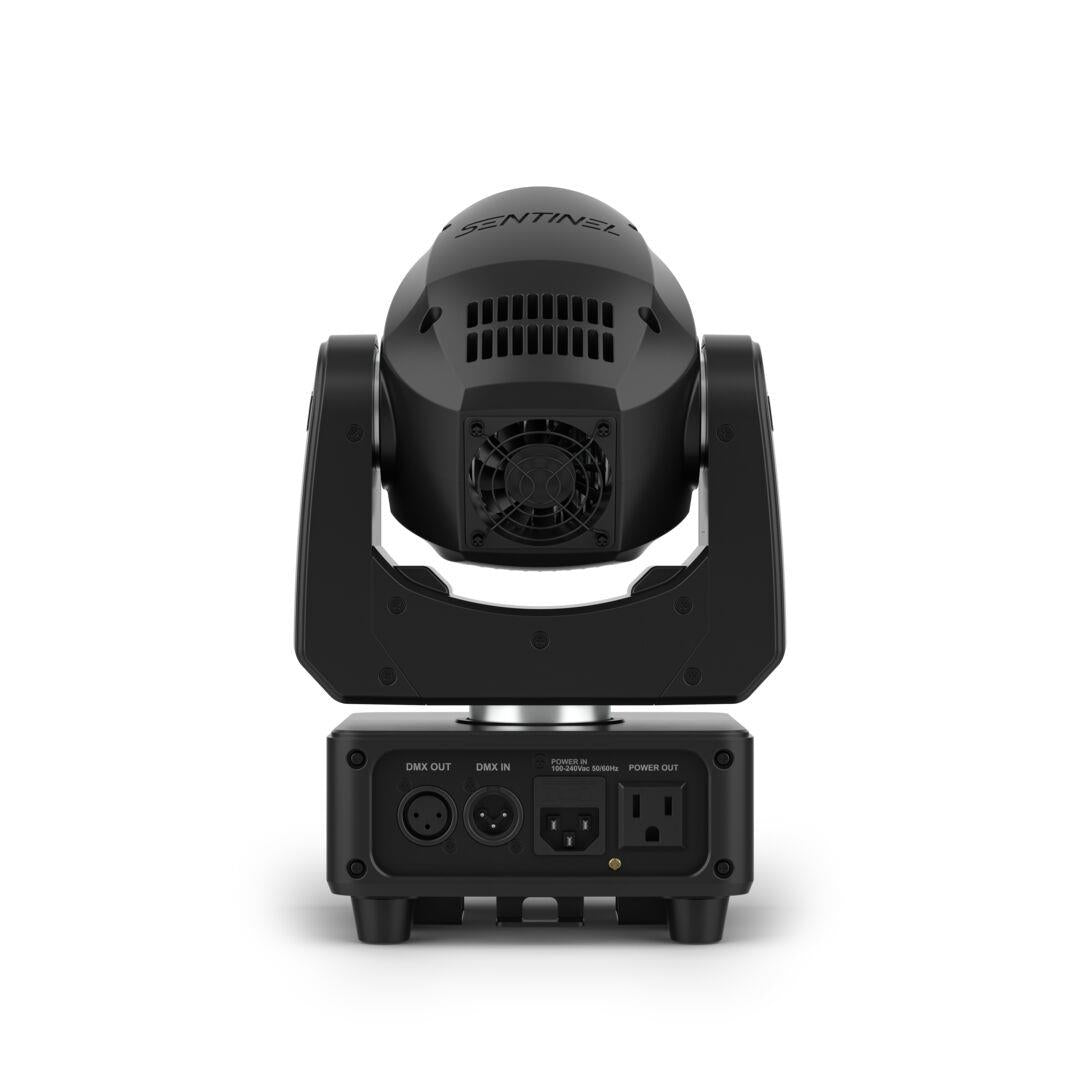

Chauvet DJ SENTINEL SPOT 50 ILS Moving Head

Description

The Chauvet DJ Sentinel Spot 50 ILS is a compact, feature-packed 50W LED moving head designed for mobile DJs, entertainers and live performances. Producing sharp, vibrant lighting effects with a 16° beam angle, nine colours and nine gobos, this versatile fixture is ideal for creating dynamic dance floor lighting and professional-looking shows.

Featuring a built-in DFI transceiver, the Sentinel Spot 50 ILS supports wireless DMX and ILS communication, reducing the need for complicated signal cabling. Full compatibility with the Chauvet DJ ILS ecosystem allows the fixture to integrate into coordinated lighting setups, while Totem Mode keeps the moving head focused on the dance floor. With 540° pan and 229° tilt movement, variable-speed colour and gobo scrolling, and strobe effects, it offers excellent creative flexibility.

Designed for convenience and portability, the Sentinel Spot 50 ILS features a full-colour LCD display for quick access to settings and functions. Power linking allows multiple fixtures to operate from a single power connection, reducing setup time and cable clutter. Its lightweight 4kg construction makes it ideal for mobile applications, and it fits into the optional Chauvet DJ CHS-40 VIP Gear Bag for easy transportation.

Features

Powerful 50W LED moving head designed for mobile DJs and live performances

Built-in DFI transceiver for wireless DMX and ILS communication

Compatible with the Chauvet DJ ILS lighting ecosystem

Nine colours plus open with split-colour effects and variable-speed scrolling

Nine aluminium gobos plus open with continuous variable-speed scrolling

16° beam angle for focused lighting effects

540° pan and 229° tilt movement for versatile coverage

Totem Mode keeps lighting effects focused on the dance floor

Full-colour LCD display for easy navigation and configuration

5 or 11-channel DMX operation

Adjustable strobe effects from 0 to 20Hz

Power linking capability for connecting multiple fixtures

Compatible with optional IRC and ILS Command controllers

Compact, lightweight design weighing just 4kg

Fits the optional CHS-40 VIP Gear Bag

Specifications

Fixture Type : LED Moving Head Spot

Light Source : 1 x 50W LED (11,000K, 3A)

LED Life Expectancy : 50,000 Hours

Beam Angle : 16°

Luminous Output : 1,888 Lumens

Illuminance : 8,575 Lux @ 2m

Colours : 9 + Open, Split Colours, Variable-Speed Continuous Scroll

Gobos : 9 Aluminium Gobos + Open, Variable-Speed Continuous Scroll

DMX Channels : 5 or 11

DMX Connectors : 3-Pin XLR

Wireless Control : Built-In DFI Transceiver for DMX or ILS

Pan Range : 180°, 360° or 540°

Tilt Range : 90°, 180° or 229°

Maximum Pan/Tilt : 540° / 229°

Strobe Rate : 0–20Hz

Power Linking : Up to 12 Units @ 230V / 8 Units @ 120V

Input Voltage : 100–240V AC, 50/60Hz (Auto-Ranging)

Power Consumption : 68W

Current : 0.7A @ 230V, 50Hz / 1.3A @ 120V, 60Hz

Cable Length : 1.52m

Bracket Mounting Hole : M12

Dimensions : 261 x 156 x 319mm

Weight : 4kg

Optional Controllers : IRC, ILS Command

Compatible Carry Bag : Chauvet DJ CHS-40 VIP Gear Bag

Certifications : CE, RoHS
