Chauvet DJ Shocker Panel FX IP Outdoor IP65 Strobe Wash Blinder

Description

The Shocker Panel FX IP is a versatile outdoor-rated lighting fixture designed to deliver powerful blinder, wash, and strobe effects from a compact IP65-rated housing. Combining 480 RGB LEDs with a segmented cool white LED strip, this fixture creates vibrant colour washes, intense strobes, and eye-catching animated effects suitable for concerts, festivals, stage productions, and outdoor events.

Its 16 controllable LED sections allow detailed effect programming and dynamic movement patterns, while built-in macros provide fast access to impressive looks without complex setup. Designed for demanding environments, the rugged housing features an integrated GORE valve to prevent internal moisture build-up, along with Neutrik TRUE1 power connections for secure and weather-resistant linking between fixtures.

Features

Outdoor-rated blinder, wash, and strobe fixture with IP65 protection
480 RGB LEDs combined with a cool white segmented strobe strip
16 individually controllable sections for advanced programming effects
8 RGB sections plus 8 cool white sections
Bright wash, blinder, and animated eye candy effects from one fixture
Built-in macros accessible via DMX or onboard display
Touch-sensitive digital display with password protection

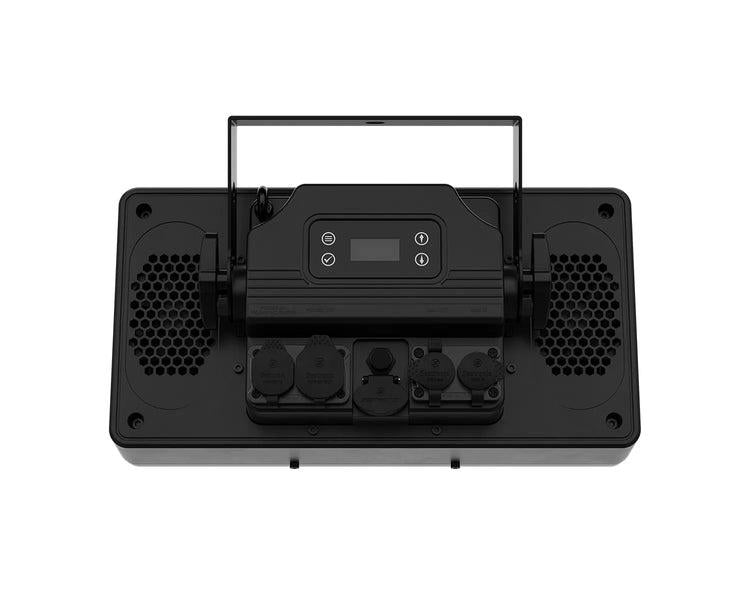

Neutrik TRUE1 power input and output connections
Integrated GORE valve helps prevent internal humidity build-up
Suitable for indoor and outdoor applications
Power linking capability for multiple fixtures
Optional CHS-25 VIP carry bag available for transport

Specifications

Power supply: 100–240 V AC, 50/60 Hz auto-ranging
Power consumption: 238 W
Power and current: 238 W, 2 A @ 120 V, 60 Hz / 231 W, 1 A @ 230 V, 50 Hz
Light source: 480 x 2 W RGB LEDs and 32 x 1.8 W cool white LEDs
LED lifespan: 50000 hours
DMX channels: 8, 18, 34, or 47 selectable
DMX connections: 3-pin XLR
Beam angle: 119°
Field angle: 158°
Strobe rate: 0 – 20 Hz
Illuminance: 1131 lux @ 2 m
Lumens: 13626
Control modes: DMX and stand-alone with built-in macros
IP rating: IP65
Power linking: 6 units @ 120 V, 11 units @ 230 V
Maximum output current: 12 A
Display: Touch-sensitive digital display
Cooling: Passive cooling with integrated GORE valve system
Housing: Rugged IP-rated enclosure
Approvals: CE, ROHS, MET
Startup temperature: -20 °C to 45 °C
Operating temperature: -30 °C to 45 °C
Cable length: 1.5 m
Dimensions (W x D x H): 330 x 130 x 173 mm
Weight: 4.7 kg
