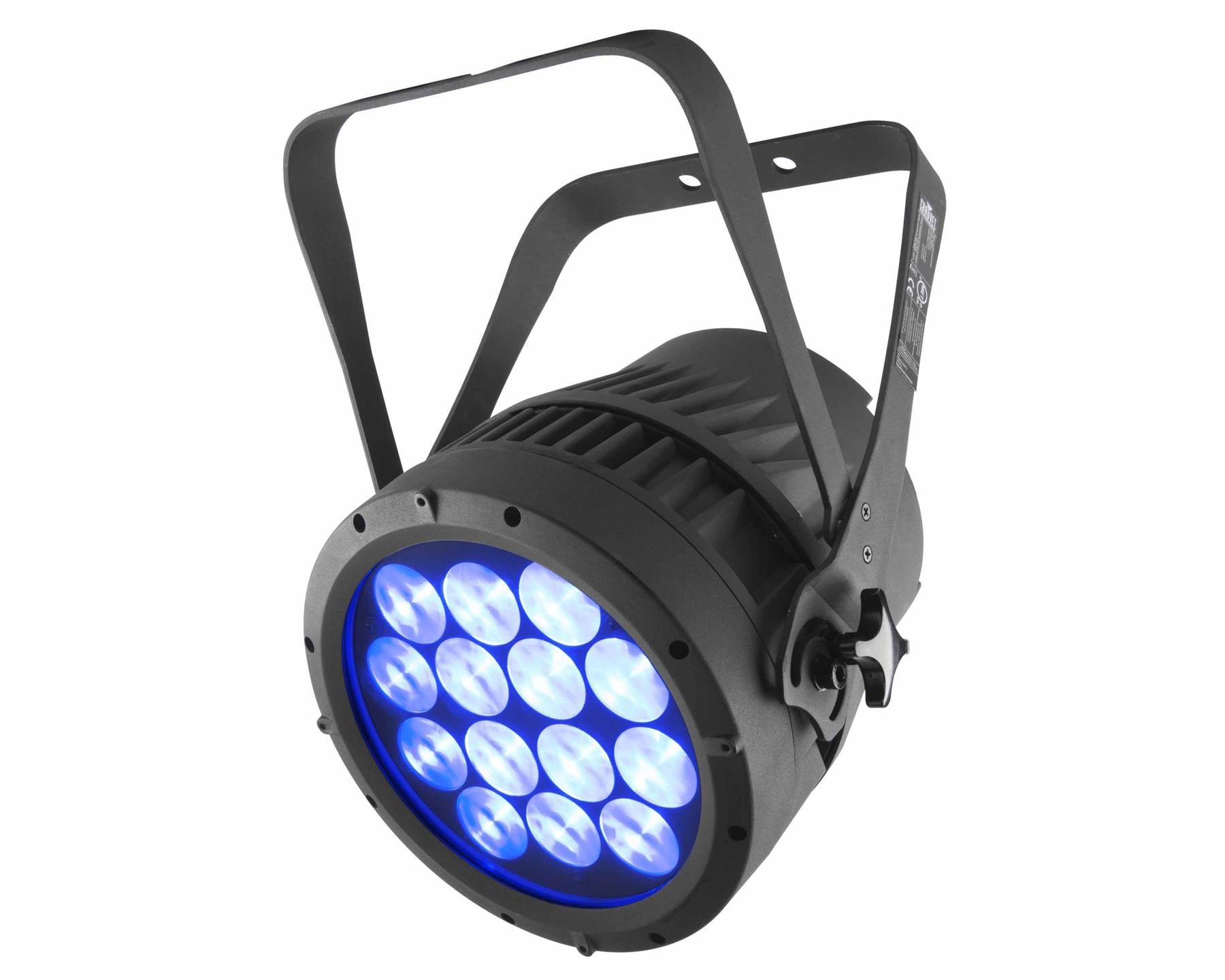

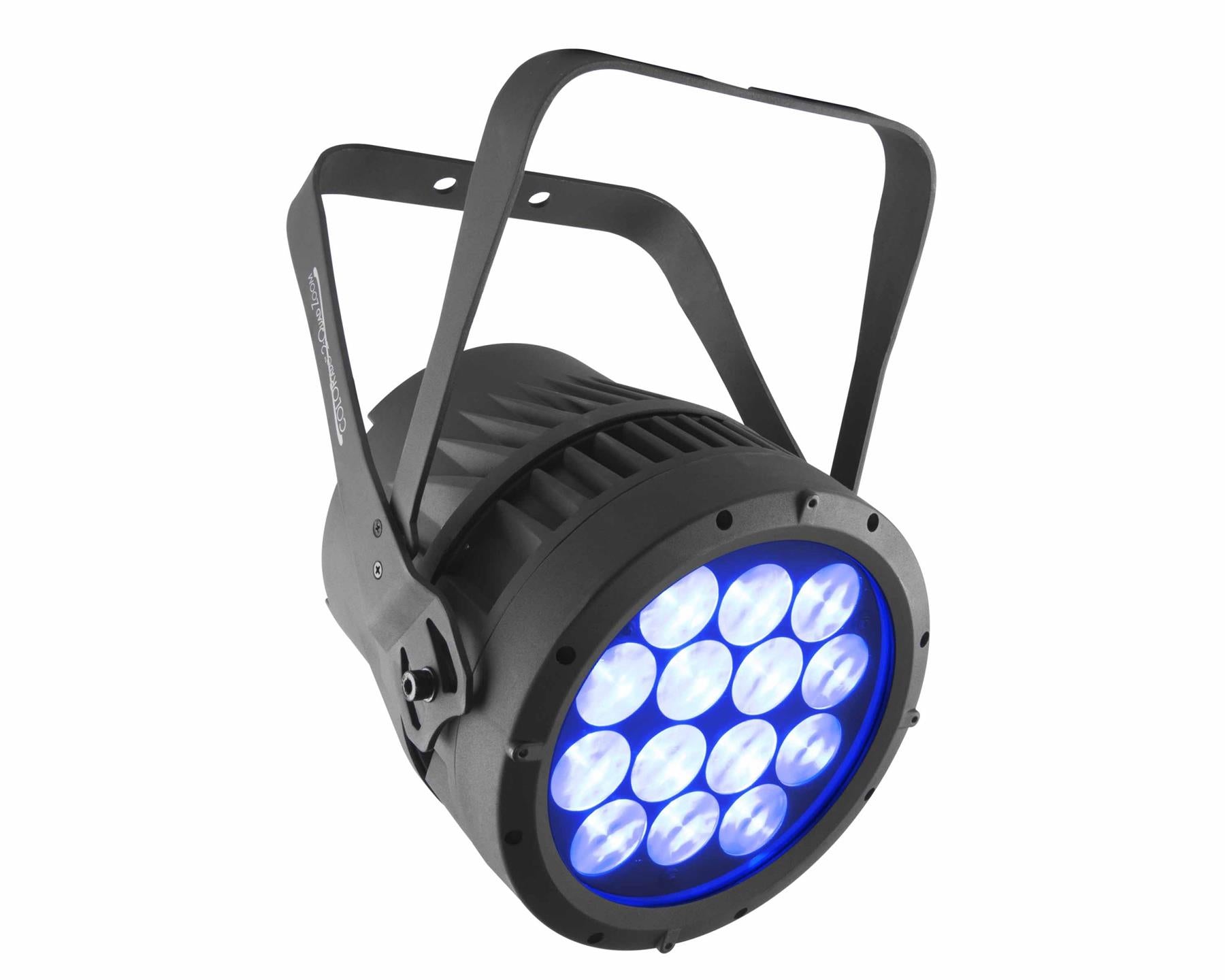

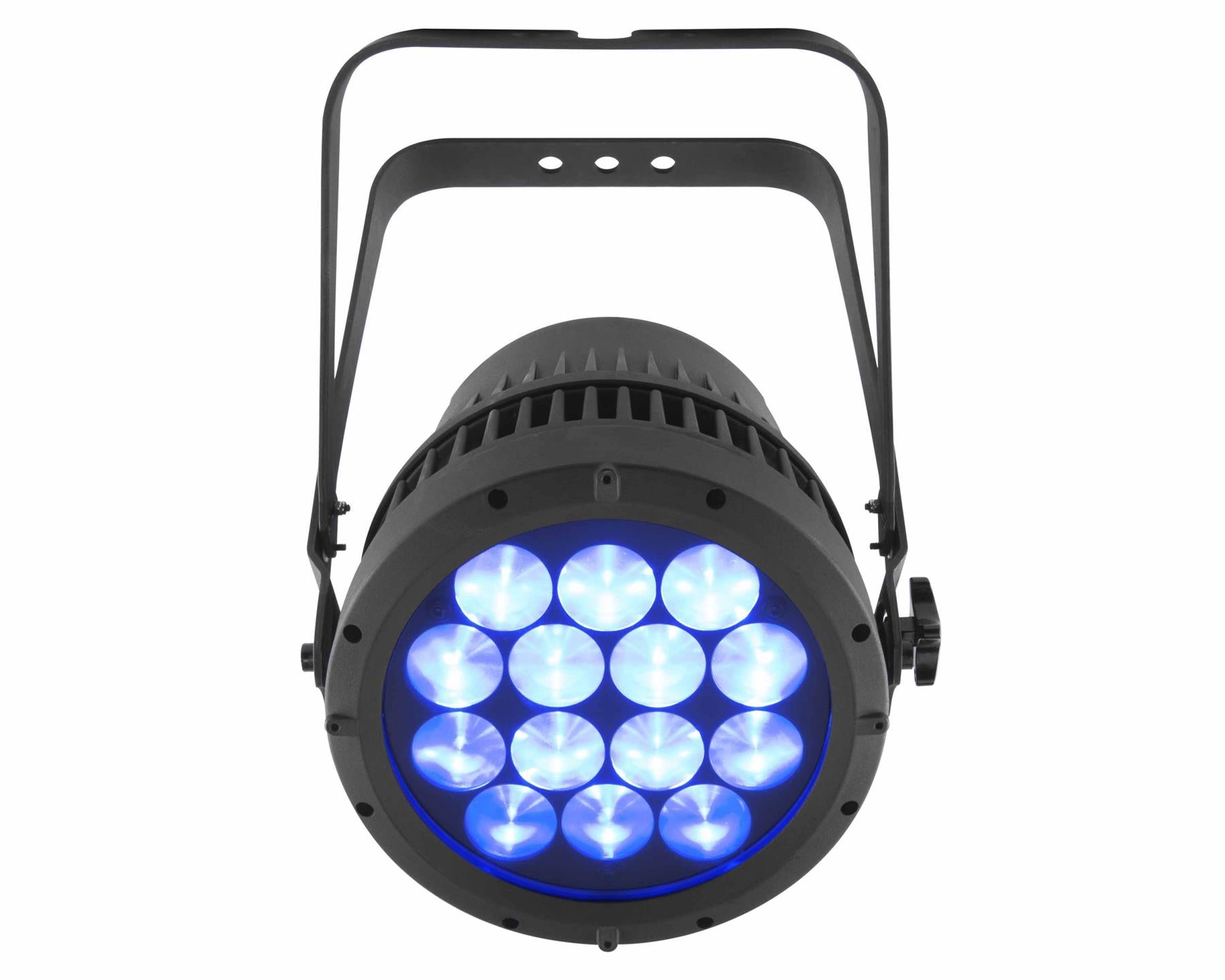

Chauvet Professional COLORado 2-Quad Zoom RGBW LED Wash Fixture (IP65 rated)

Description:

Chauvet Professional - COLORado 2 Quad Zoom RGBW IP65 Rated LED Wash Fixture

Colorado 2-Quad Zoom from Chauvet Professional is a solid indoor/outdoor wash light featuring 14 bright quad-colored Osram (RGBW) LEDs and a 14° to 44° zoom. Selectable dimming curves facilitate its integration into an existing rig. This excellent LED wash light maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. IP rated power and data connectors allows for easy connections without the need for proprietary cabling.

Features:

RGBW colour mixing via DMX or manually
Zoom control via DMX or manually
Colour temperature presets 3,200 to 10,000 K
Built-in auto and custom programs recalled via DMX and Master/Slave
16-bit dimming of individual colors as well as master dimmer
Selectable, smooth dimming curves for programming versatility
Colour macros with included speed adjustment
Double-bracketed yoke doubles as a floor stand
All environment operation with IP rated power and DMX connections

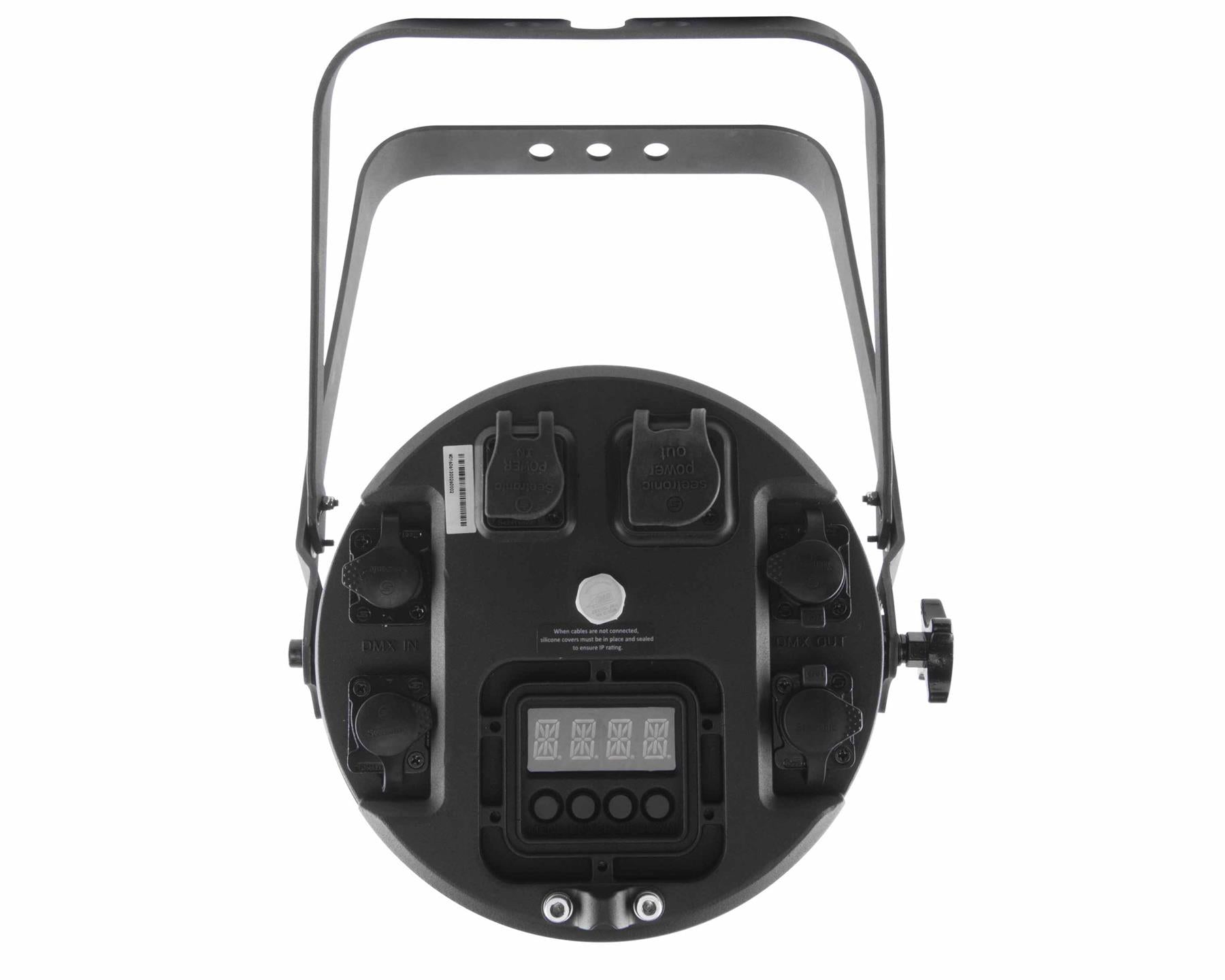

3- and 5-pin DMX input/output connections
LED display with password protection

Specifications:

General
OPTICALLight Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle: 7° to 29°
Field Angle: 14° to 44°Zoom Angle: 14° to 44°
Illuminance (14°): 7,180 lux @ 5 m
Illuminance (44°): 737 lux @ 5 m
PWM Frequency: 1,200 Hz
DYNAMIC EFFECTSColor Macros: 20 macros
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
CONNECTIONSPower Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROLControl Protocol: DMX
DMX Channels: 3, 4, 5, 6, 7, 12 or 17
Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)
ELECTRICALInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
Power and Current: 220 W, 1.82 A @ 120 V, 60 Hz
Power and Current: 225 W, 1.08 A @ 208 V, 60 Hz
Power and Current: 228 W, 0.98 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS CE, MET
IP Rating: IP65, temporary outdoor/wet use
Physical & Dimensions
Diameter: 236mm
With: 284mm inc. bracket
Depth: 330mm
Weight: 8.6kg
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 229mm
